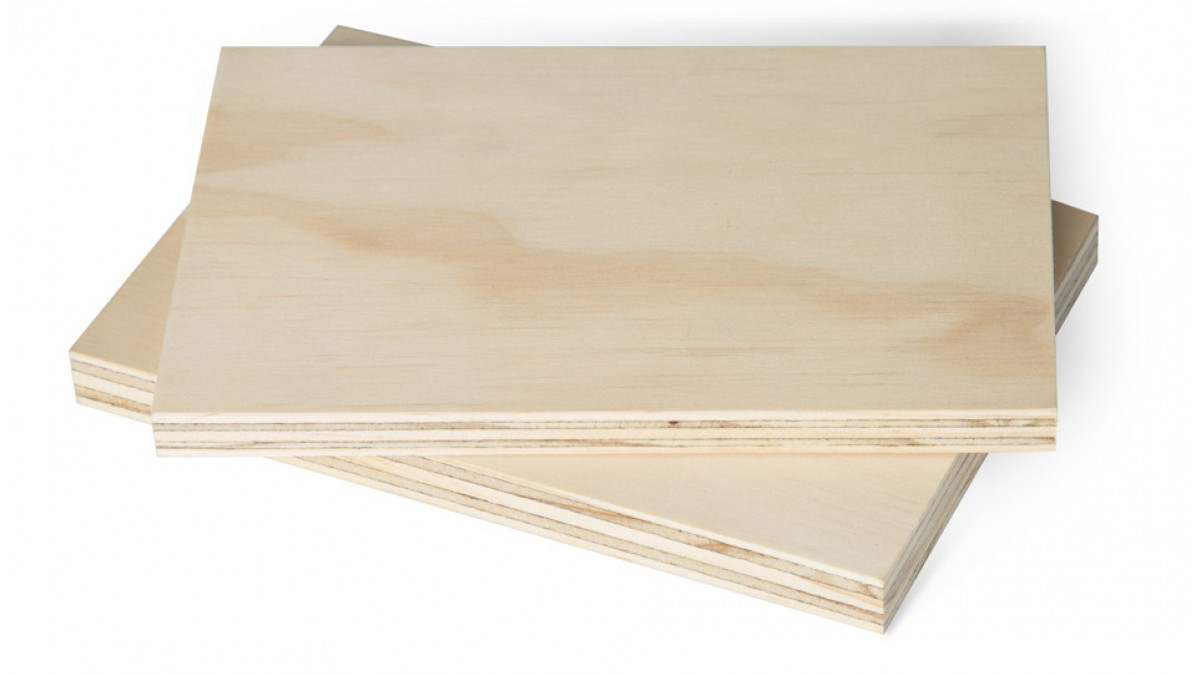

Radiata Structural
Description

Manufactured using only renewable plantation grown NZ Radiata Pine and meets NZ Building Codes according to AS/NZS 2269.

General purpose construction plywood. Available in different appearance grades depending on the application.

Available both untreated and treated.

Key Features
  • Radiata Decorative is pale-yellow to pinkish-brown in colour with a figured grain and uniform texture.
  • Dimensions: 2400 x 1200mm (Length x Width): 4mm/3ply, 7mm/3ply, 9mm/3ply, 12mm/5ply, 15mm/5ply, 17mm/7ply, 19mm/9ply, 21mm/9ply, 25mm/11ply

Grades:

  • A grade – top quality clear veneer with only extremely minor filled splits
  • S grade – selected decorative clear veneer with minor filled splits and small filled holes
  • C grade – sanded veneer face allowing for small sound knots and filled knots and splits
  • D grade – Unsanded veneer face allowing for open defects. Non-appearance grade
FSC Certified
FSC Certified
Scope of Use
  • Structural applications for residential, commercial and industrial construction
  • Farm buildings and other agricultural uses
  • Bracing, cladding, internal panelling, flooring and roofing
  • Packaging, joinery, furniture
Other Performance Attributes

Environment:

  • FSC Certified
  • E0: No harmful emissions.

Preservative Treatment:

  • H3.1 LOSP – Light Oil Solvent Preservative treatment in accordance with AS/NZS 1604.3. Clear treatment designed for appearance grade plywood. (A and S Grades)
  • H3.2 CCA – Copper Chrome Arsenate treatment in accordance with AS/NZS 1604.3. Green in appearance. (C and D Grades)

Technical Specifications:

  • Standard – AS/NZS 2269
  • Wood Raw Material – Pinus Radiata
  • Density – average 500kg/m3
  • Class – Softwood, non-durable
  • Glue Bond – A Bond Exterior
  • Glue Formaldehyde Emissions E0 < 0.3mg/L
  • (AS/NZS 2098.11).
Documents
Radiata Structural
Environmental Information
EWPAA Accreditation
FSC Accreditation
Warranty

Plytech are New Zealand’s plywood specialists, offering the very latest and most comprehensive range of plywood, and are proud to be PEFC certified.
