Hot Dip Galvanising — Beams & Piles
Description

Perry Metal Protection offer Hot Dip Galvanising of steel UB beams suitable for a variety of applications including as an alternative to wooden piles. Galvanising Steel is widely used in applications where corrosion resistance is needed without the additional cost of on-site painting and expensive touch-ups caused by installation.

Batch hot dip galvanising provides Corrosion protection of steel by providing a thick, metallic envelope which completely covers the steel and seals it from the corrosive action of the environment. Metallic Zinc is strongly resistant to the corrosive action of normal environments and hot dip galvanising therefore provides long term protection for steel.

Key Features
  • Steel beams up to 18 metres long
  • UB steel beams are smaller in profile compared to wooden piles
  • Proven life cycles before first maintenance, as per 2312 standard guide to the protection of structural steel corrosion against atmospheric corrosion by use of protective coating
  • Thicker coatings, paint systems over galvanising and an architectural finish can be achieved if Perry Metal Protection are consulted during the design phase
Scope of Use

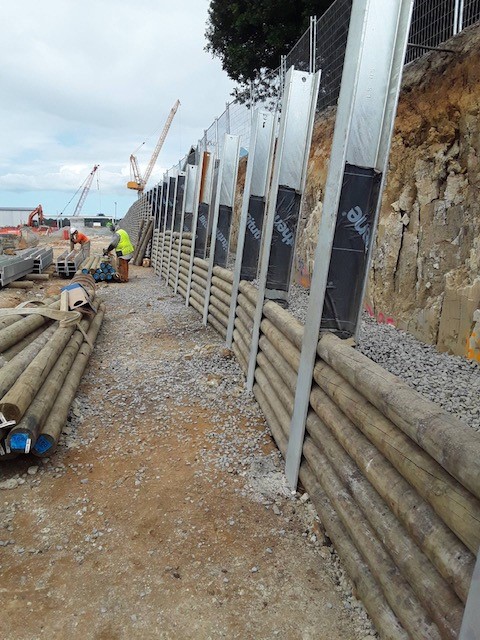

  • Structural and retaining applications

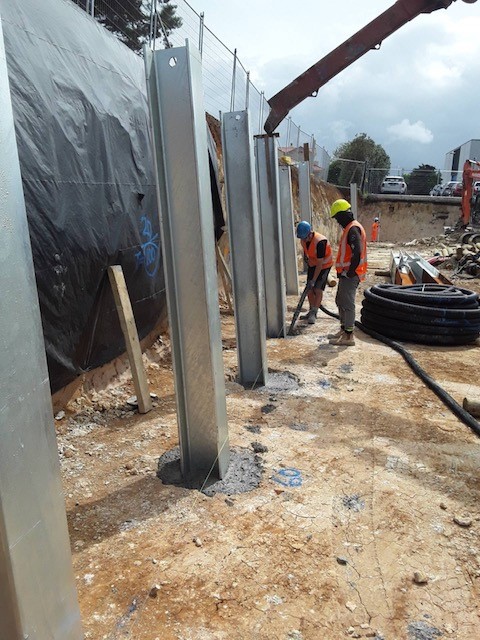

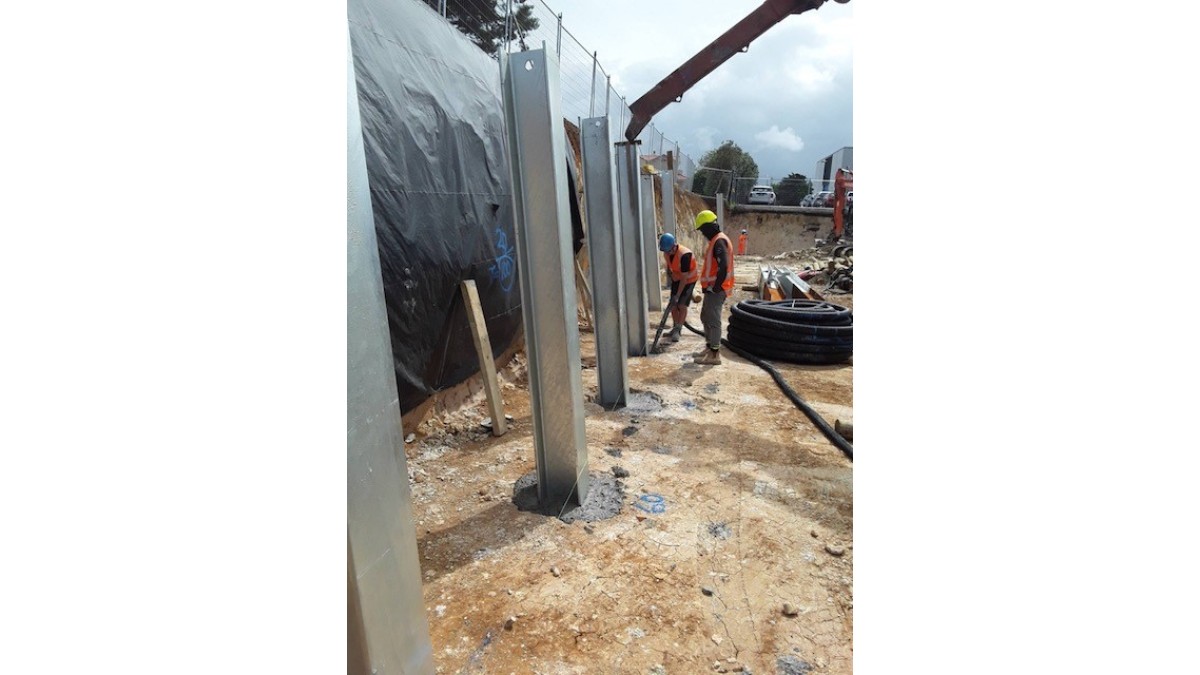

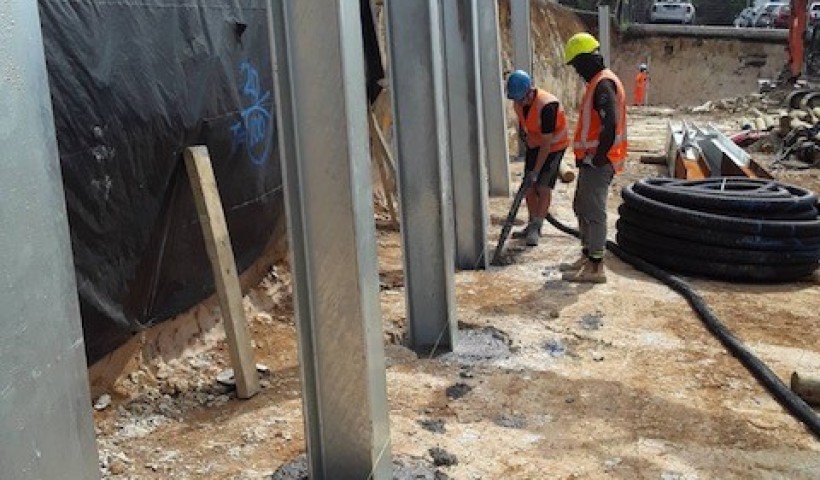

  • Alternative to wooden piles — smaller profile
  • Steel beams up to 18 metres long
  • High Corrosion zone suitable with HDG 900 specification options and available duplex coatings

Locations and Bath Sizes:

  • Auckland: 5.0L x 1.35W x 2.4D
  • Hamilton: 9.5L x 1.6W x 2.8D
  • Wellington: 7.0L x 1.3W x 2.4D
  • Christchurch: 7.0L x 1.3W x 2.4D
  • Tauranga: depot only
Statement of Building Code Compliance
  • Perry Metal Protection is ISO 9000 certified and follows the worldwide practises concerning operating galvanising plants
  • Batch hot dip galvanising is a proven steel corrosion protection system with proven data as per the 2312 standard and the AS/NZ 4680 standard
In-Service History
  • New Zealand's largest and only ISO 9001 certified hot dip galvaniser
  • Perry Metal Protection have been galvanising steel in New Zealand since 1974
  • A long time proven solution to protecting steel from atmospheric corrosion
Other Performance Attributes
  • Standard 15 year warranty
  • 'Life before first maintenance' — see Specifying Hot Dip Galvanising Guide
Documents
Design Guide
Design Principles
Specification Clause/Guide
Specifying Hot Dip Galvanising
Coating Selection Process

Perry Metal Protection operates sites in Auckland, Hamilton, Wellington and Christchurch which offer highly efficient galvanising facilities, as well as a collection depot in Tauranga.

Product Enquiries

News from Perry Metal Protection

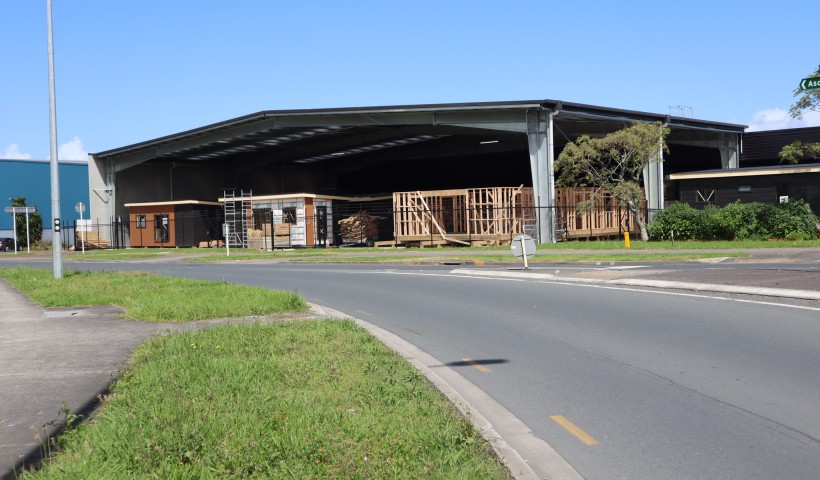

Galvanising Ensures a More Resilient Structure for Prefab Factory
Galvanising Steel Retaining Walls: Maximum Value in Greenfield Developments

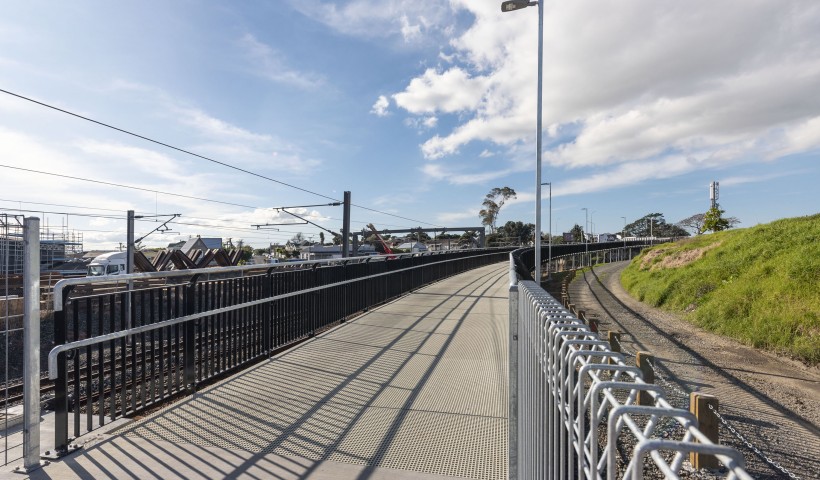

How Galvanising Kept the NL2A Shared Pathway on Track
