Description

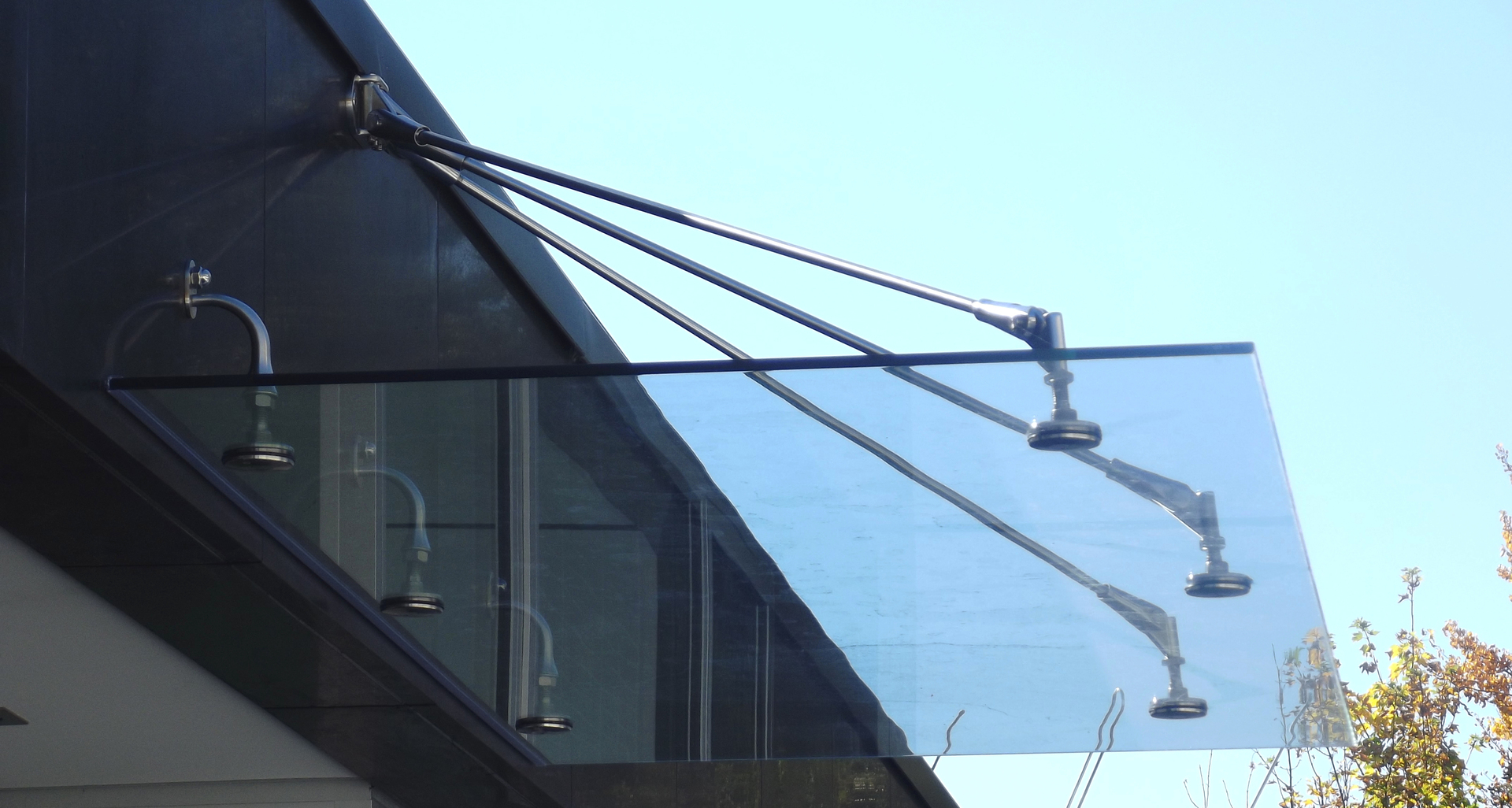

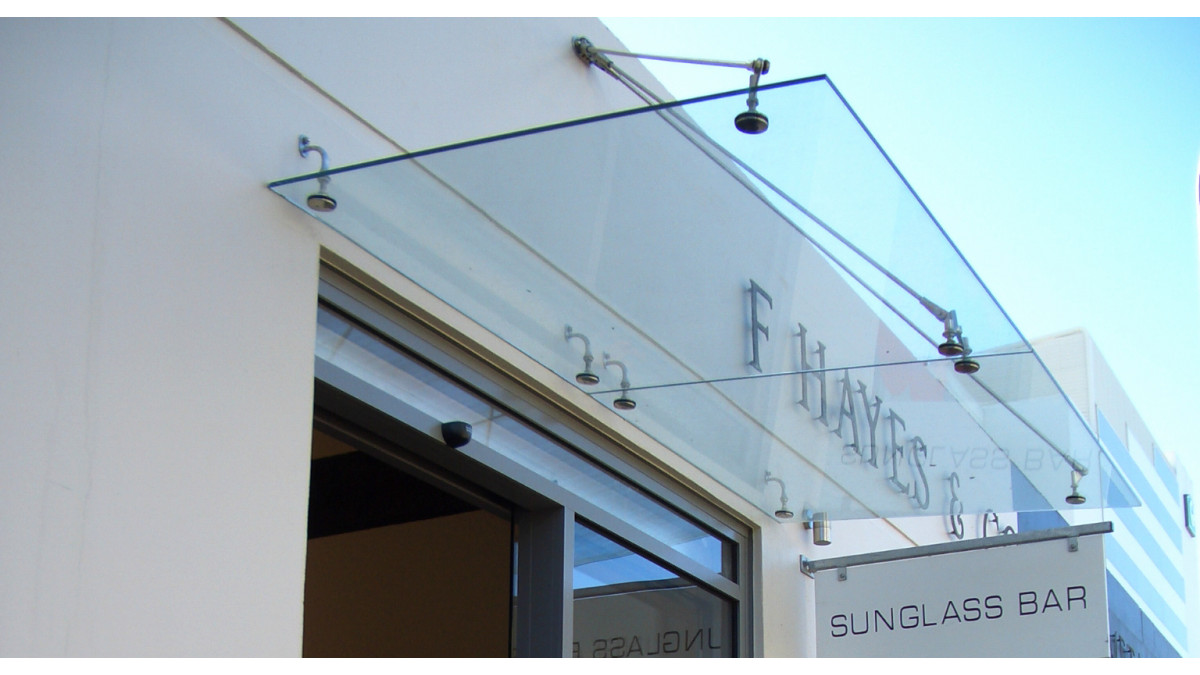

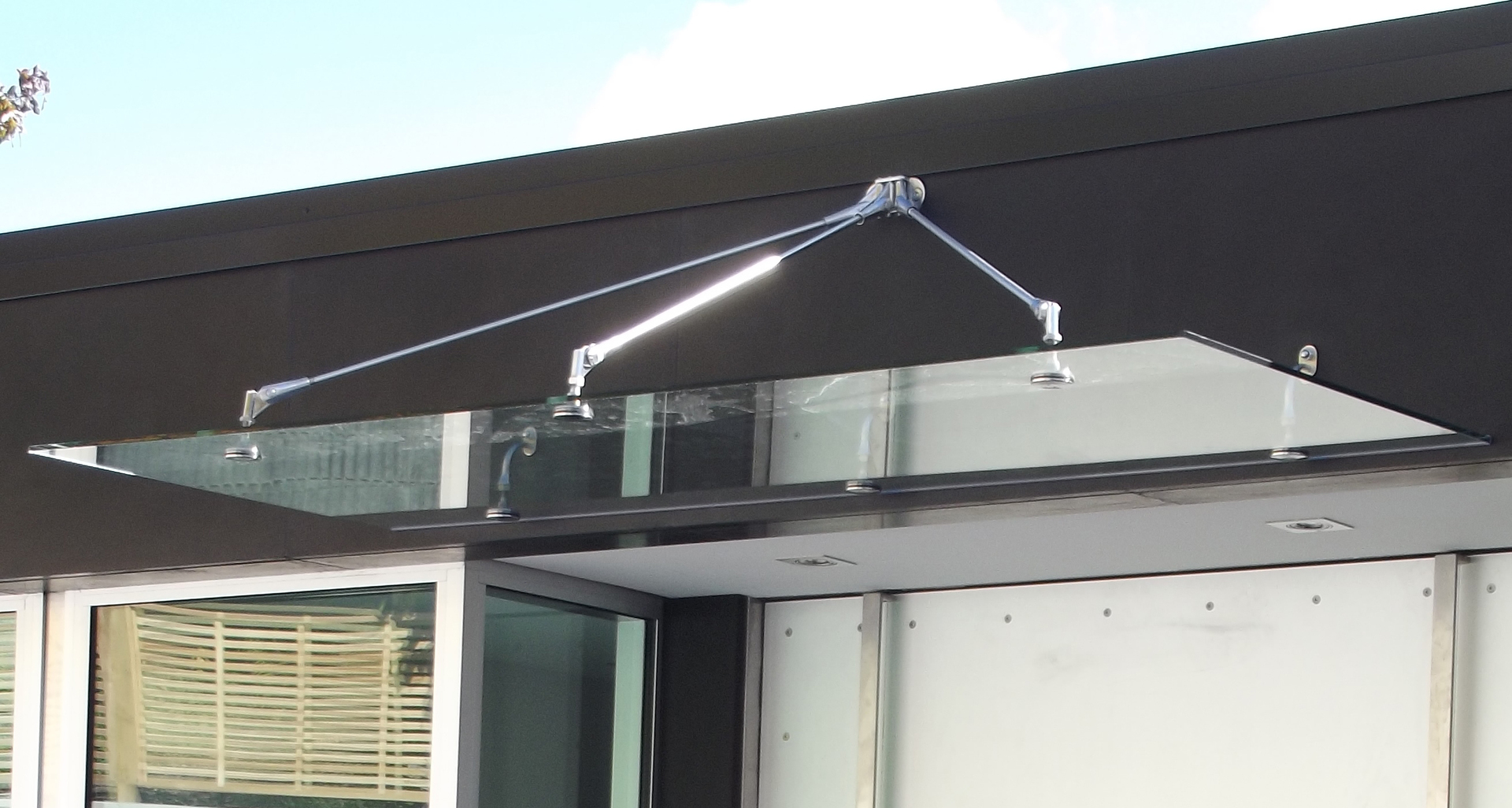

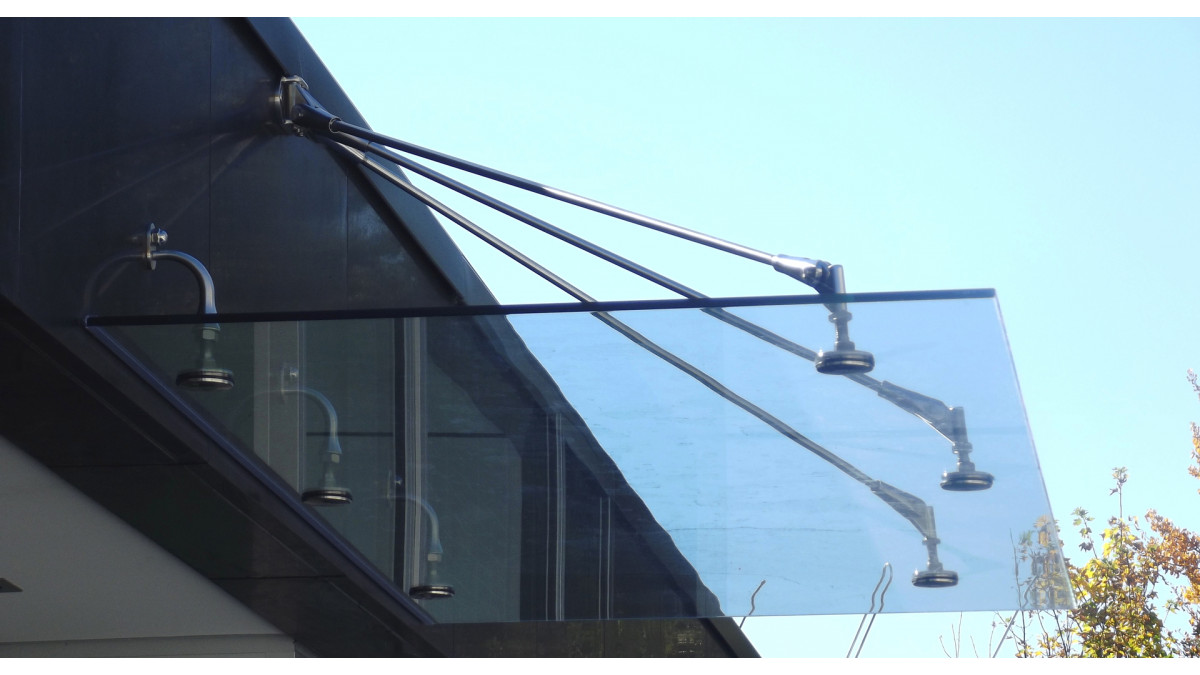

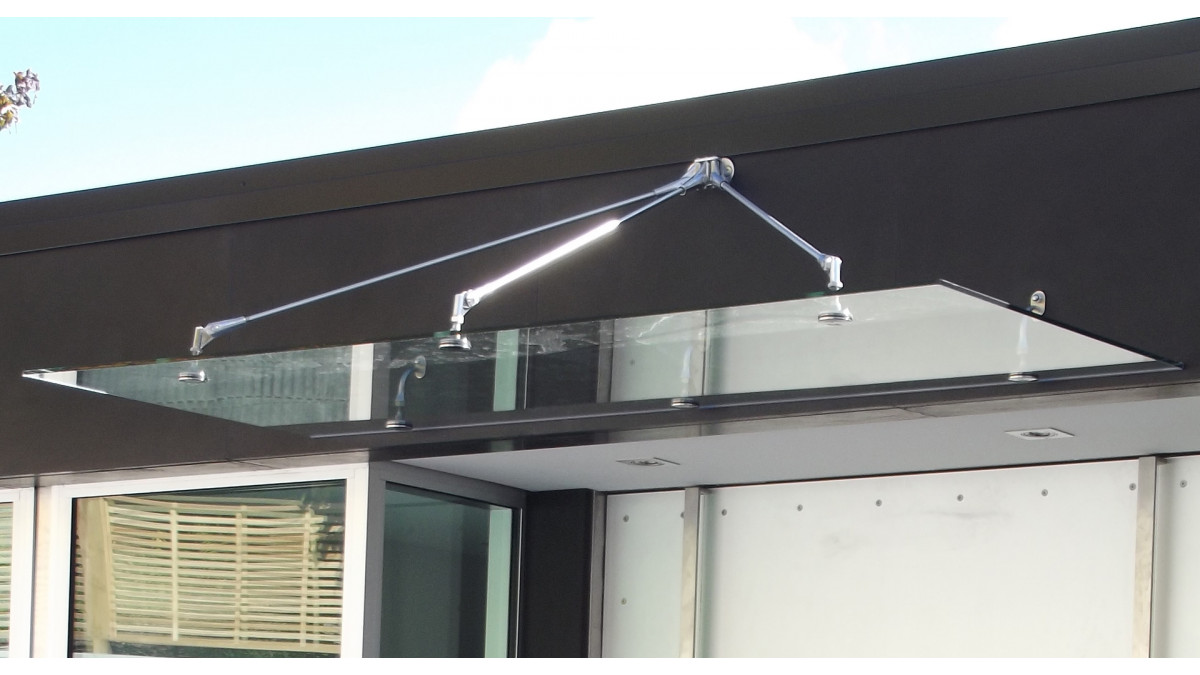

The Austvision TieRod Canopy System was designed and developed for residential and commercial entrances with a strong emphasis on simplicity in design and ease of installation.

Standard designs:

C1 – one pane – two tie rods
C2 – two panes – three tie rods
C3 – three panes – four tie rods – two sets
C4 – four panes – four tie rods – three sets.

Custom designs are also available on request.

Key Features

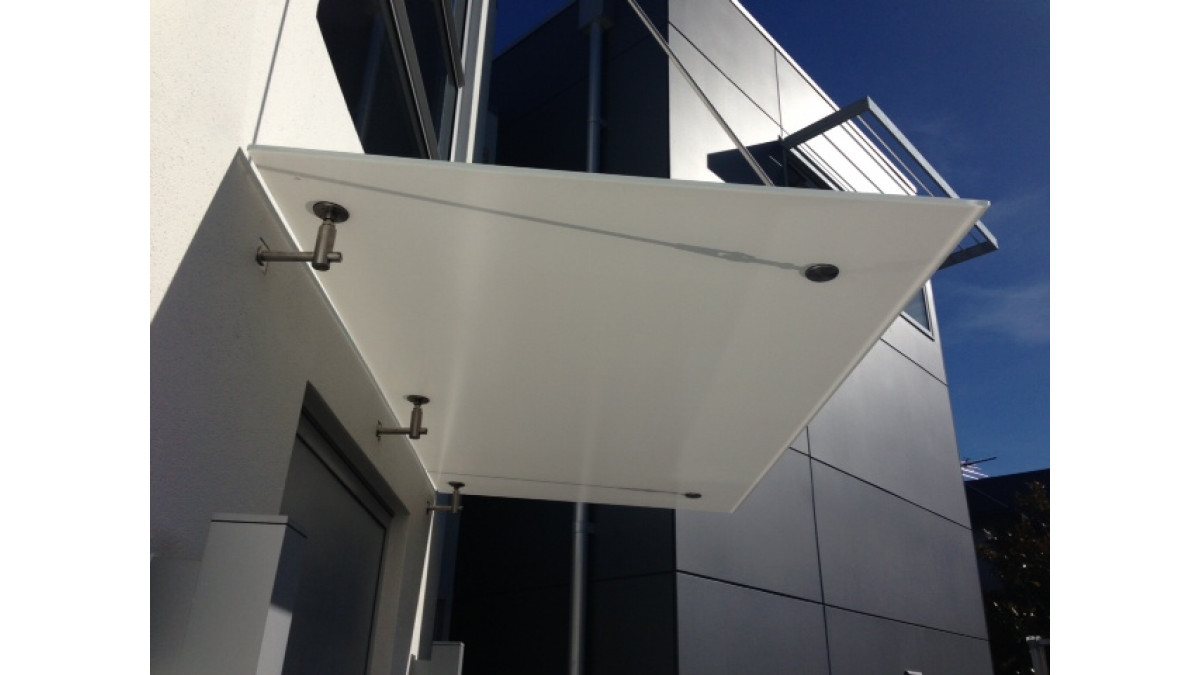

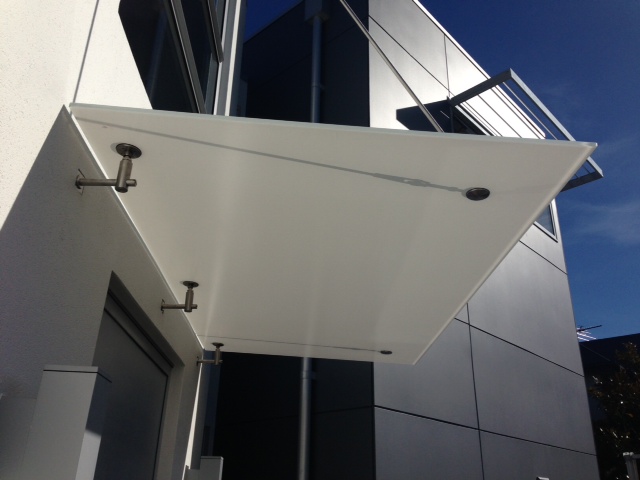

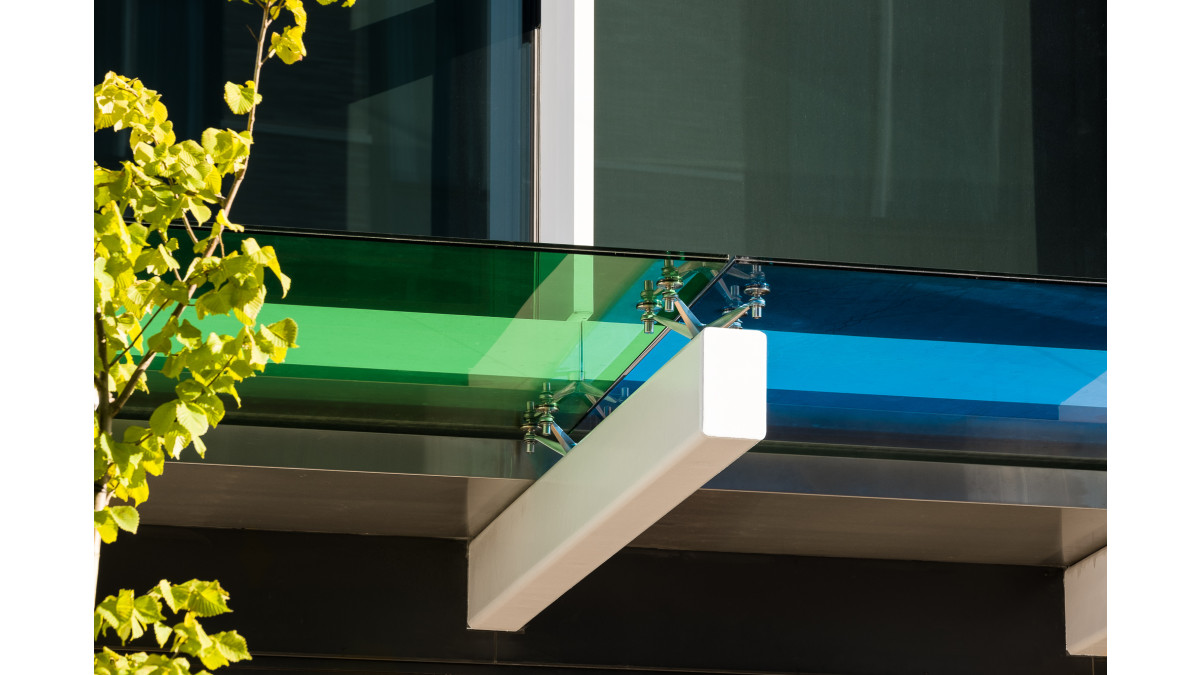

All Tie Rod canopy systems use 60/22-22n M14 articulated swivel glass connectors or Fixed Point FP60 M10 disc fittings. The 60/22-22n swivel glass connectors are designed with 5° rotation in any direction to reduce the stress around the glass hole compared to conventional fixed connectors. All fittings are 316 marine grade stainless steel, in satin and polished finish.

Product features:

Easy to measure and install
Suitable for 10mm to 19mm TSG
Suitable for 11.5mm to 22mm TLSG
Good corrosion resistance
Simple frameless look.
