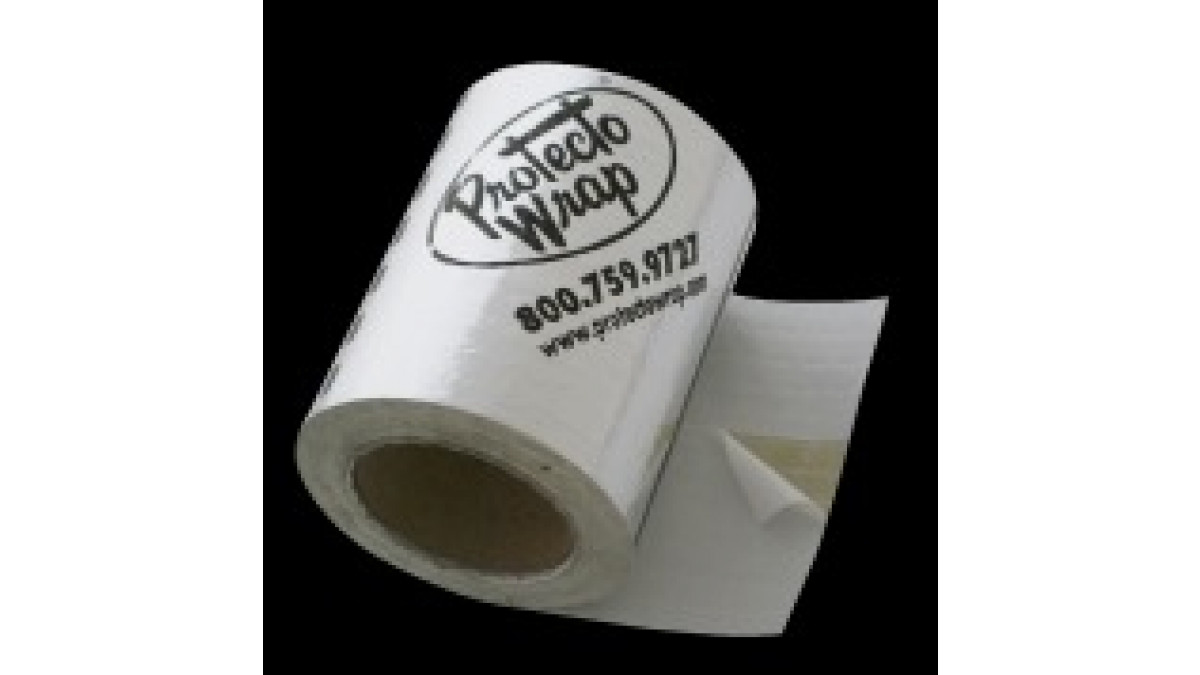

SUPER-STICK Flashing Tape
Description

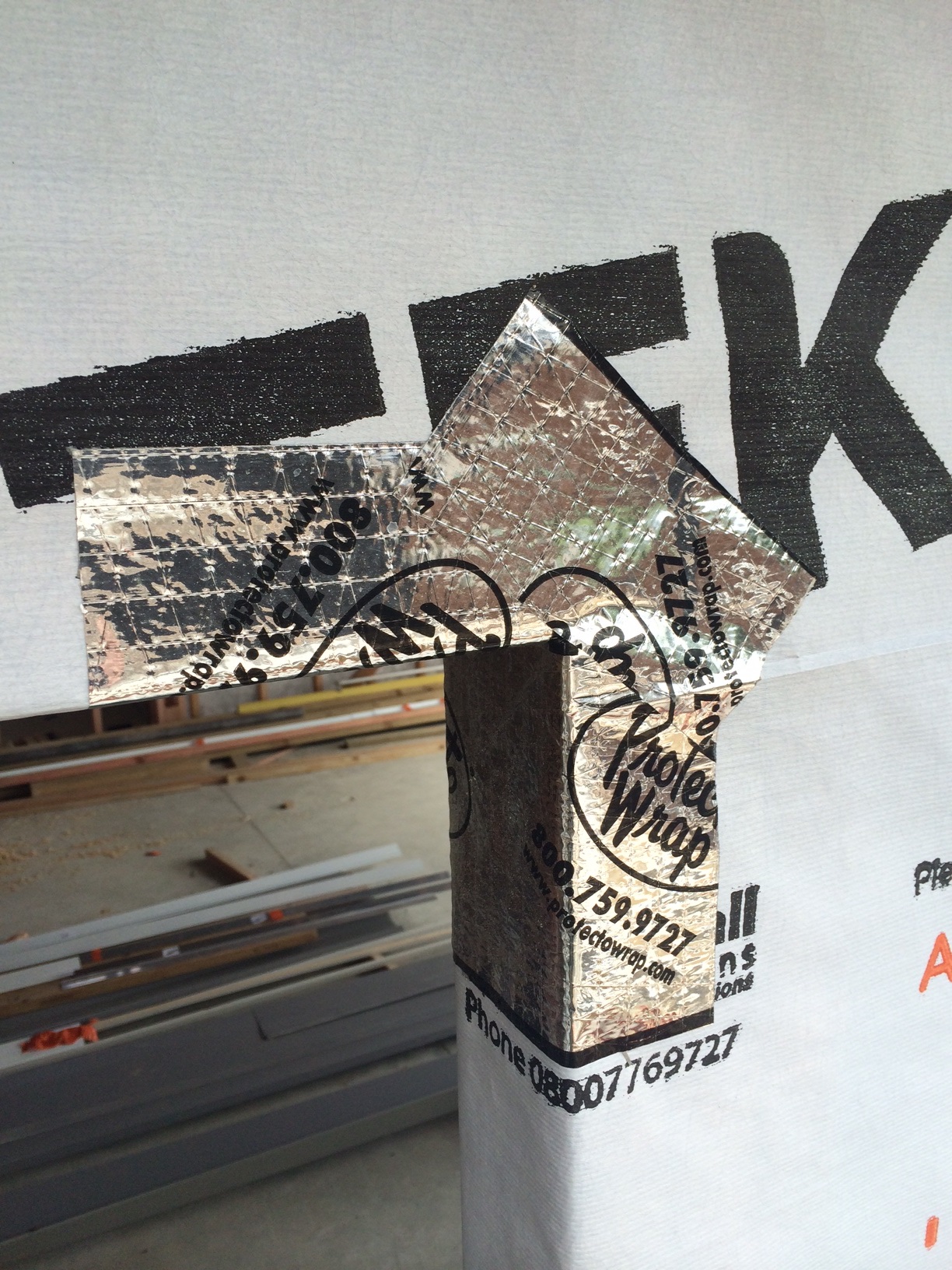

SUPER-STICK is a flexible flashing tape used around framed joinery openings as a secondary weather resistant barrier. SUPER-STICK is installed into and around the framed joinery opening over the building wrap and exposed frame to cover both the face and edge of the opening framing. SUPER-STICK is also used at joinery heads to seal flashing up-stands to the building wrap.

Key Features
  • Adheres to damp surfaces
  • Easy to install peel and stick application
  • UV resistant rating for 90 days
  • Compatible with most sealants, check suitability with sealant manufacturers

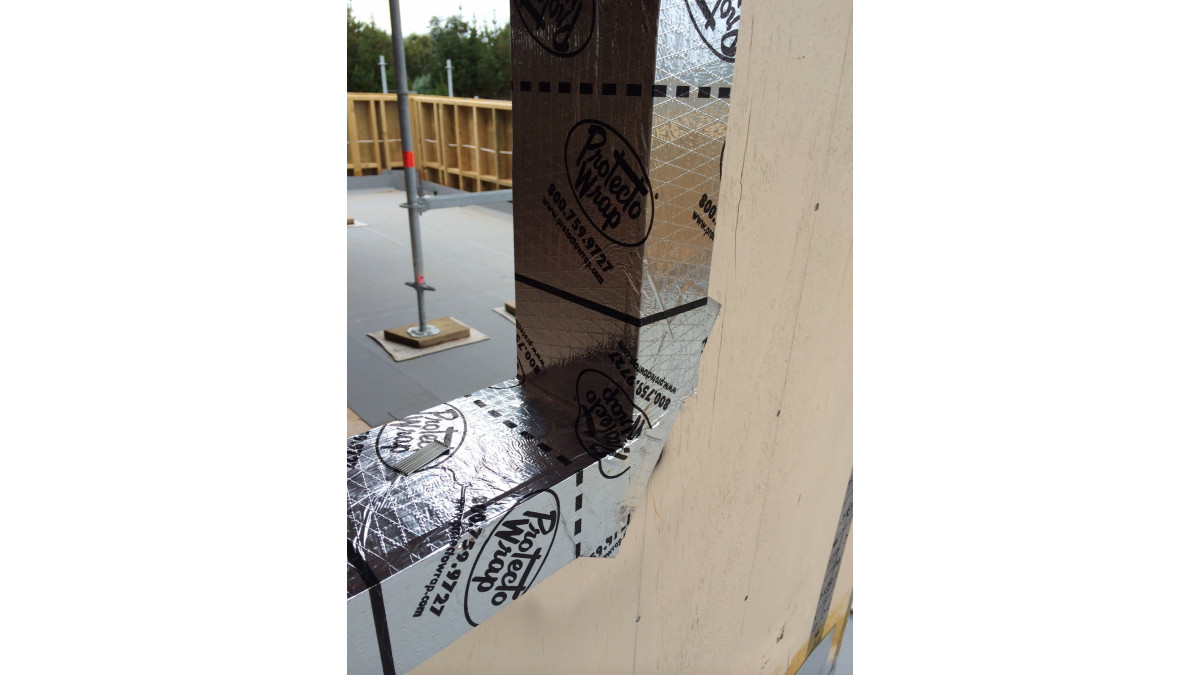

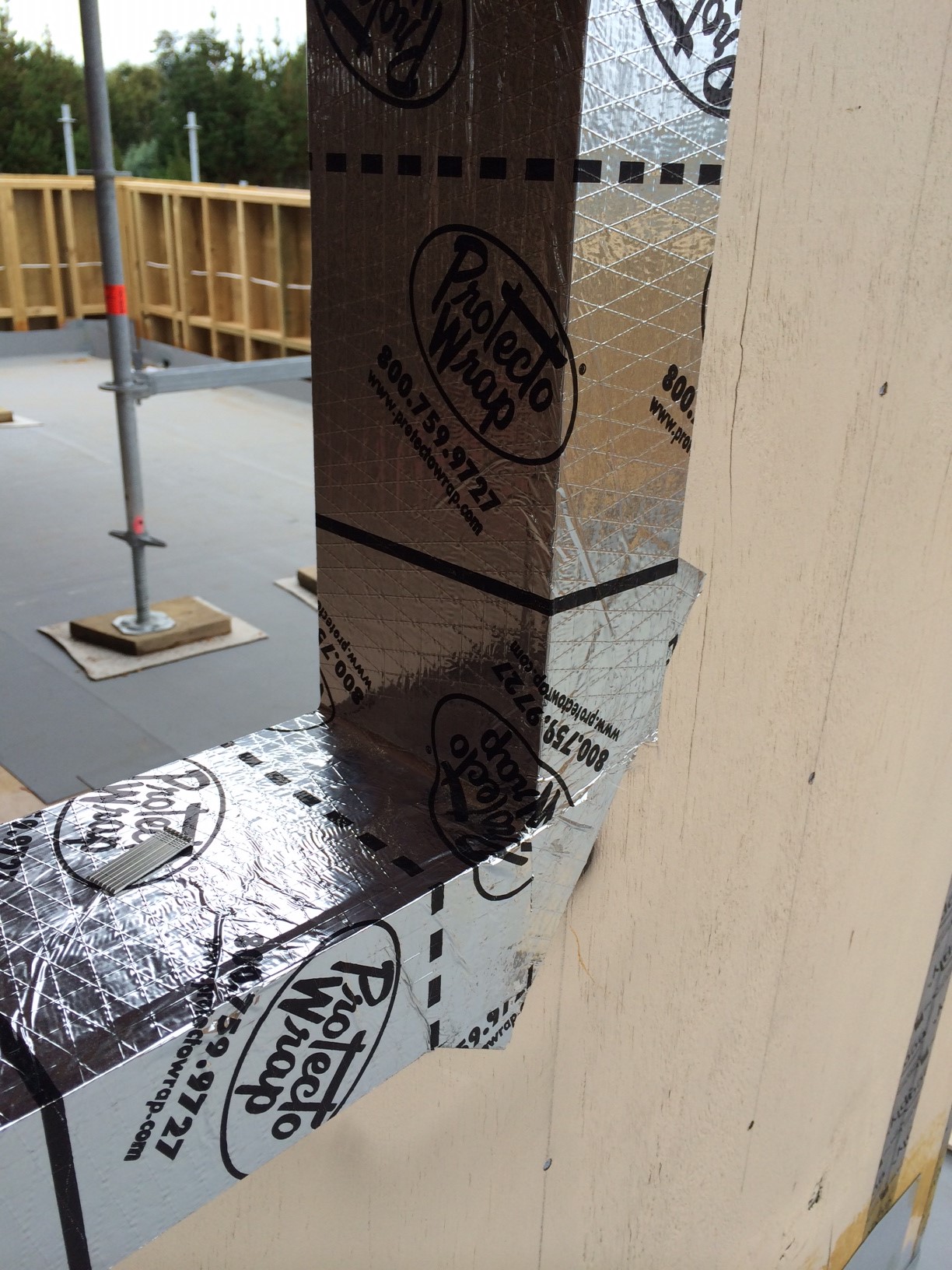

  • Can be used with RAB Systems – plywood, fibre cement sheet
  • Split liner for easy install
  • Can be installed in very hot conditions
  • Extremely high puncture resistance and tensile strength
  • Residential and commercial applications

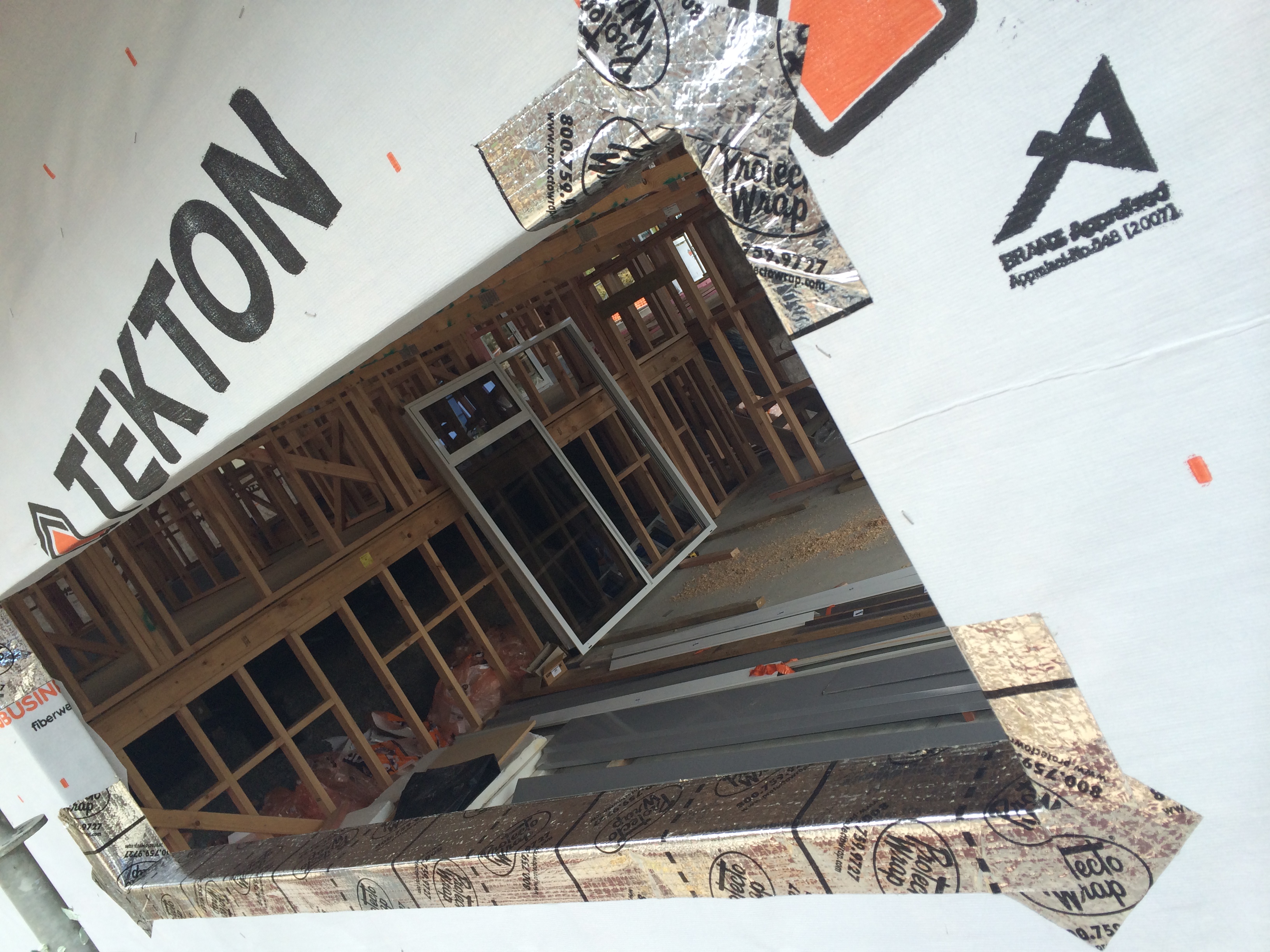

  • Also forms part of the Tekton Weatherization System BRANZ #621 (2008)
  • BRANZ Appraised to to be installed to temperatures as low as -5 Deg C
Scope of Use

SUPER-STICK has been appraised as a flexible flashing system for use around window and door joinery openings for buildings within the following scope:

  • the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
  • with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
  • with wall cladding systems complying with NZBC Acceptable Solution E2/AS1 or a valid BRANZ Appraisal that specifies a flexible flashing tape system; and,
  • with wall underlays compatible with the flexible flashing tape; and, situated in NZS 3604 Wind Zones up to, and including, 'Extra High'.
  • SUPER-STICK has also been appraised as a flexible flashing system for use around window and door joinery openings for steel framed buildings
Limitations on Use

The scope limitations of NZBC Acceptable Solution E2/AS1, with regards to building height and floor plan area; and, constructed with steel framing complying with the NZBC; and, with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and, with wall cladding systems covered by a valid BRANZ Appraisal that specifies a flexible flashing system; and, with wall underlays compatible with the flashing tape and steel frame; and, situated in NZS 3604 Wind Zones up to, and including, 'Extra High'.

Note: Marshall Innovations Ltd offer SUPER-STICK as a jointing and flashing tape for use with rigid air barrier systems that do not require a flexible wall underlay, but this aspect is outside the scope of this Appraisal. Contact the rigid air barrier system proprietor for system details including recommended jointing and flashing tapes.

Statement of Building Code Compliance

In the opinion of BRANZ, SUPER-STICK, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No. 846 (2013), will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2. SUPER-STICK meets these requirements.
  • Clause E2 External Moisture: Performance E2.3.2. SUPER-STICK contributes to meeting this requirement.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. SUPER-STICK meets this requirement and will not present a health hazard to people. SUPER-STICK has been appraised as an Alternative Solution in terms of New Zealand Building Code compliance.
BRANZ Appraised
BRANZ Appraised
Documents
BRANZ Appraisal: SUPER STICK

846 [2019]

BRANZ Appraisal: Weatherization System

621 [2020]

Installation and Operation
Brochure: SUPER-STICK
Additional Information
Additional Information

Marshall Innovations provide weathertight solutions from below ground to pre-cladding, also offering deck jack systems and mass timber fixings and connectors.

Product Enquiries

News from Marshall Innovations

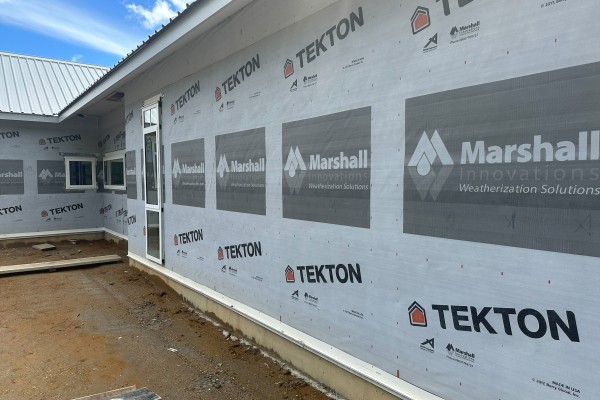

Marshall Innovations Weatherization System Simplifies the Design Process

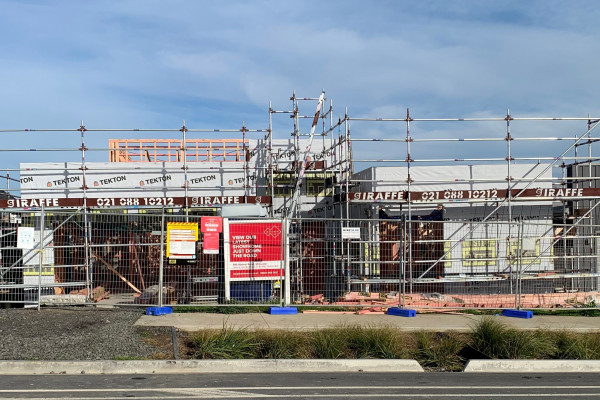

Exterior Cladding System Design for Weathertight Medium Density Housing
