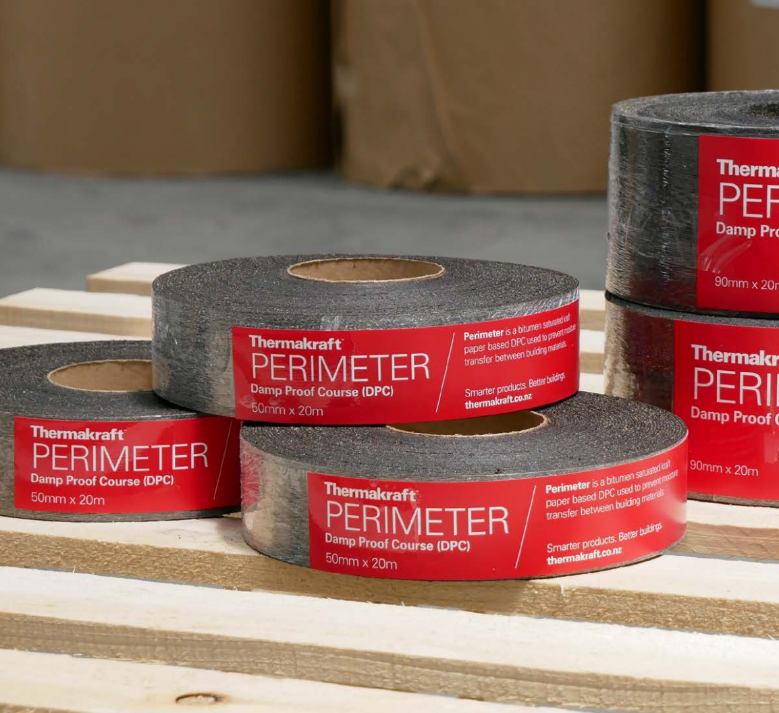

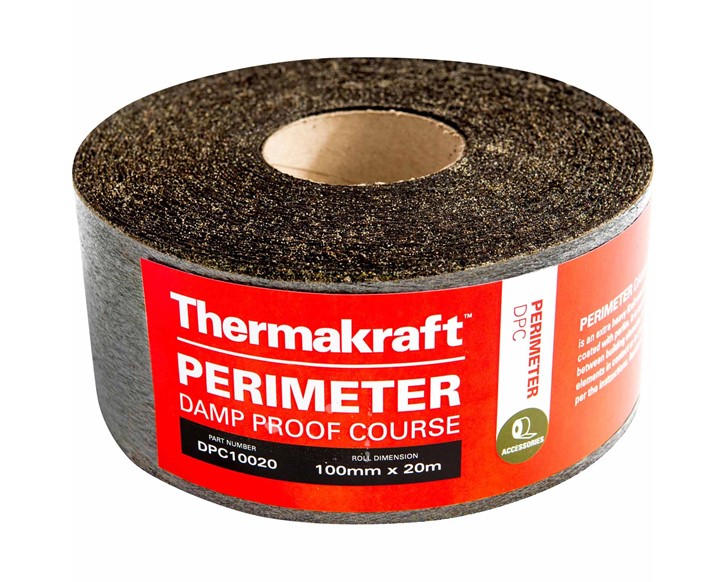

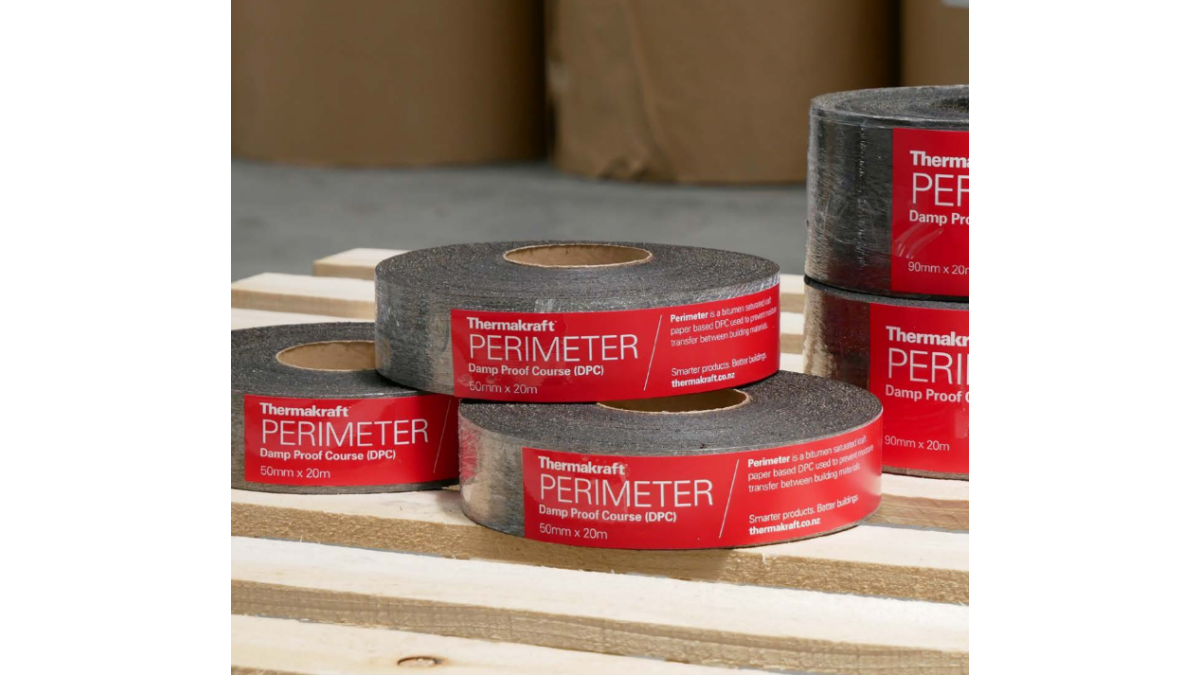

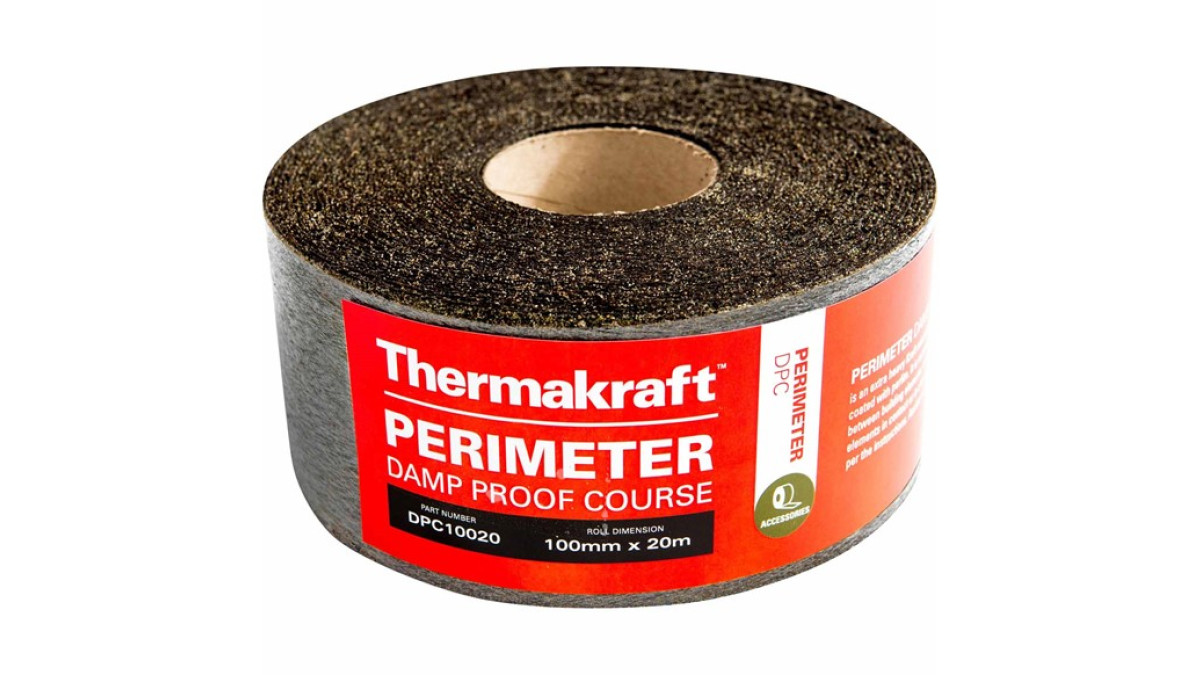

Perimeter Bituminous Damp Proof Course
Description

Kingspan Perimeter Damp Proof Course is designed for use as a separation layer to prevent moisture transfer between building materials. It is manufactured using a bitumen saturated kraft paper and is lightly coated with perlite (fine sand).

Perimeter is a tried and tested solution that is extremely easy to use. It comes in a wide range of widths and can be hand-torn to length.

Key Features

Perimeter DPC provides a moisture barrier protection and prevent walls, floors and structural elements in contact with the ground absorbing or transmitting moisture.

Scope of Use
  • Perimeter Damp Proof Course is intended for use as a damp-proof course separating timber and wood-based products and metal from concrete, masonry elements or clay bricks.
  • Can also be used to separate timber jack studs or bearers from concrete or timber piles.
Limitations on Use
  • Perimeter is NOT a window flashing tape and NOT a thermal break product.
  • Only use Perimeter for damp-proof course (DPC) application.
  • Perimeter must NOT be used in conjunction with LOSP treated timber (Use Supercourse 500 DPC).
Statement of Building Code Compliance

When Perimeter is used and installed as a damp-proof course and/or concealed flashing behind masonry veneer walls, the product will meet or contribute to meeting the provisions of the NZBC.

Documents
Data Sheet

Issue 6.0, April 2024

Installation and Operation

Issue 3.0, August 2024
