AIR-CELL Insuliner
Description

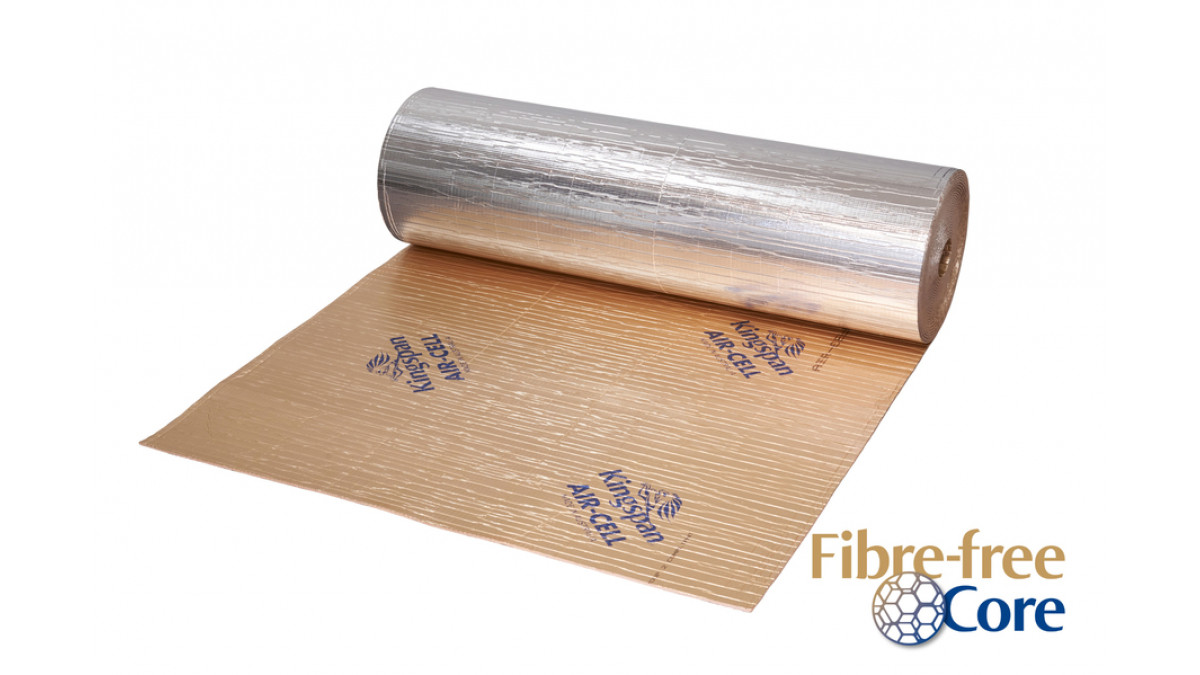

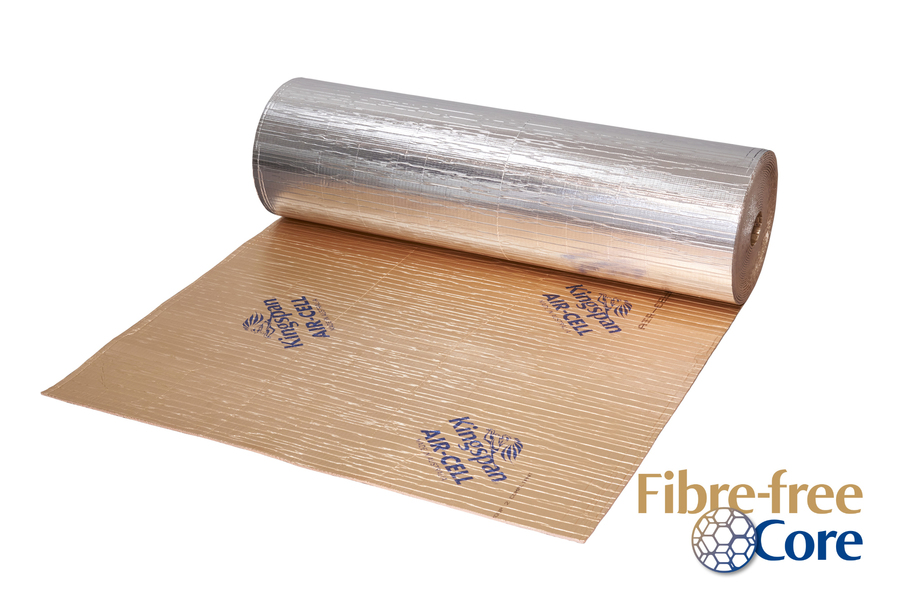

Kingspan AIR-CELL Insuliner is the latest in thermo reflective insulation technology with the most advanced fire performance characteristics, achieving a Group 2 classification to NZBC fire ratings for wall and ceiling linings. Kingspan AIR-CELL Insuliner comprises a cross-linked, closed-cell insulation core sandwiched by highly reflective foil facings.

Key Features
  • Group 2 NZBC C/VM2 App. A fire classification
  • Designed for warehouses and commercial or industrial sheds where the insulation acts as the wall or ceiling lining
  • 3-in-1 insulation, vapour barrier and radiant barrier

Specifications

Roll weight and size:

  • 9kg, 1350 mm x 22.25 m (30 m²)

Product thickness: 5.5mm

Categories
Thermal Insulation
Ranges
AIR-CELL
Scope of Use
  • Designed for warehouses and commercial or industrial sheds where the insulation acts as the wall or ceiling lining
Statement of Building Code Compliance
  • NZBC & AS/NZS 4859.1 Compliant
  • Group 2 fire rating
Documents
Insuliner Product Guide

2020

AIR-CELL Insulation Tape

KINZ-ACITDS v1 Sept 2024

Quick Reference Guide

KINZ-QRGPR-WEBv1.0 May 23

Kingspan Thermakraft Troldtekt Product Warranty Statement

Issue 4.0, Jun 2024

Additional Information
CAD/PDF Details

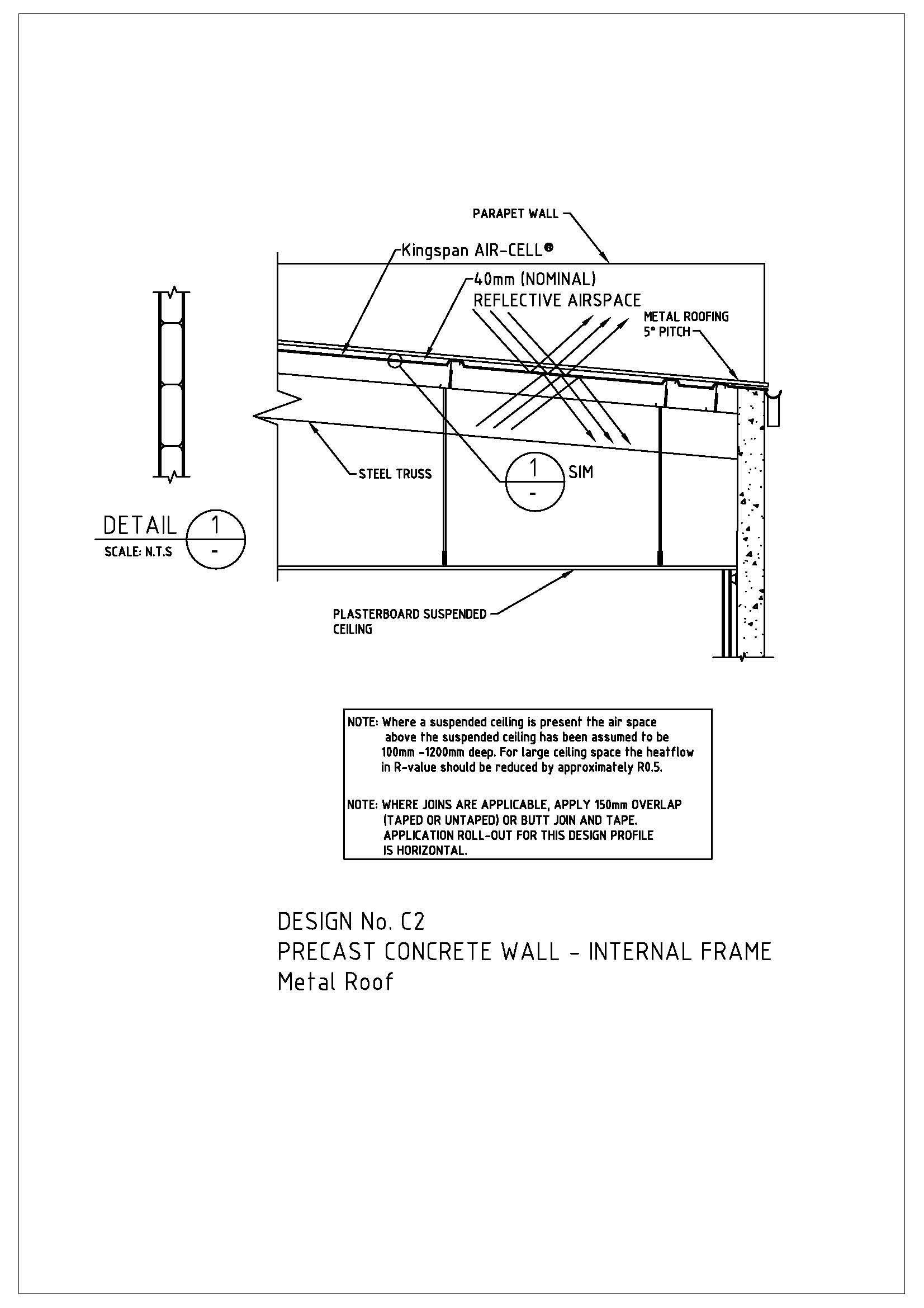

Commercial Office Metal Deck Roofs - Insuliner

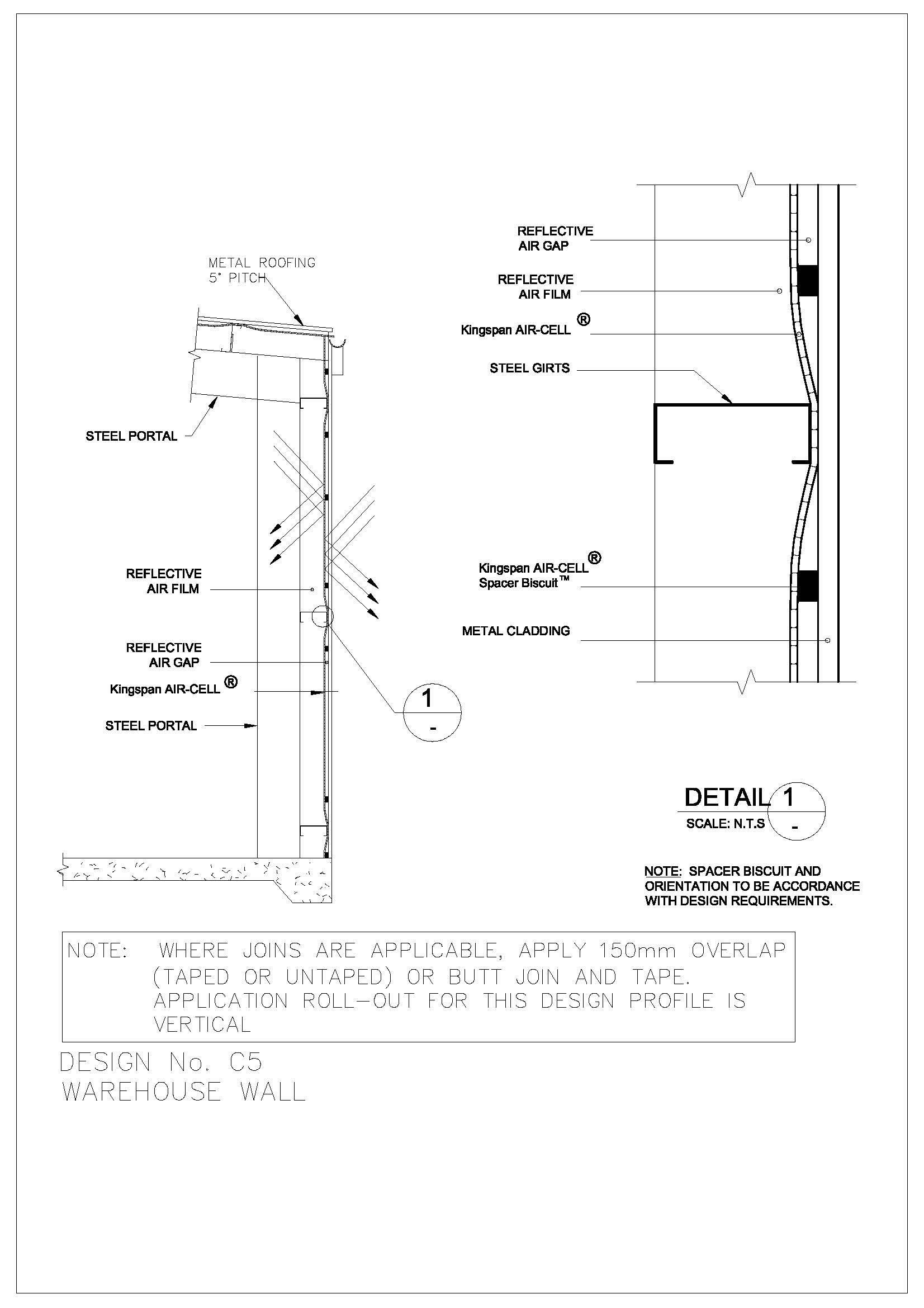

Warehouse Wall - Insuliner
