Description

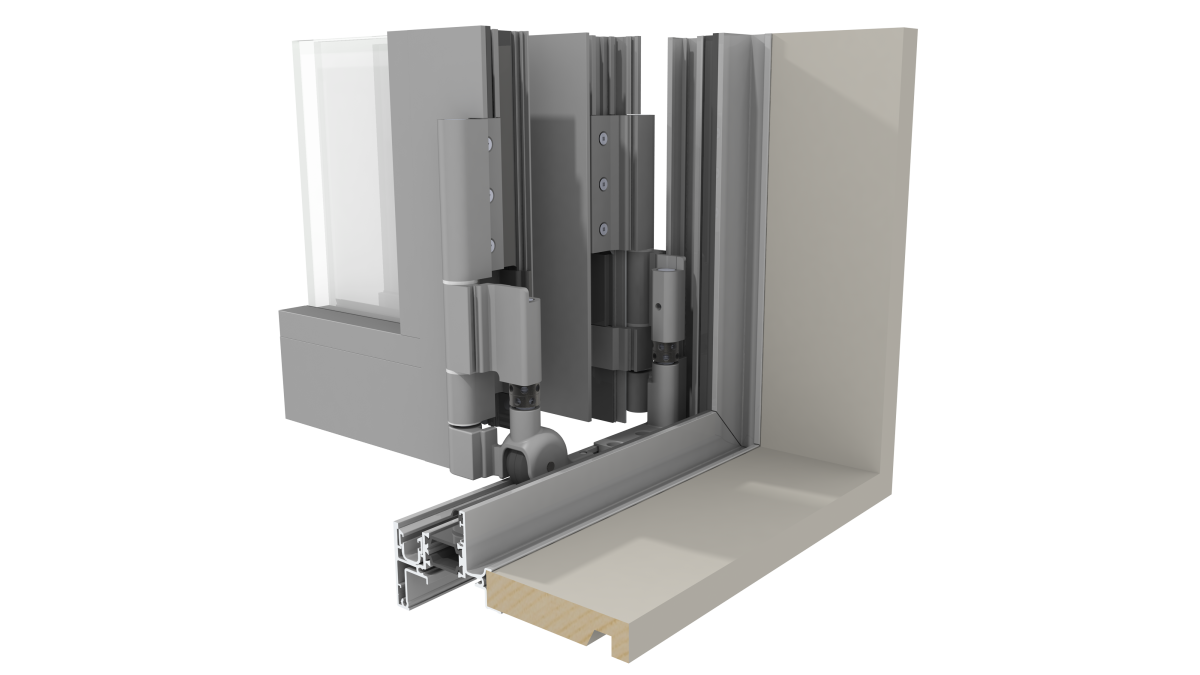

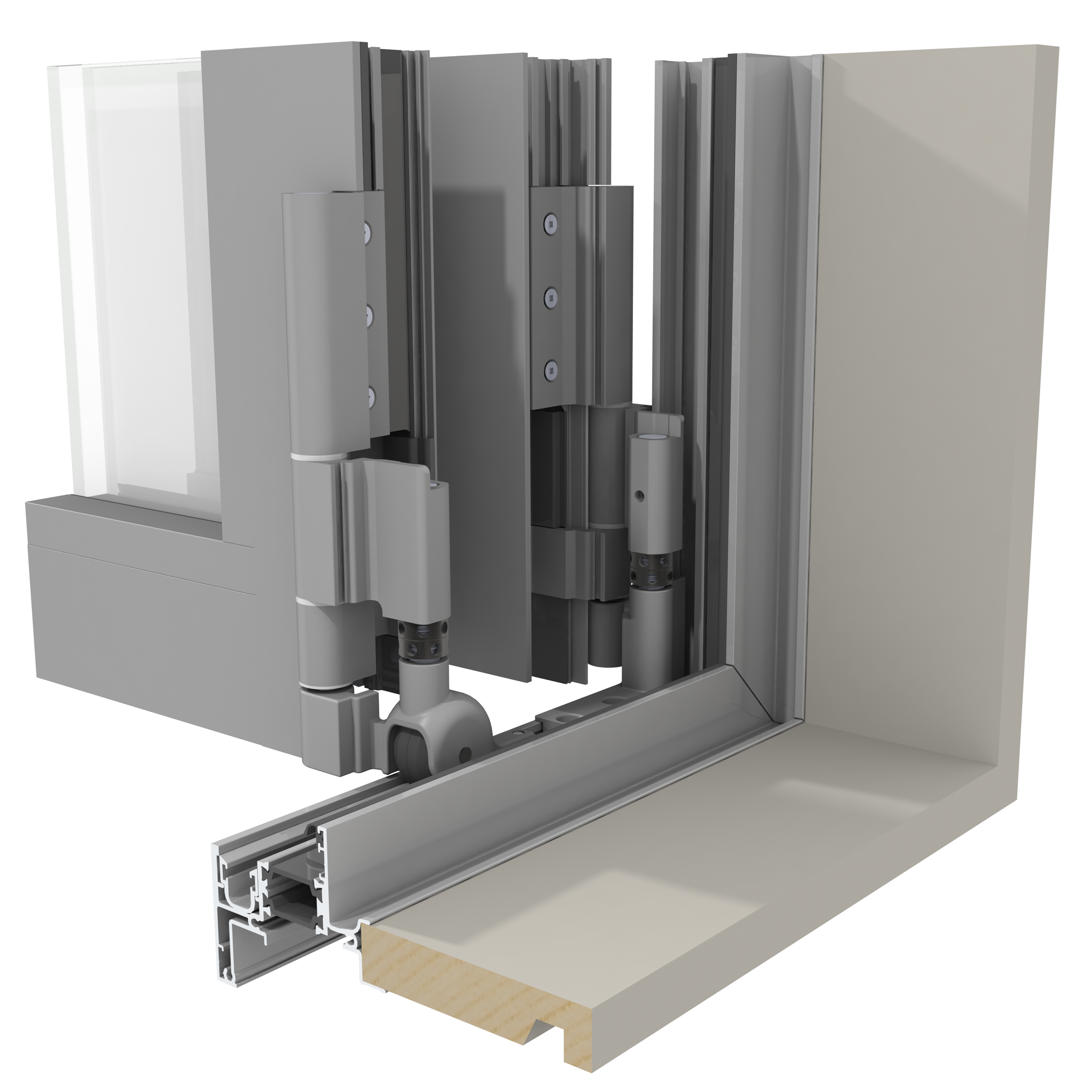

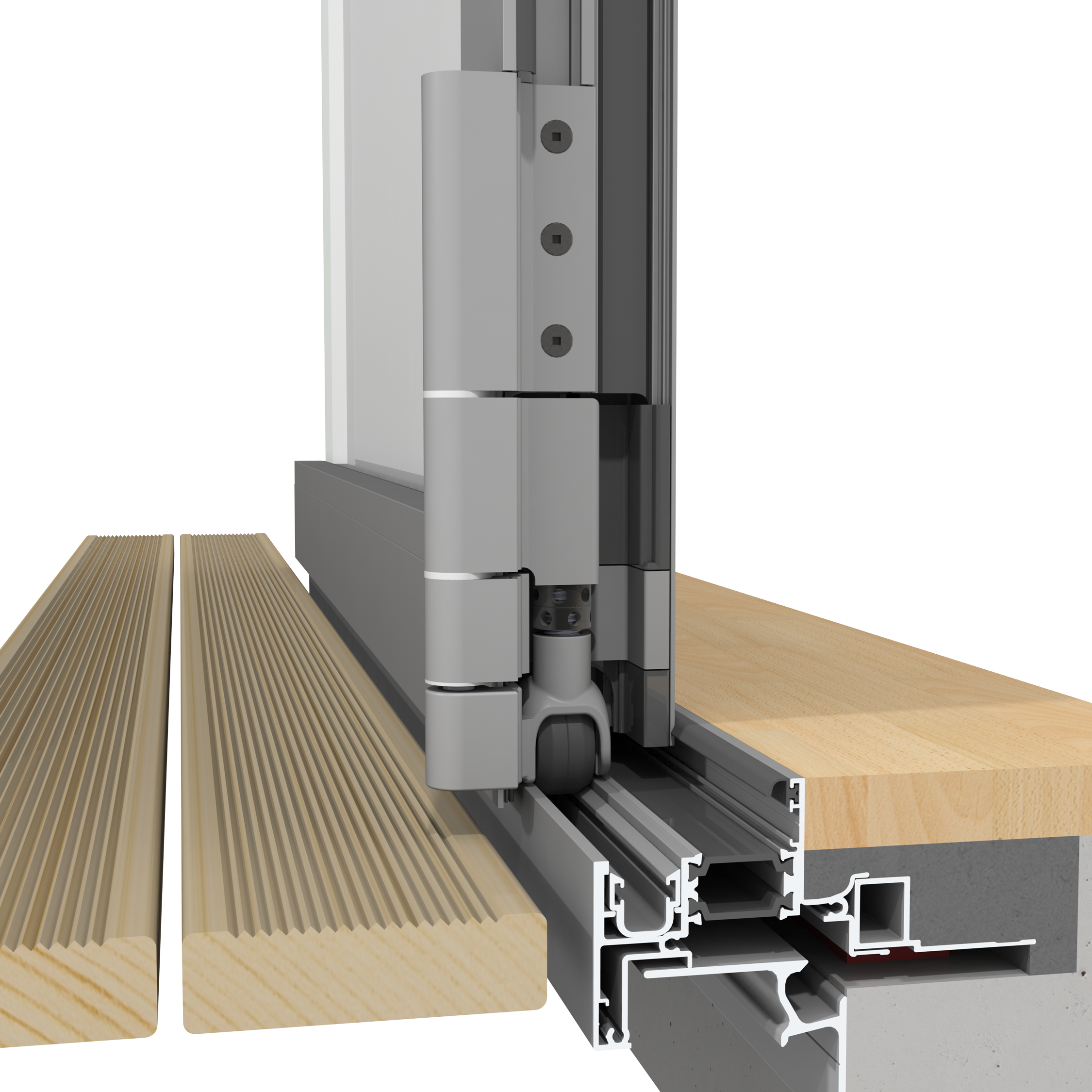

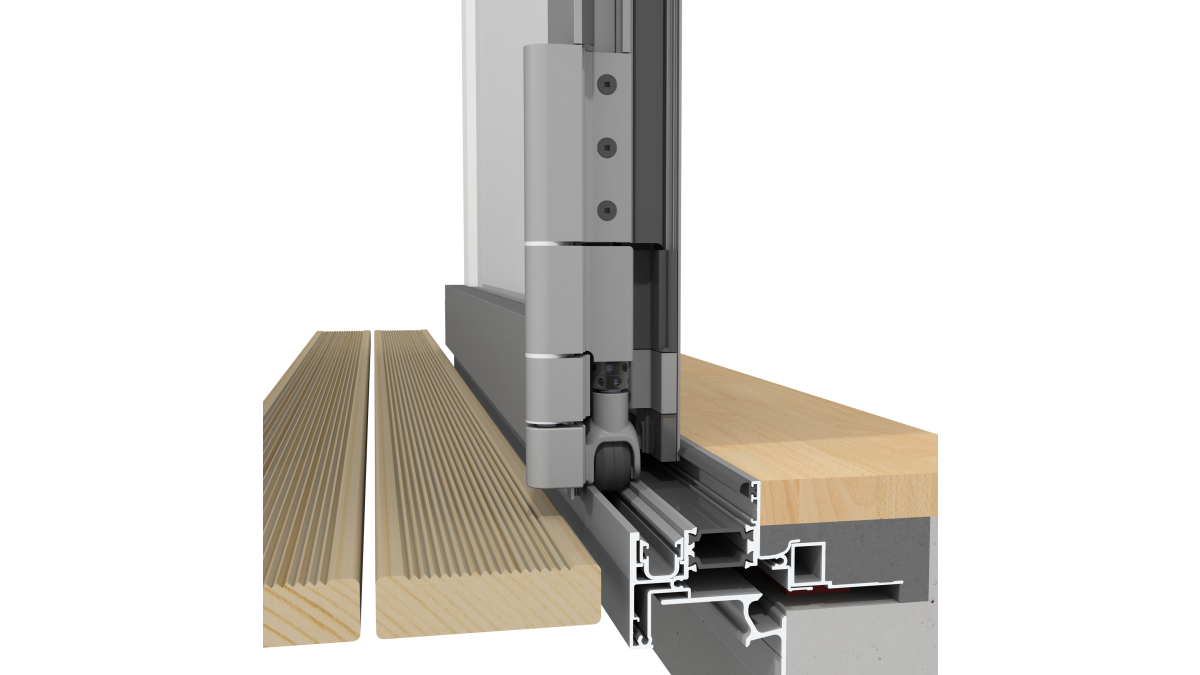

The Residential Series ThermalHEART® bi-fold system is bottom rolling with an in-frame track for optimum panel support. Rated to 2.2m high in Extra High wind zones. For higher doors consider using Metro Series ThermalHEART®. The bi-fold window system uses the bi-fold door system with a smaller stile and top and bottom panel rail.

Key Features

A wide range of configurations available
Assured smooth operation through enhanced adjustability
Jamb pivots provide easy adjustability and remove any stresses in bi-fold geometry
A slender door stile and rail option is available to minimise visual intrusion
Overlights and sidelights possible
Door panels lap over frame for superior aesthetics, air tightness, weather tightness, security and thermal performance

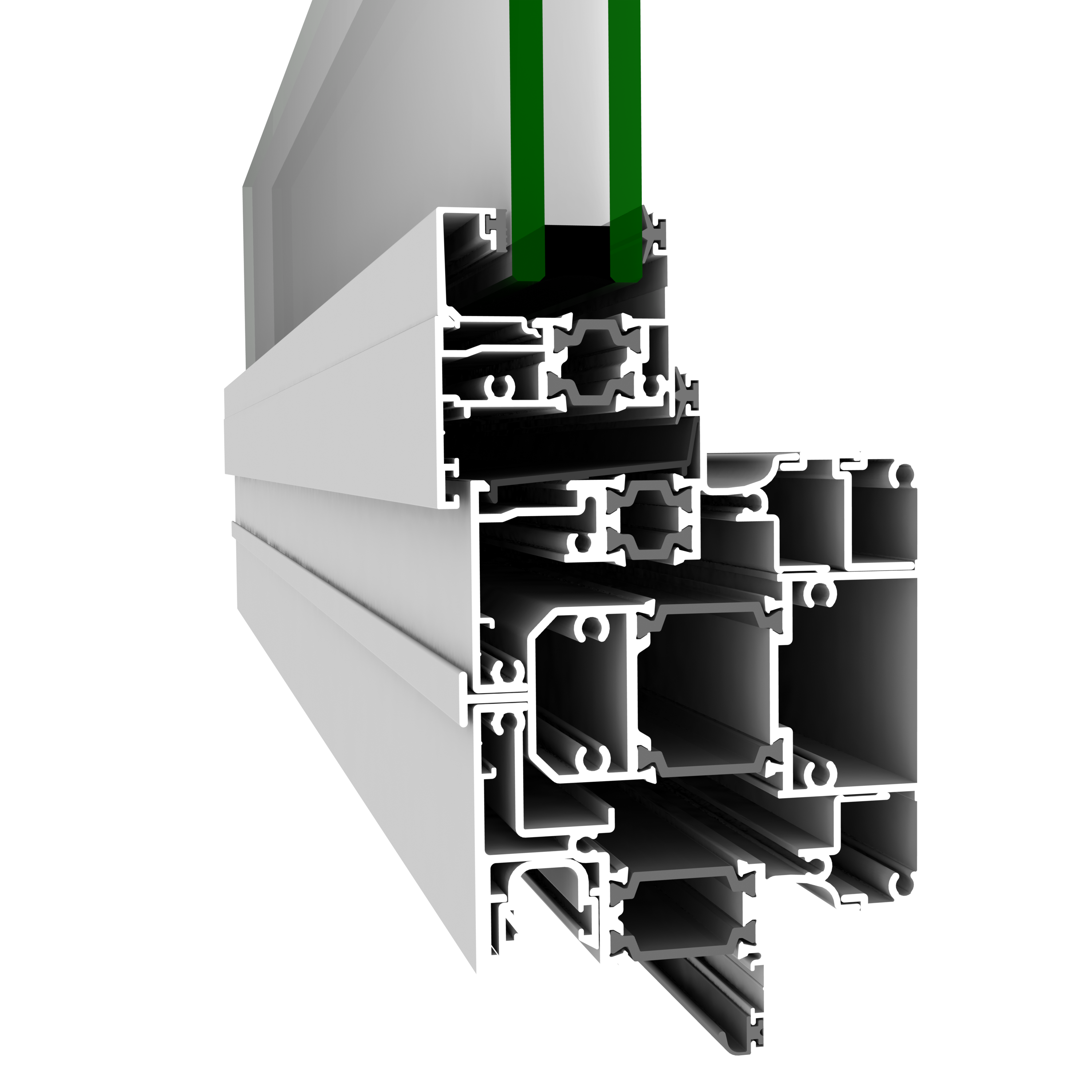

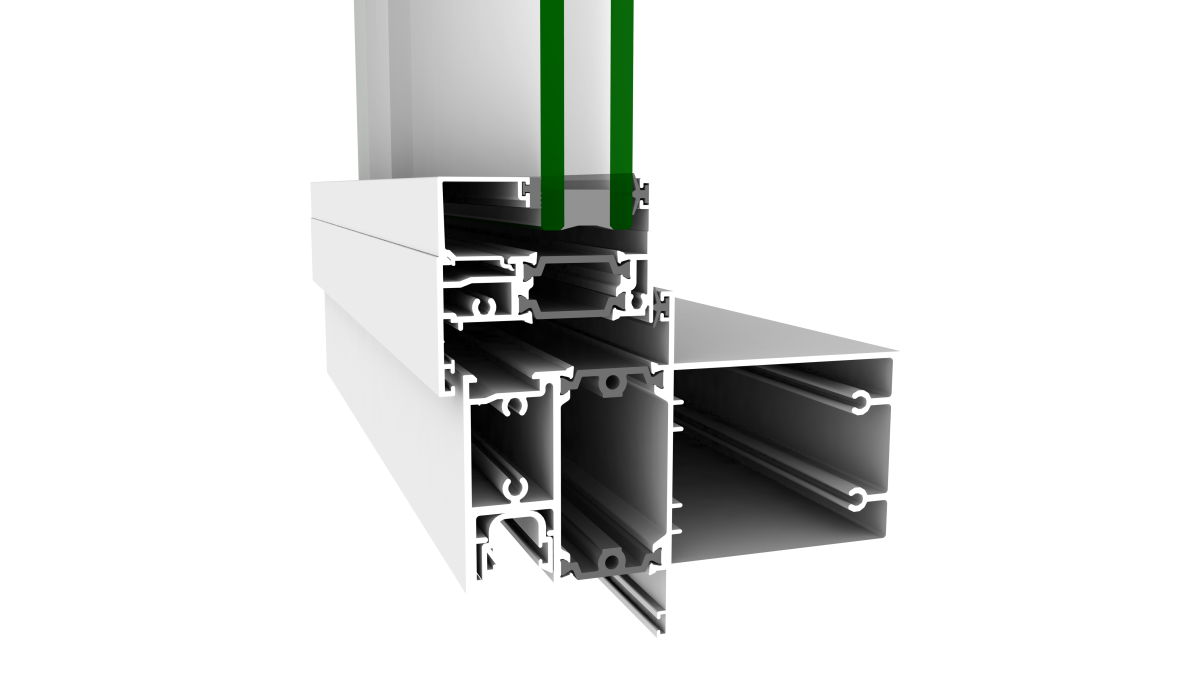

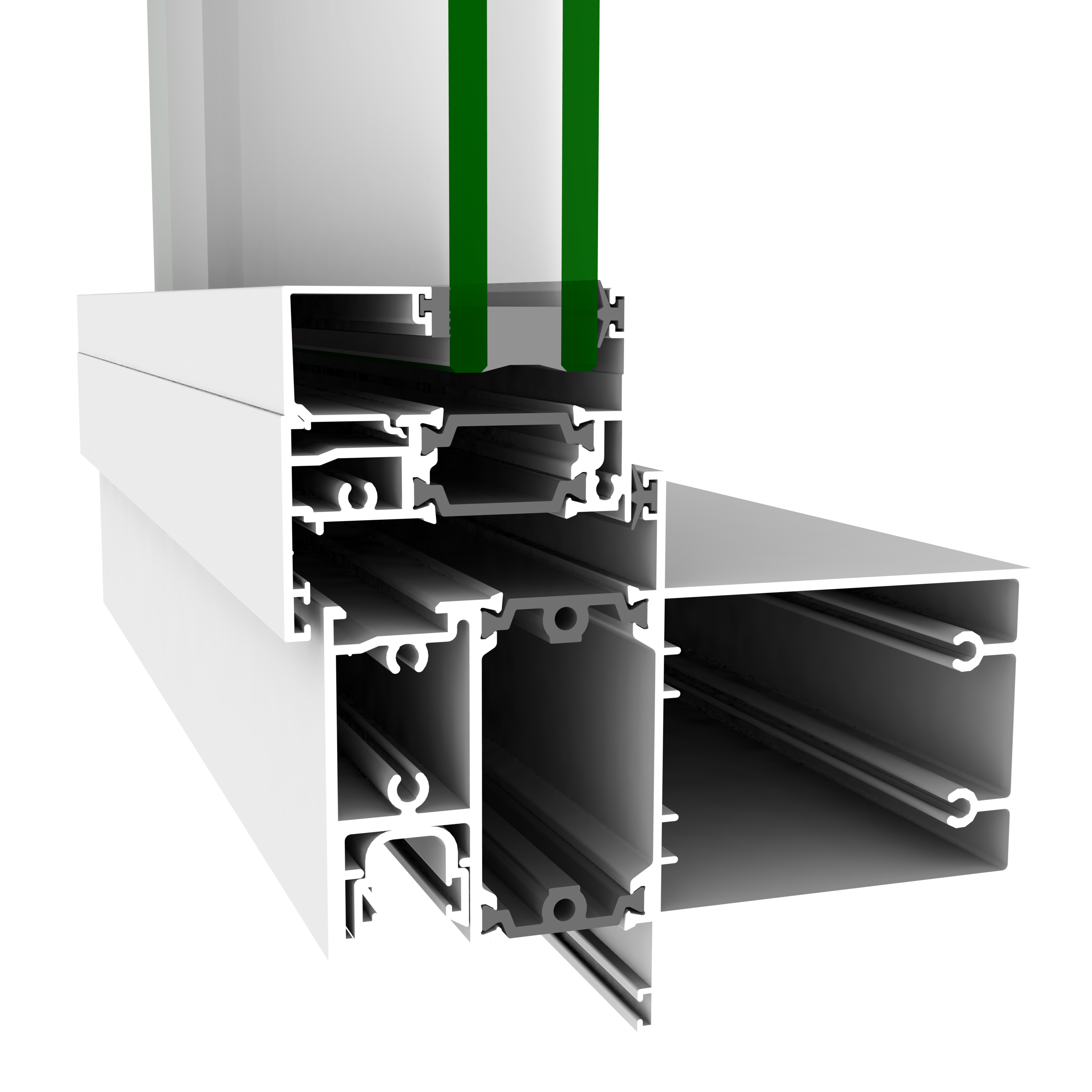

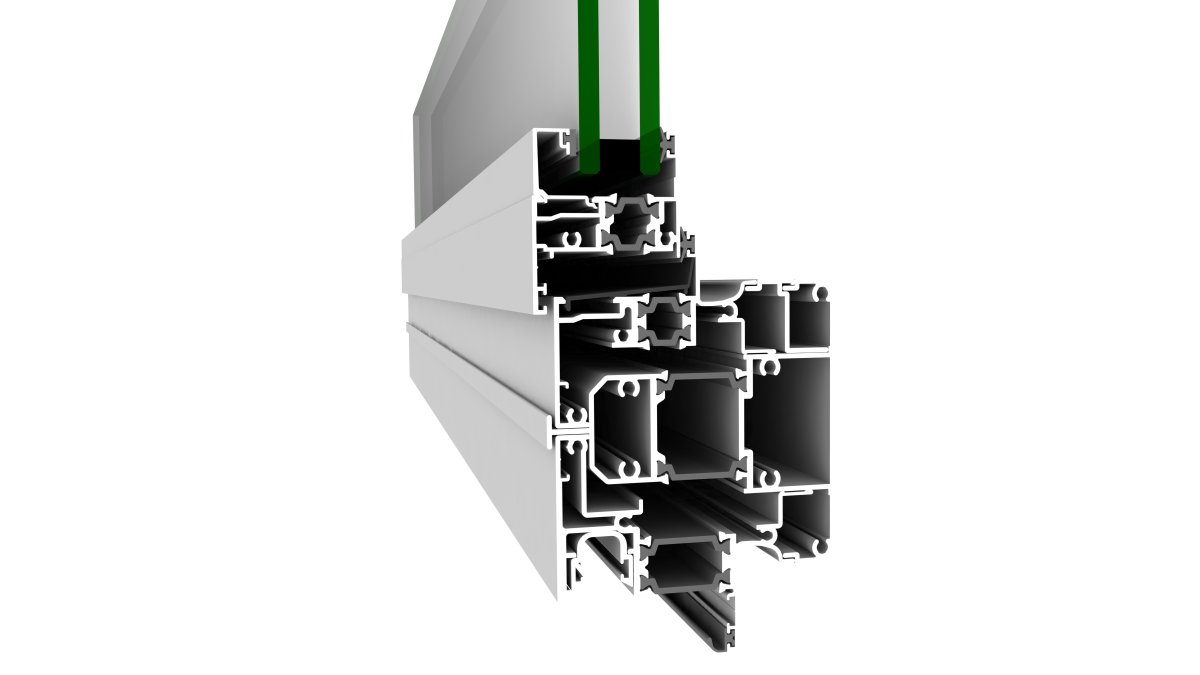

Thermal efficiency achieved through thermal breaks in aluminium profiles and controlled air spaces via panel lap
Recommended maximum door height 2200mm. For larger sizes consider using Metro Series ThermalHEART®
Single panel access door can be used in conjunction with bi-fold doors
The bi-fold window system uses the bi-fold door system with a smaller stile and top and bottom panel rail

Ranges

Residential Series ThermalHEART®

Scope of Use

Suitable for broad residential use
Maximise views and ventilation but need to be monitored if windy conditions occur
Available in defined maximum sizes

Limitations on Use

Maximum 2200mm high doors in Extra High wind zones — for larger sizes consider using Metro Series ThermalHEART®
Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas
In closed position bi-fold window and door stiles can impact views

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Redesigned and relaunched in 2022 (previous version 2011)
New range rolling out nationally; previous version in use in residential projects throughout New Zealand by homeowners, builders, Group home builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

News

FIRST Thermal Heart Gets the Energy Star

FIRST Windows & Doors

November 2014

Product News

Documents

Data Sheet: Residential Series ThermalHEART® Doors

2023

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Caesarstone: Redefining Surface Excellence with Crystalline Silica Free Formulations

NZ's Largest Mass Timber Office Building: The Sustainable Timber Engineering Behind 90 Devonport Rd

Terra Lana Insulation for a World-Leading Hospital Targeting Zero Carbon Certification

SECTIONS

From Windows to Warm Roofs: How Can We Make the New Insulation Standards Work?

Garage Concrete Floor Thermal Breaks

Fear, Fantasy, or Fact: What is the Basis of Your Decisions?

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Filters

Residential Series ThermalHEART® Bi-Fold Doors

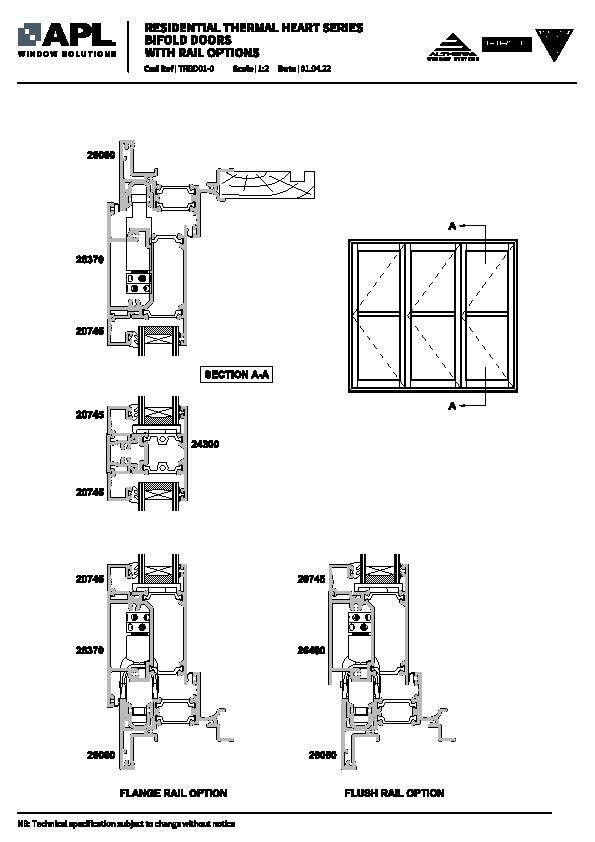

Residential Series ThermalHEART® Bi-Fold Doors — With Rail Options

Residential Series ThermalHEART® Bi-Fold Doors — With Overlight Transom

Residential Series ThermalHEART® Bi-Fold Doors — Coupled to Awning Window

Residential Series ThermalHEART® Bi-Fold Doors — Coupled to Awning Window

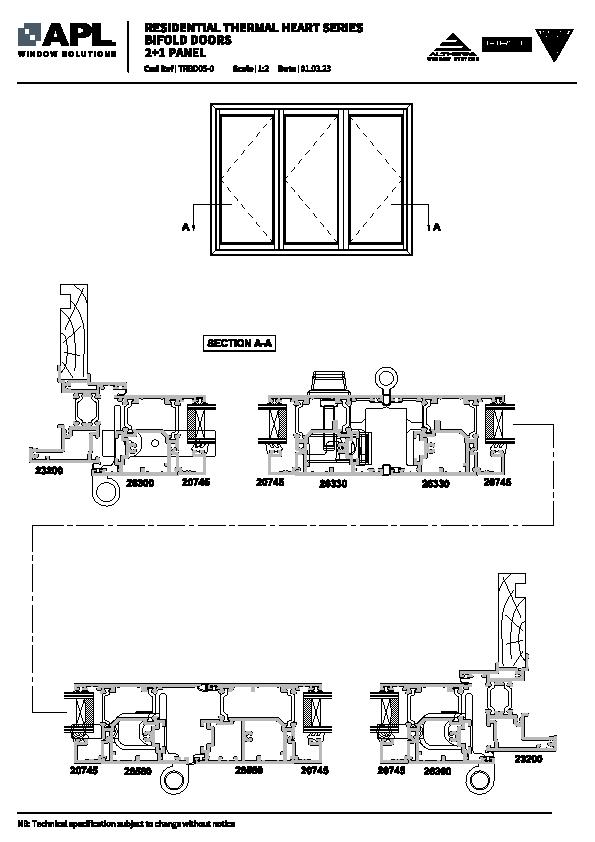

Residential Series ThermalHEART® Bi-Fold Doors — 2+1 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 3 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 2+2 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 3+1 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 4 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 3+2 Panel

Residential Series ThermalHEART® Bi-Fold Doors —4+1 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 5 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 3+3 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 4+2 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 5+1 Panel

Residential Series ThermalHEART® Bi-Fold Doors — 6 Panel

Residential Series ThermalHEART® Bi-Fold Doors — Sidelight Options

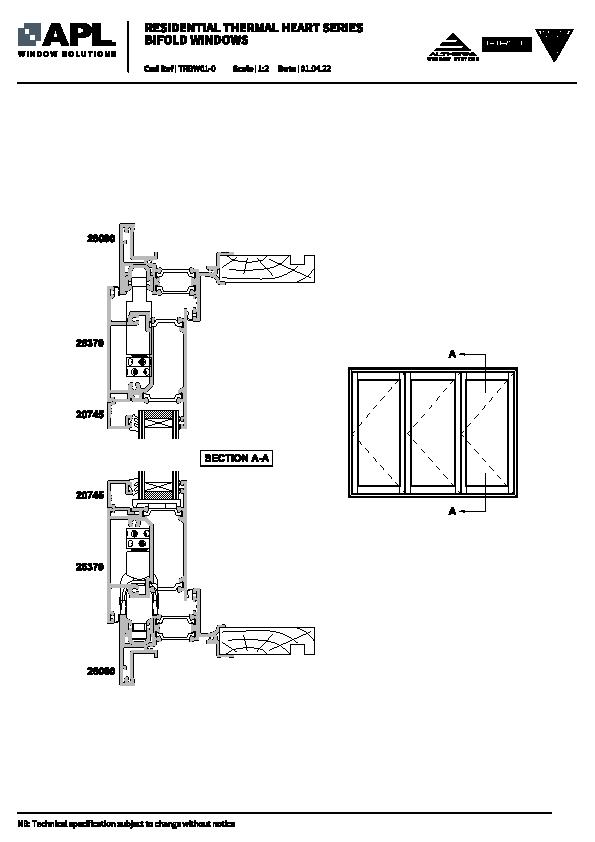

Residential Series ThermalHEART® Bi-Fold Windows

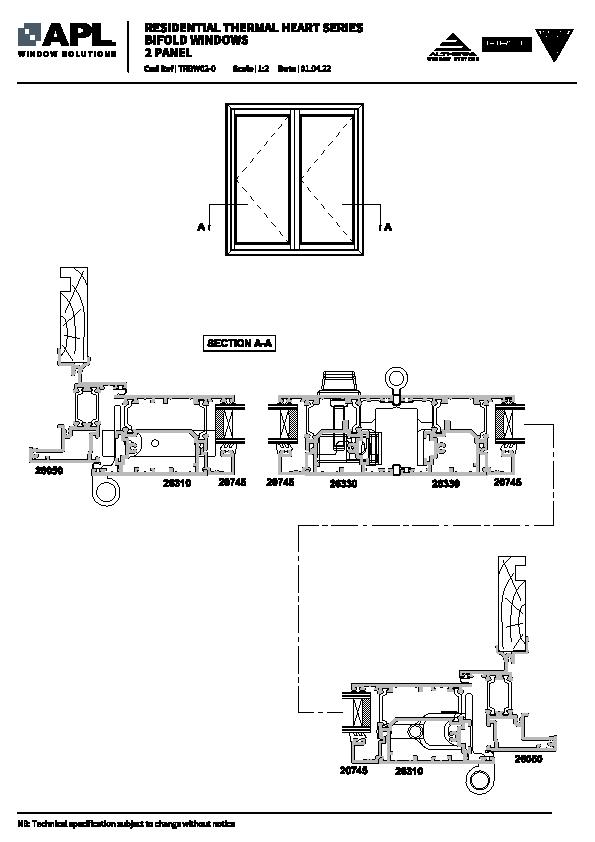

Residential Series ThermalHEART® Bi-Fold Windows — 2 Panel

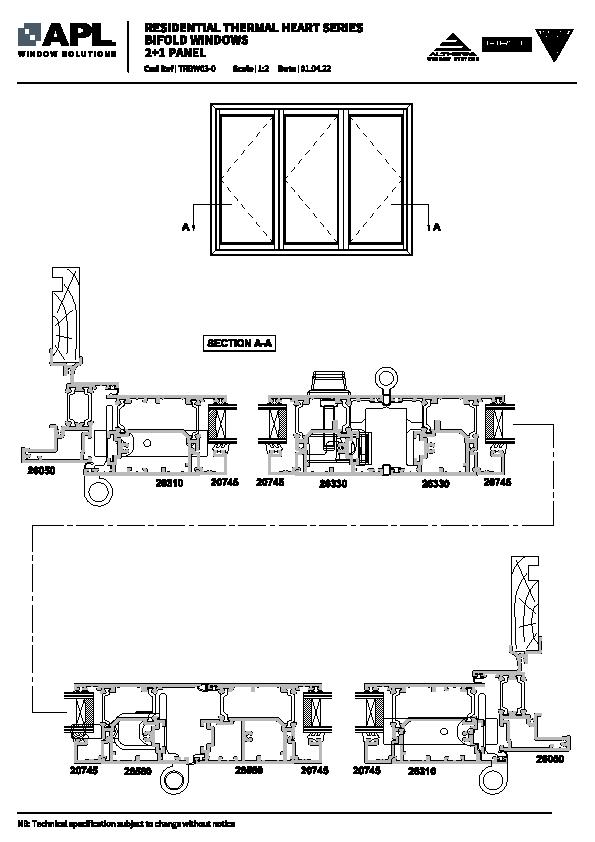

Residential Series ThermalHEART® Bi-Fold Windows — 2+1 Panel

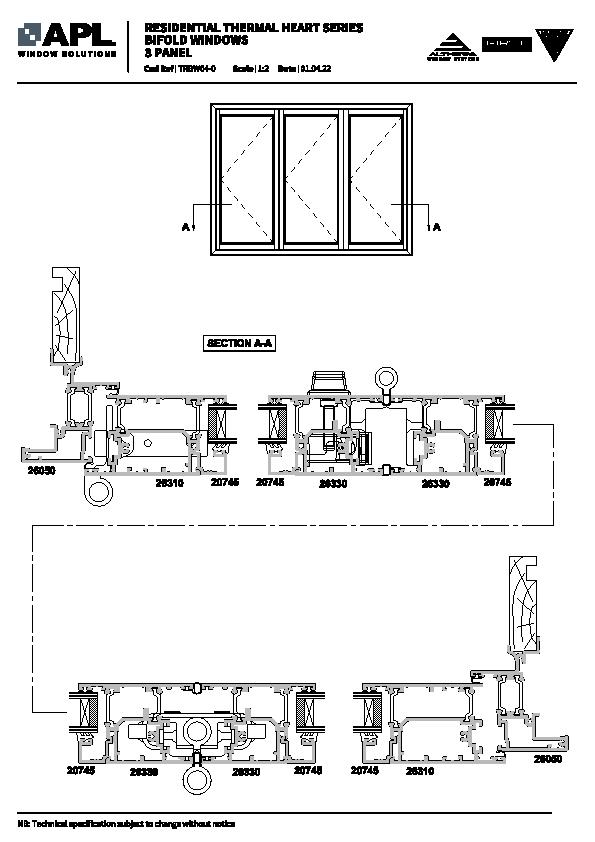

Residential Series ThermalHEART® Bi-Fold Windows — 3 Panel

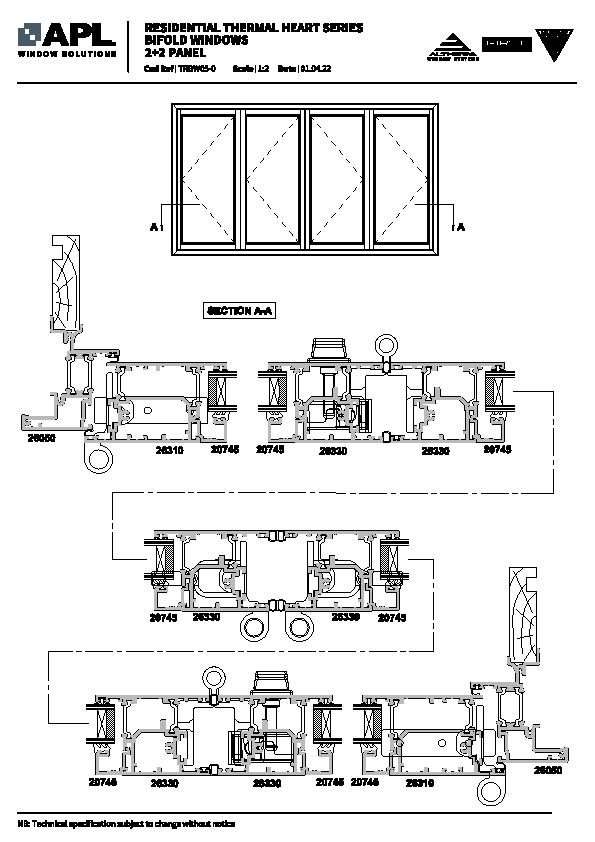

Residential Series ThermalHEART® Bi-Fold Windows — 2+2 Panel

Filters

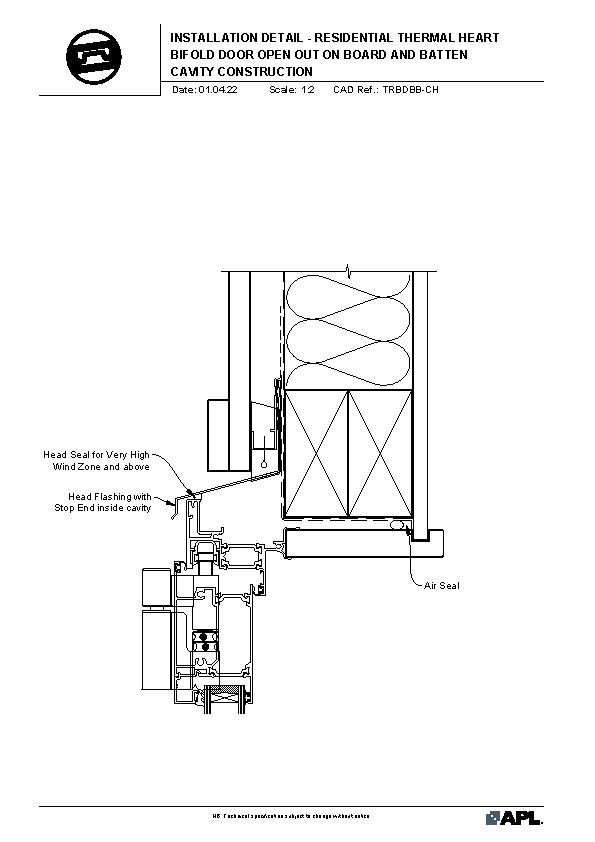

Residential Series ThermalHEART® Bi-Fold Door — Open Out On Board & Batten Cavity Construction

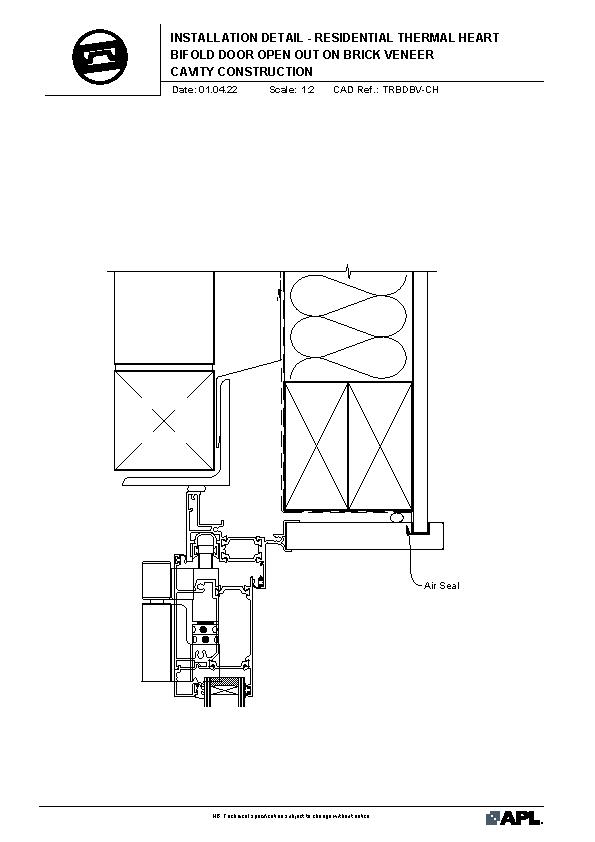

Residential Series ThermalHEART® Bi-Fold Door — Open Out On Brick Veneer Cavity Construction

Residential Series ThermalHEART® Bi-Fold Door — Open Out On Bevelback Weatherboard Cavity Construction

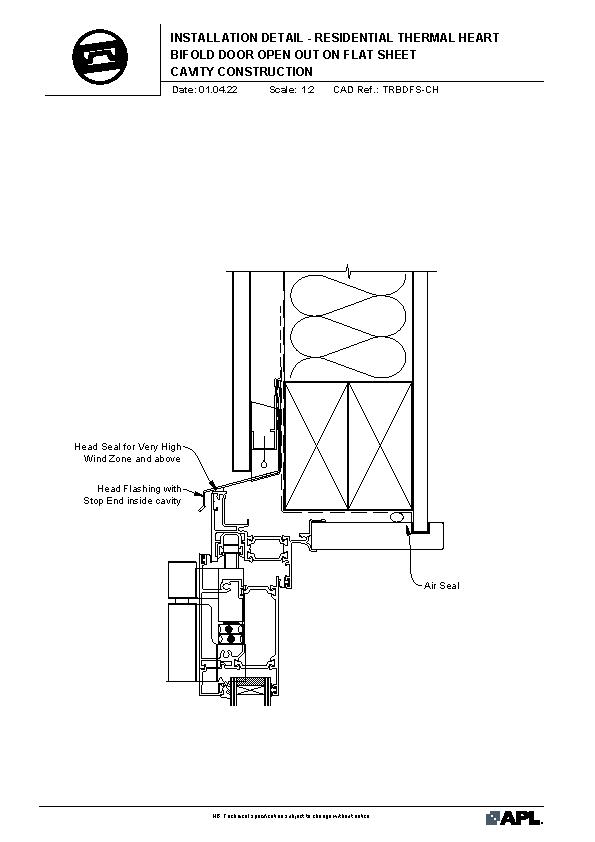

Residential Series ThermalHEART® Bi-Fold Door — Open Out On Flat Sheet Cavity Construction

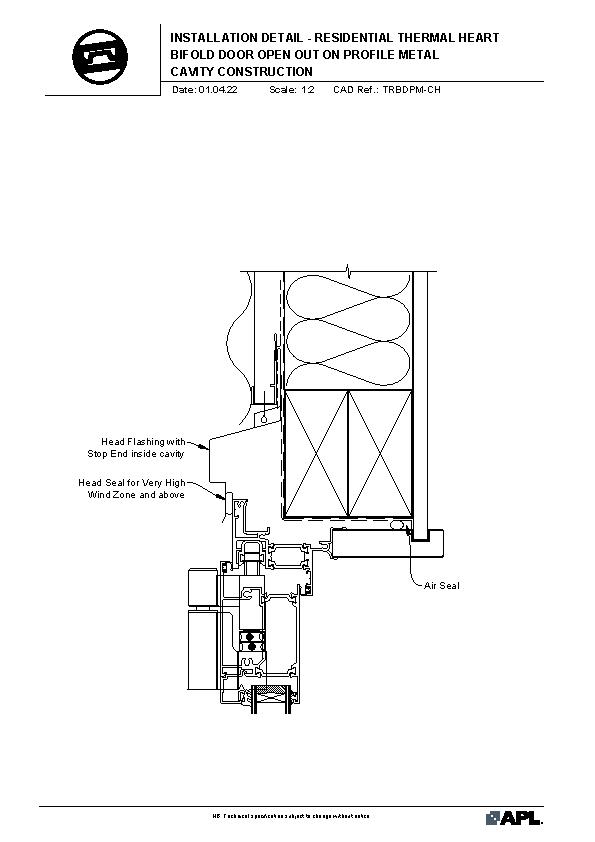

Residential Series ThermalHEART® Bi-Fold Door — Open Out On Profile Metal Cavity Construction

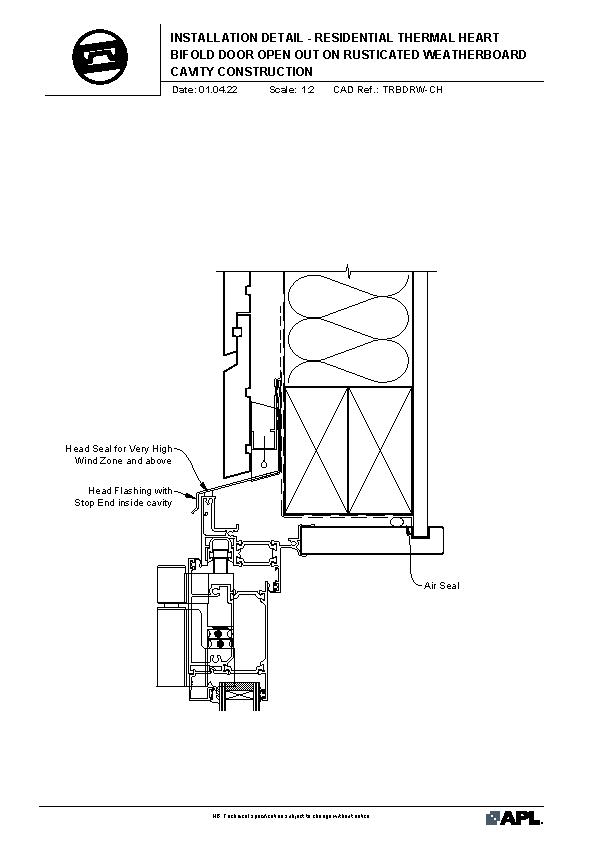

Residential Series ThermalHEART® Bi-Fold Door — Open Out On Rusticated Weatherboard Cavity Construction

Residential Series ThermalHEART® Bi-Fold Door — Open Out On Stucco Cavity Construction

Residential Series ThermalHEART® Bi-Fold Window — Open Out On Board & Batten Cavity Construction

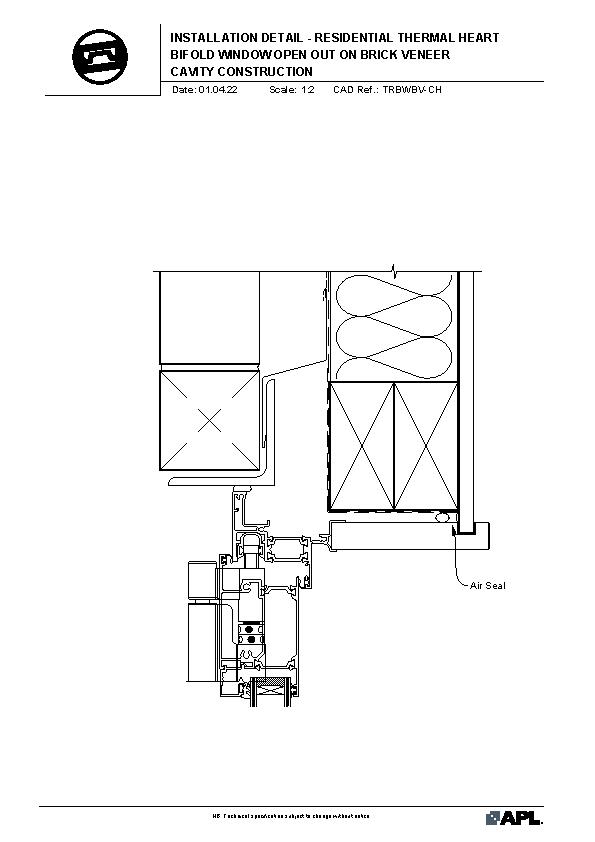

Residential Series ThermalHEART® Bi-Fold Window — Open Out On Brick Veneer Cavity Construction

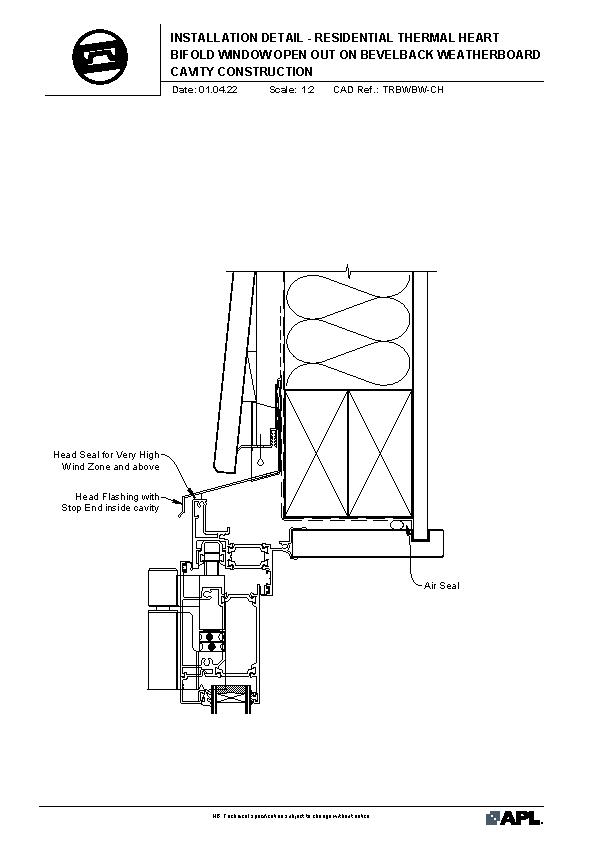

Residential Series ThermalHEART® Bi-Fold Window — Open Out On Bevelback Weatherboard Cavity Construction

Residential Series ThermalHEART® Bi-Fold Window — Open Out On Flat Sheet Cavity Construction

Residential Series ThermalHEART® Bi-Fold Window — Open Out On Profile Metal Cavity Construction

Residential Series ThermalHEART® Bi-Fold Window — Open Out On Rusticated Weatherboard Cavity Construction

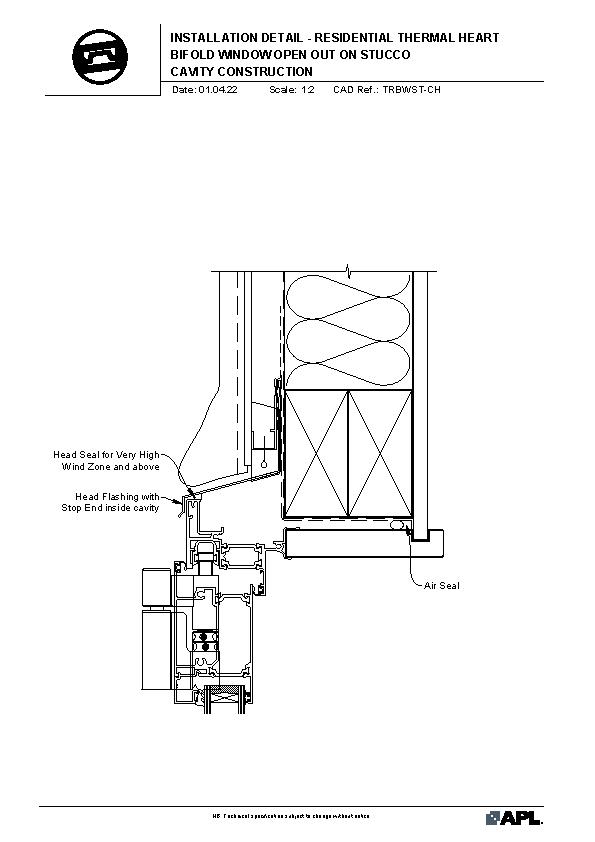

Residential Series ThermalHEART® Bi-Fold Window — Open Out On Stucco Cavity Construction
