Brushless Motors for Sliding Gates
Edgesmith
All products

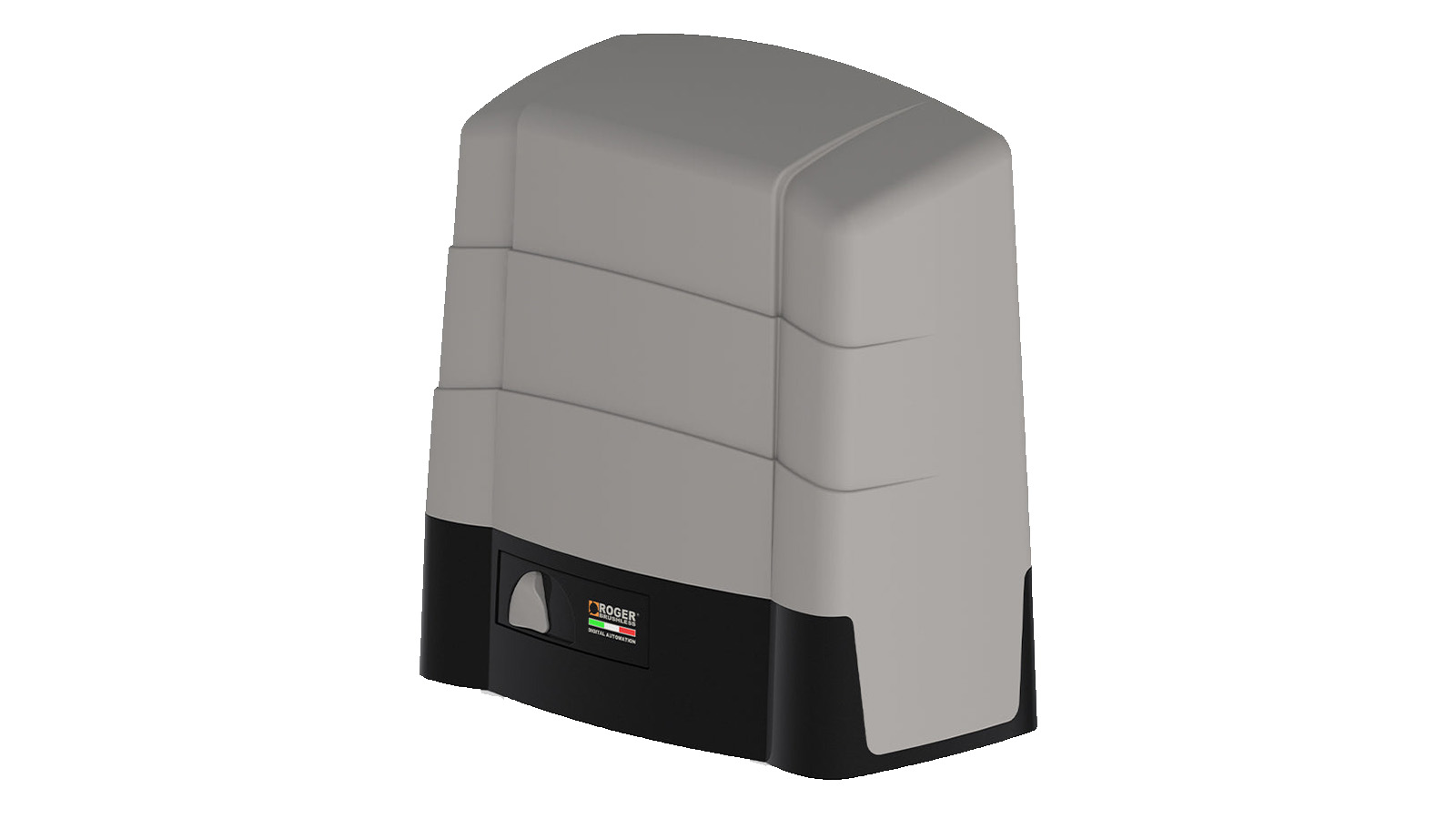

Grande 1600x900 3

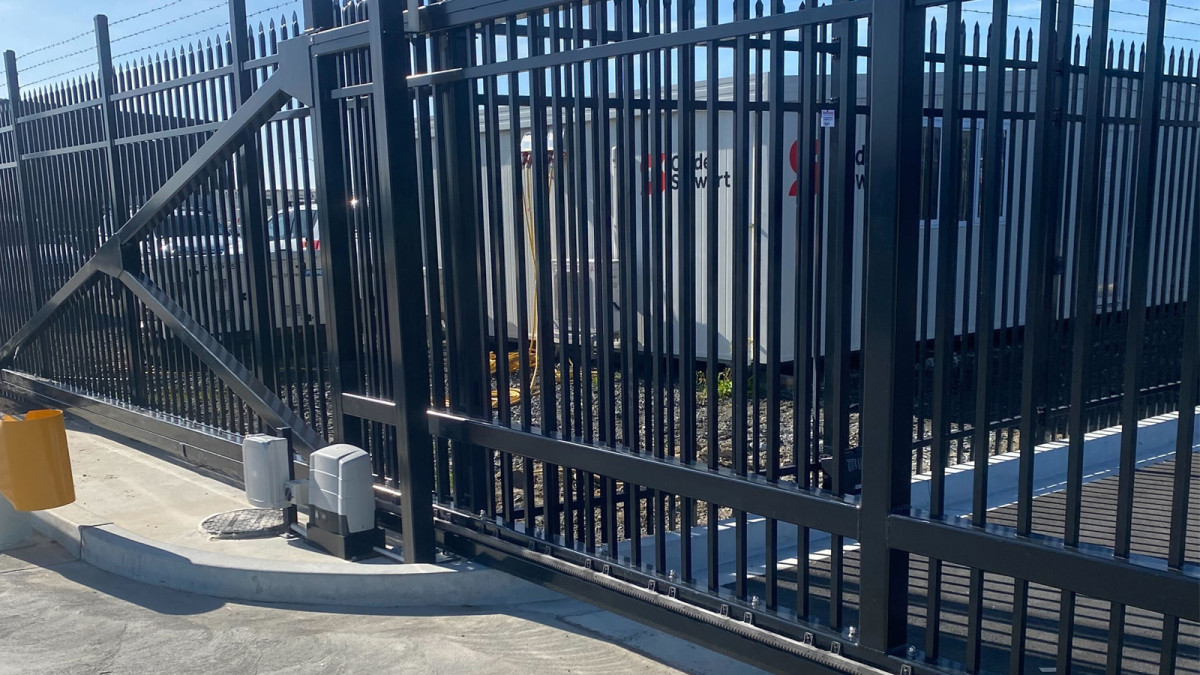

Grande 1500KG sliding gate motor

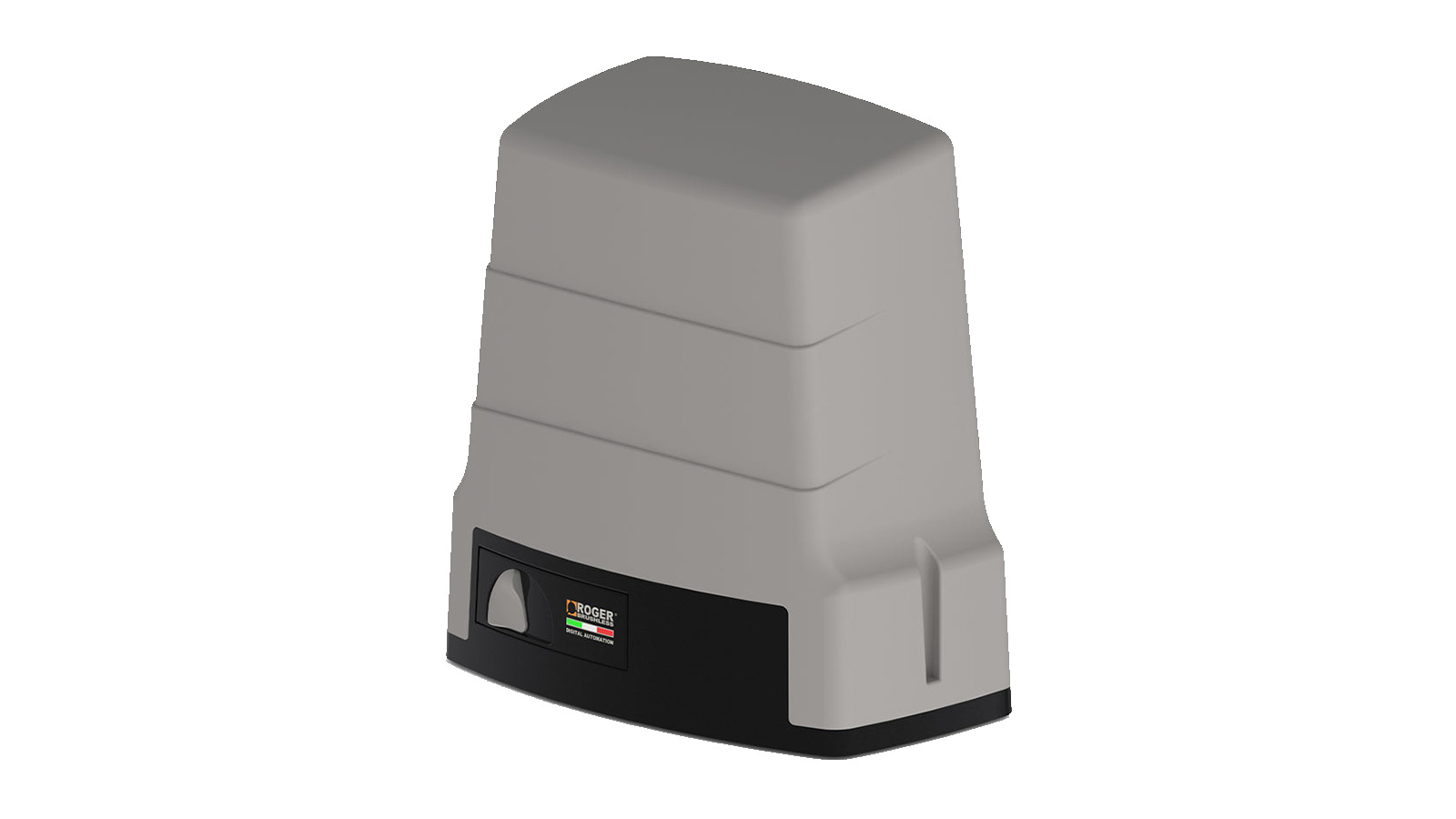

Medio 1600x900 1
Medio 600KG sliding gate motor

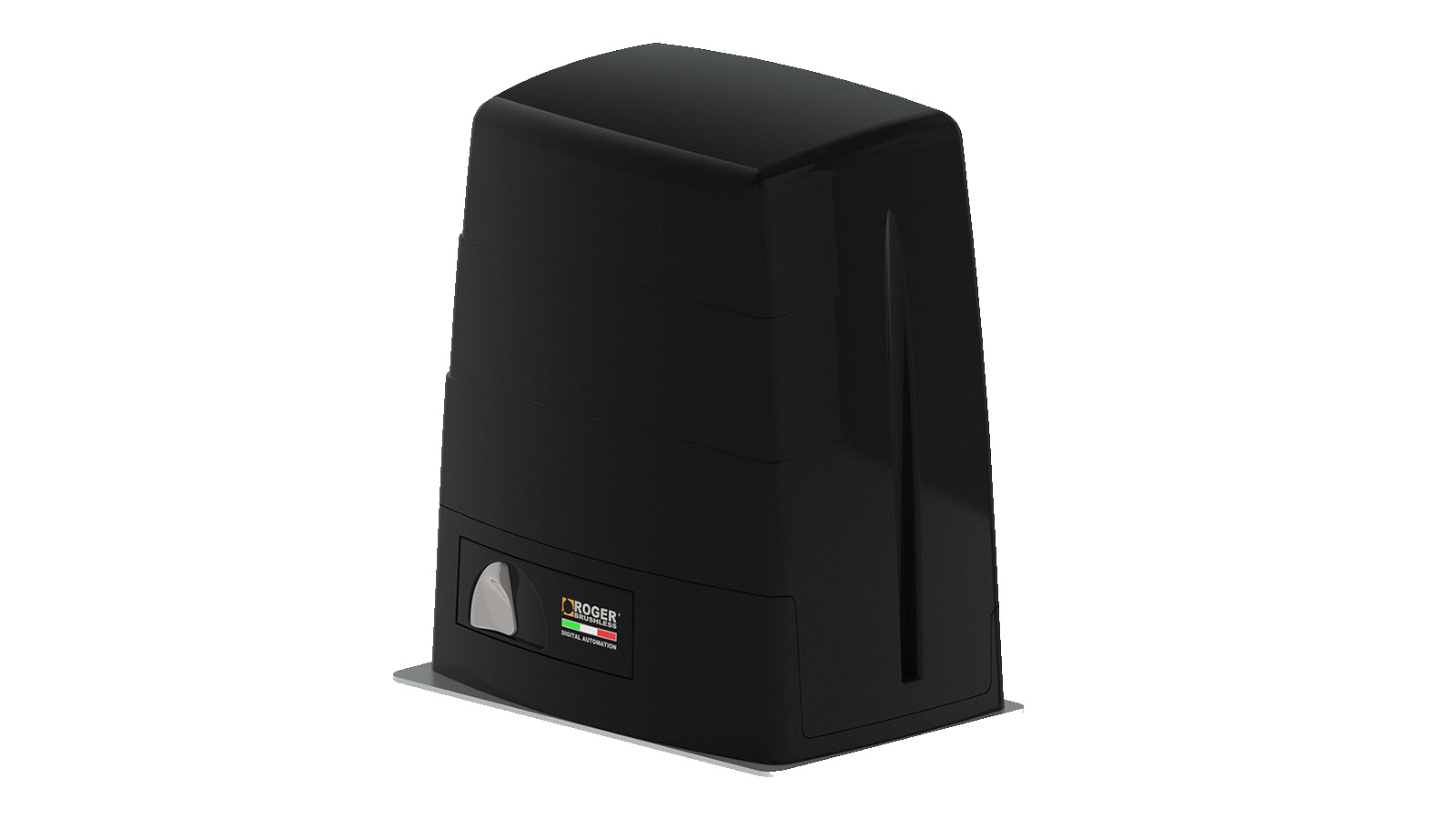

Bambino 1600x900 1
Bambino 400KG sliding gate motor

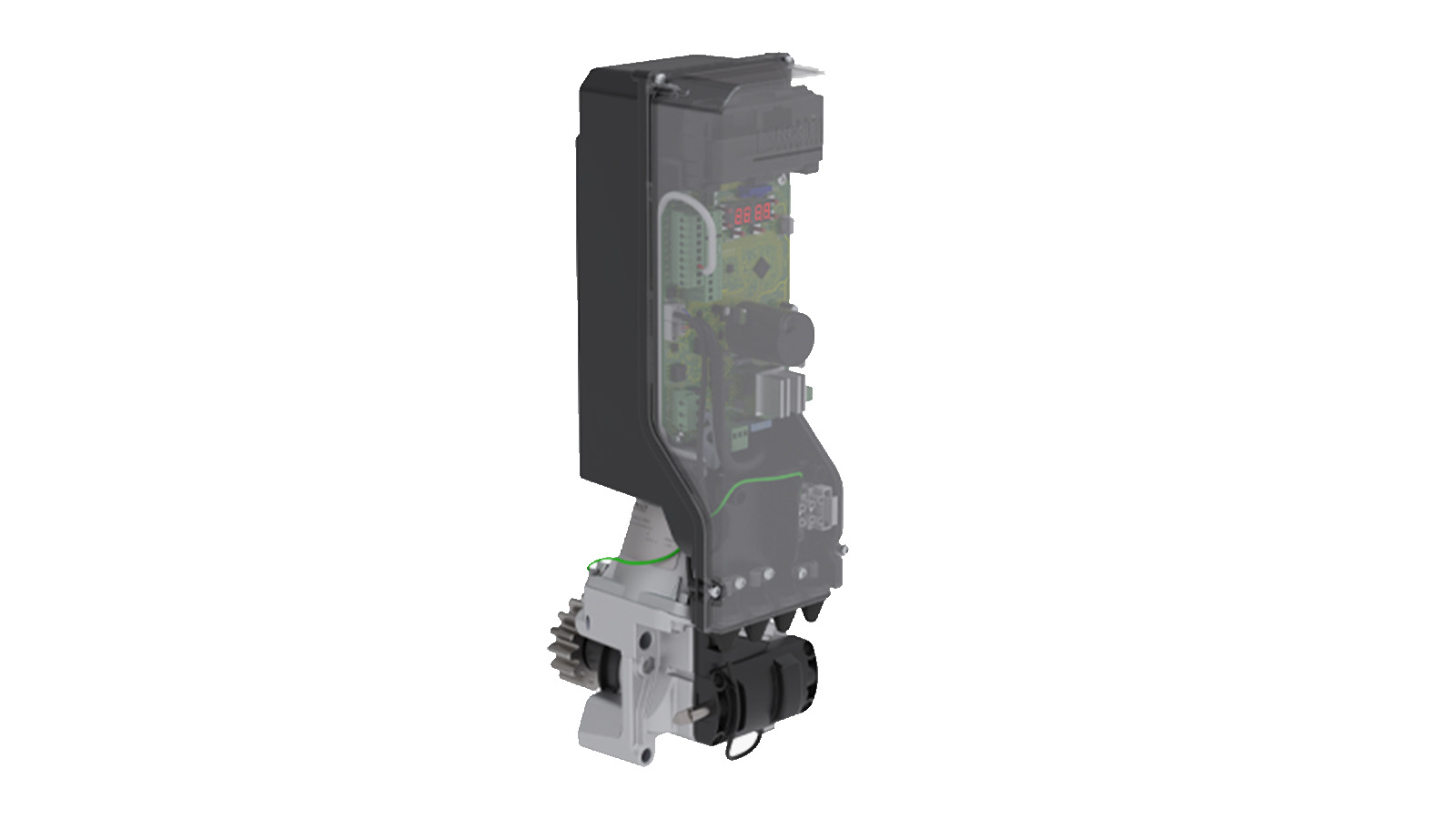

Tower TW90 1600x900 v2
Tower in post Motor
Description

Edgesmith's range of sliding gate motors have a 100% duty cycle through the use of brushless technology. From Large industrial gates weighing up to 1500kg down to simple light residential gates, there is a motor to suit.

A brushless motor with precision control these are both energy efficient and safe. The capability of increasing the sensitivity means the lightest touch and these gate motors will immediately reverse away from an object.



Key Features

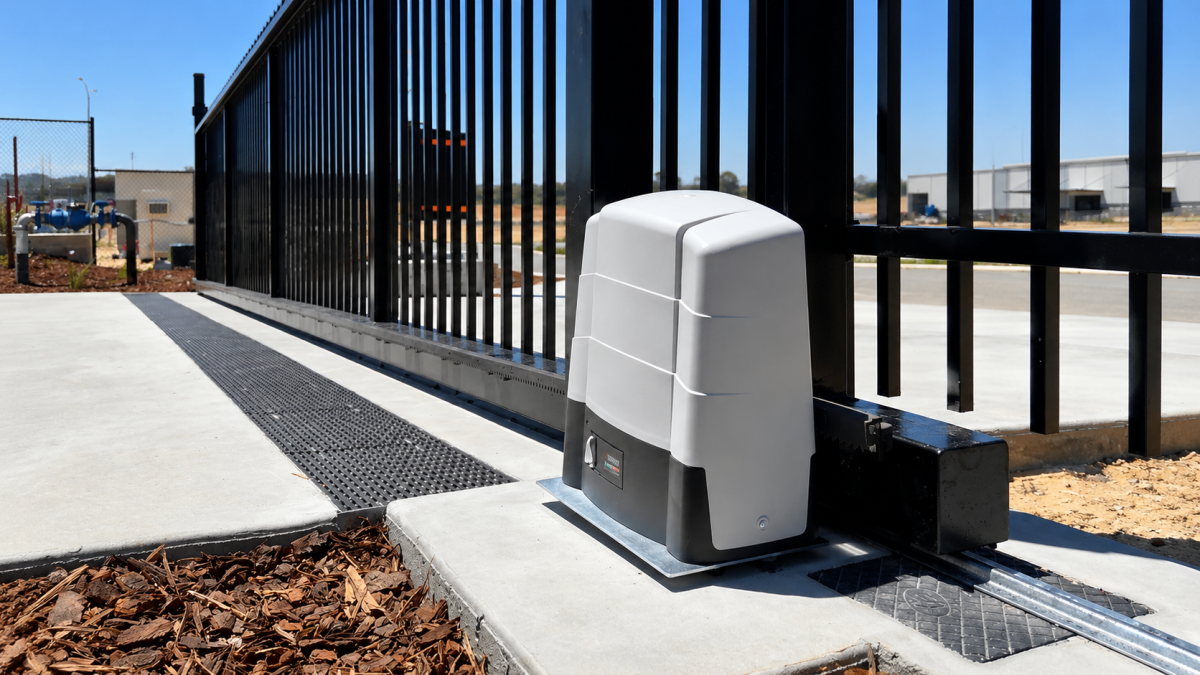

Grande:

  • Capable of moving gates up to 1500kg
  • Maximum gate length of 20m
  • Opening speeds of 25m per minute
  • Motor power supply is a low 650W at 36V

Medio:

  • Capable of moving gates up to 600kg
  • Maximum gate length of 12m
  • Opening speeds of 26m per minute
  • Motor power supply is a low 130W at 24V

Bambino:

  • Capable of moving gates up to 400kg
  • Maximum gate length of 12m
  • Opening speeds of 26m per minute
  • Motor power supply is a low 125W at 24V

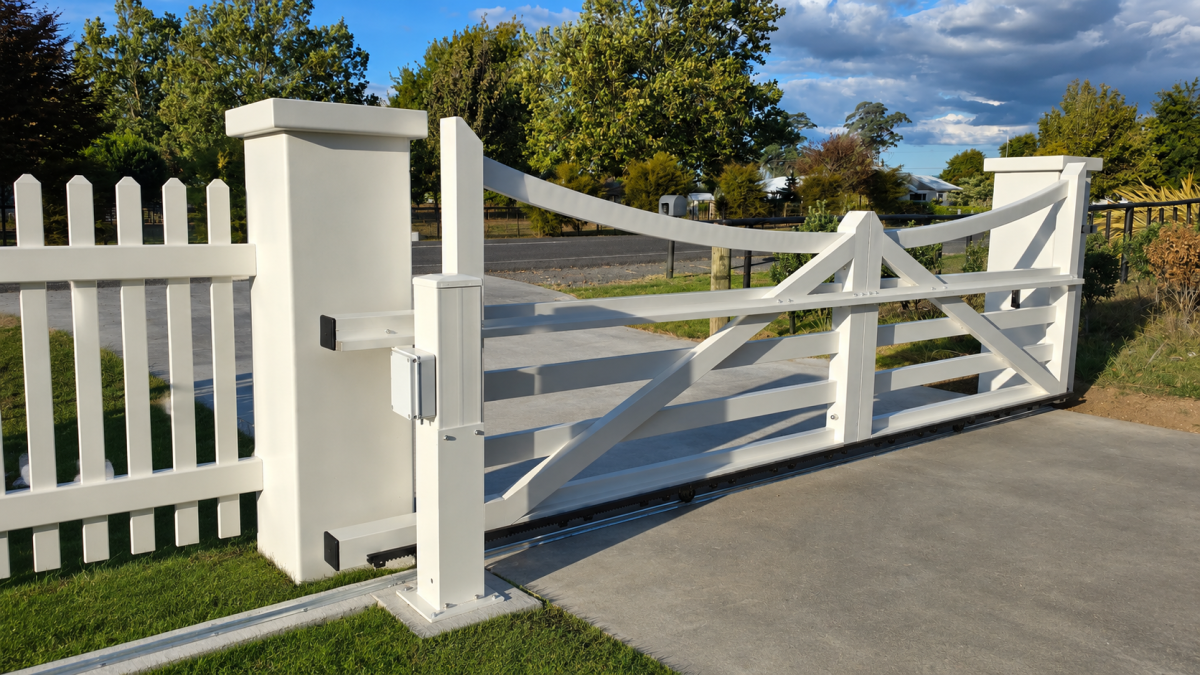

Tower TW90 In-post Motor:

  • Capable of moving gates up to 600kg
  • Maximum gate length of 12m
  • Opening speeds of 25m per minute
  • Housed inside a 150x150mm post
  • Motor power supply is a low 180W at 24V

Tower TW110 In-post motor

  • Capable of moving gates up to 1600kg
  • Maximum gate length of 20m
  • Opening speeds of 25m per minute
  • Housed inside a 250x250mm post
  • Motor power supply is a low 240W at 36V



Categories
Fencing, Walling and Gates
Scope of Use

Grande:

  • Industrial slding gates
  • Industrial cantilever gates
  • Intensive use 100% duty cycle

Medio:

  • Light industrial & commercial sliding gates
  • Light industrial & commercial cantilever gates
  • Intensive use 100% duty cycle

Bambino:

  • Residential sliding gates
  • Residential cantilever gates
  • Intensive use 100% duty cycle
Limitations on Use
  • The ratio between gate length & weight need to be considered when choosing the correct motor
  • Other factors like wind or style of gate (solid infill or open picket) should also be considered
  • Contact Edgesmith's expert team for advice on specification
In-Service History
  • In service within Europe since 2009 & New Zealand since 2017
Other Performance Attributes
  • 100% duty cycle — motor can function continuously without becoming hot, or needing to rest and cool down
Documents
Bambino Motor Technical Spec Sheet
pdf
Grande Motor Technical Spec Sheet
pdf
Medio Motor Technical Spec Sheet
pdf
Tower Motor Technical Spec Sheet
pdf
