Barrier Arms for Vehicle control
Description

Roger Technology automatic barriers are the ideal solution for all automation used in residential, multi-residential, commercial and industrial vechile control. They are all suitable for super intensive use, and can be integrated with Vehicle Priority Systems.

Even the largest Bionik Barrier operators are low voltage so running low voltage AC out to the operator is possible. This can save on installation costs where high voltage power is not available at the Barrier arm.

The digital encoder allows the operator to detect an obstacle and reverse instantly, all in full compliance with European safety requirements.

Key Features
  • Energy efficient low power consumption across all motors
  • Intensive use 100% duty cycle
  • Optional battery backup
  • Solar power compatible

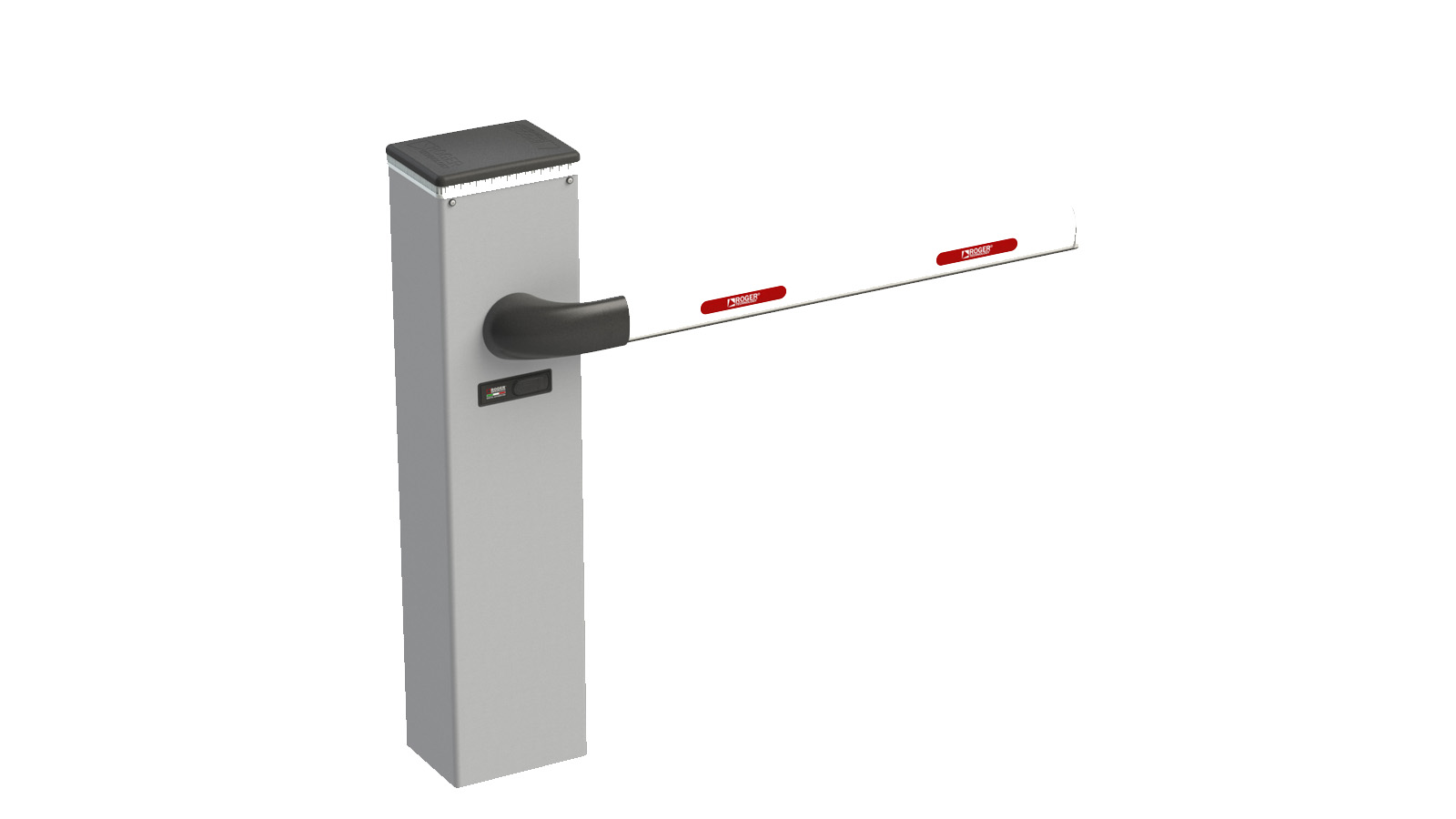

BIONIK 4:

  • Maximum arm length of 4m
  • Opening speeds between 2-6 seconds to 90°
  • Motor power supply is a low 220W at 36V

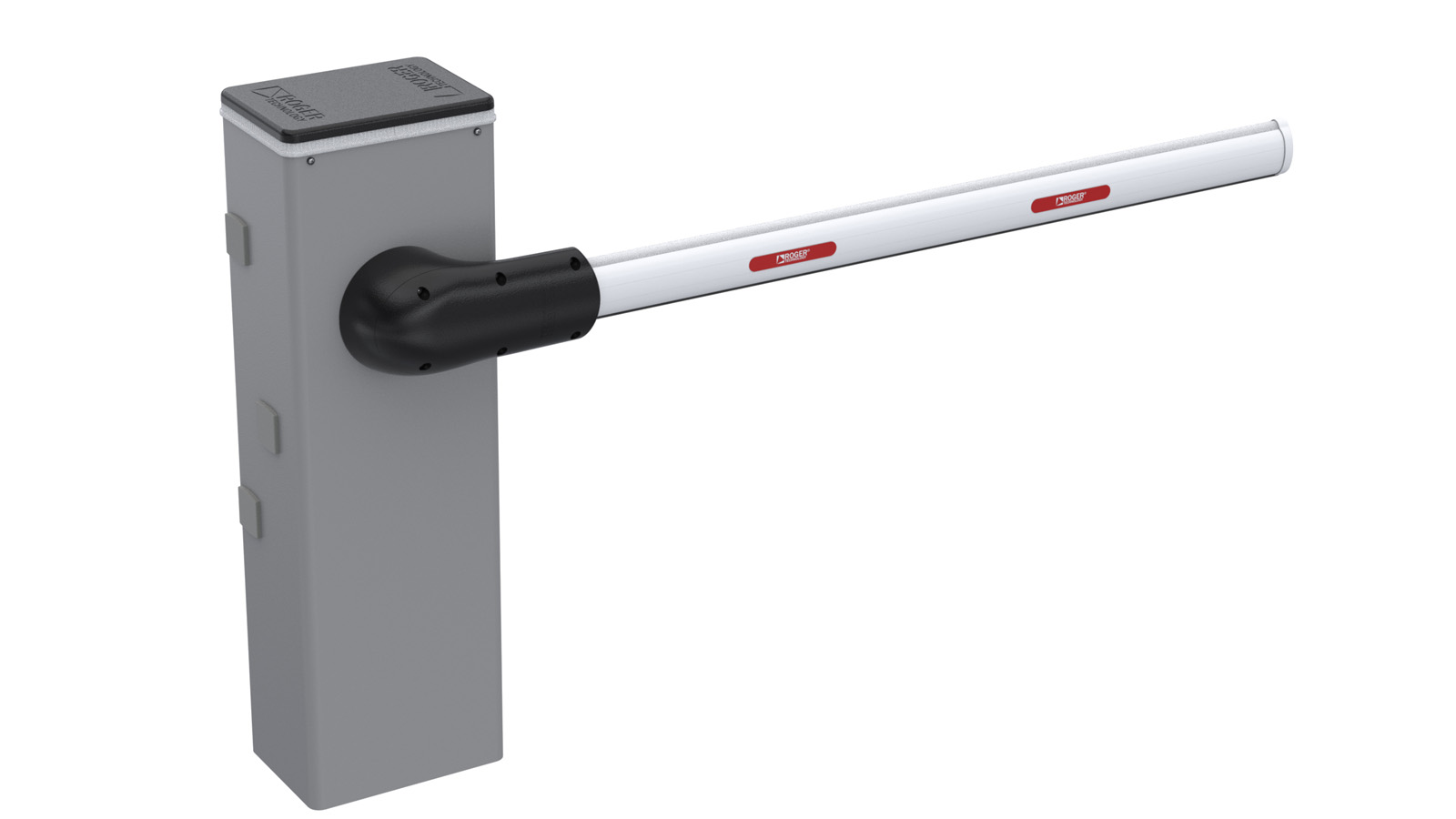

BIONIK 6:

  • Maximum arm length of 6m
  • Opening speeds between 4-6 seconds to 90°
  • Motor power supply is a low 220W at 36V

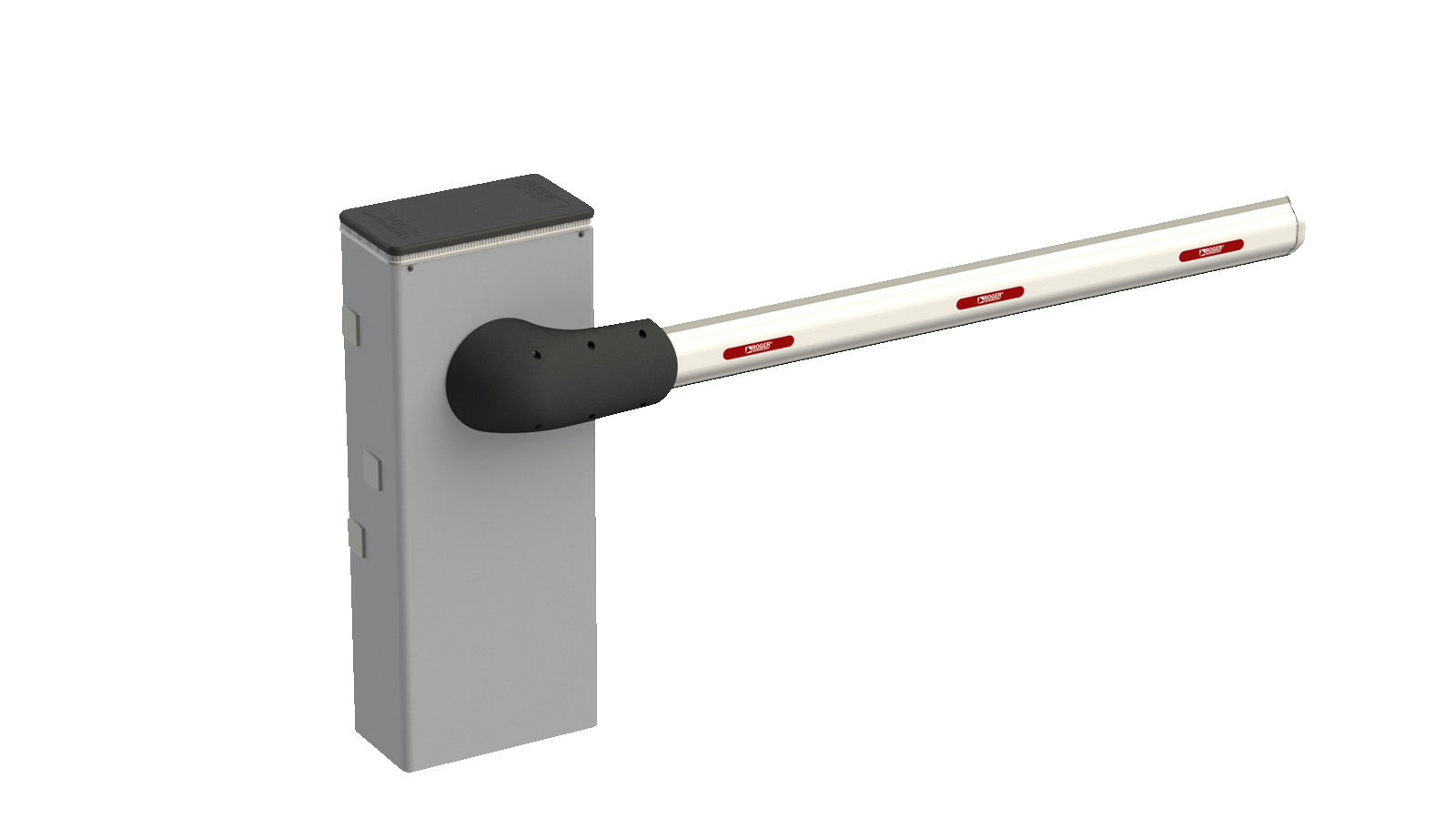

BIONIK 8:

  • Maximum arm length of 8m
  • Opening speeds of 9-29 seconds to 90°
  • Motor power supply is a low 220W at 36V
Scope of Use

Where vehicle access and control is required.

  • Optional battery backup
  • Solar power compatible
  • Intensive use 100% duty cycle

Edgesmith's expert team can assist with choosing the correct Barrier Arm for a project.

Limitations on Use

Wind and height obstrucations should be considered when choosing a barrier arm.

In-Service History

In Service within Europe since 2009 & New Zealand since 2017

Other Performance Attributes
  • Complies with European safety requirements
Documents
Bionik Barrier Arm Technical Spec Sheet
