CS X-RayBarrier Cavity Slider
CS For Doors
All products

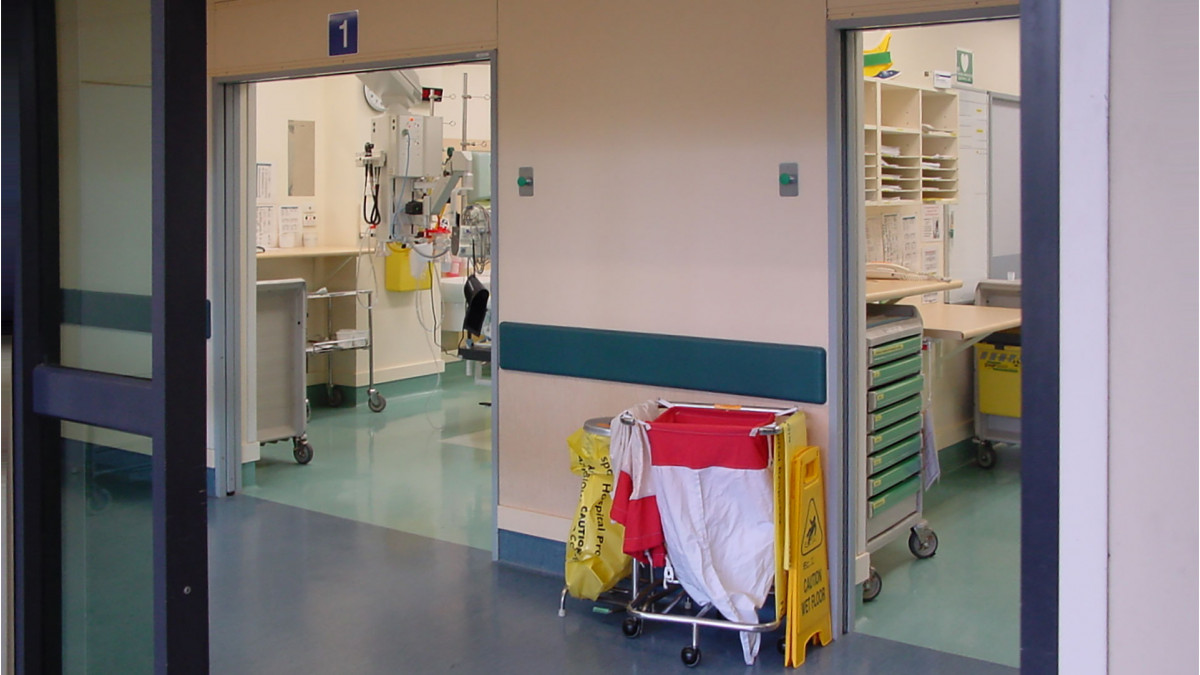

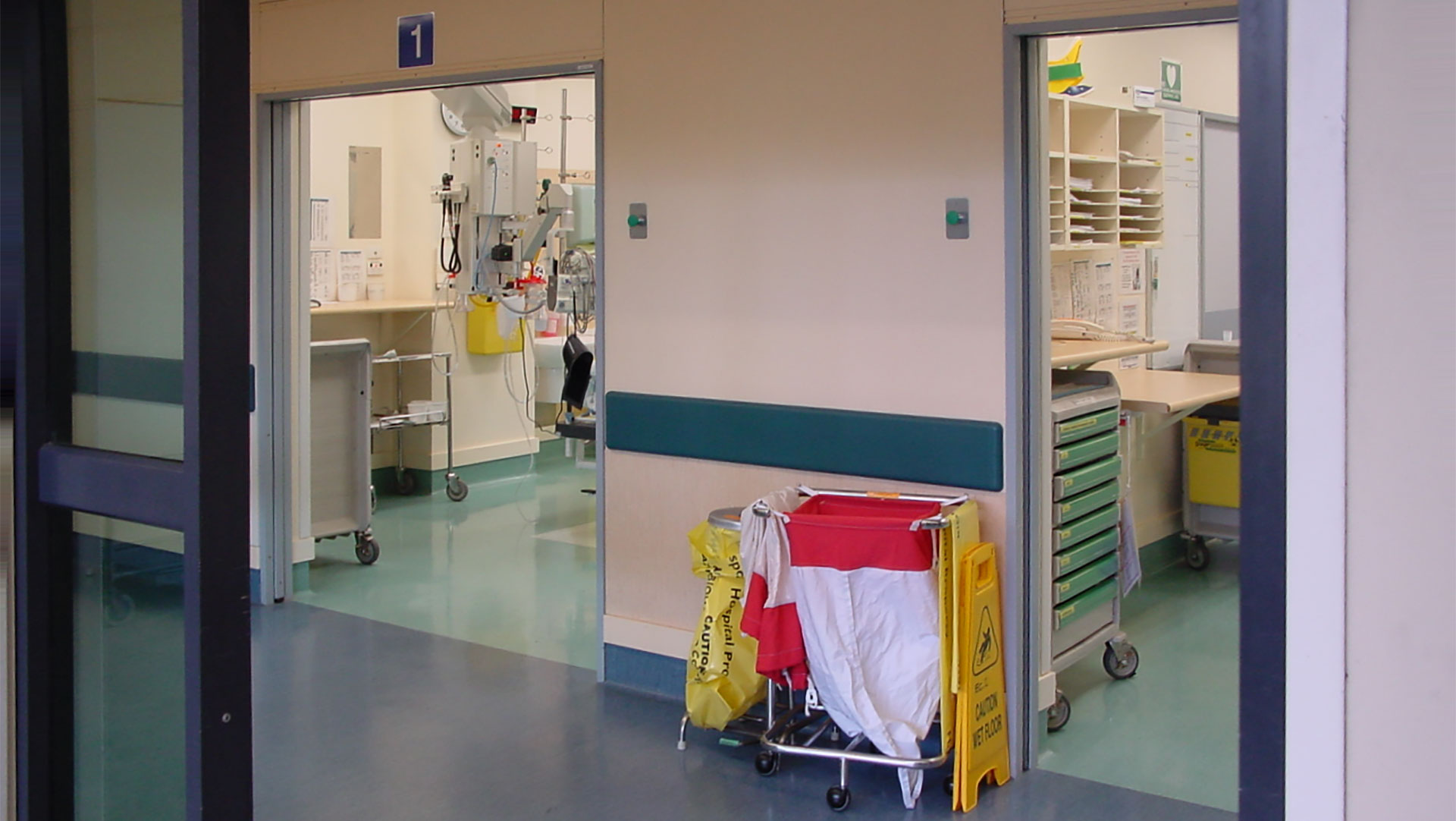

Automated xray cavity sliders

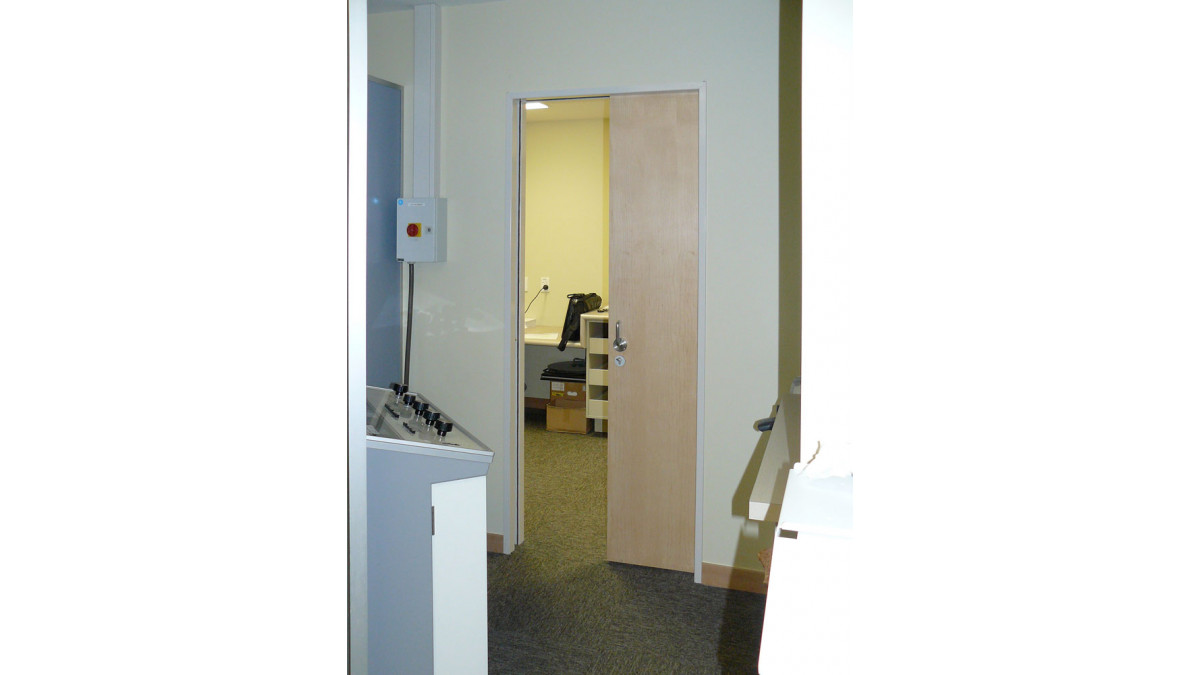

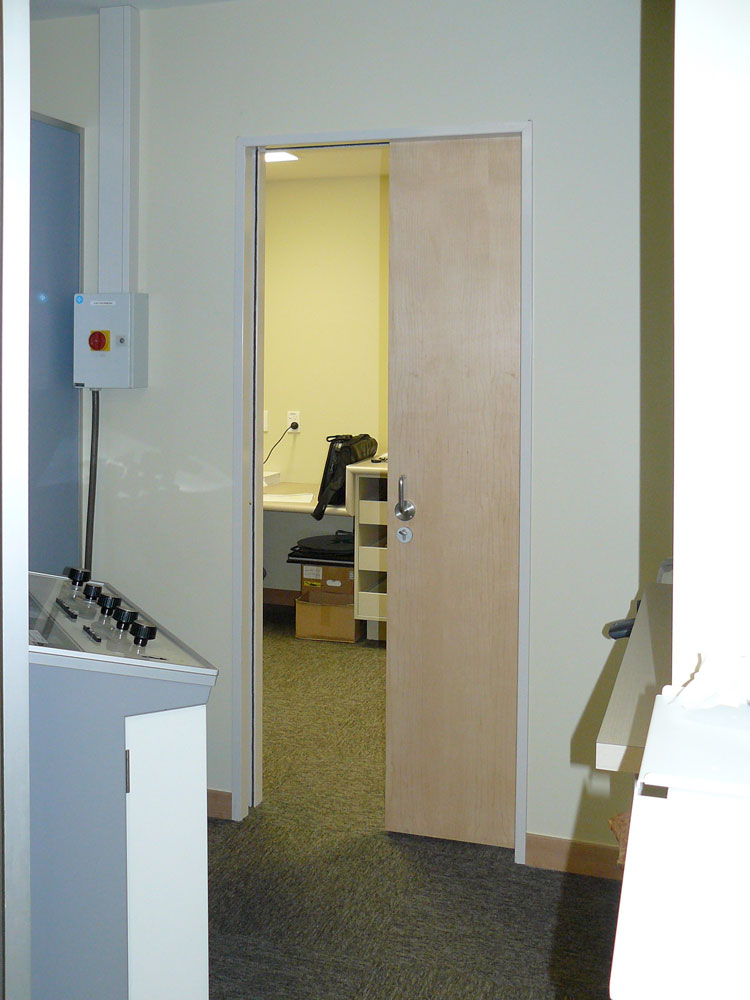

Xray Barrier 1

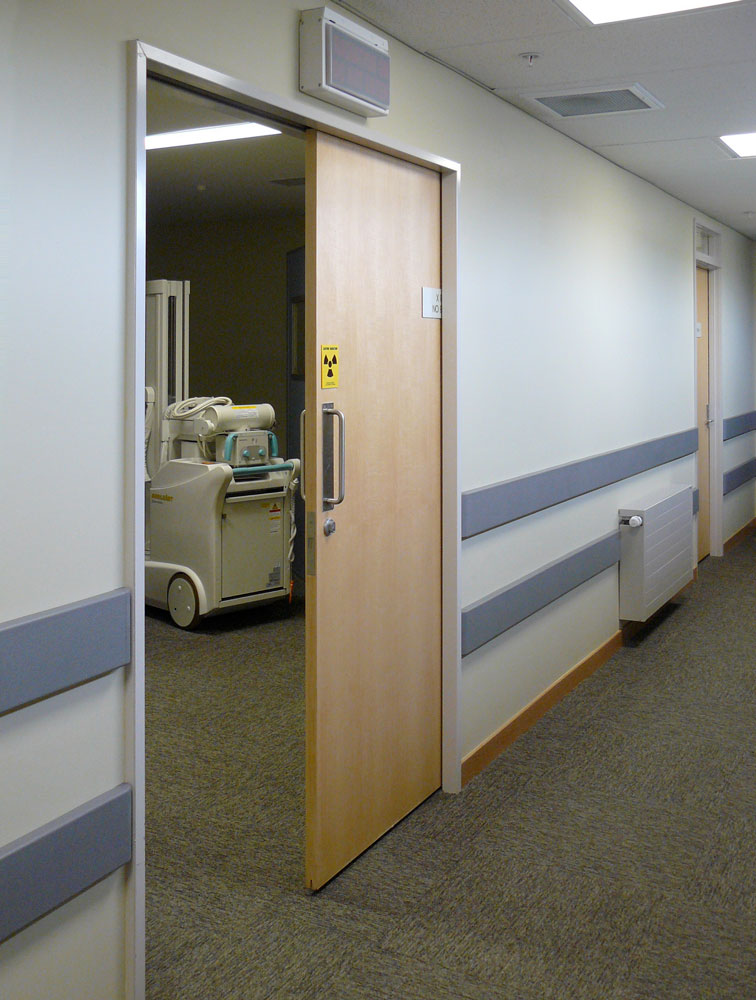

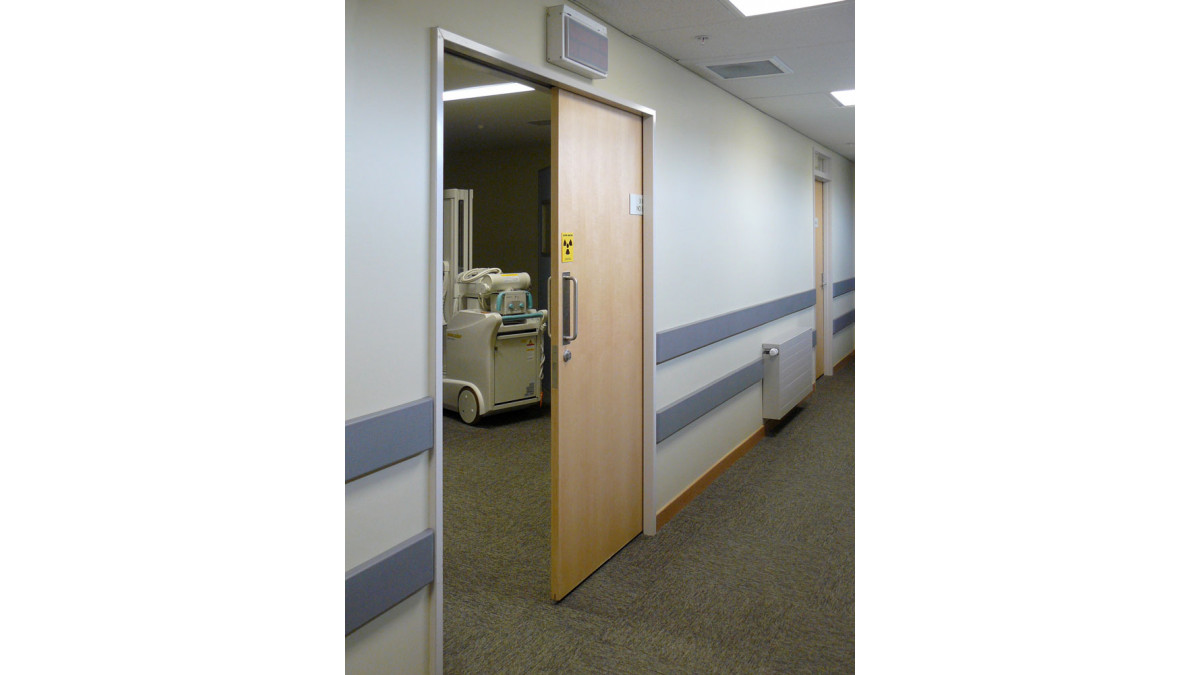

Xray Barrier 3

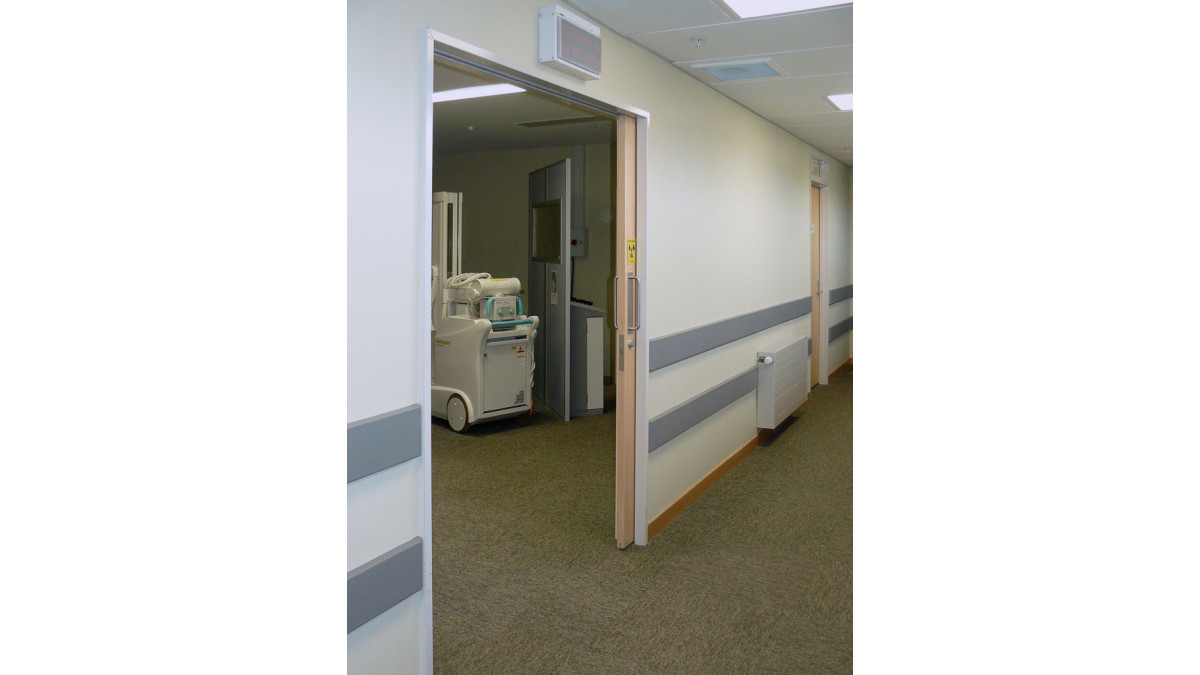

Xray Barrier 2

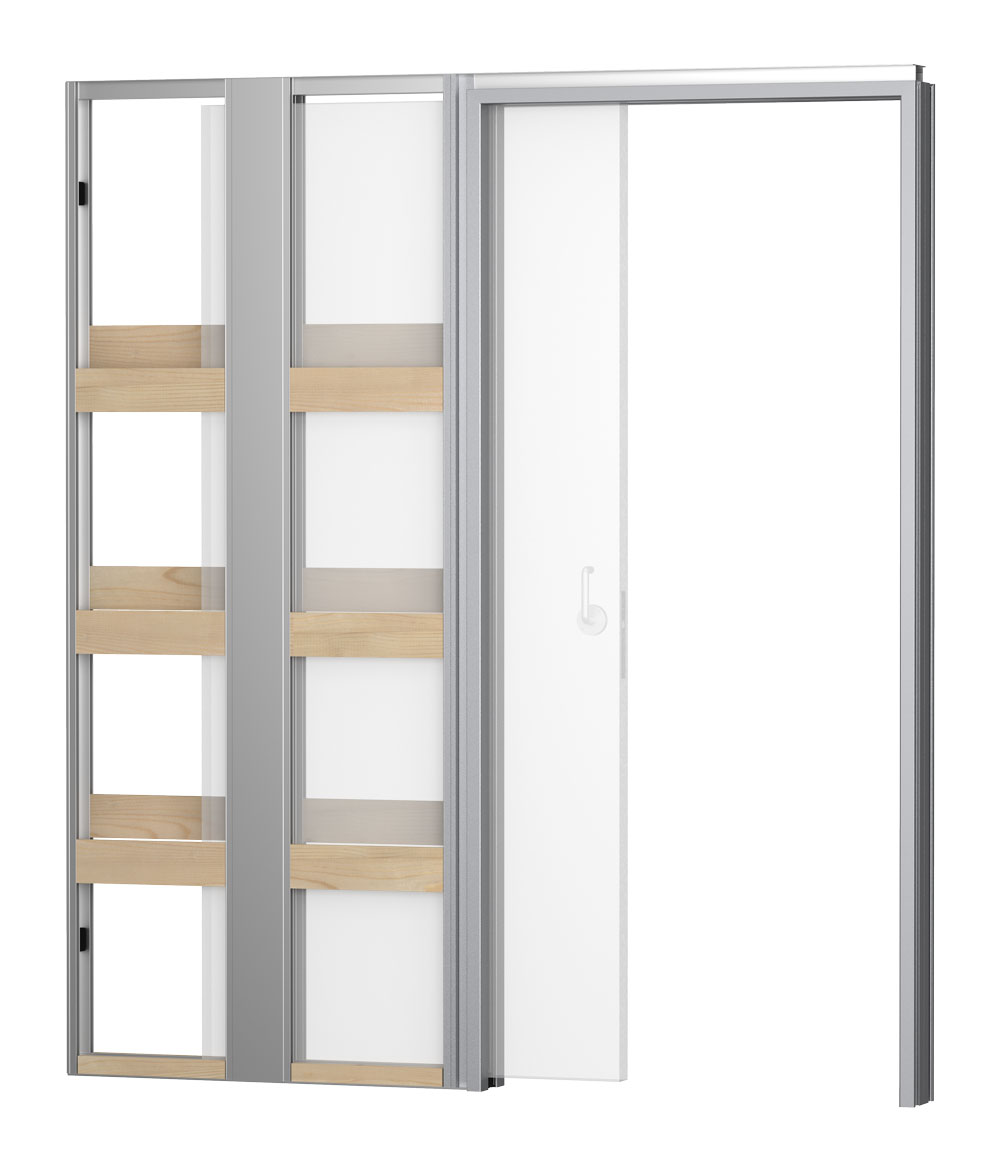

X Ray Barrier
Description

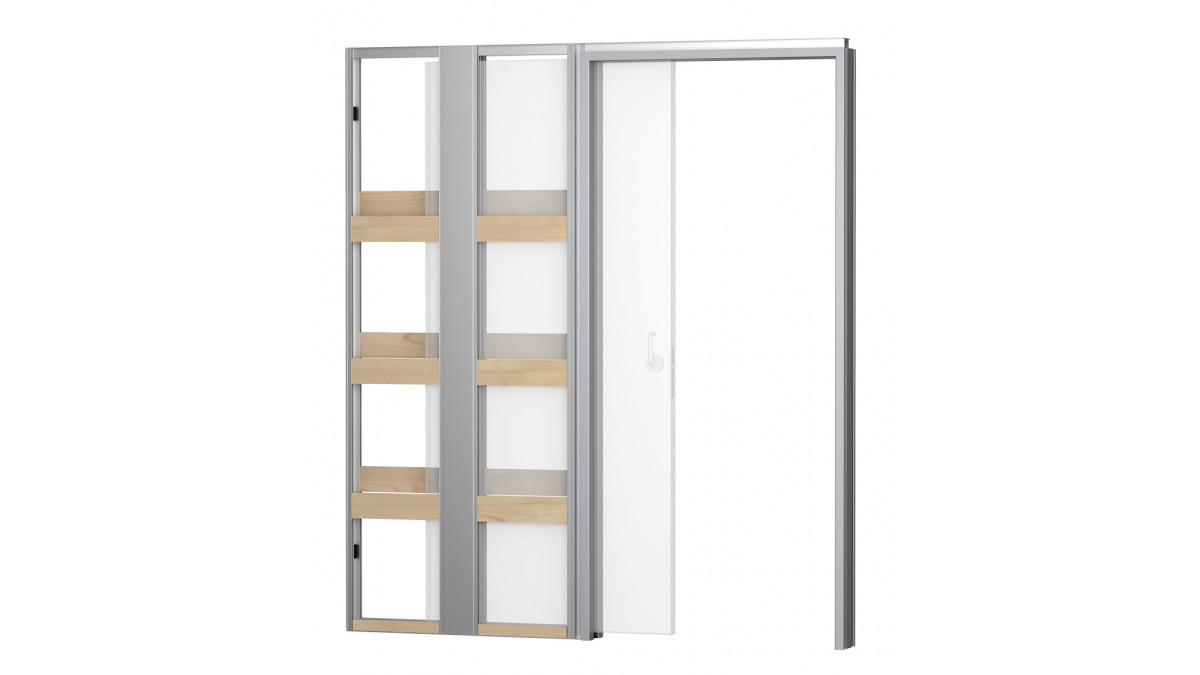

The CS X-RayBarrier cavity sliding door system is designed for use in isotope areas or where diagnostic x-ray apparatus is used. Many doors to x-ray areas are larger than standard and are heavy to operate due to their lead content. A sliding door is far easier to manage for all staff – if the door is really big and heavy, CS can fully automate the door.

The cavity pocket has lead shielding custom fitted to all the jambs. Couple this with the CS X-RayBarrier sliding door leaf to make a complete system. CS can supply a door leaf manufactured from either aluminium or timber but it must meet minimum barrier requirements as specified by the consulting engineer.

CS Hi-Impact Jambs or standard aluminium jambs are available. Hi Impact Jambs are often a good option because the places where these cavity sliders are commonly used have trolleys, hospital beds and other moving objects which may come into contact with jambs on a regular basis.

Key Features
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium.
  • Suitable for large openings (unlike hard to operate hinged doors).
  • Door cannot jump off the track.
  • Fits into a standard thickness wall (90 x 45 framing).
  • Supplied fully assembled for on-site installation.
  • Available in manual and AutoCav (automatic open/closing) options. CS AutoCav units require an access panel on one side for servicing purposes.

Detail Options

Incorporate any of the following architectural detail options with the X-RayBarrier cavity slider to create a specific look or to provide a unique solution.

  • Shadow Line
  • Hi-Impact Jambs
  • Protrude 100
Categories
Cavity Sliders
Ranges
CS Cavity Sliders
NZ Made
NZ Made
Scope of Use

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

Limitations on Use

Available as single units only. Bi-parting units on consultation with the CS Doorologists' department!

Special Requirements

  • CS Cavity Sliders are not suitable for use with fire doors or smoke control doors.
  • CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exitways.

Maintenance Requirements

  • Refer to CS FOR DOORS detailed instructions on powder coated aluminium product maintenance.
  • Under normal circumstances, CS Cavity Sliders require no maintenance. In high use situations, the carriages will eventually need replacing. Replacement carriages and instructions on replacement are available from Cavity Sliders Limited. Any service requirements should be referred to one of our four branches
In-Service History

CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986.

Other Performance Attributes
  • CS Cavity Sliders are backed by a 10 year written guarantee.
Documents
Data Sheet
URL
BRANZ Appraisal

900 [2020]

URL
Maintenance Instructions
URL
Warranty
pdf
Additional Information
URL
