CL100 Flush Turn
Description

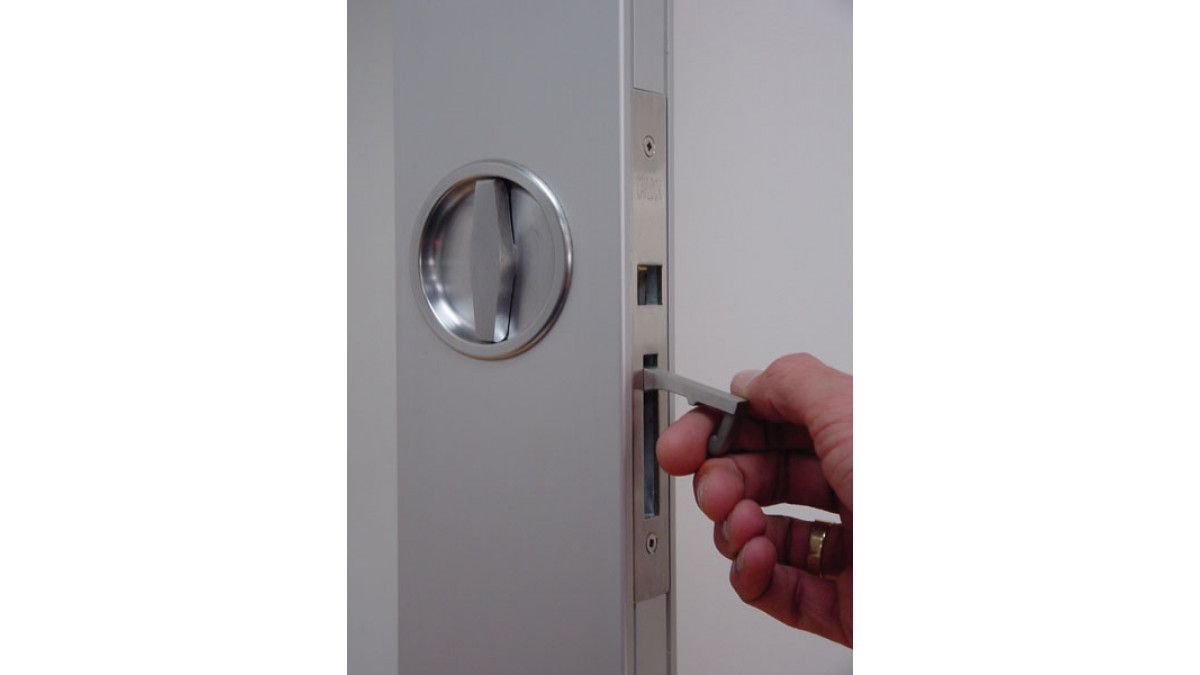

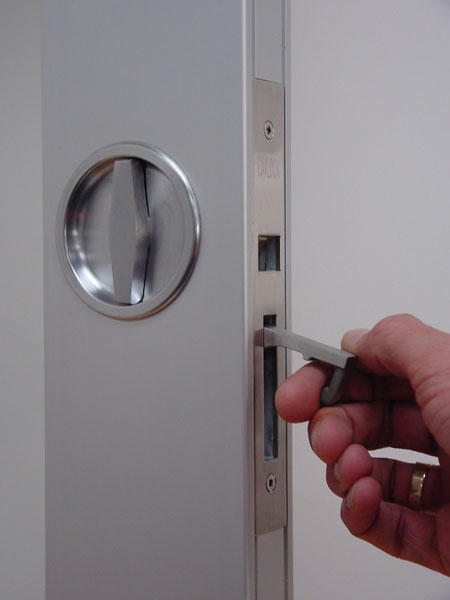

The CL100 Flushturn is specifically designed for sliding doors. It incorporates machined brass components that are either polished brass or satin chrome plated depending on the finish required.

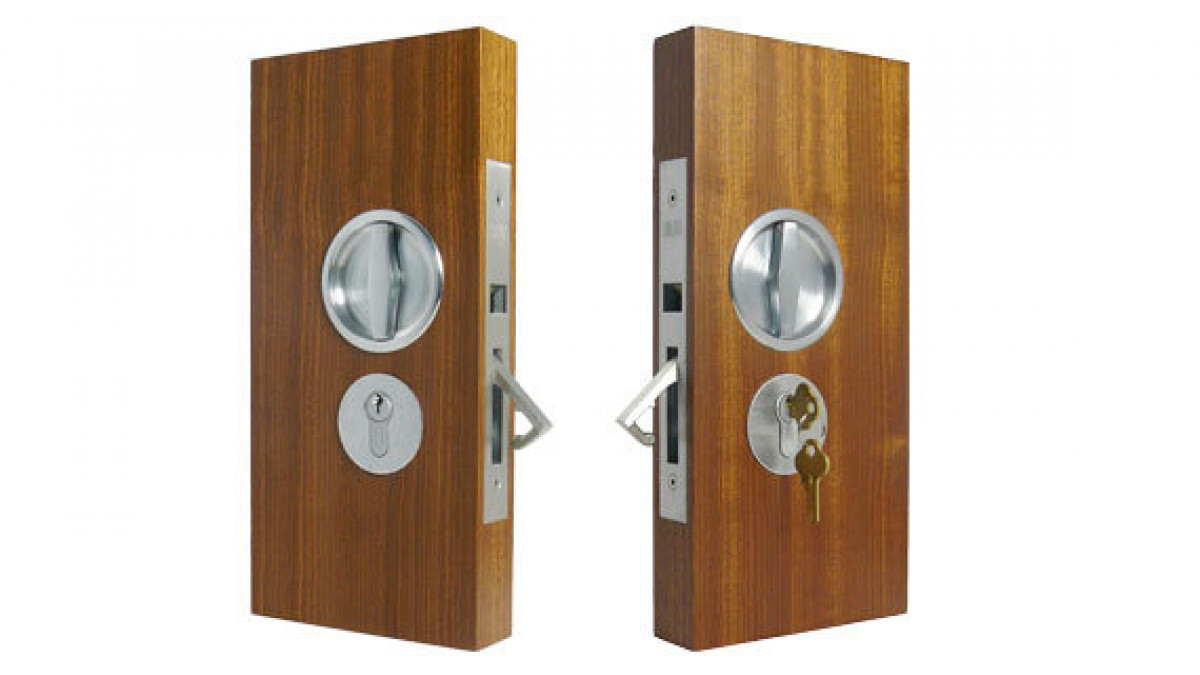

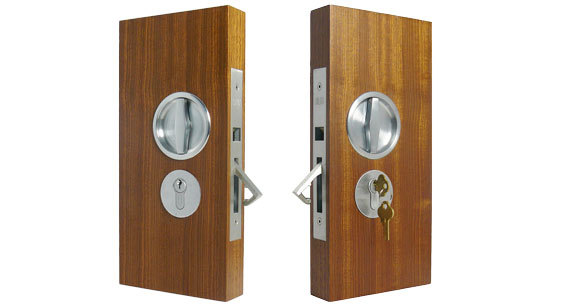

Because of its shallow fitting depth and positive feel to the turn, this is a popular side handle for both latching and non latching applications. When combined with the CL100 mortice lock and euro profile cylinder it makes for a great looking security option.

Requires a minimum door thickness of 37mm.

Finishes available: SCP (Satin Chrome Plate) or PB (Polished Brass).


Key Features
  • Comes with a flush pull if required to retrieve the door from the pocket
  • Matches other commercial hardware
  • High quality cast componentry ensures longevity of product
  • Minimum door thickness of 37mm required
Ranges
CS CaviLock
NZ Made
NZ Made
Scope of Use
  • Specifically designed for sliding doors
  • Popular side handle for both latching and non latching applications
  • Combined with the CL100 mortice lock and euro profile cylinder for a security option
Limitations on Use
  • Requires a minimum door thickness of 37mm
In-Service History

The CaviLock CL100 hardware range been successfully used in commercial projects in New Zealand and Australia since 1994.

Other Performance Attributes
  • High quality cast componentry ensures longevity of product
Test Results
Test Results
Documents
Data Sheet
Appraisal, Accreditation, Certification and Testing

06.2020

Maintenance Instructions
Warranty
Additional Information

CS Cavity Sliders (CS For Doors) are a manufacturer of cavity sliding door systems and related products.
