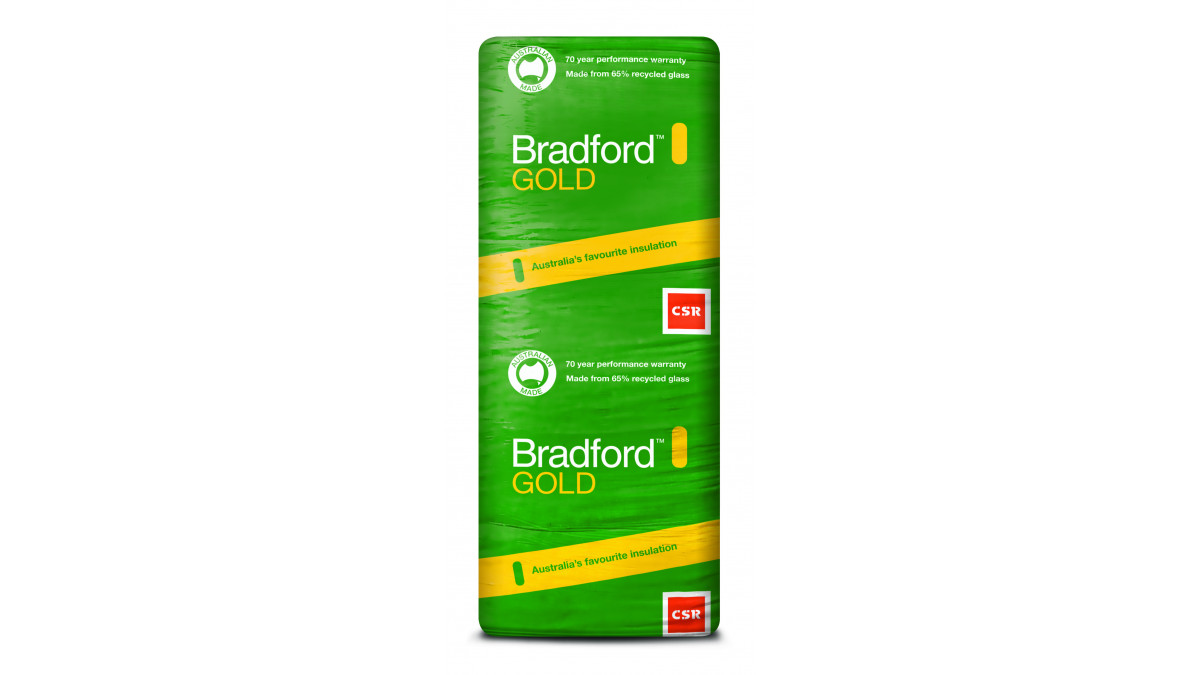

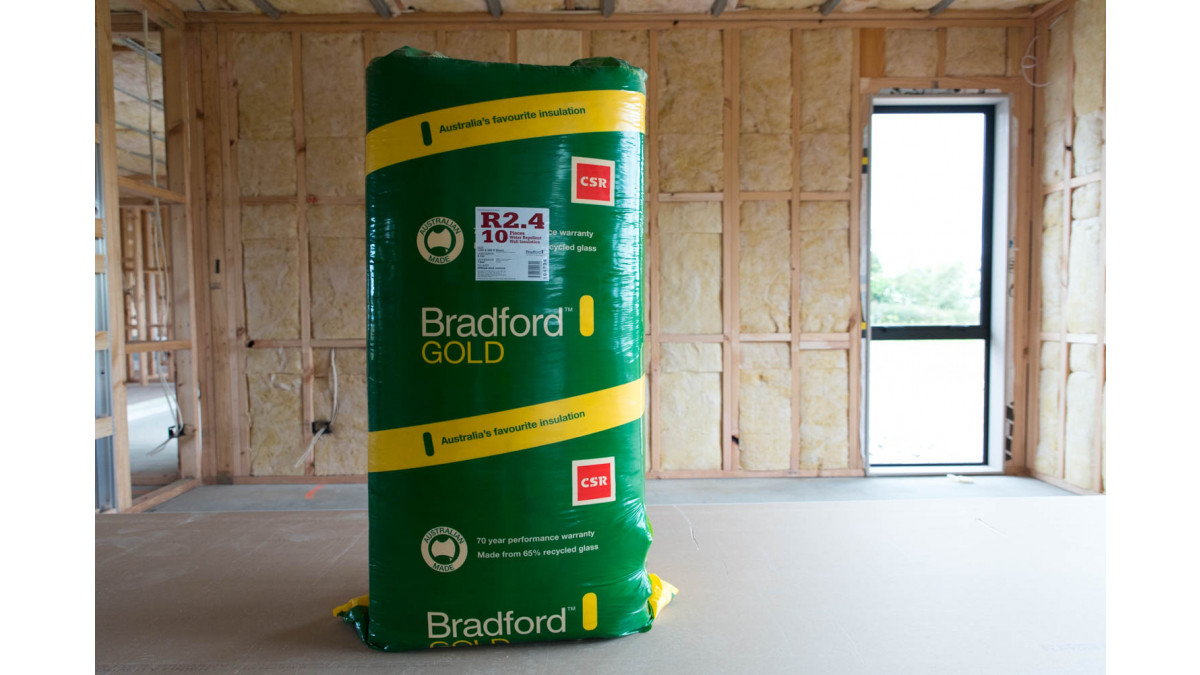

Bradford Gold Wall Insulation
Description

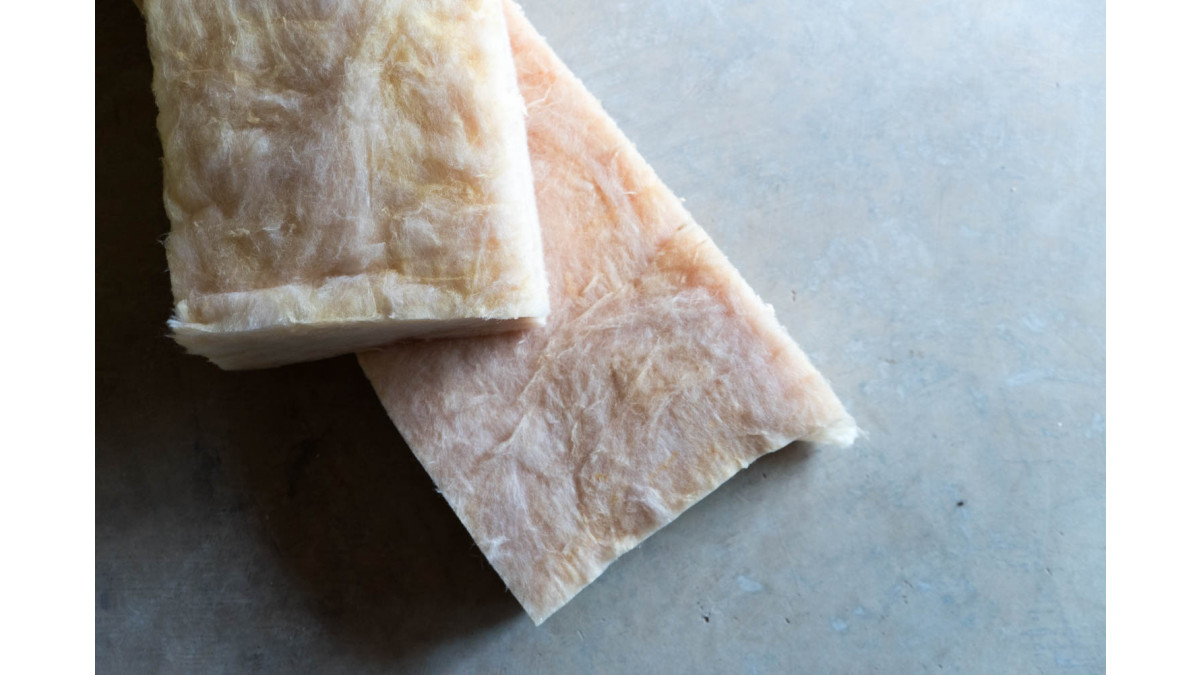

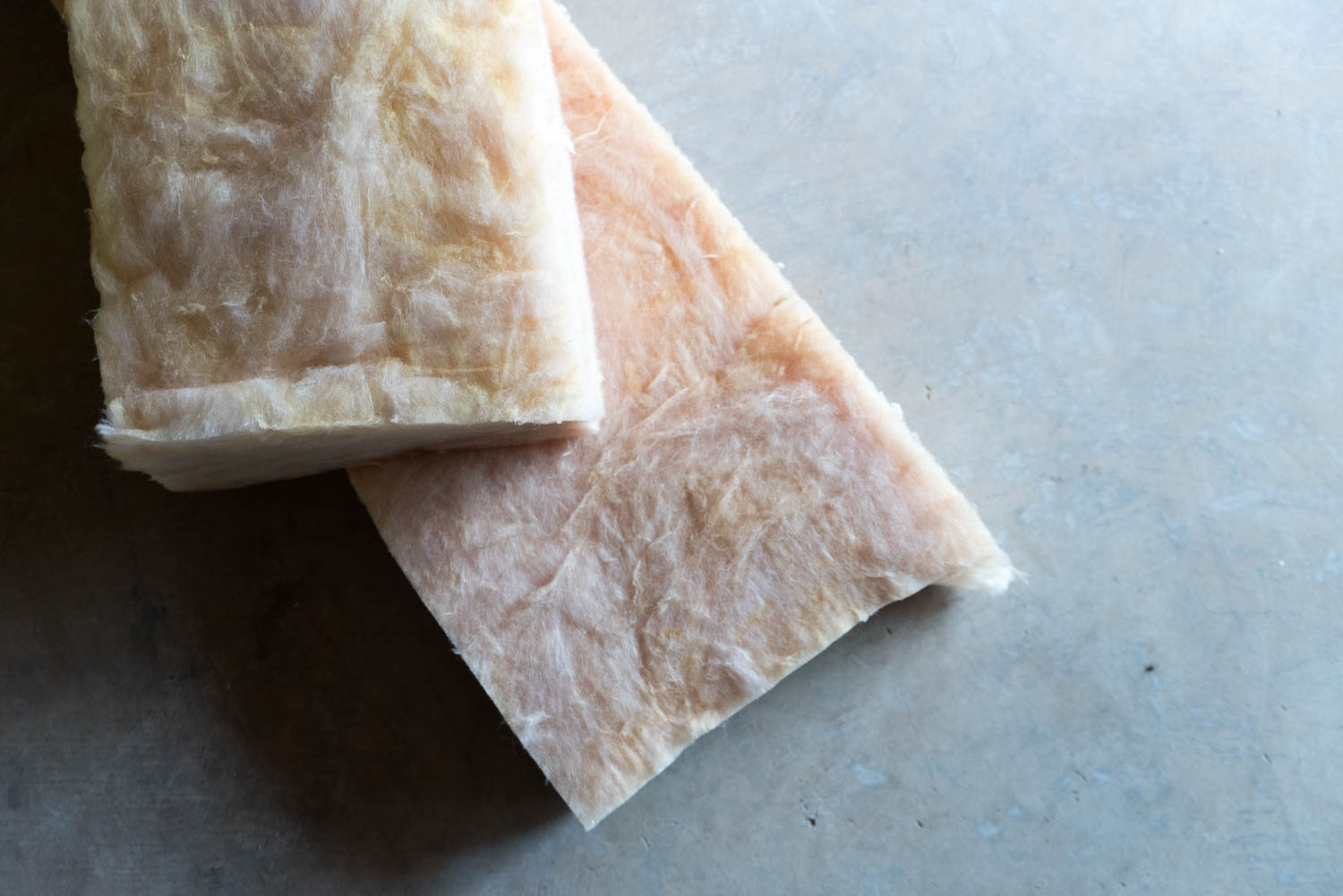

Bradford Gold wall insulation is a resilient and compressible insulation manufactured from the controlled felting of glass wool bonded with a thermosetting resin.

Bradford Gold wall insulation is specially stiffened and treated to provide moisture resistance.

Key Features
  • Range of R Values - R1.8 to R4.0 (High Performance)
  • Bio-soluble (No risk to health)
  • Up to 80% recycled content
  • Specially stiffened and treated for moisture resistance
  • Environmental Choice
  • BRANZ appraised

Bradford Gold is the only insulation approved by the Asthma & Respiratory Foundation New Zealand and carries the Sensitive Choice approval.

Categories
Thermal Insulation
Scope of Use

Bradford Insulation has been appraised as a thermal insulation material for walls, ceilings and roofs of buildings within the following scope:

  • Framed or part-framed domestic and commercial buildings where the insulation remains dry during its serviceable life.

Bradford Insulation must be installed in accordance with the manufacturer's Technical Literature to meet the stated thermal performance rating of the insulation.

Limitations on Use

Dry and protected installation area required.

Installation must follow NZS 4246:2016 requirements and be done where provisions of New Zealand Building Code E2 and E3 are met.

Statement of Building Code Compliance

In the opinion of BRANZ, Bradford Insulation if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No. 301 (2008), will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 Durability: Performance B2.3.1(a) not less than 50 years and B2.3.1(b) 15 years. Bradford Insulation will meet this requirement.

Clause E3 Internal Moisture: Performance E3.3.1. Bradford Insulation will contribute to meeting this requirement.

Clause F2 Hazardous Building Materials: Performance F2.3.1. Bradford Insulation meets this requirement and will not present a health hazard to people.

Clause H1 Energy Efficiency: Performance H1.3.1(a) and H1.3.2 E. Bradford Insulation will contribute to meeting these requirements.

This is an Appraisal of an Acceptable Solution in terms of New Zealand Building Code Compliance. Bradford Insulation thermal resistance (R-Value) has been determined by AS/NZS 4859.1 which is an acceptable method.

BRANZ Appraised
BRANZ Appraised
Documents
Bradford Gold & HP Product Technical Statement

D, 8/2023

BRANZ Appraisal 301: Bradford Gold Insulation

301 [2016]

H1 Solutions Brochure

Version 1 24/05/23
