Lockwood Lever & Push/Pull Furniture: 4800 Series and 5800 Series
ASSA ABLOY
All products

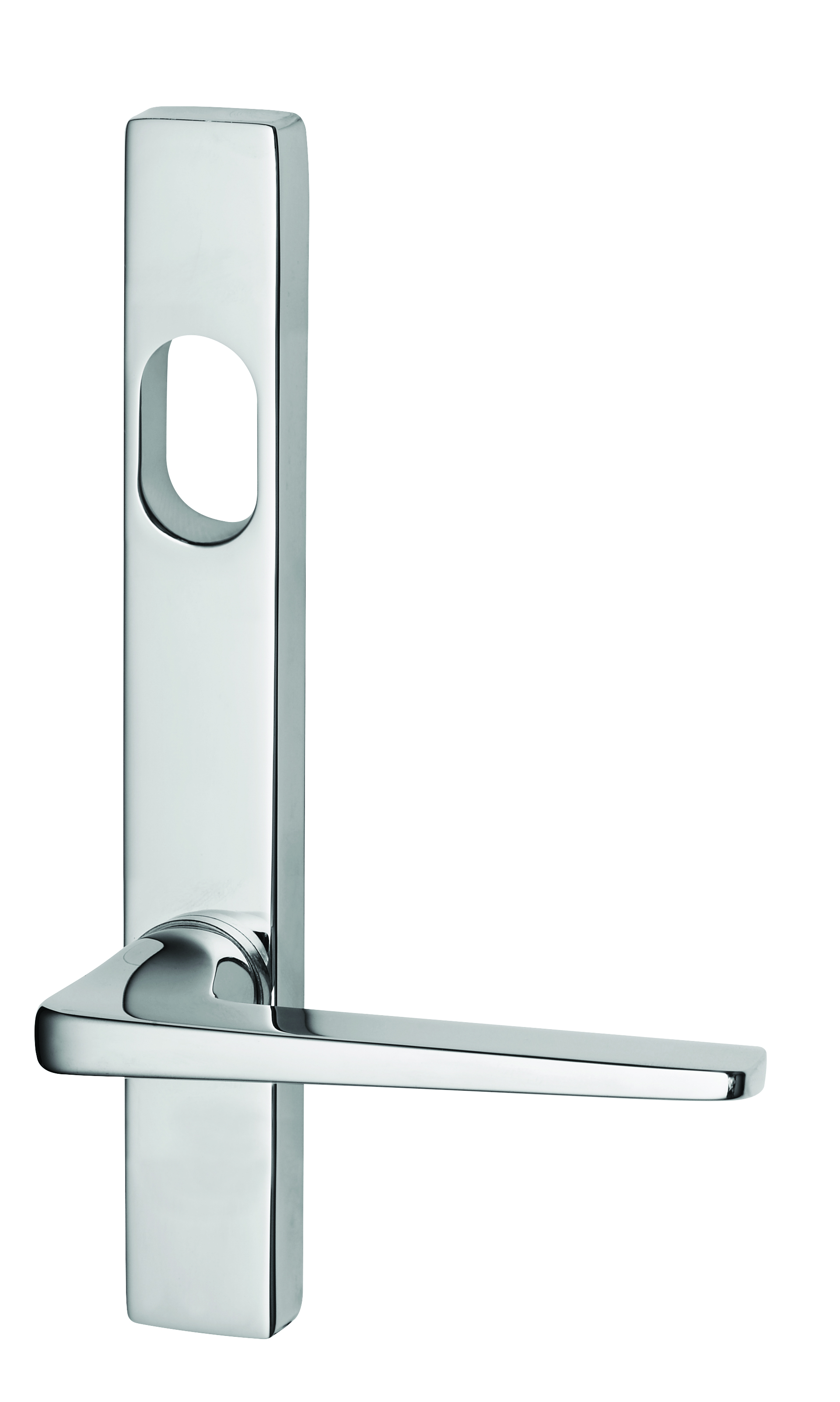

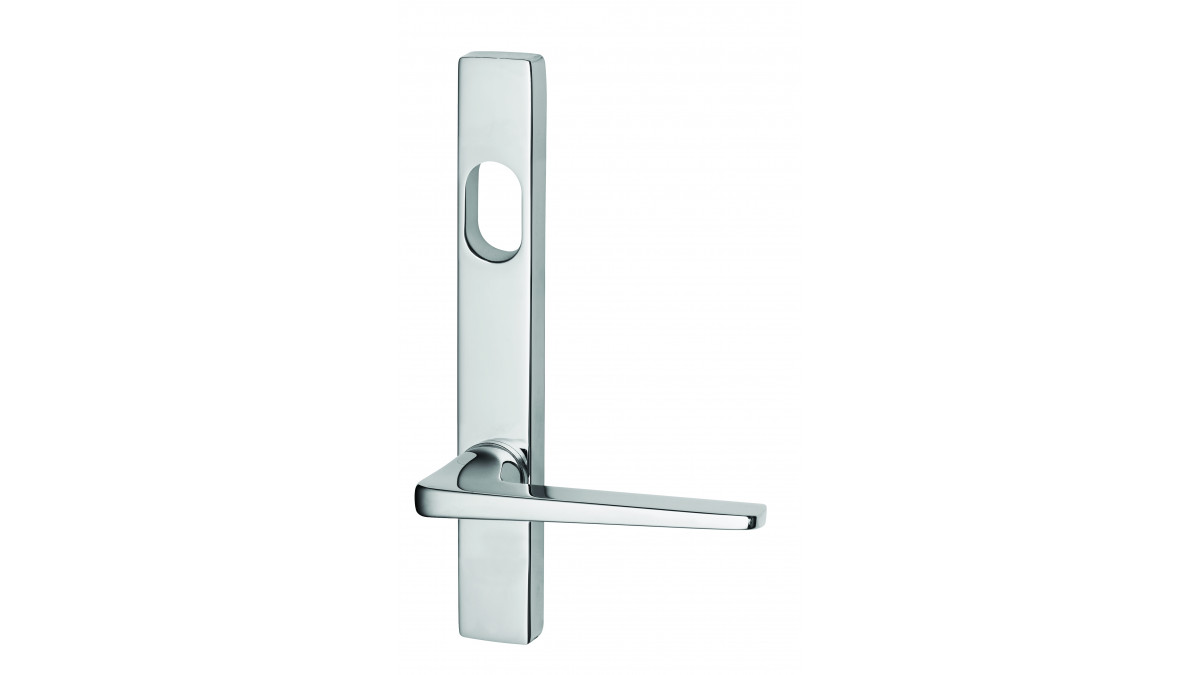

C 4800 Rectangular Narrow Stile Plate 4801 32 Lever CP

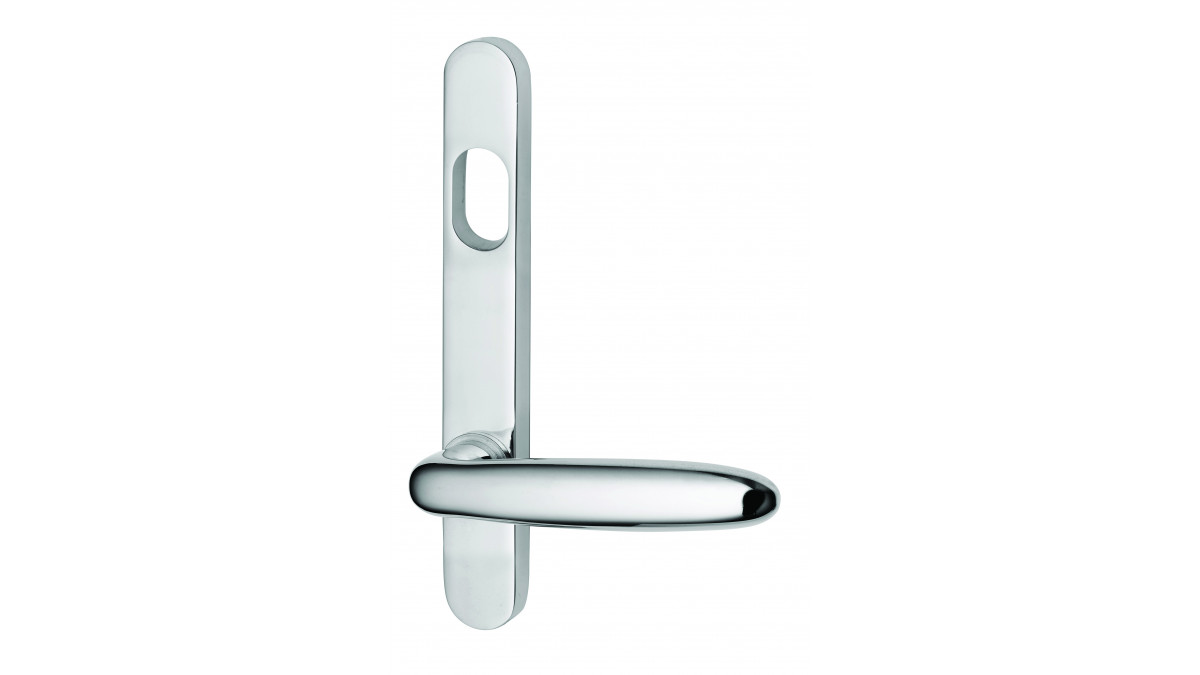

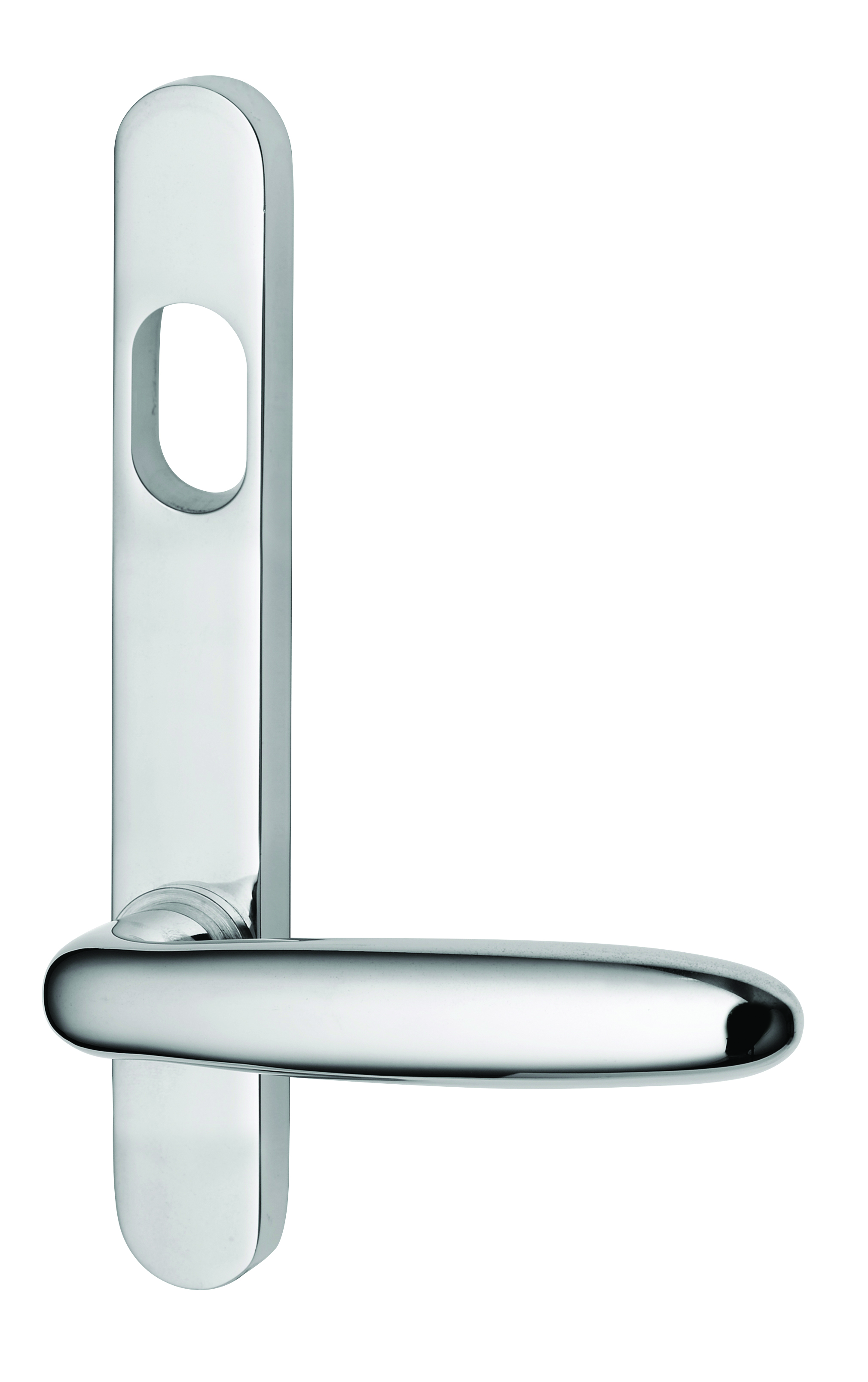

C 5800 Round Ended Narrow Stile Plate 5801 71 Lever CP
Description

Functional, yet elegant, these rectangular or round ended brass plates complement a wide range of levers.

Designed for use with Lockwood Selector and Synergy Series short and standard backset mortice locks.  Additionally there are functions that are designed to work with Lockwood 3580/3780 Series short backset mortice deadbolts. Certain lever designs are not compatible on short backset assemblies due to interference with the door stop.

Key Features
  • Door thickness:External plates are supplied with fixing screws to suit door thickness between 32 and 45mm. Extension kits are available for wider doors
  • Dimensions: 185 x 26 x 11.5mm
  • Fixings: Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed
  • Handling:Plates are not handed; levers may be reversed by removing the stop screw, except for handed levers and functions as shown in the ordering procedure
  • Standard finishes: Satin Chrome Brushed (SC)
  • Non standard finishes: Chrome Plate (CP) / Polished Brass (PB) / Polyester Powdercoat (PC)*
  • Special finishes: Aged Brass (AG) / Architectural Bronze (AZ) / Architectural Bronze Unlacquered (AU) / Antique Copper (AC) / Oil Rubbed Bronze (ORB) / Polished Brass Unlacquered (BU) / Satin Brass (SB) / Satin Brass Unlacquered (SBU)
  • Turn Function: Turn functions feature a unique mechanism that automatically adjusts the length of the tail bar to suit a particular door thickness
Categories
Handles and Knobs
Ranges
Lever & Push/Pull Furniture
Scope of Use
  • Designed for use with Lockwood Selector and Synergy Series short and standard backset mortice lock
  • Door thickness: External plates are supplied with fixing screws to suit door thickness between 32 and 45mm. Extension kits are available for wider doors
  • Fixings: Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed
Limitations on Use

Some functions that are designed to work with Lockwood 3580/3780 Series short backset mortice deadbolts, however certain lever designs are not compatible on short backset assemblies due to interference with the door stop.

Documents
ASSA ABLOY Lever & Push/Pull Furniture
URL
Additional Information
URL

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
