ACO Brickslot
Description

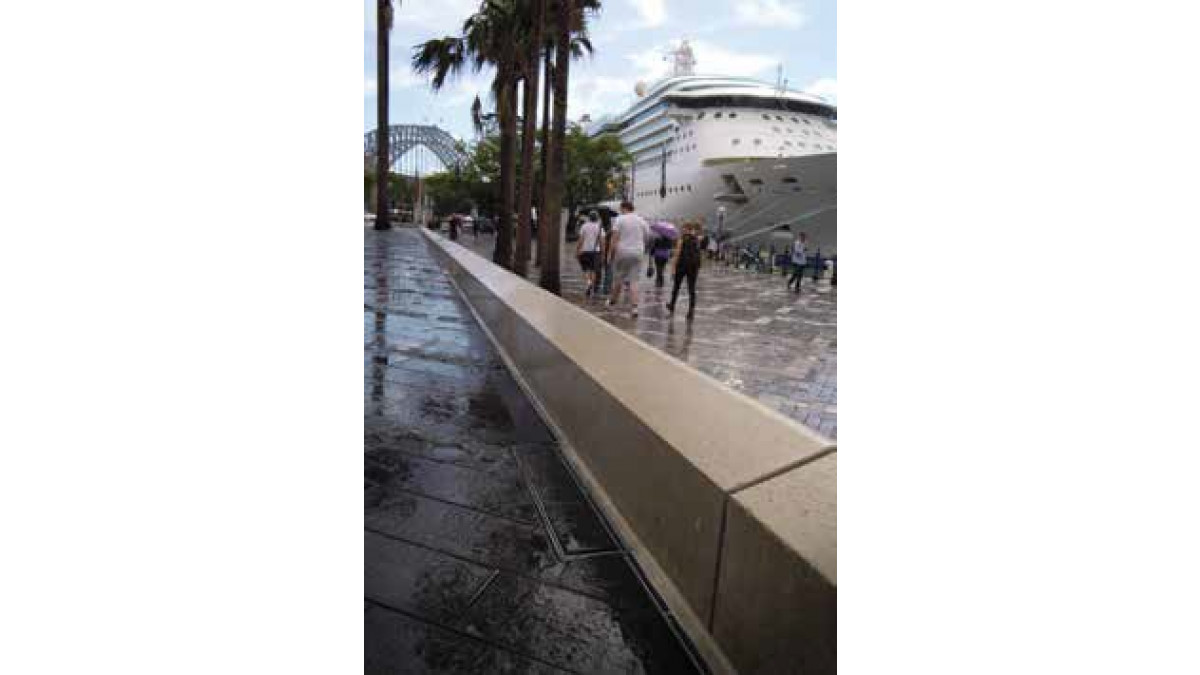

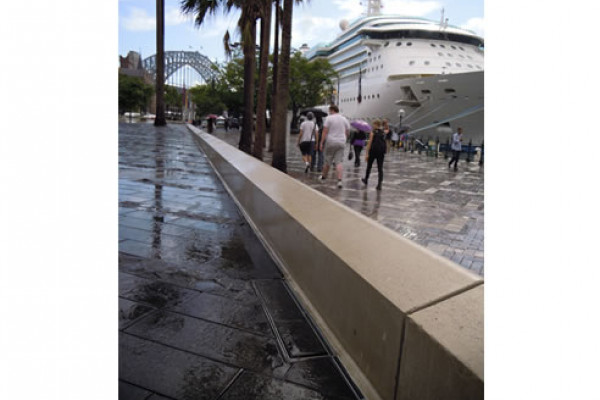

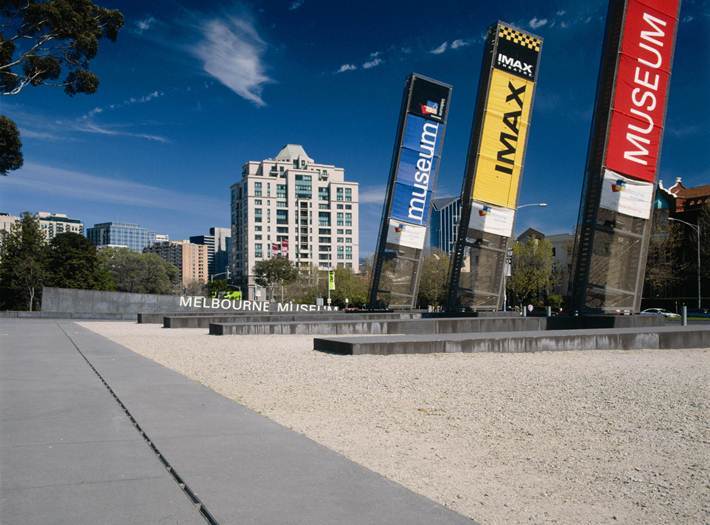

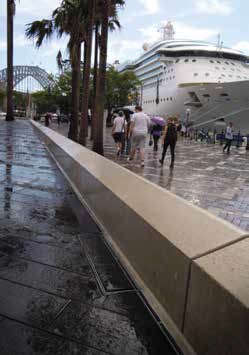

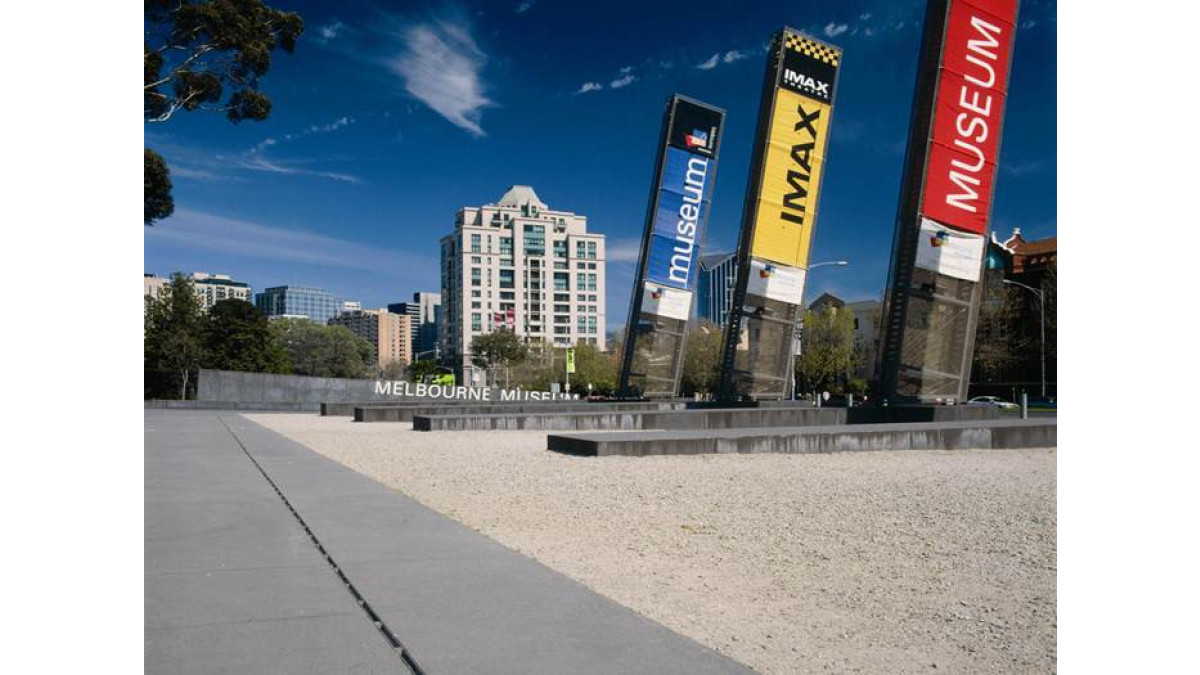

ACO Brickslot is a discreet, drainage system for use with brick or stone pavers. The 10mm slot blends in with the paving joints giving visual continuity to the pavement. The Brickslot subframe connects to either the SlabDrain or KlassikDrain 100mm wide systems. Brickslot is available in both galvanised and stainless steel to meet the aesthetic needs and corrosion resistance of any application.

Key Features

Brickslot 100

  • Brickslot 100 with 10mm slot. It is easy to clean and allows for continuous water flow into the channel.
  • Double Brickslot 100 with two 8mm flared slot openings. It has an increased drainage capacity with a 21mm throat.
  • Brick pavers fit directly against slot. The first paver course adjacent to the channel and the pavers on top of the Brickslot should be set on mortar. Designed for 60mm high pavers including 10mm bedding.
Scope of Use
  • Parking lots and garages
  • Shopping centres
  • Pedestrian areas
  • Light industrial areas
  • Commercial areas
  • Internal applications
Limitations on Use

The Brickslot unit is typically used on the KlassikDrain K100 channel, but can also be used on the SlabDrain H100K channel if depth restrictions are a concern. An access unit provides discrete access to the channel or in-line pit for maintenance.

Other Performance Attributes
  • Wheelchair compliant to AS 1428.2 Clause 9(c).
  • Resist the penetration from 10mm heel.
  • Bicycle tyre penetration resistant to AS 3996.
