Fire Up Flat Roof Specifications with Viking Roofs

Whether designing for a flat roof in the middle of the Southern Alps or in the sunny Bay of Islands, Viking Roofspec has a BRANZ-appraised torch-on membrane system designed to withstand the most extreme climate conditions:

Viking Phoenix Super APAO (Amorphous Polyalphaolefin) Hybrid TorchOn Membrane: Viking's ‘Platinum’ solution incorporates the best of APP and SBS membrane features and comes with a 25-year product warranty. Its unequalled cold flexibility goes down to (-35°C), and it has a high-temperature resistance of +140°C, meaning it can be used in any climate.
Viking Gemini APP (Atactic Polypropylene) TorchOn Membrane: Viking Gemini APP is a robust and versatile membrane system ideally suited to New Zealand’s North Island (excluding the Central Volcanic Plateau) and the Pacific. APP membranes have a high melt point when in contact with a flame and boast some of the highest puncture resistance credentials in the market.
Viking Lybra SBS (Styrene Butadiene Styrene) TorchOn Membrane: Viking Lybra SBS is made from ‘rubberised’ bitumen. These properties are designed for geographical locations that experience climatic extremes, such as New Zealand’s South Island and the North Island’s Central Volcanic Plateau. Viking Lybra SBS membranes have a lower melt point and high cold-flexibility credentials allowing them to be exposed to lower temperatures without fracturing.

Viking Roofspec has a team of technical specialists available to assist with specification. Viking Roofspec also has NZ's only established three-stage, hands-on torch-on licensing programme to ensure workmanship is delivered to the highest quality, to specification and most importantly is 100% water-tight.

This competition has now closed. To request more information, please contact Viking Roofspec.

TorchOn Membranes

Viking Roofspec

View Product

Whether designing for a flat roof in the middle of the Southern Alps or in the sunny Bay of Islands, Viking Roofspec has a BRANZ appraised TorchOn membrane system designed to withstand the most extreme climate conditions: Viking Phoenix Super APAO (Amorphous Polyalphaolefin) Hybrid TorchOn Membrane: Viking's 'Platinum' solution incorporates the best of APP and SBS membrane features and comes with a 25 year warranty.

NZ-Owned Business

Viking TorchOn membranes are suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks like roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking TorchOn waterproofing membranes have been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 WInd Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees).
Viking Phoenix Super APAO Waterproofing Membrane has also been assessed for use as roof waterproofing membranes on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab.

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking TorchOn membranes meet this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking TorchOn membranes meet this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c) Viking TorchOn membranes meet this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking TorchOn membranes meet this requirement and will not present a health hazard to people.

BRANZ Appraised

CodeMark

Phoenix Super APAO

Viking Roofspec

View Product

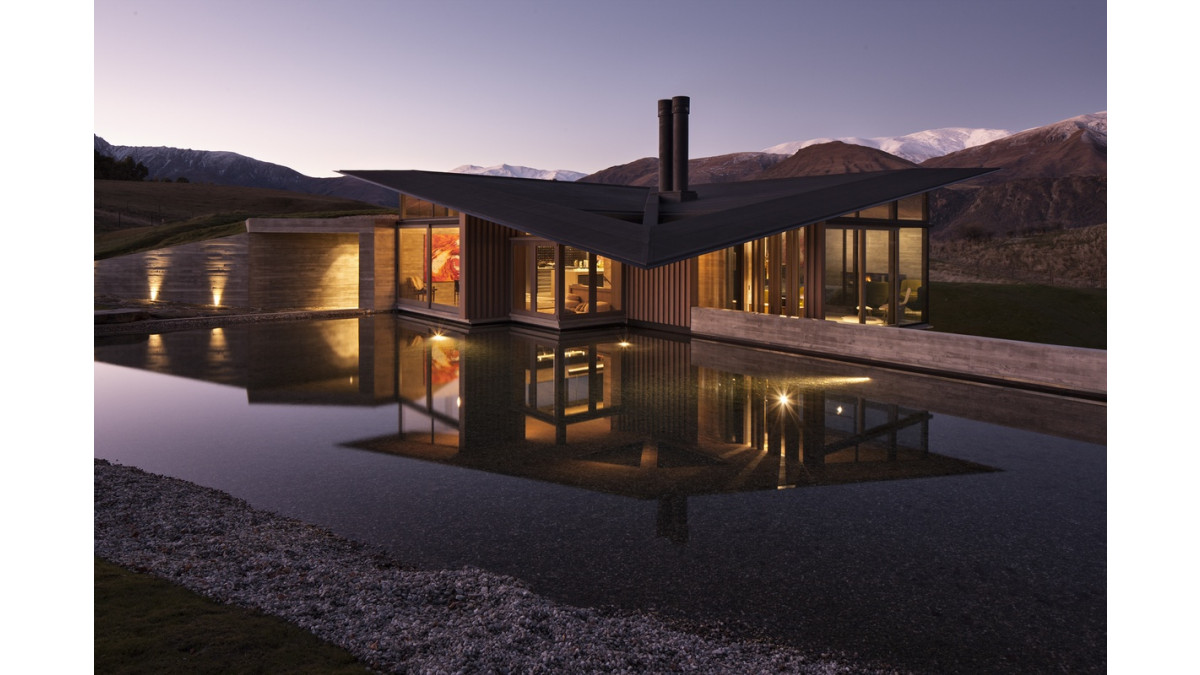

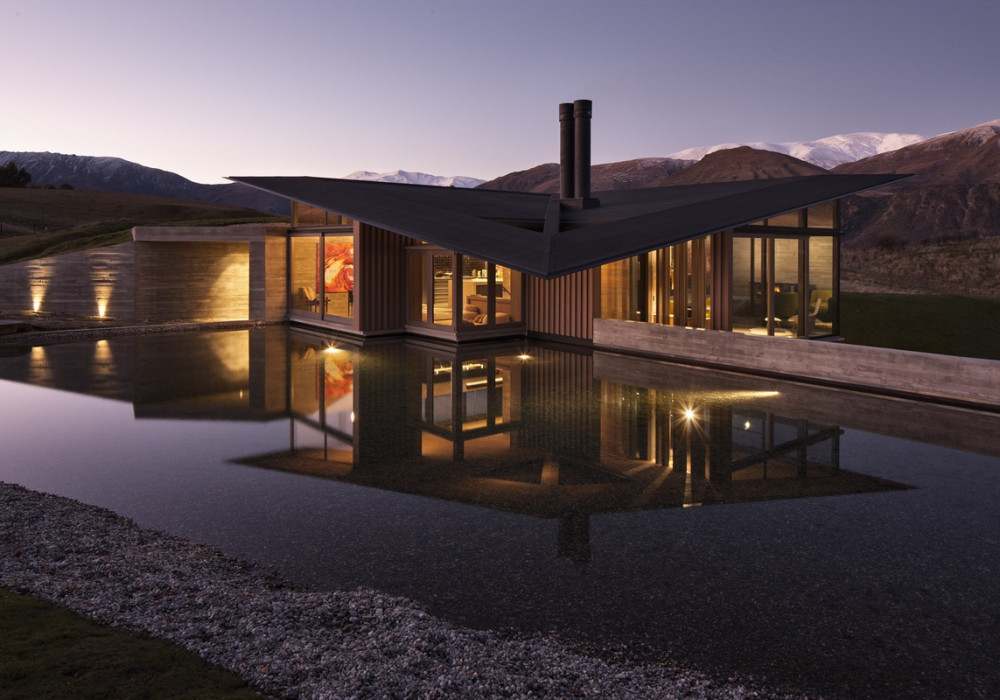

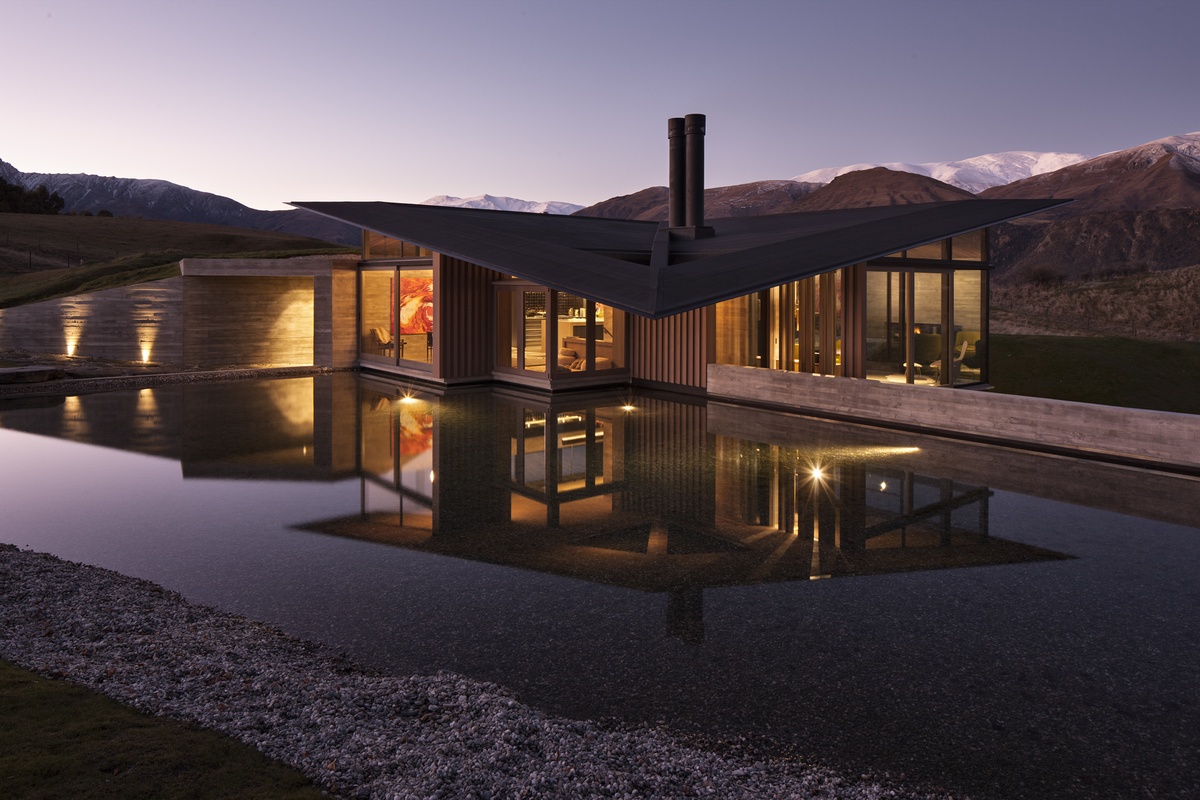

Viking's 'Platinum' torch-on solution can be installed anywhere in the world.

NZ-Owned Business

Viking Phoenix Super APAO is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks like roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Phoenix Super APAO Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees).
Viking Phoenix Super APAO Waterproofing Membrane has also been assessed for use as roof waterproofing membranes on buildings within the following scope:

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking Phoenix Super APAO Waterproofing Membrane meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking Phoenix Super APAO Waterproofing Membrane meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c)Viking Phoenix Super APAO Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Phoenix Super APAO Waterproofing Membrane meets this requirement and will not present a health hazard to people.

BRANZ Appraised

Gemini APP TorchOn Membrane

Viking Roofspec

View Product

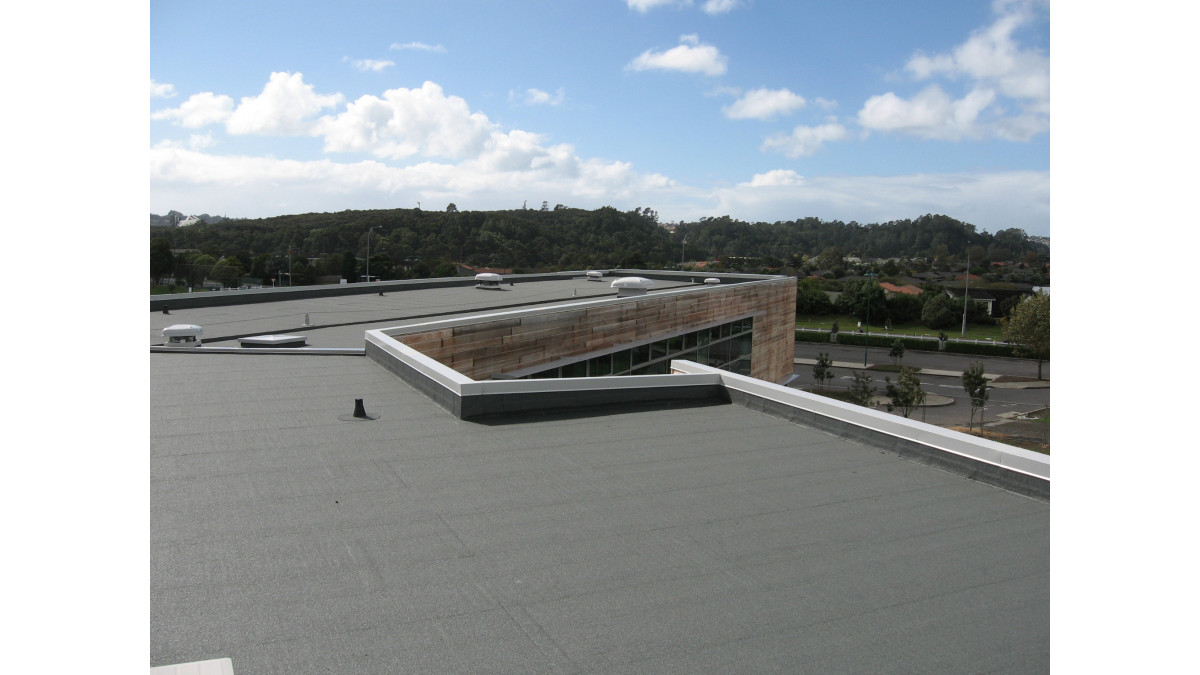

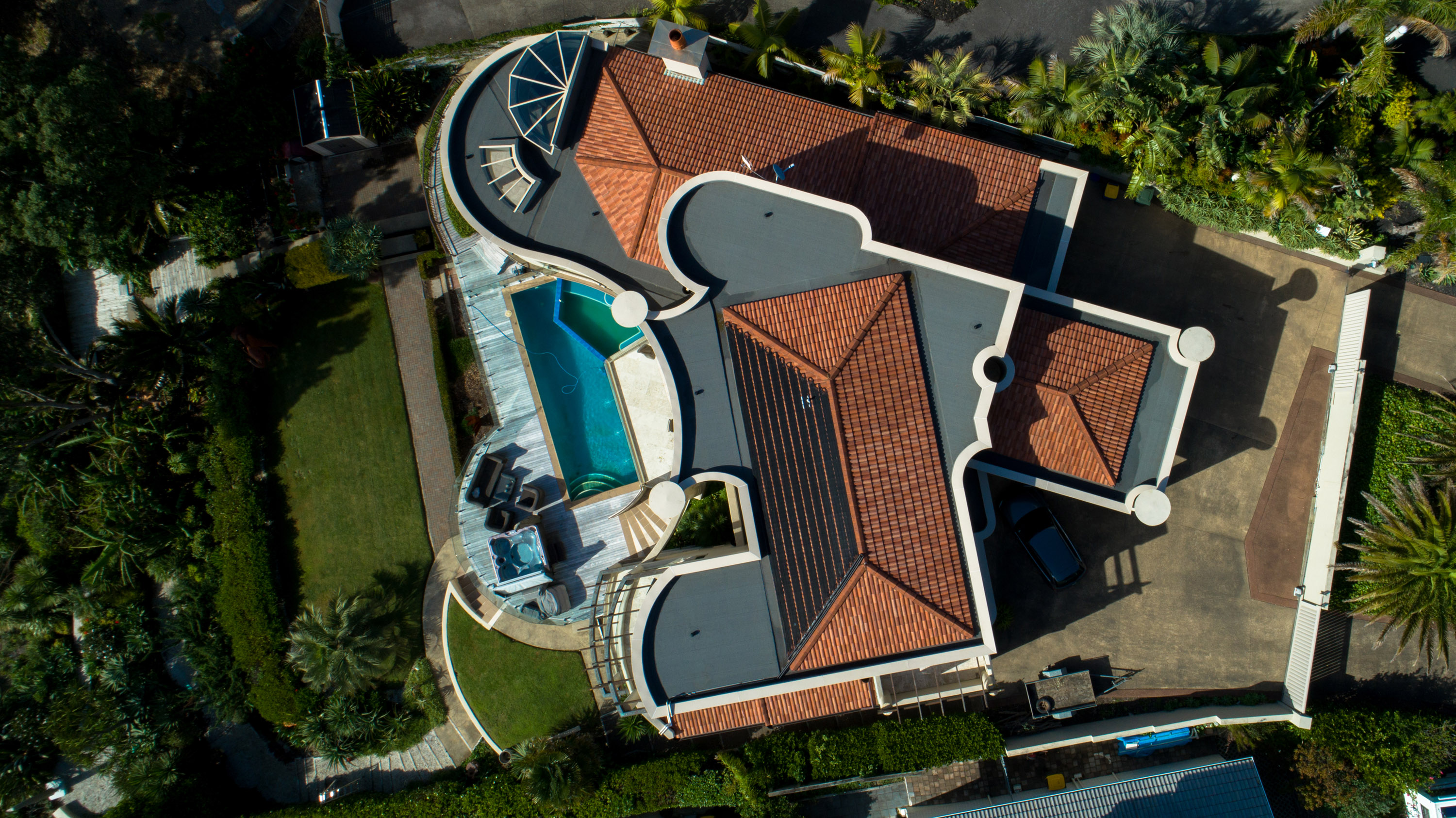

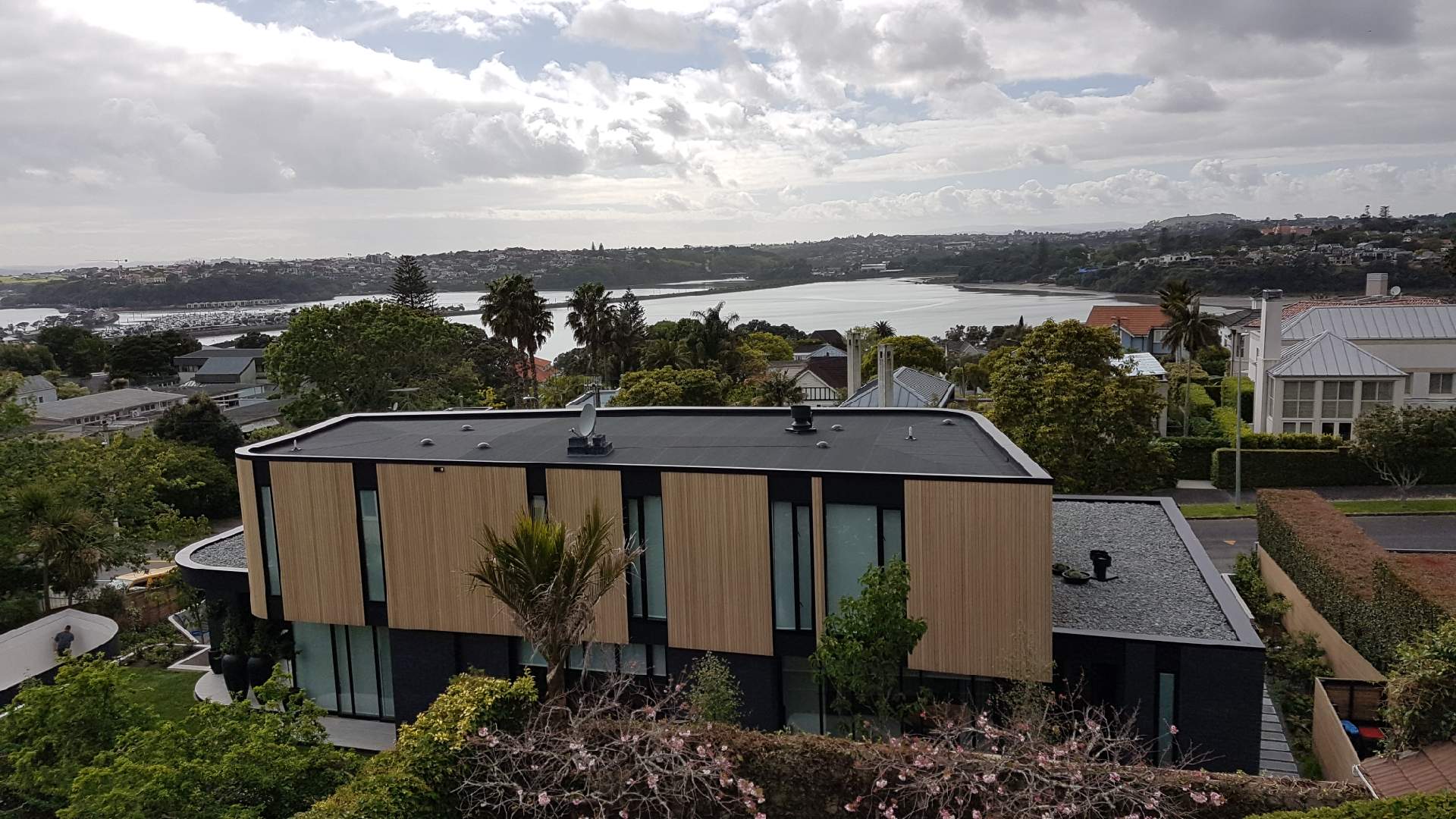

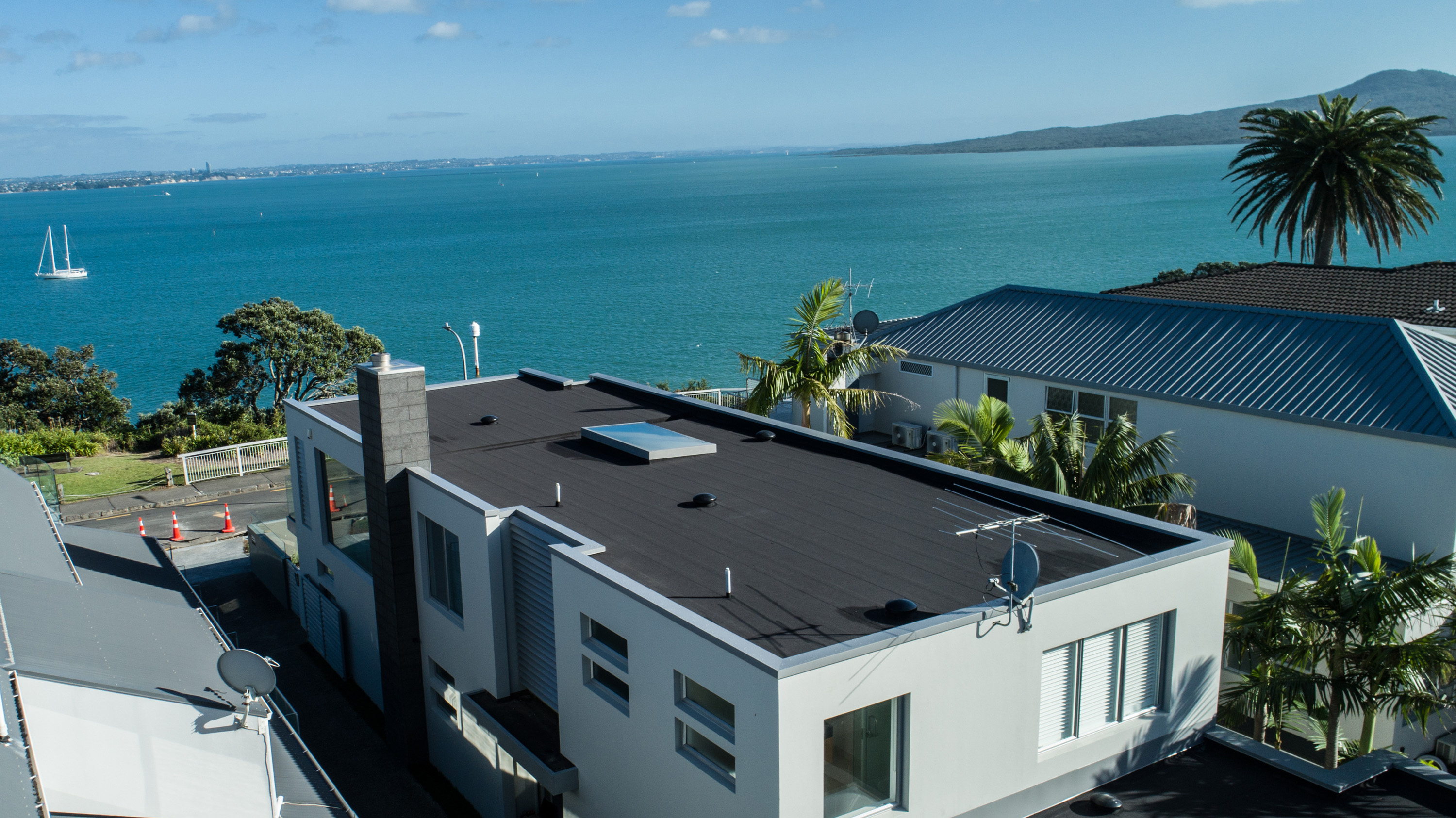

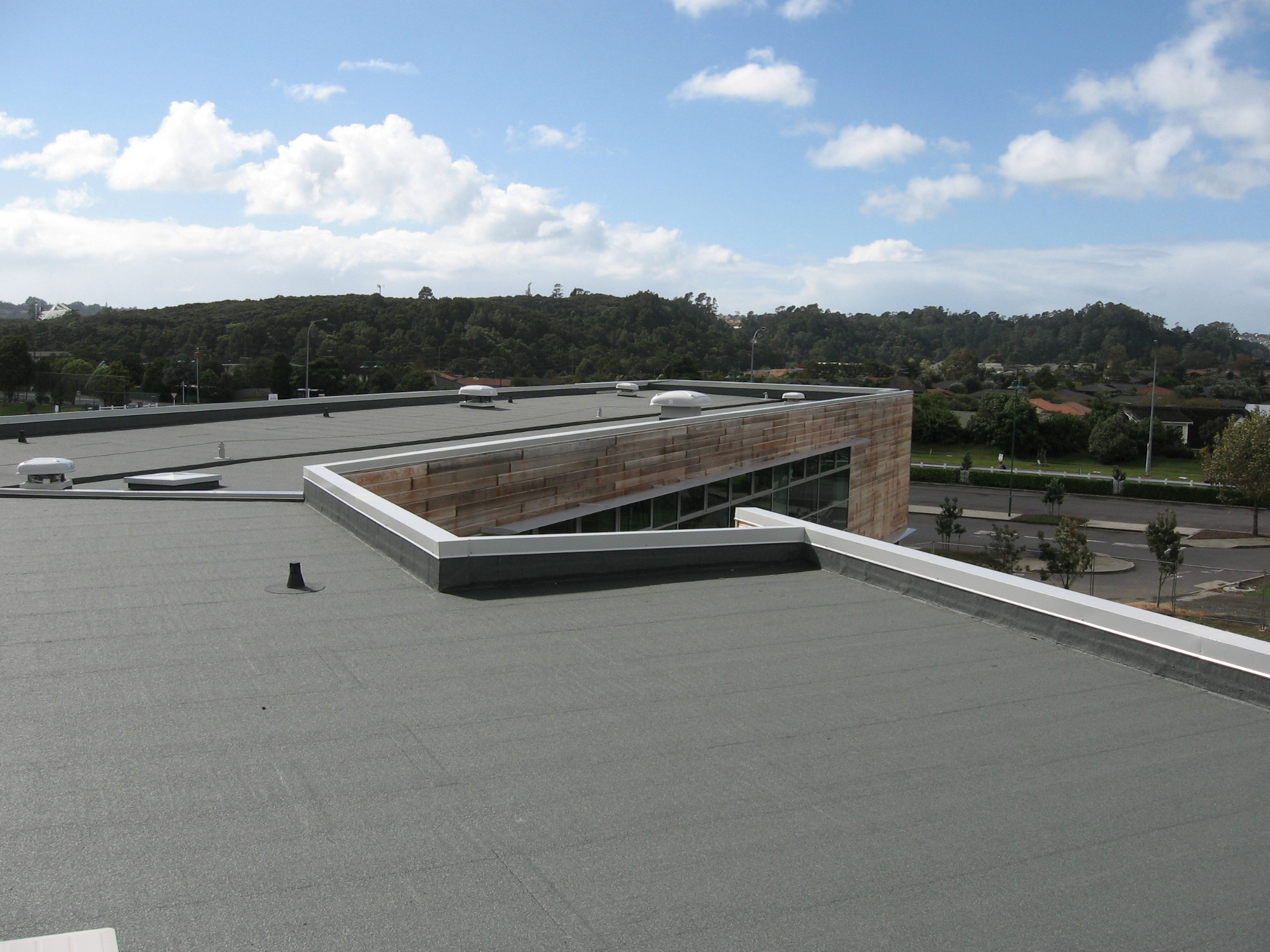

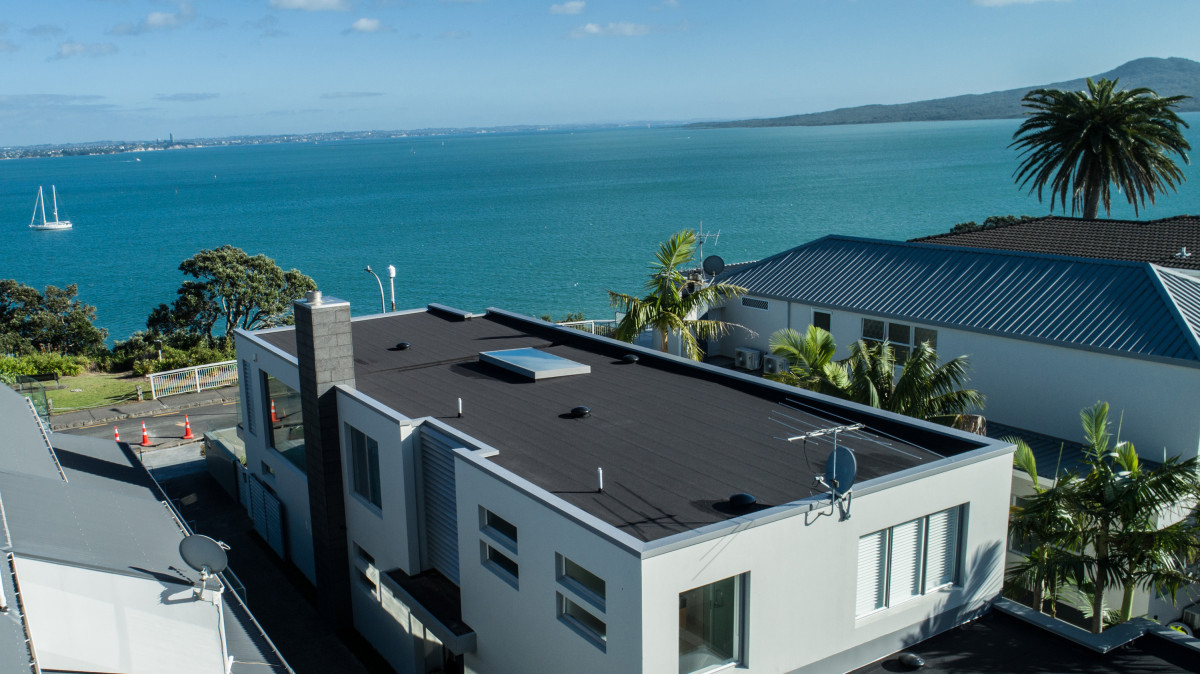

Viking Gemini APP is a robust and versatile membrane system ideally suited to New Zealand's North Island (except the Central Volcanic Plateau) and the Pacific Islands.

NZ-Owned Business

Viking Gemini APP is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks such as roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Gemini APP Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees)

Viking Gemini APP Waterproofing Membrane has also been assessed for use as a roof waterproofing membrane on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking GM Gemini A.P.P Waterproofing Membranes meet this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking GM Gemini A.P.P Waterproofing Membrane meet this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking GM Gemini A.P.P Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking GM Gemini A.P.P Waterproofing Membrane meets this requirement and will not present a health hazard to people.

BRANZ Appraised

CodeMark

Lybra SBS TorchOn Membrane

Viking Roofspec

View Product

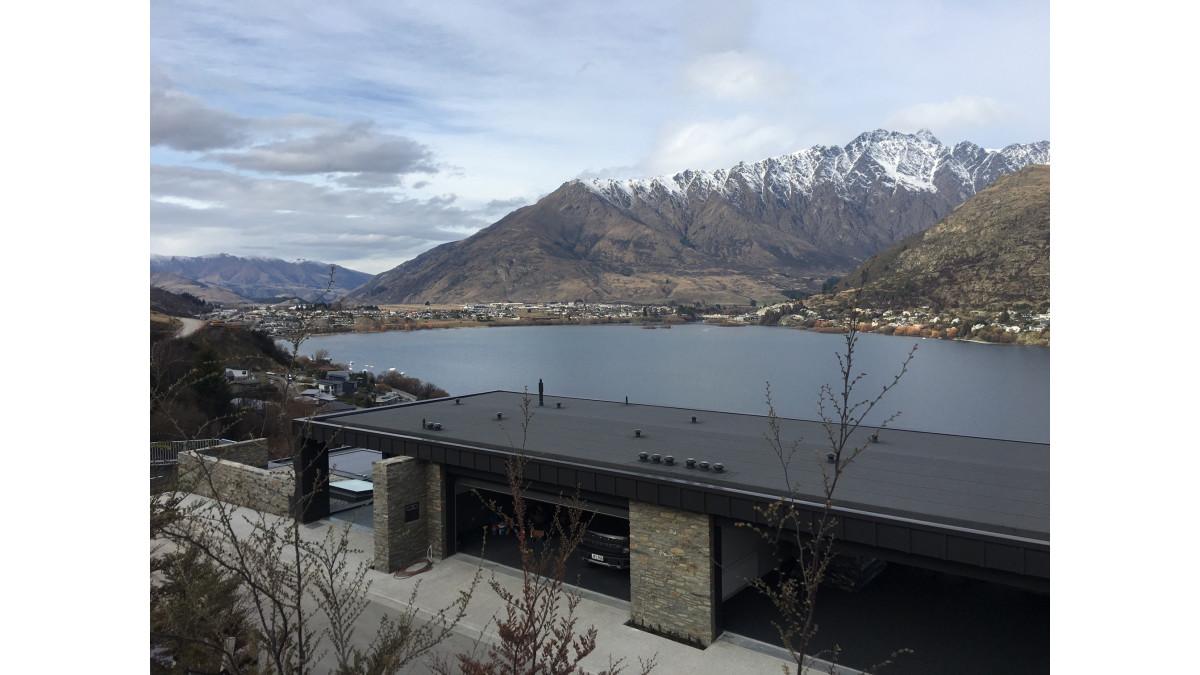

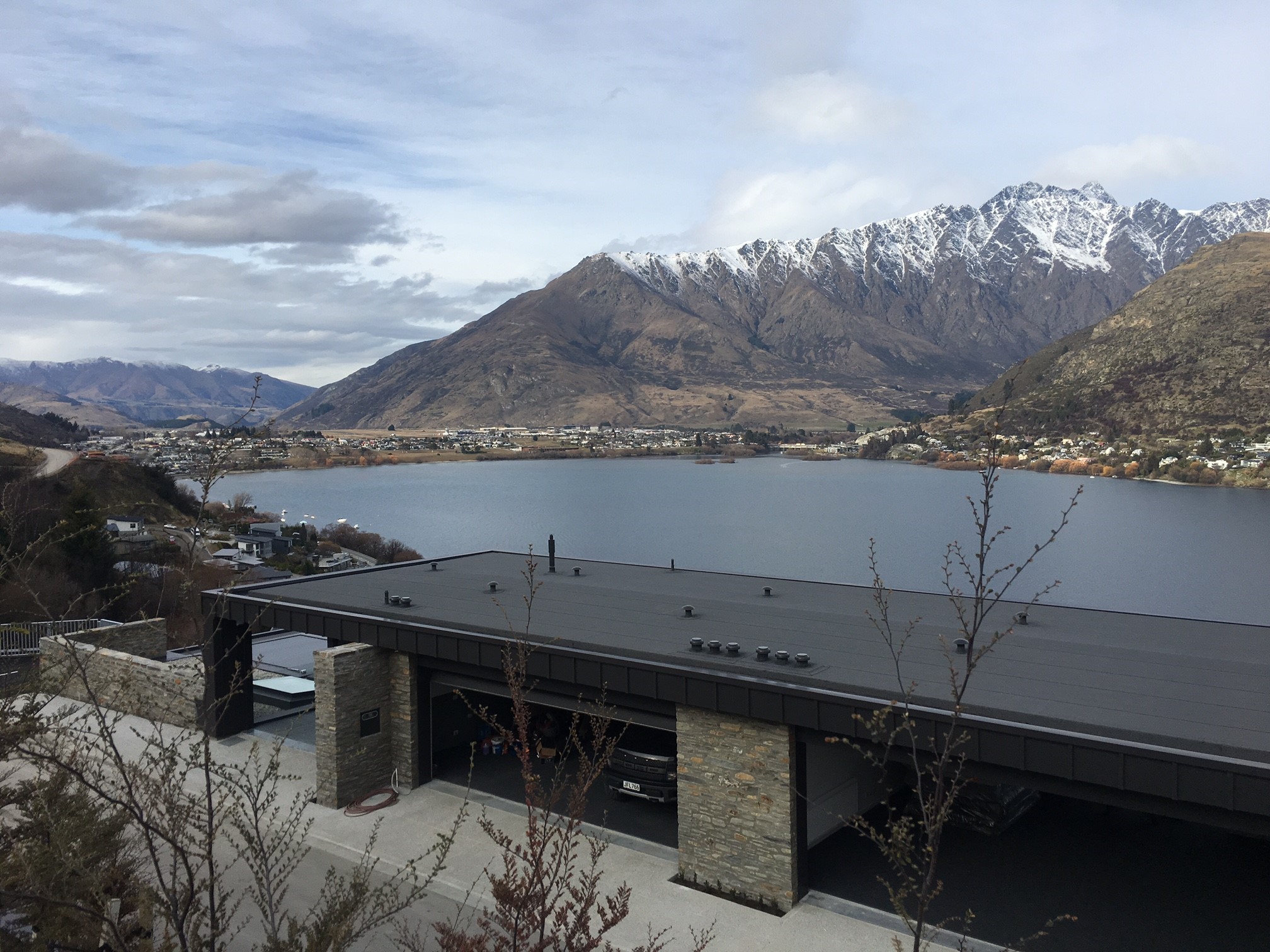

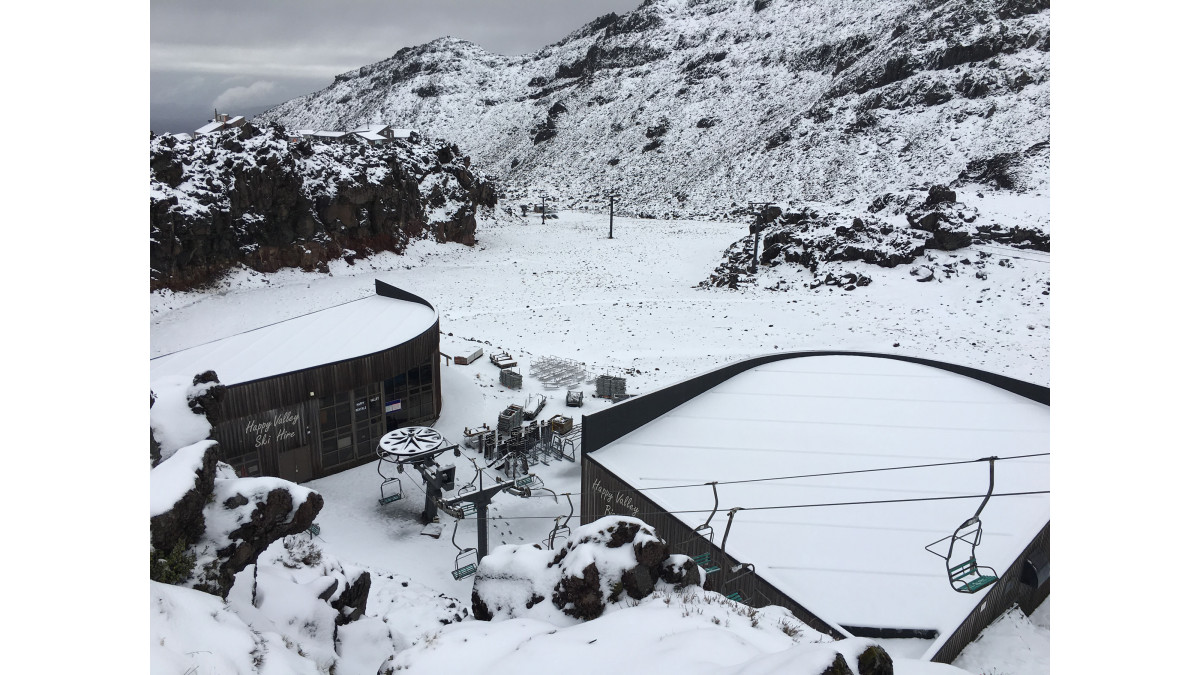

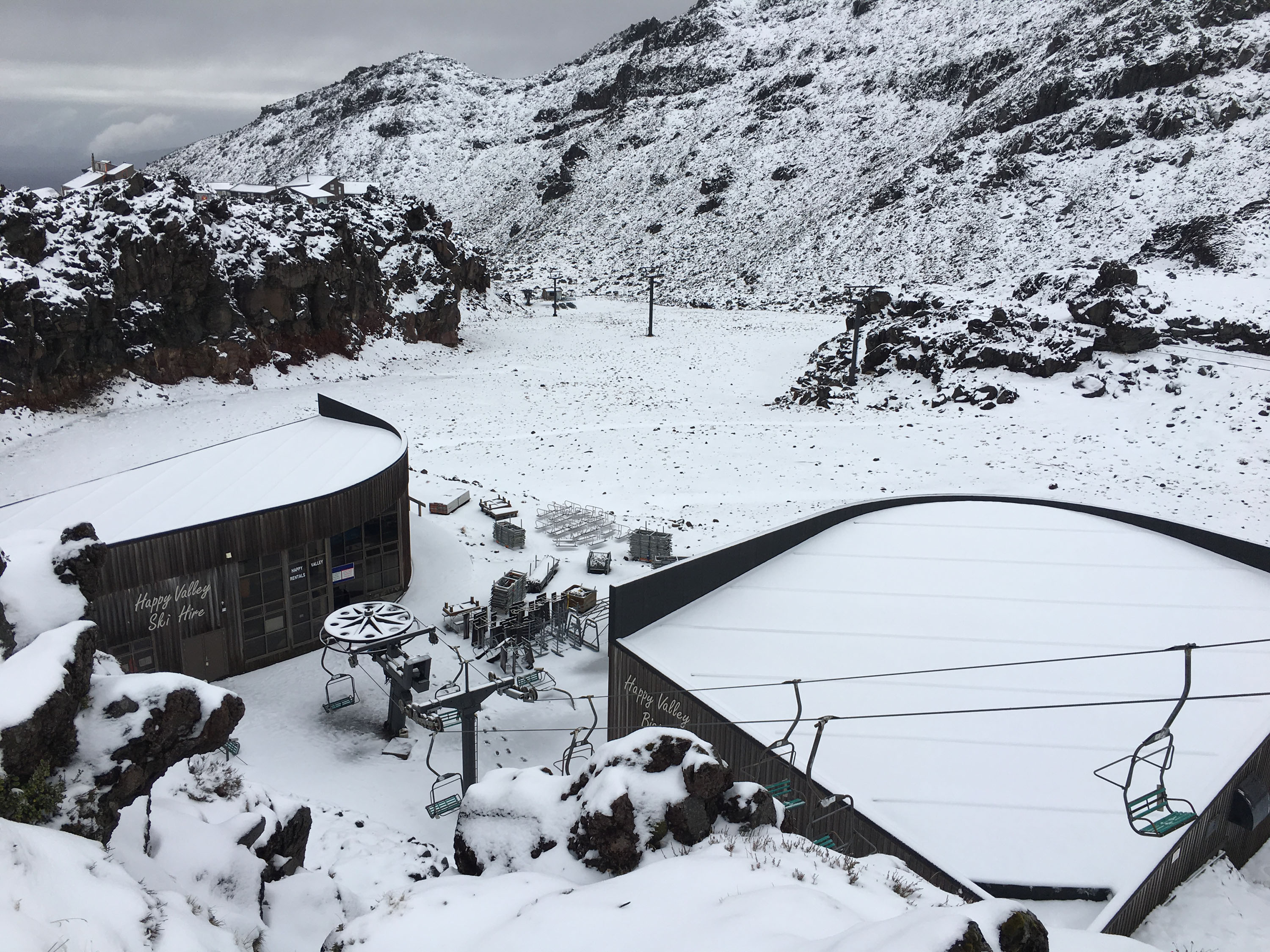

Viking Lybra SBS is a robust and versatile membrane system ideally suited to New Zealand's South Island and the North Island's Central Volcanic Plateau.

NZ-Owned Business

Viking Lybra SBS is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks such as roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Lybra SBS Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees)

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking GM Lybra S.B.S Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement and will not present a health hazard to people.

BRANZ Appraised

CodeMark
