Stacking Cavity Slider Creates Multi-Use Space

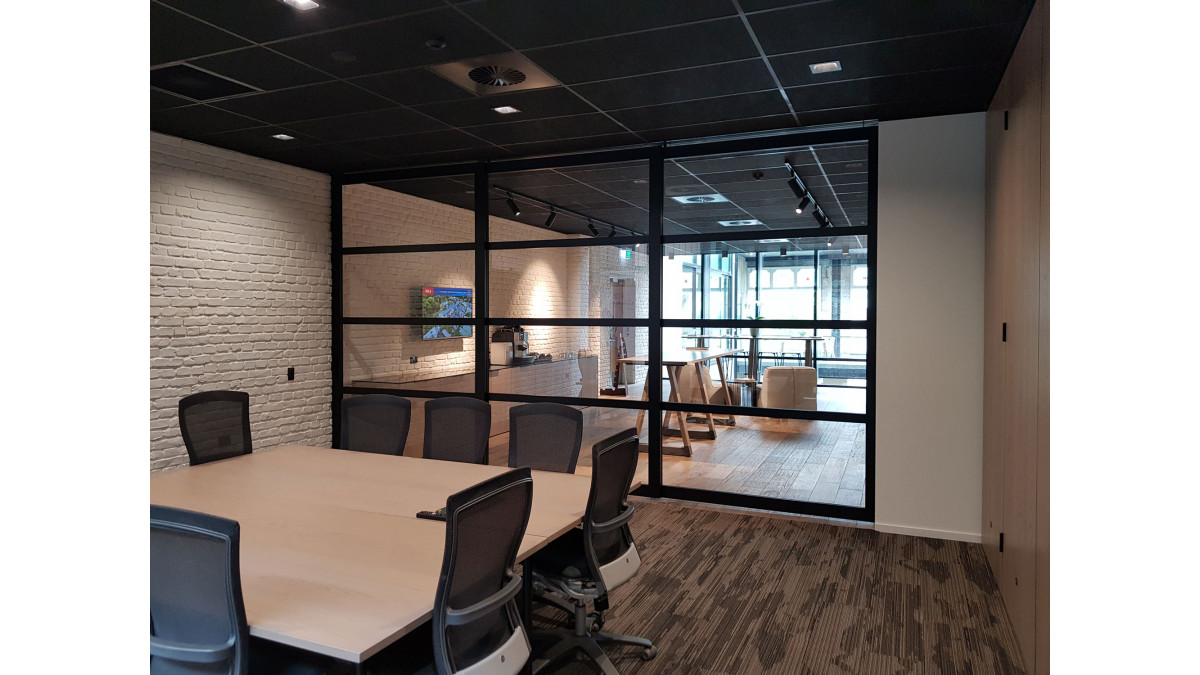

CS For Doors provided an OvertakingDoors Cavity Slider with NewYorker doors to divide a large span between meeting rooms in the Colliers International Christchurch branch. Before manufacture, a site measure was carried out by a local rep to ensure accurate sizing of the cavity unit and doors and to advise on suitable finishing details.

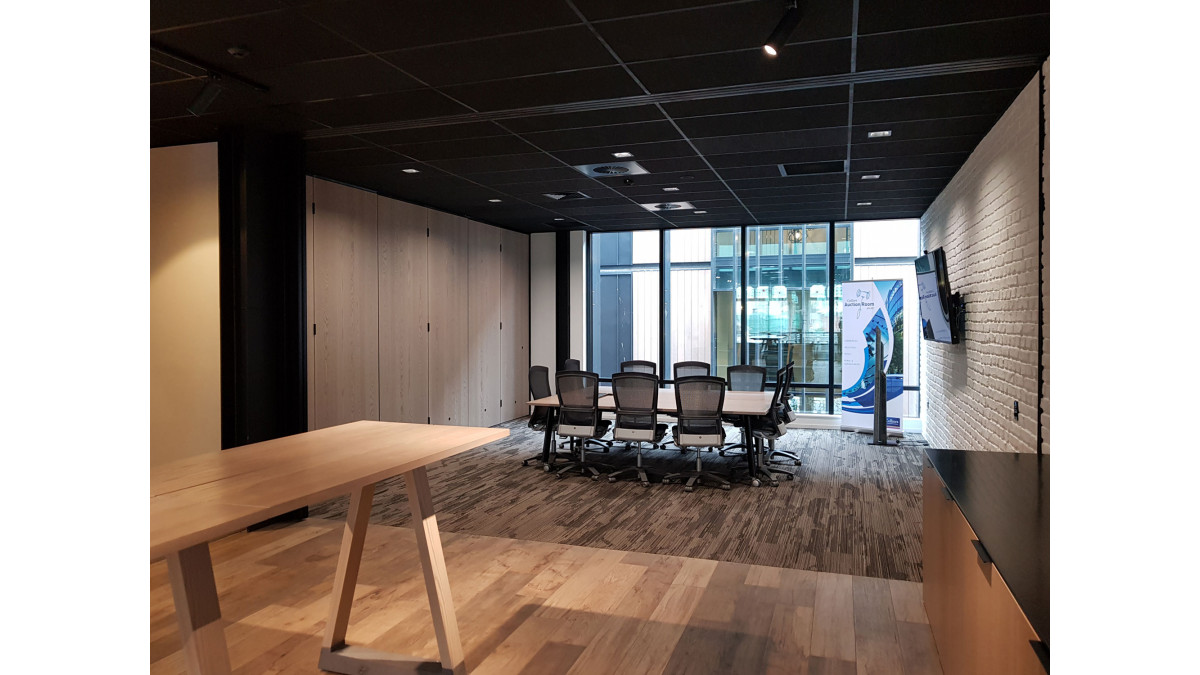

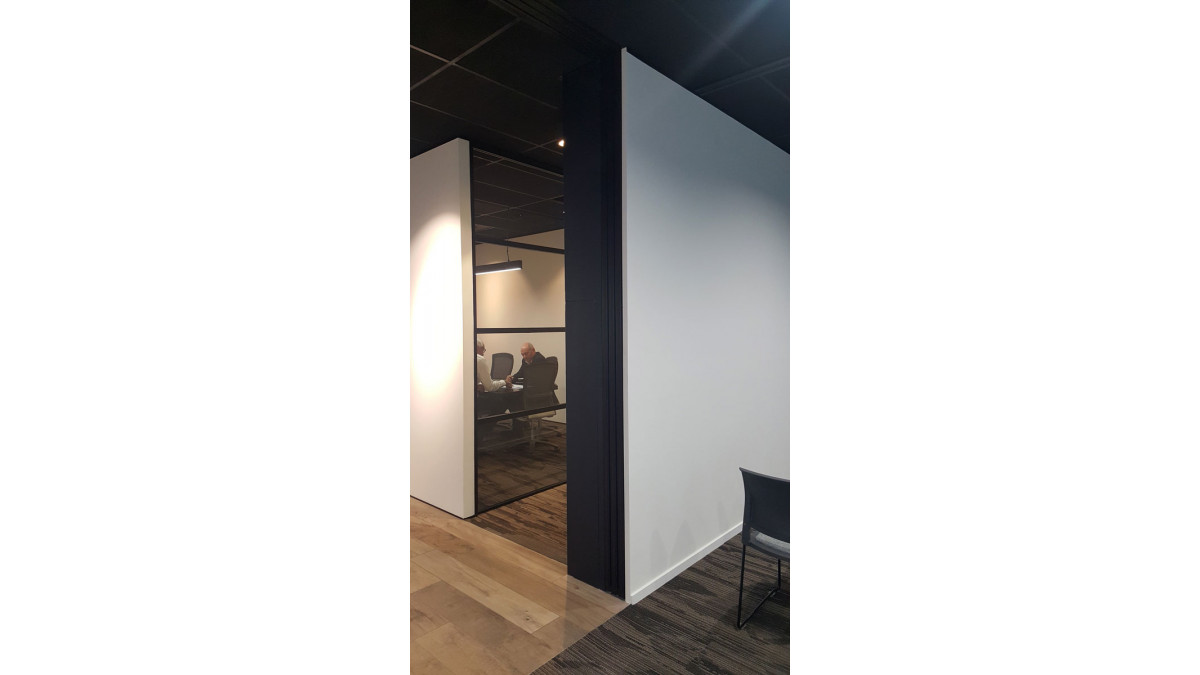

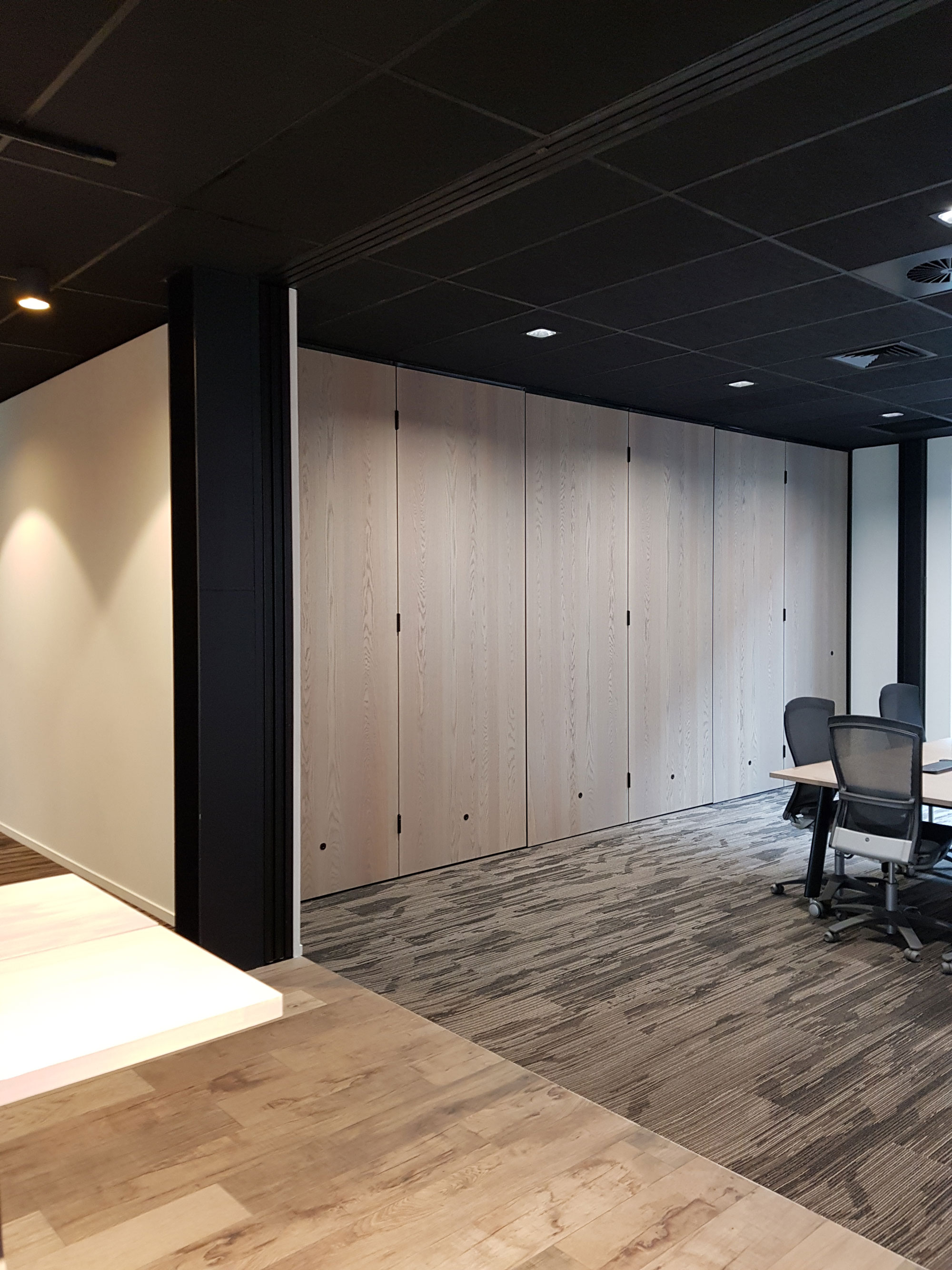

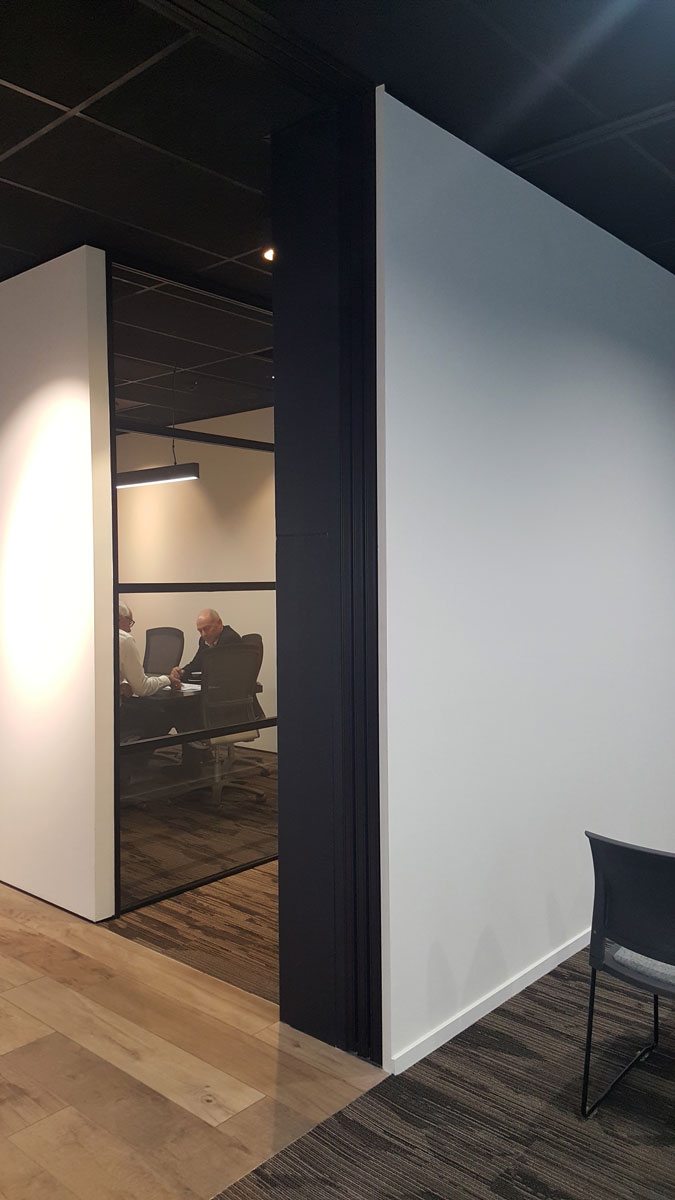

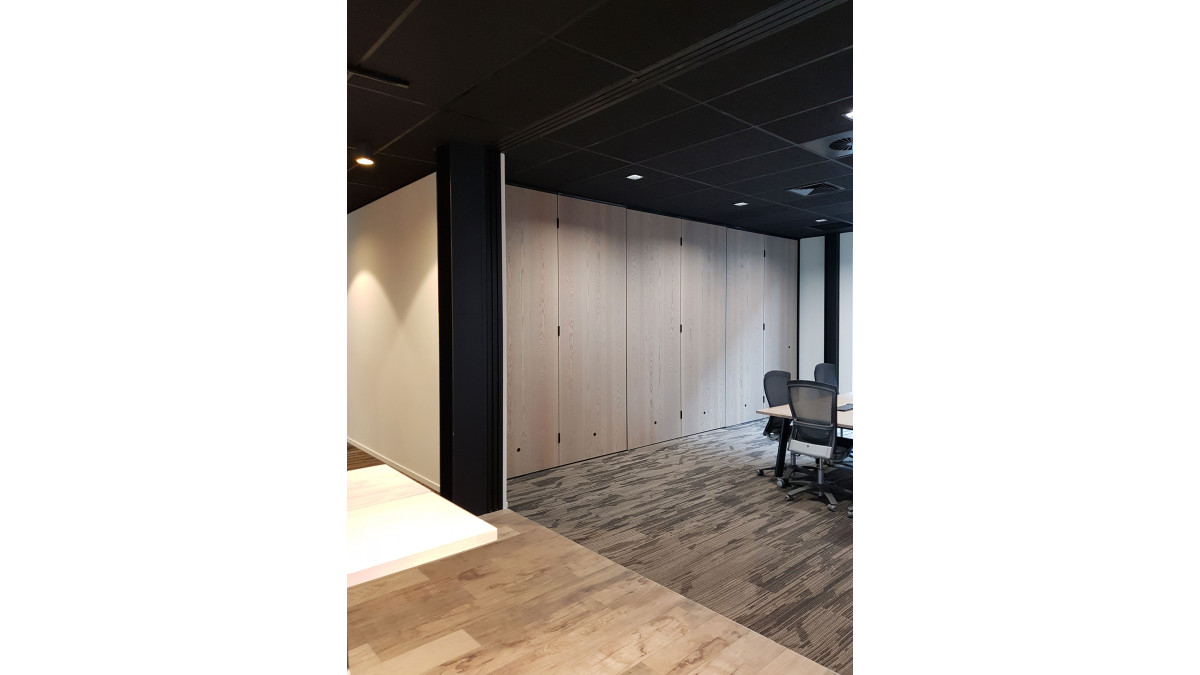

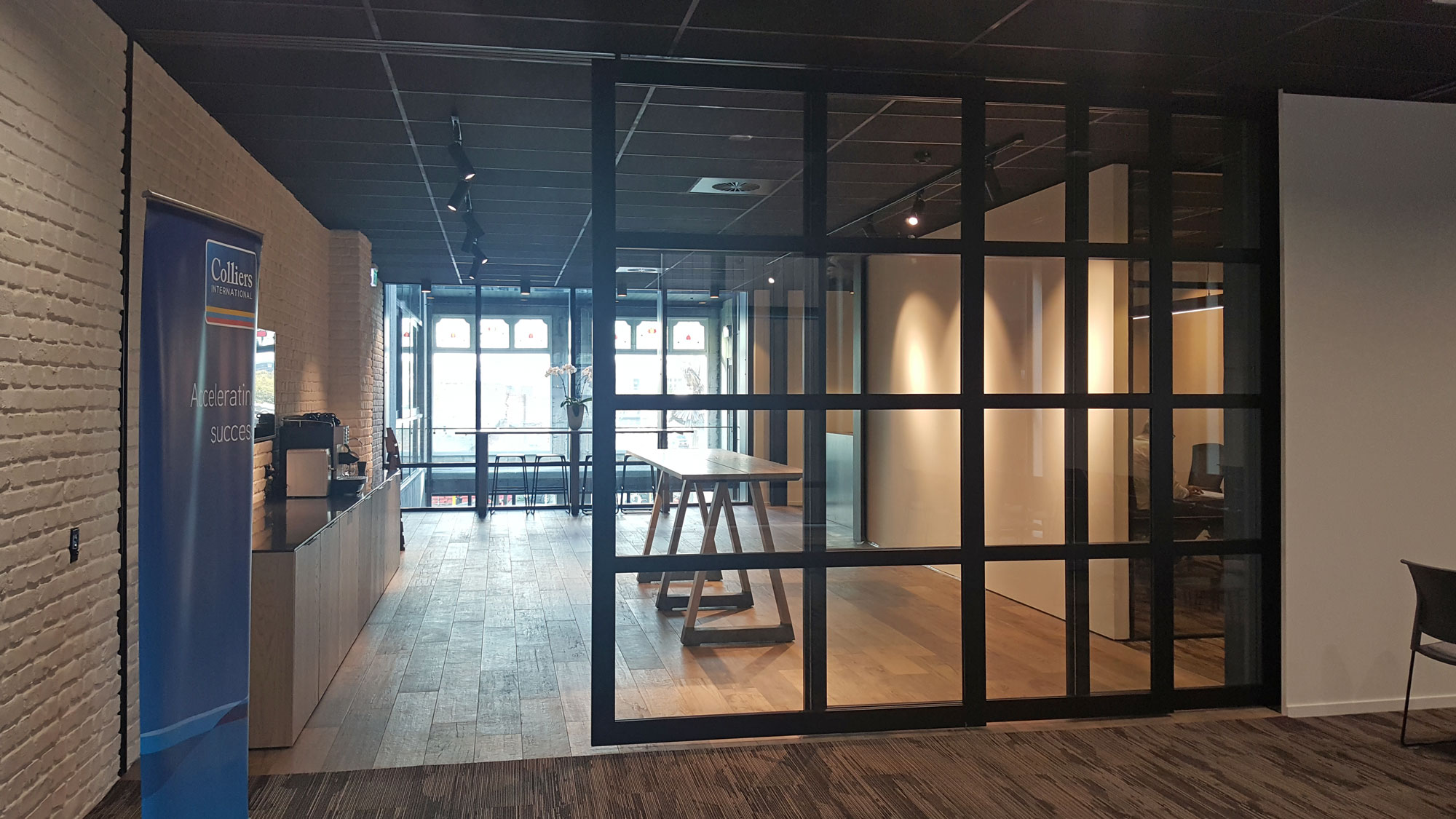

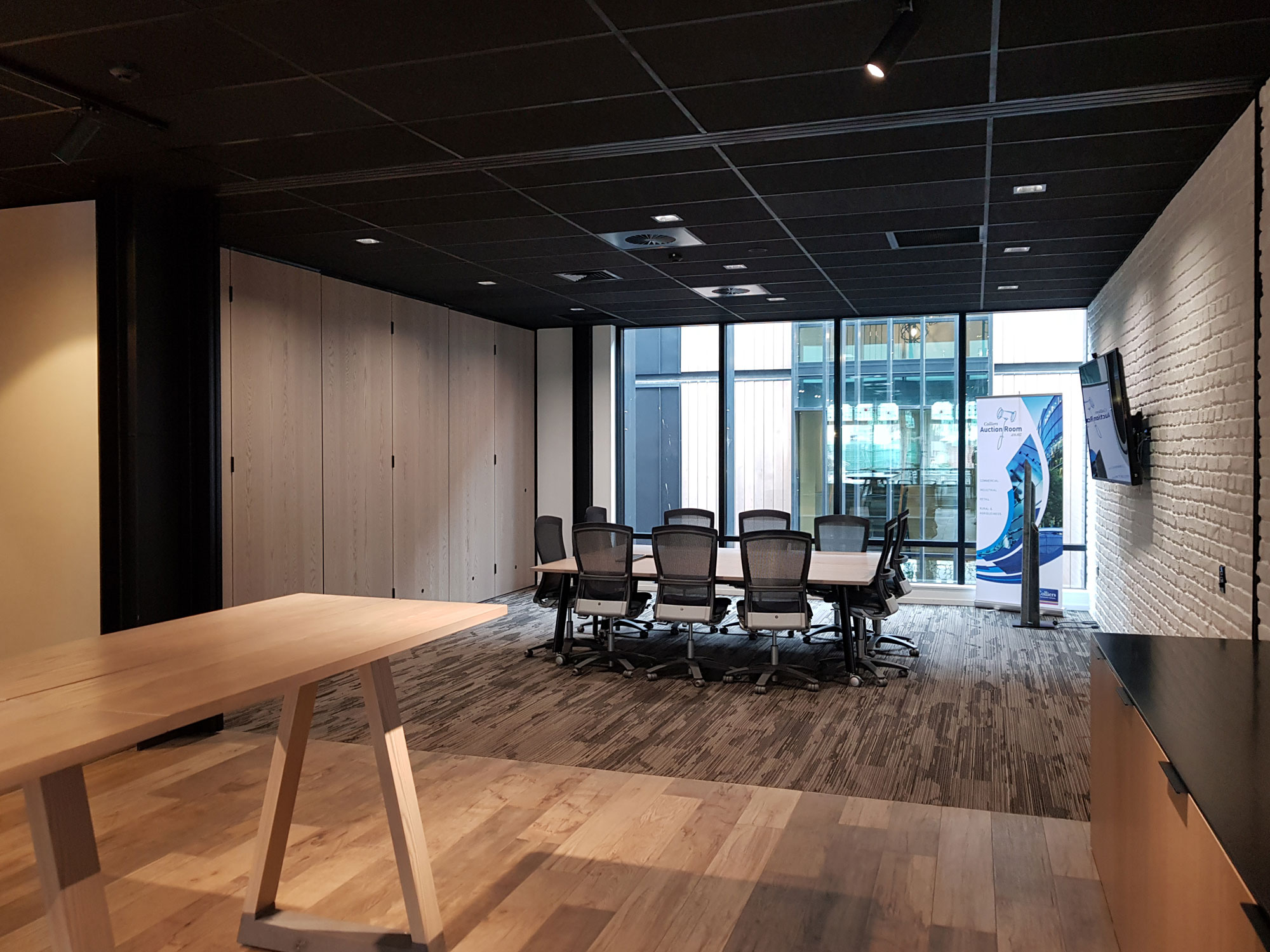

CS OvertakingDoors cavity sliders have an extra-thick pocket, enabling up to five doors to stack side-by-side. The three-door unit used in this project provided a neat method of dividing the space in two and fitted within 190mm framing. The full-height doors are top-hung from a triple track that sits flush with the ceiling, requiring no floor tracks or guides through the opening. When not in use, the doors slide completely flush back into the wall and out of the way.

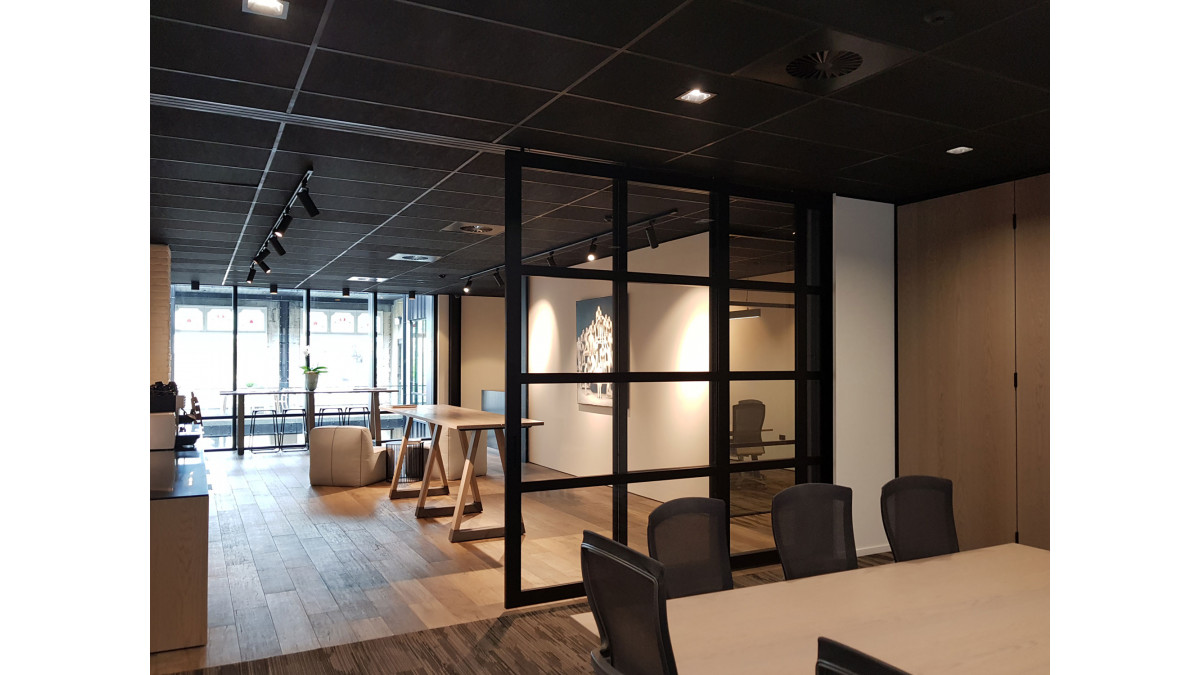

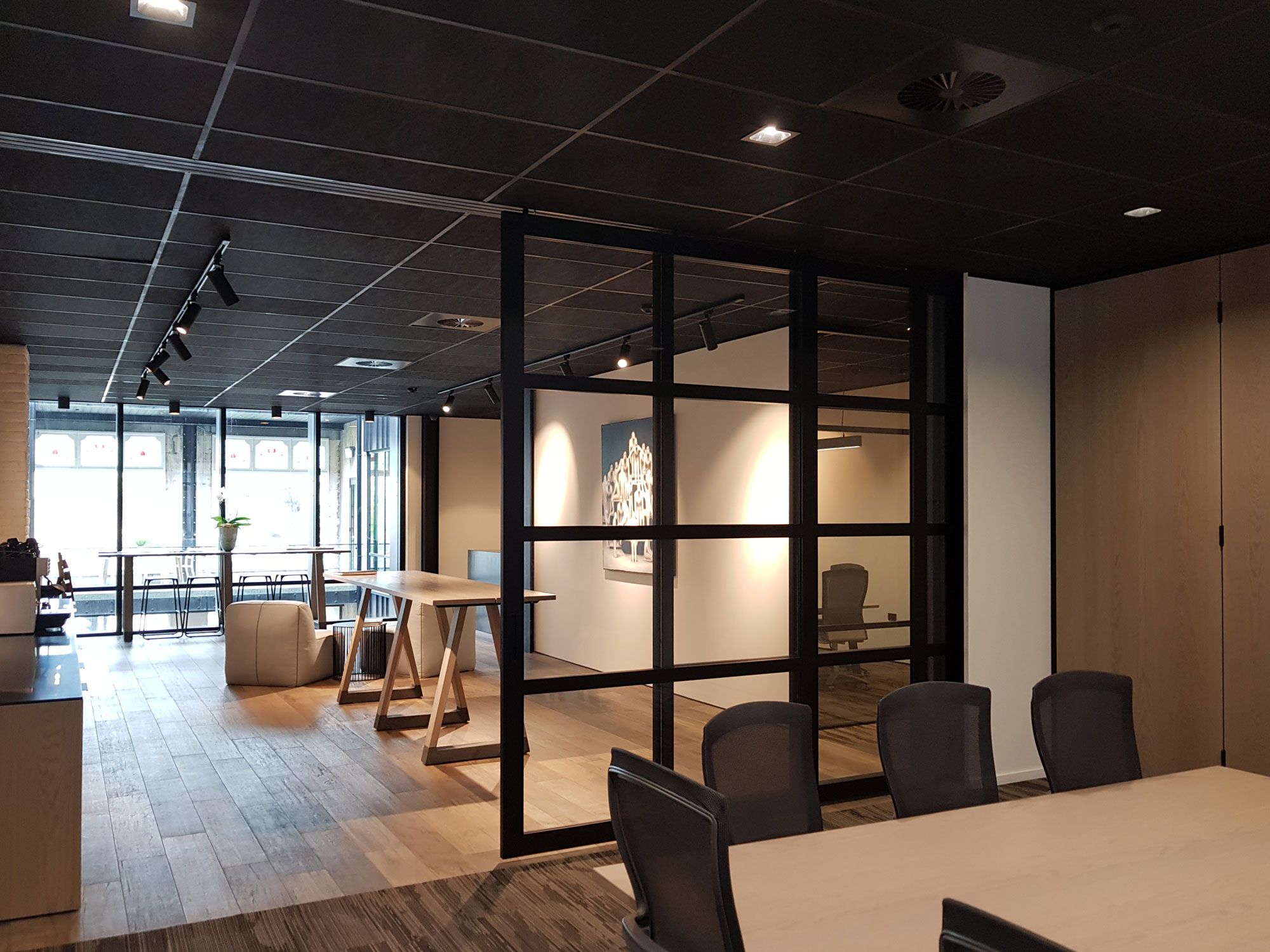

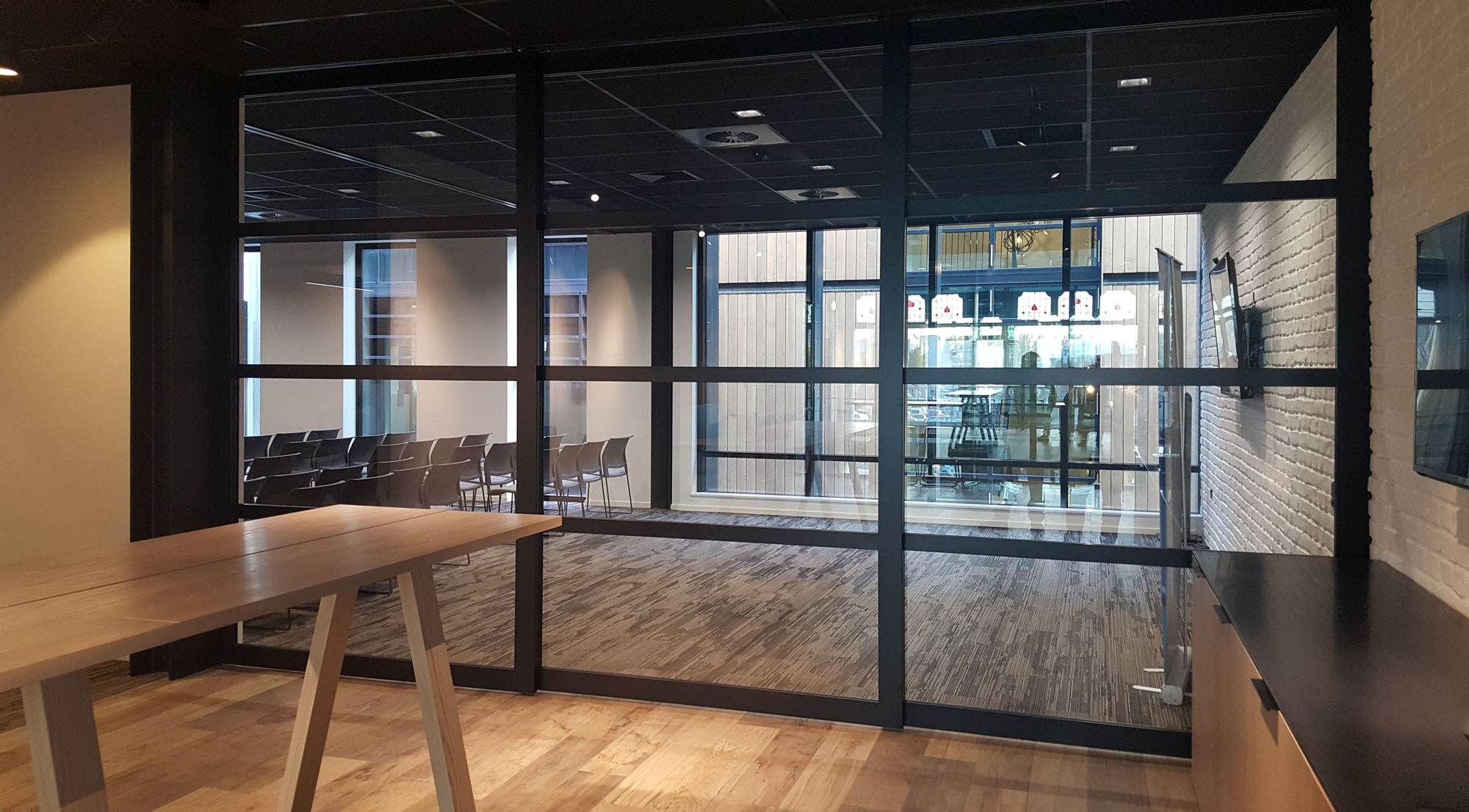

The CS NewYorker door has been purpose designed to work in conjunction with the CS Cavity Sliders system for a complete solution for commercial or residential projects. It can be glazed using a wide range of materials — most commonly glass. Clear glass was chosen for this project so that when closed, the doors provide a level of privacy and acoustic control while still enabling transfer of light from one room to the other. The frames and CL400 Magnetic passage handle were powder coated black to match the rest of the decor. The CS NewYorker frame can be supplied natural anodised or powder coated and has no visible screws or fastenings. The horizontal and vertical rails have been purpose designed to maintain overall good looks without compromising strength or reliability on doors up to 3m high or wide.

Most standard mortice locks can be factory-fitted to the front stile, including the CL100 and CL400 series from the CaviLock range.

Architect: Karen Doig
Contractor: Consortium Construction

CS NewYorker Door

CS Cavity Sliders (CS for Doors)

View Product

The CS NewYorker is a stylish pre-finished door frame that can be glazed using a wide range of materials, glass being the most popular.

NZ Made

CS Door Leaves are suitable for use in sliding, pivot or hinged applications in residential, commercial and light industrial buildings
Handles: A variety of handles can be factory fitted including a custom designed recessed leading edge pull
The CS NewYorker is 38mm thick, and has been purpose designed to work in conjunction with CS Cavity Sliders and CS Pre-Hung Jamb systems for a complete solution

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.

BRANZ Appraised

CL400 Magnetic

CS Cavity Sliders (CS for Doors)

View Product

The CL400 Magnetic range features a patented magnetically activated catch and plunger system.

NZ Made

Suitable for residential or light commercial applications.

Suits doors from 34mm—52mm thick. (Thicker door options available on request)
Suitable for use on timber doors as well as the CS NewYorker or CS AluTec aluminium door

CaviLock sliding door hardware has been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1990. CaviLock handles are backed by a two year written guarantee.

CS OvertakingDoors Cavity Slider

CS Cavity Sliders (CS for Doors)

View Product

CS OvertakingDoors have an extra-thick cavity pocket, enabling a series of doors (up to five) to stack side-by-side inside the cavity pocket.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people

BRANZ Appraised
