SpiraPave Pedestals
Description

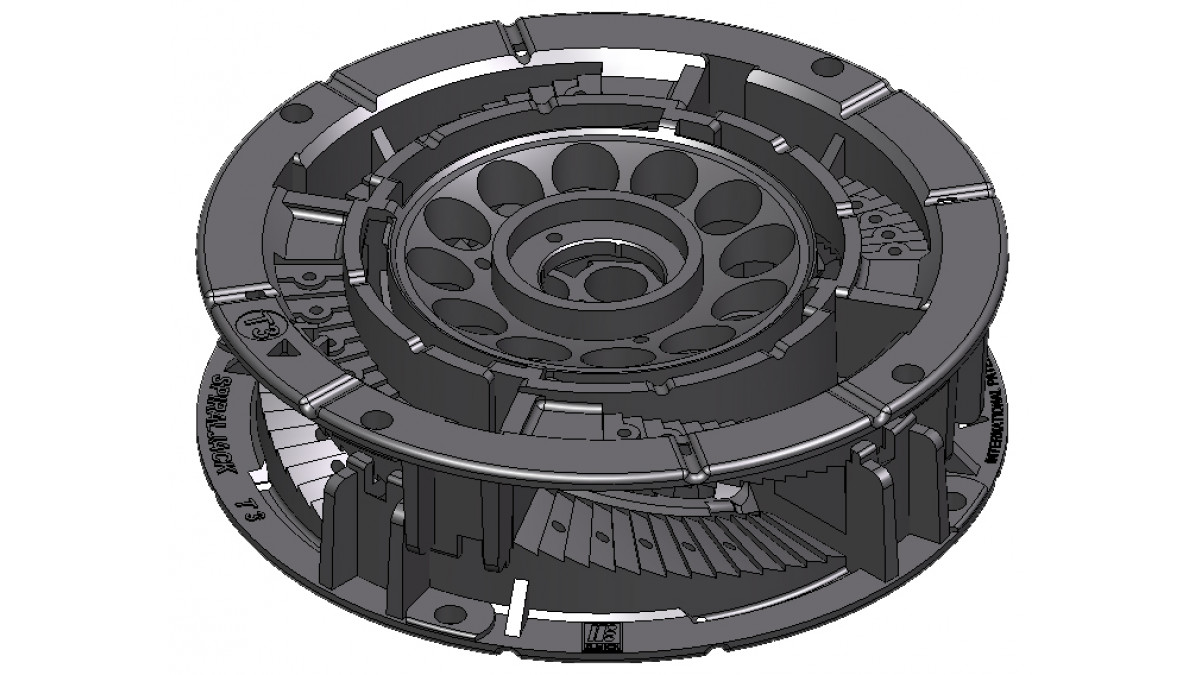

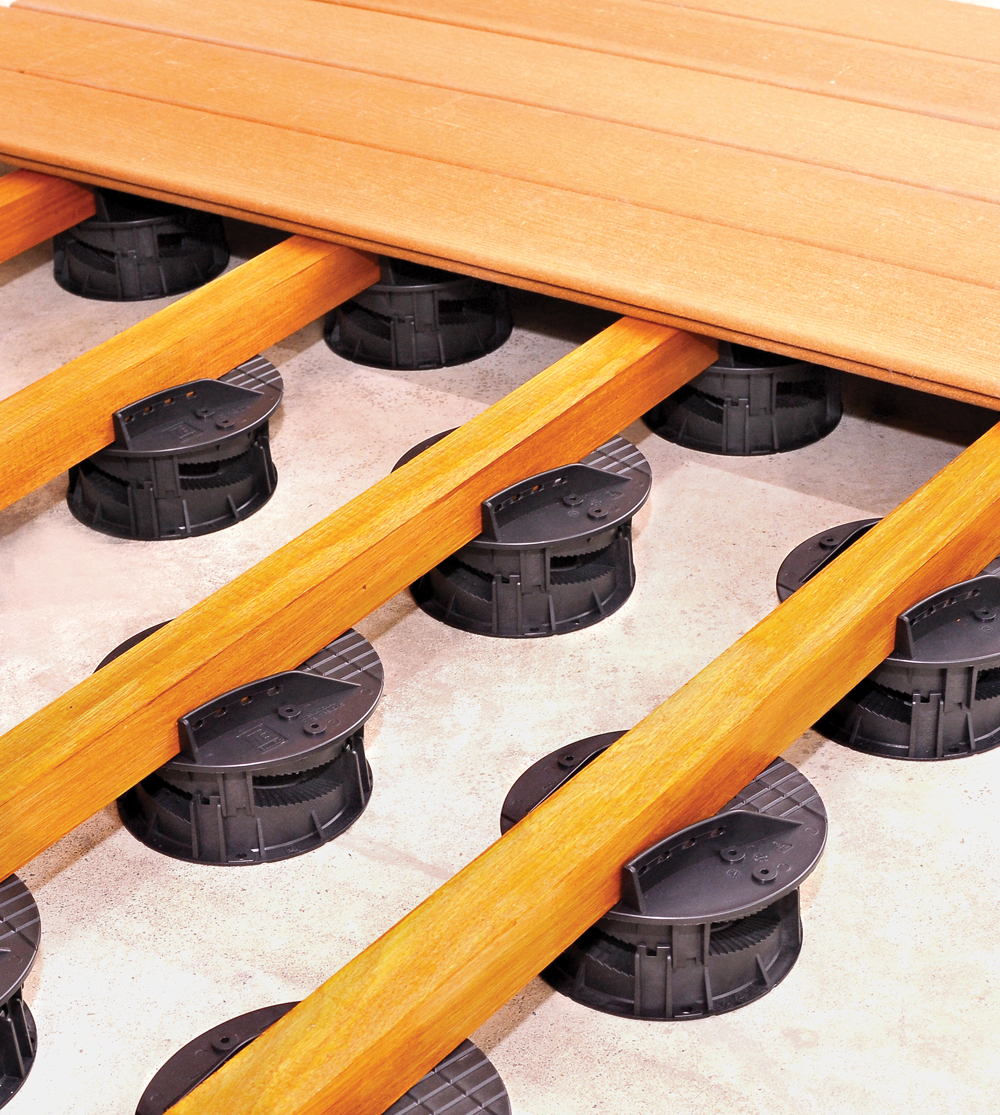

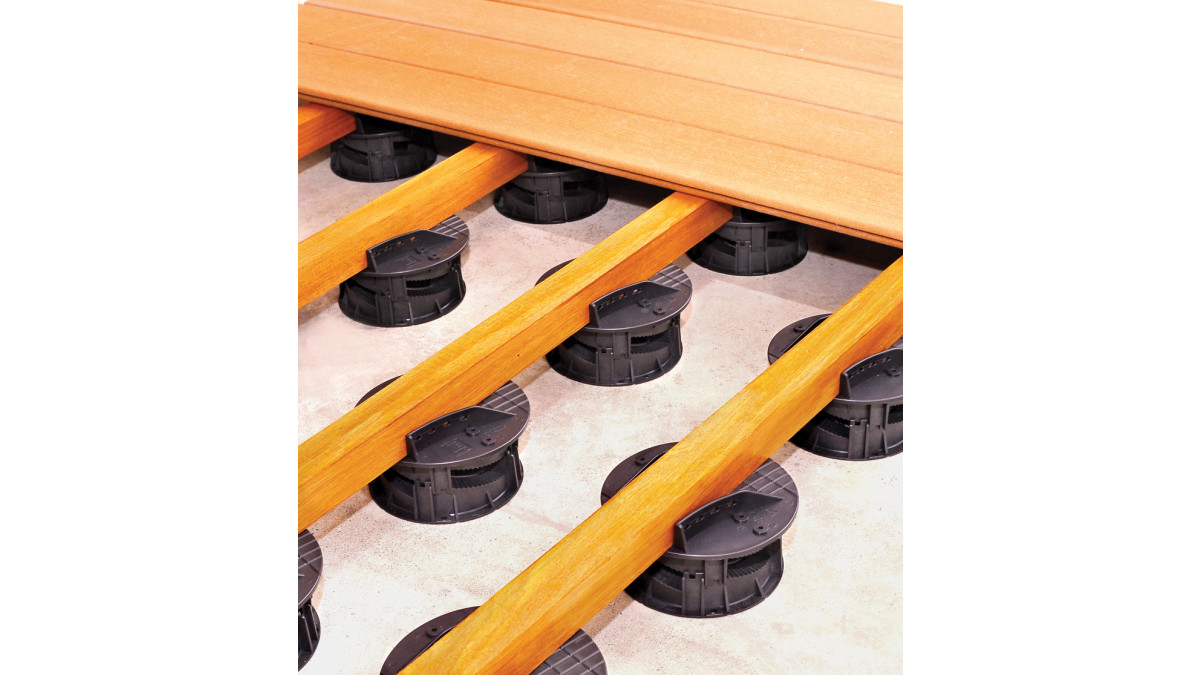

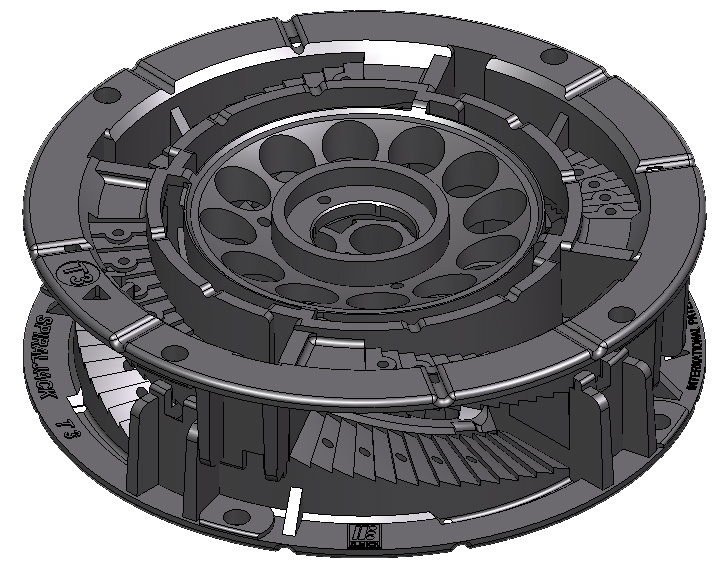

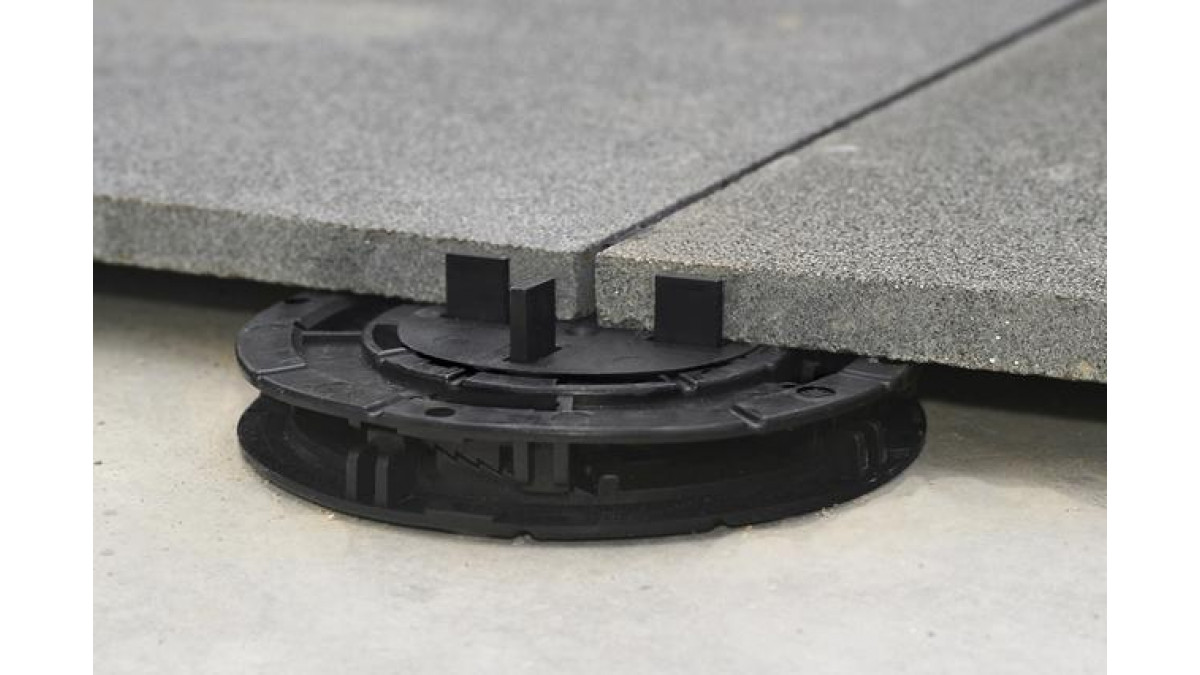

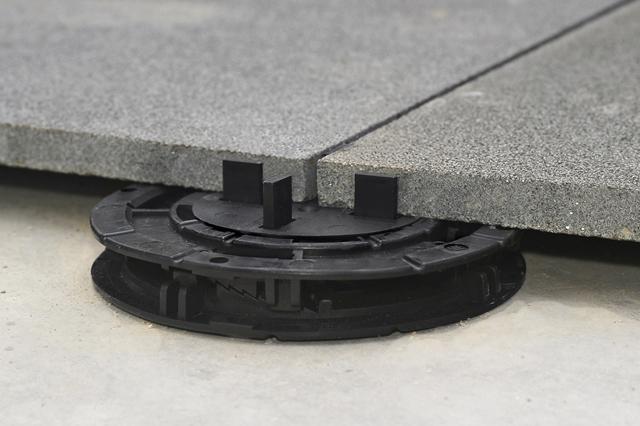

SpiraPave is a pedestal for tile, wood panel, paver and timber bearer support.

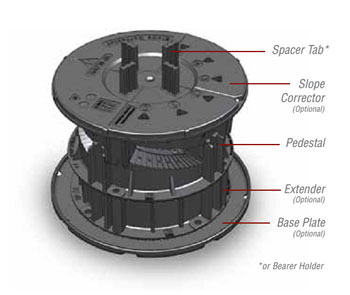

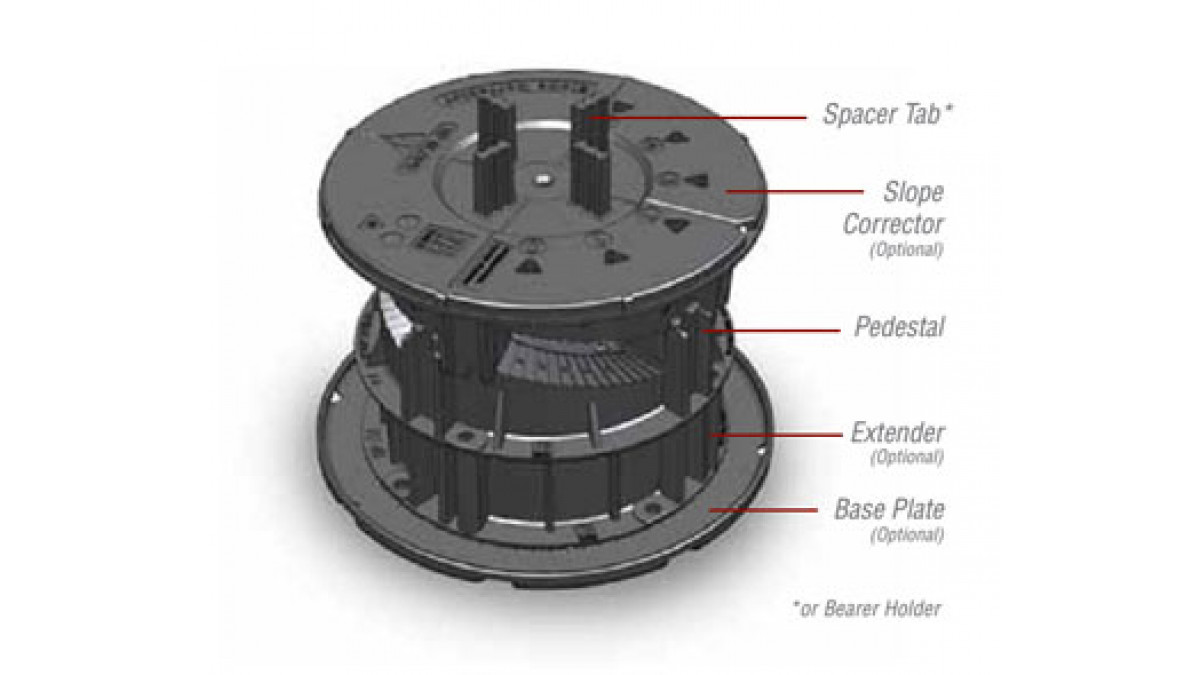

SpiraPave low minimum height of 12mm makes it ideal for installations where conventional height-adjustable pedestals are generally too high to be used. SpiraPave may be used with a combination of accessories including a slope corrector which can be placed either on top or at the bottom of the pedestal to enable compensation for fall up to 10% total slope correction.

Key Features
  • Low minimum height of 12mm
  • Uninterrupted progressive height increase from 12mm to 74mm
  • Easy precise 1 mm increments
  • Easy-to-install, cost effective and lightweight
  • Slope corrector on pedestal as low as 17mm
  • Pedestals can be perpendicular on a sloped surface
  • High compressive strength
  • Made from 100% recycled material
  • Supports Green Building certification.
Scope of Use

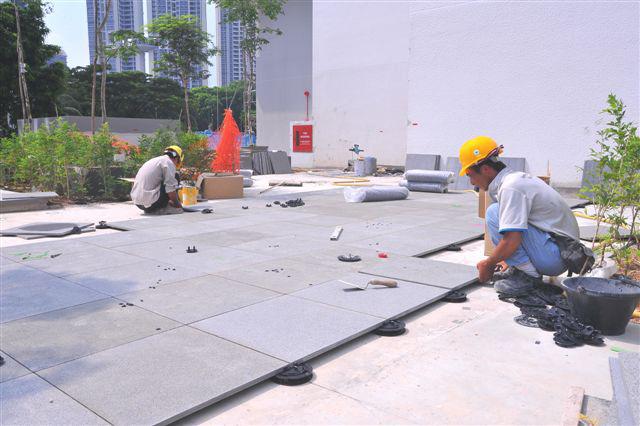

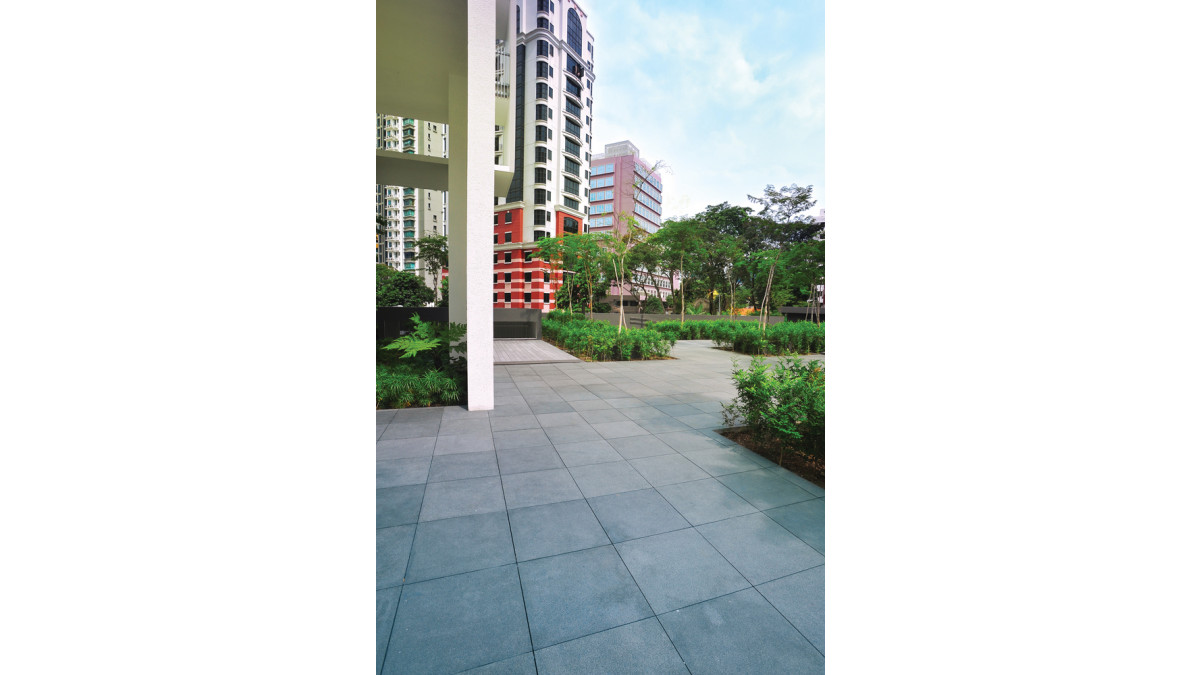

Typical Applications:

  • Pool surrounds
  • Roof terraces
  • Balconies and patios
  • Reflective pools
  • Plaza decks
  • Pedestrian walkways

Use with an Elmich Wall Spacer to provide a permanent compressible buffer at the edge of installations where pavers abut the wall or upstand to prevent damage to the waterproofing membrane and facilitate drainage.

Other Performance Attributes

SpiraPave® is manufactured from recycled materials which meet European Union RoHS requirements.

Documents
Elmich Wall Spacer
BPIR: SpiraPave
SpiraPave Brochure
