CPR — Wind Uplift Concealed Paver Retainer
Tileworks
All products
IMG 0376
IMG 0378
IMG 0377
Description

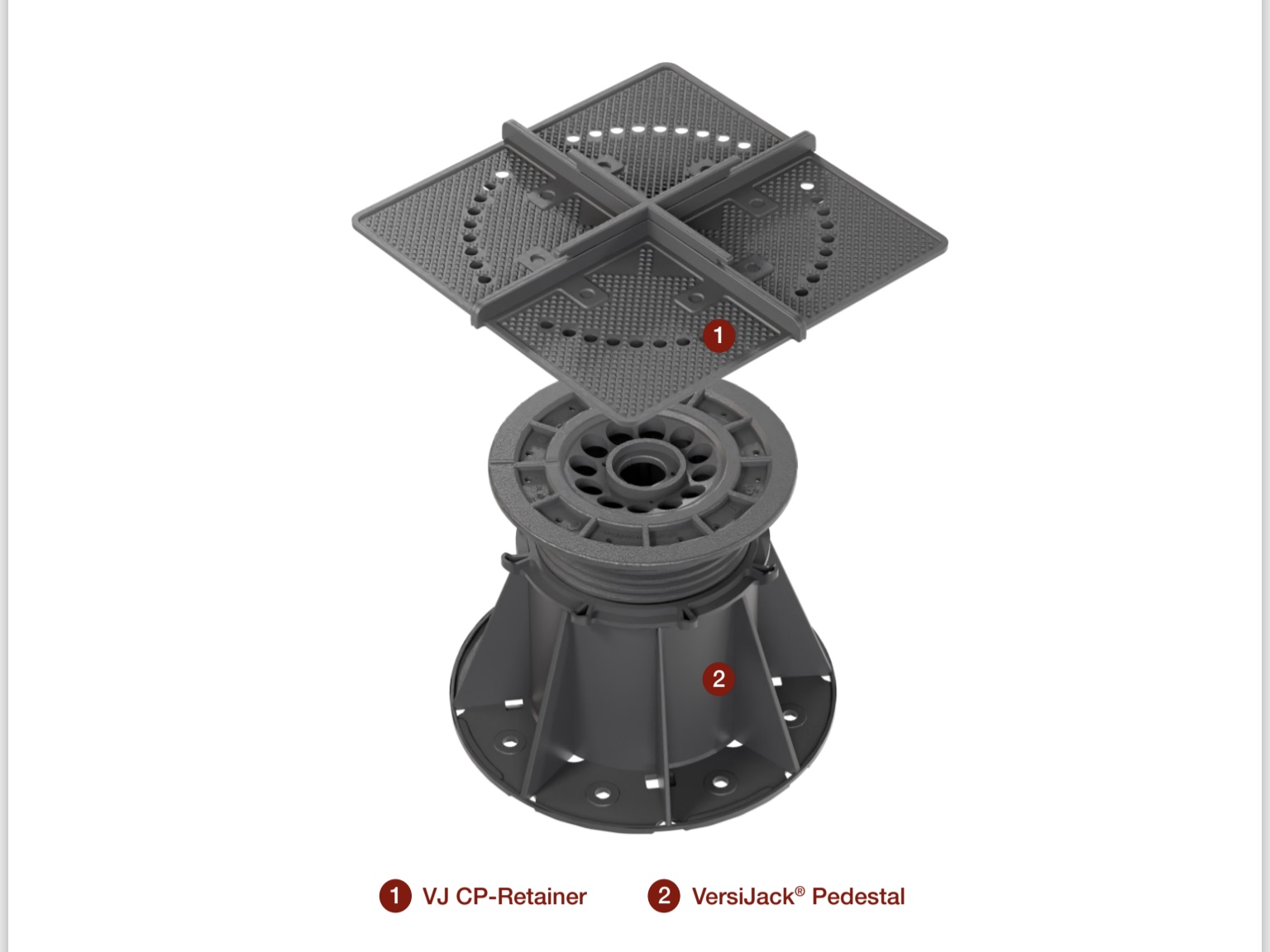

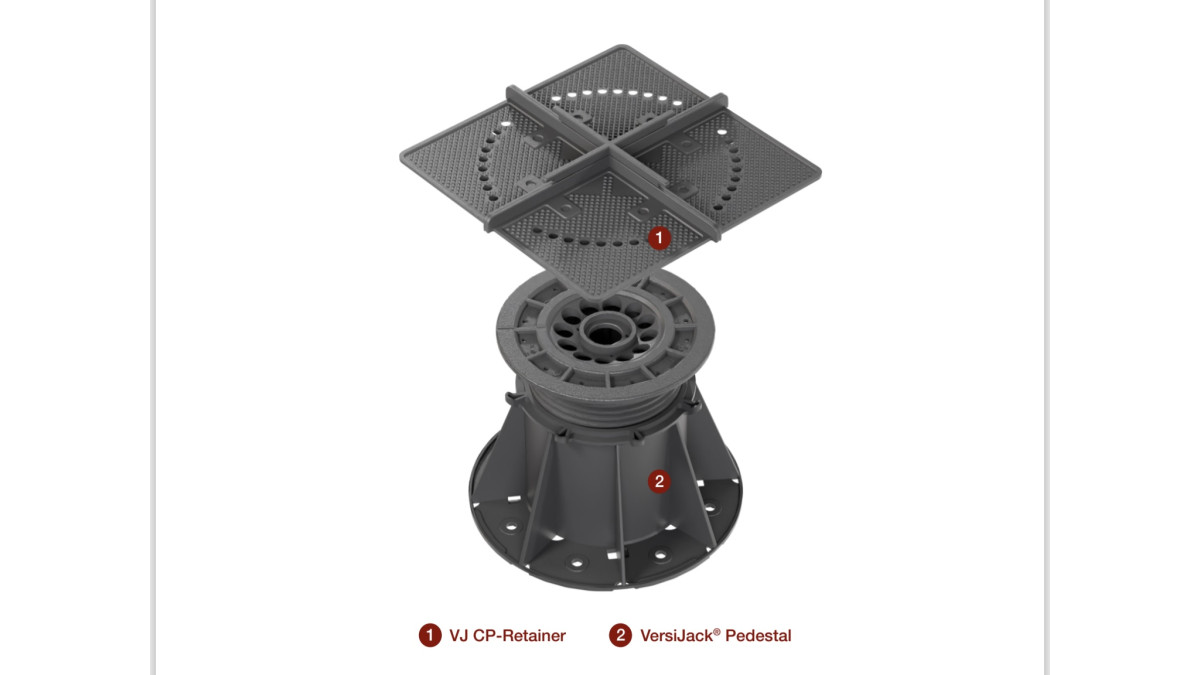

VJ CP-Retainer (CPR) is a patented concealed accessory that interlocks adjacent pavers installed on VersiJack® pedestals. CPR increases wind uplift resistance on exposed balconies and terraces in high-rise buildings and allows for the removal and re-installation of pavers for maintenance purposes.

Key Features

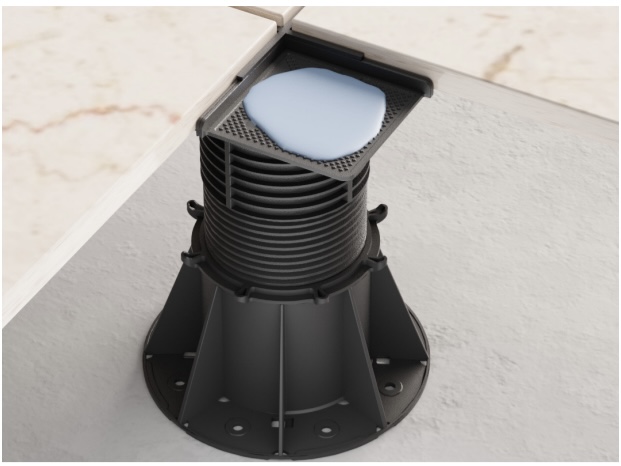

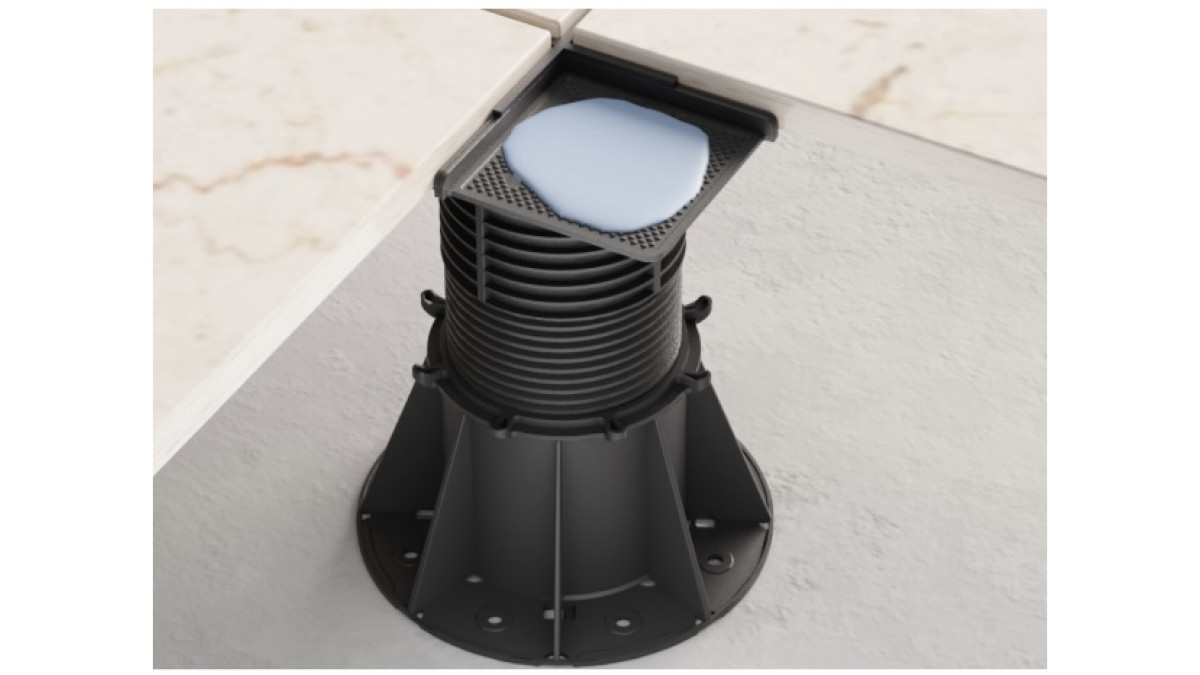

  • Paver corners adhere to the corner plates of CPR and are fastened on the VersiJack® pedestal.

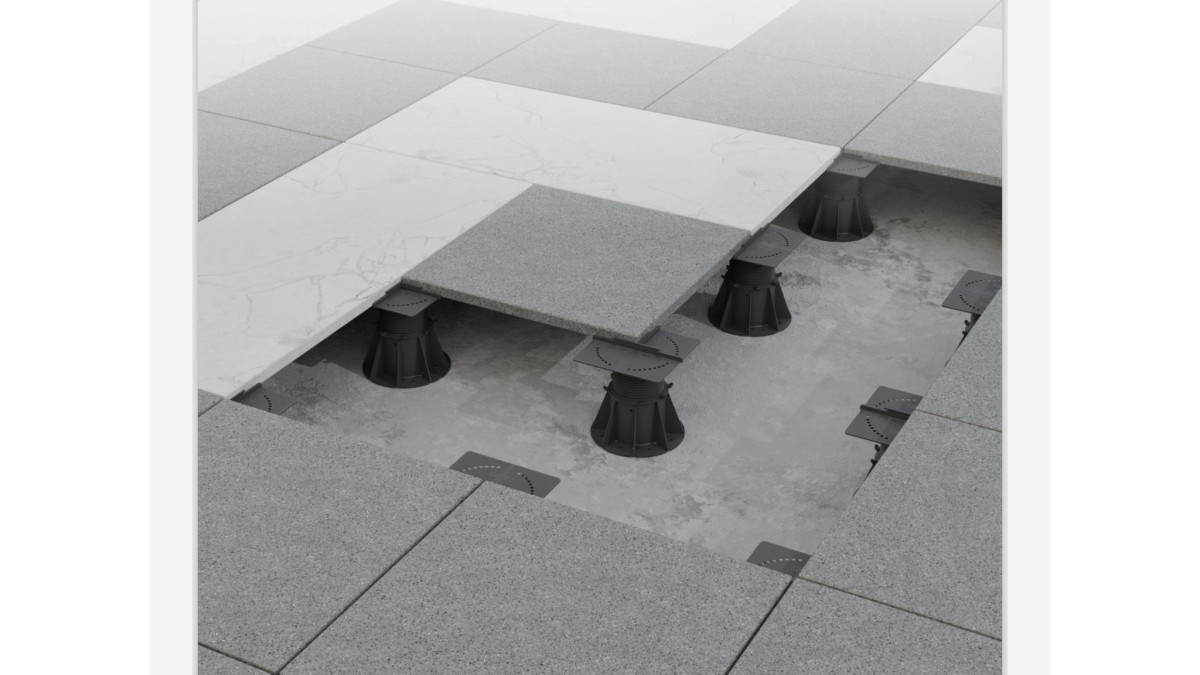

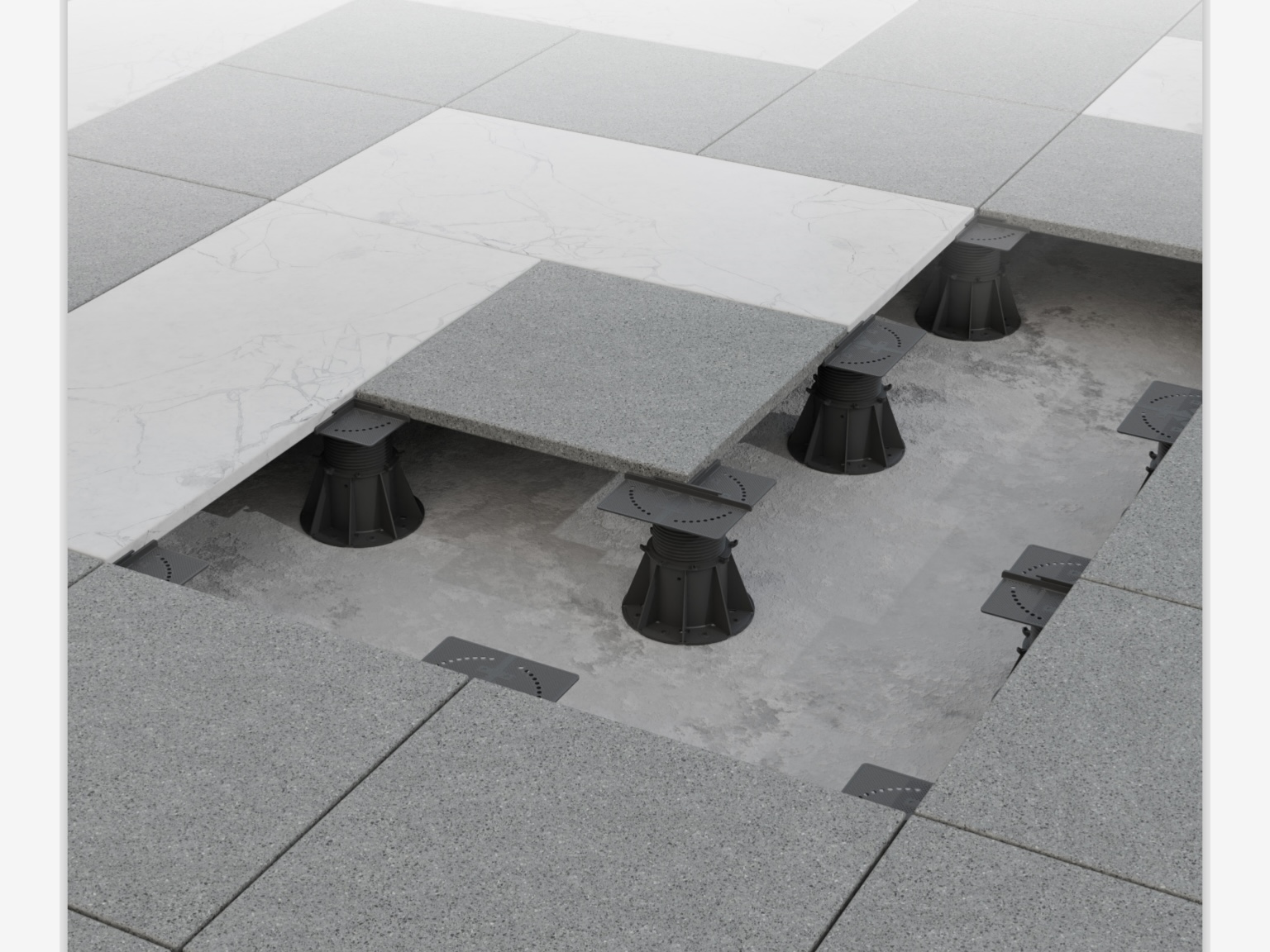

  • Interlocks the pavers together and increases the effective weight of each paver by utilising a portion of the weight from adjacent pavers, increasing the force required to uplift the pavers
  • CPR meets the key requirements for maintenance access for raised floor systems by allowing easy removal and re-installation of pavers
  • Time-cost efficient as pavers do not need to be modified to be compatible with the CPR
  • CPR offers three different Corner Plate configurations, allowing for standard and staggered paver layouts and the installation of pavers along the perimeter
  • CPR is easily removable to access the waterproof membrane or service lines (if required)
  • After inspection, pavers can be re-installed onto CPR without the need for specialised tools
  • Pavers do not require any modification — CPR will cater for all pavers
Categories
Roofing and Decking Ancillaries Decking Tile Ancillaries
Ranges
Elmich Pedestals
Scope of Use
  • CPR increases wind uplift resistance on exposed balconies and terraces in high-rise buildings and allows for the removal and re-installation of pavers for maintenance purposes
