VersiJack Pedestals
Description

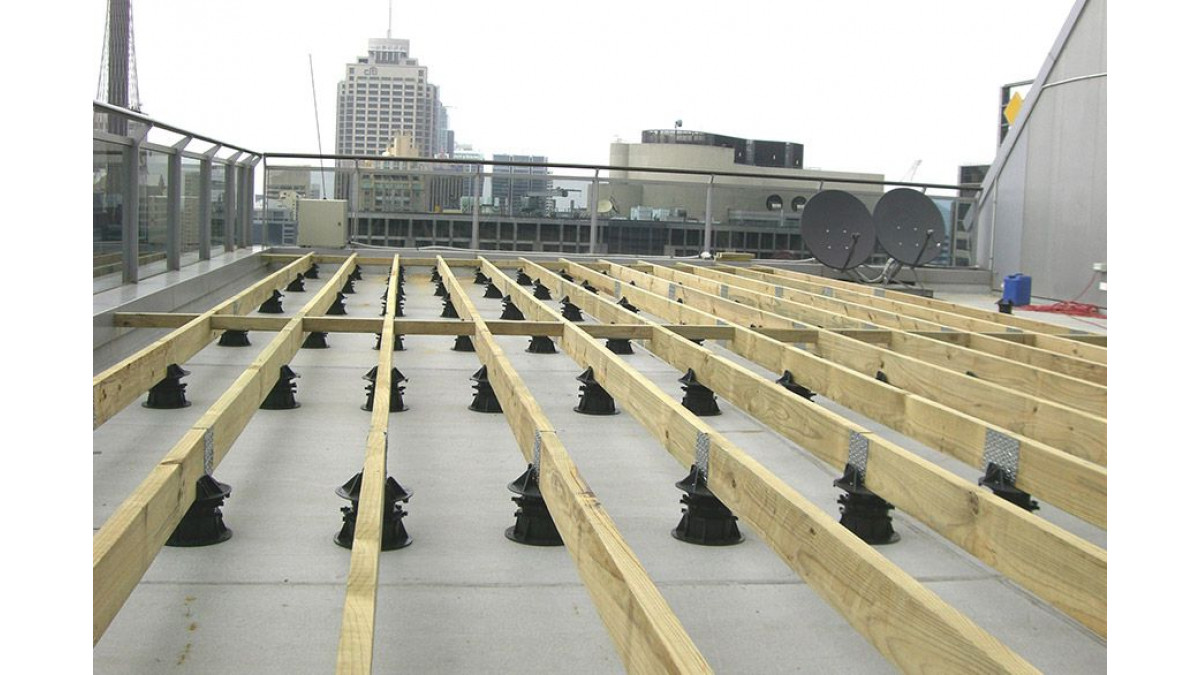

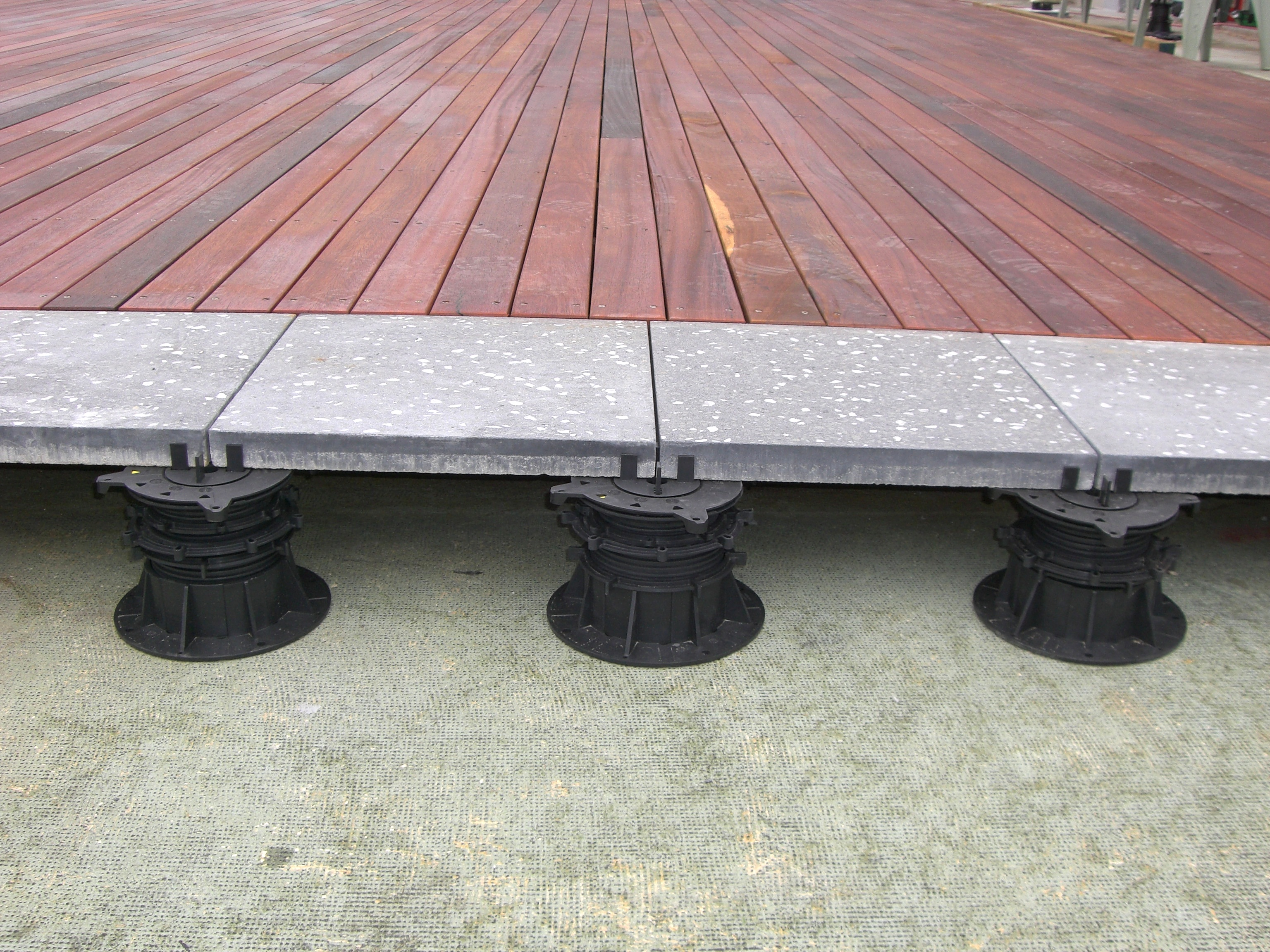

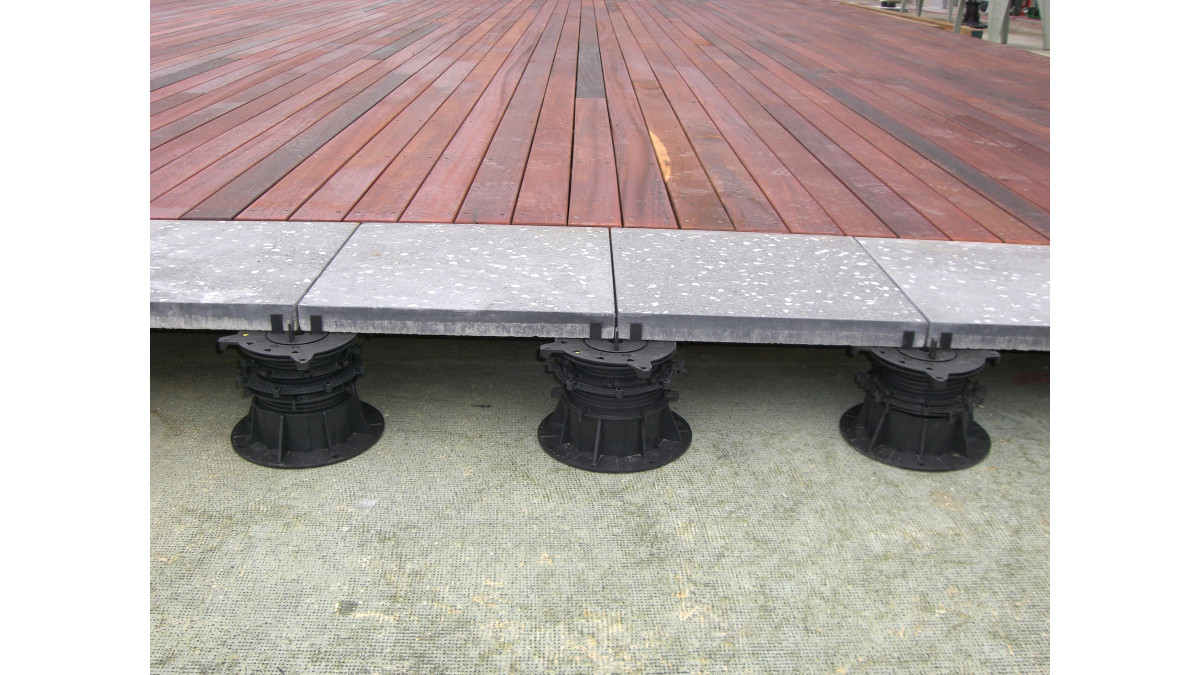

VersiJack® is a new generation pedestal engineered to provide a versatile and sustainable solution to support raised pavers and timber decking. It creates a cavity to conceal services, improves heat and sound insulation, and facilitates rapid surface drainage whilst allowing waterproofing and services to remain accessible. It also eliminates efflorescence and algae growth, and reduces decking installation costs.

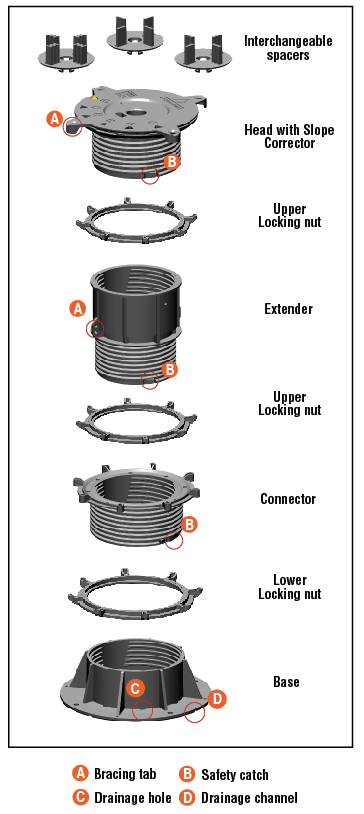

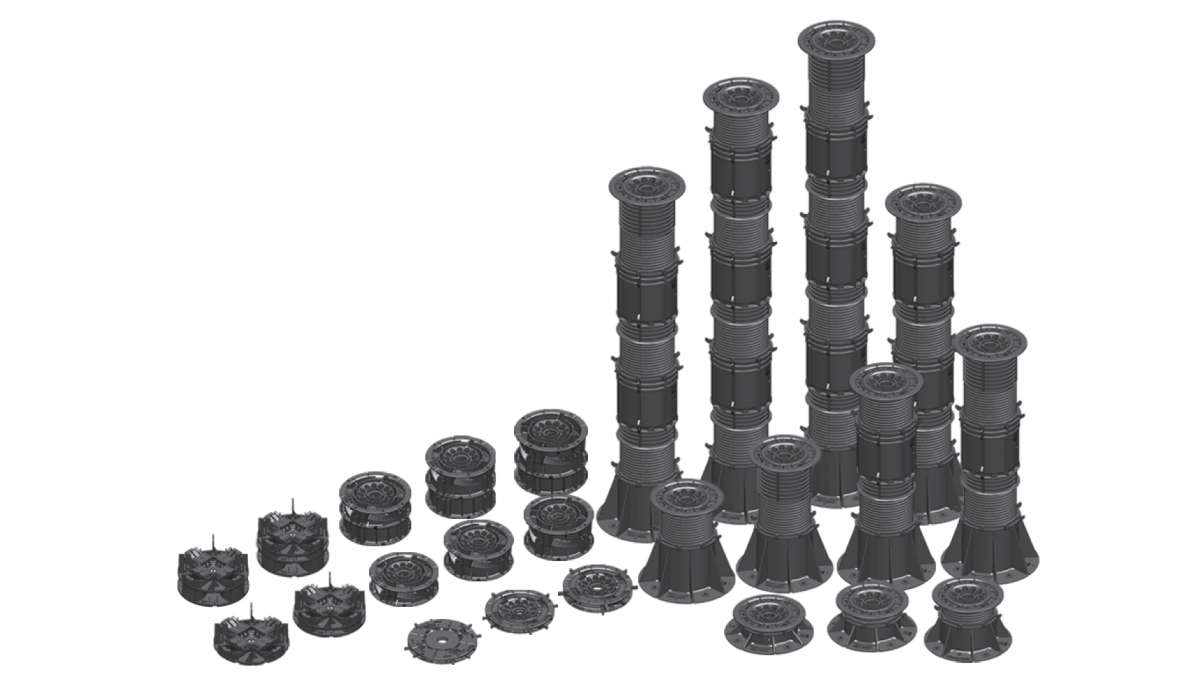

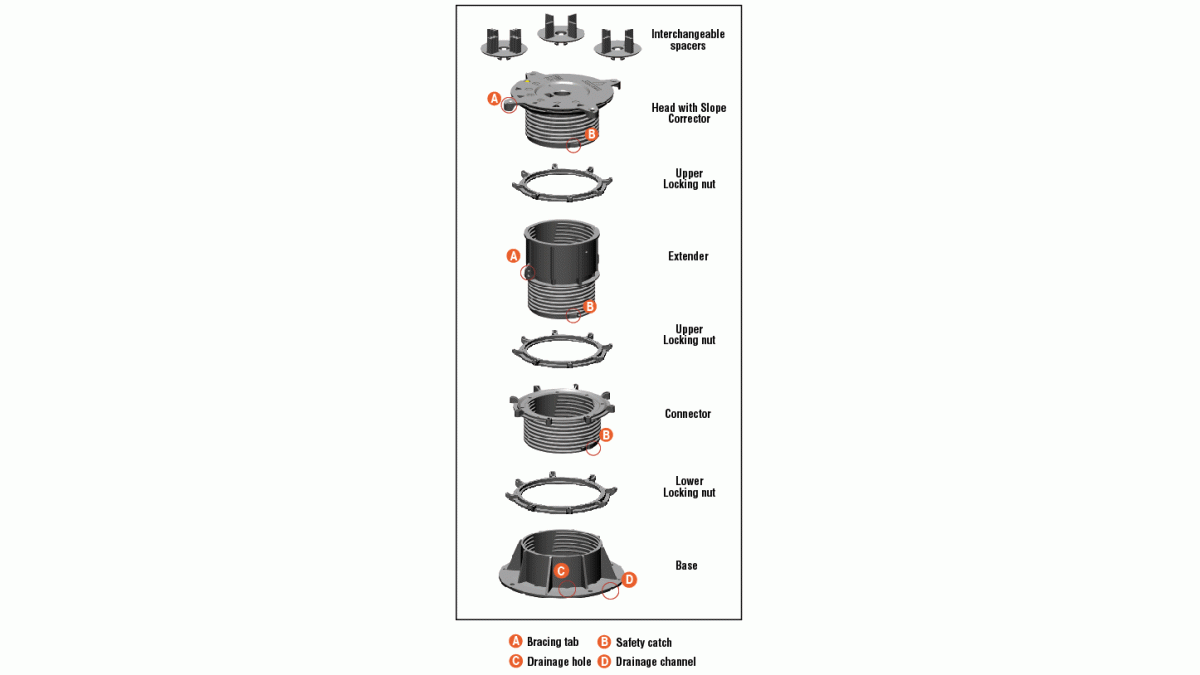

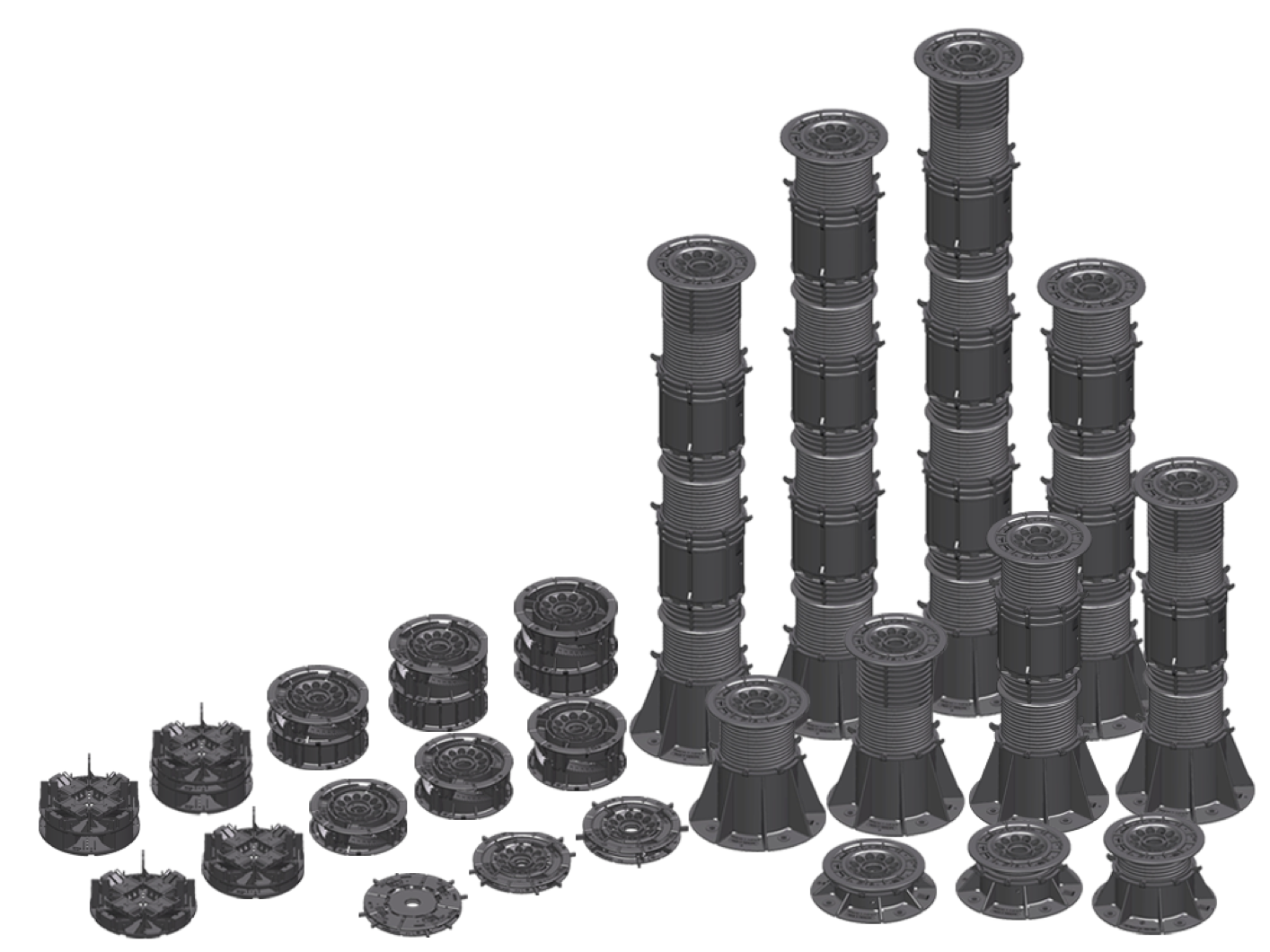

VersiJack is a height and slope adjustable pedestal for paver and decking support engineered to reduce material, construction and lifecycle costs. It caters to a wide range of height requirements, from 37mm - 1016mm, using only three main components (Top, Extender and Base).

VersiJack allows convenient progressive height adjustments and correction for fall. Desired height is secured with integrated Locking Rings. The large flat base and rounded edges do not penetrate and compromise waterproofing membranes. The base flange design prevents water ponding, and the breeding of pests.

Key Features
  • Stable deck support
  • Easy to install and lightweight
  • Progressive height increments

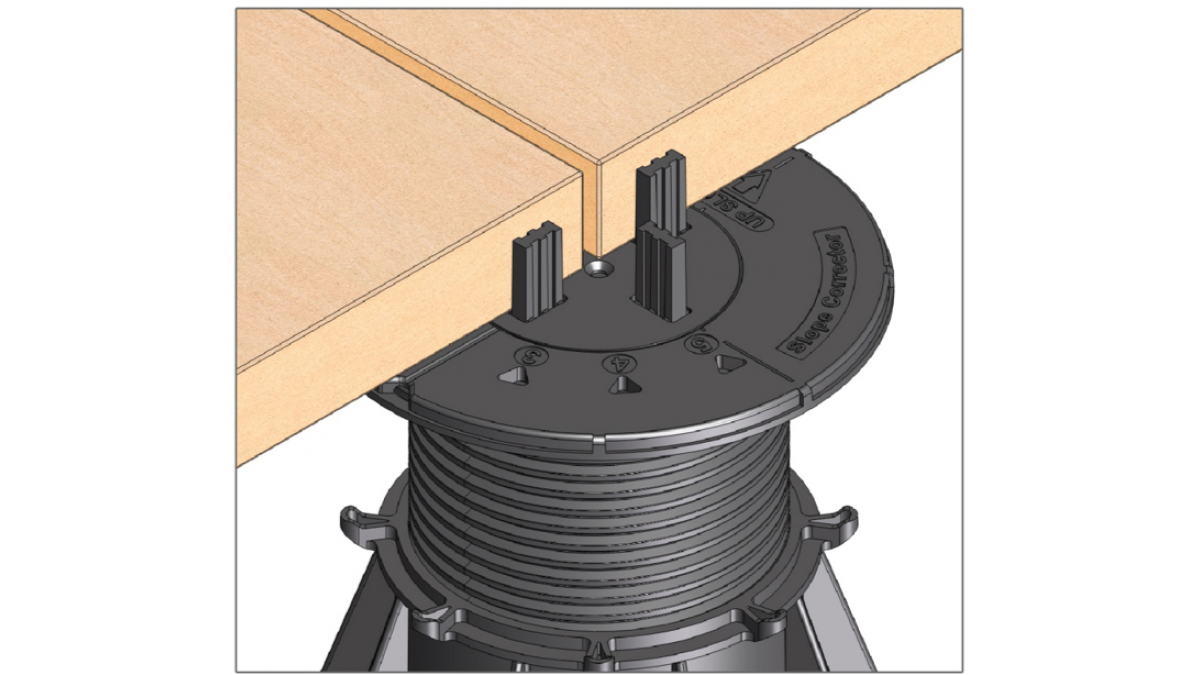

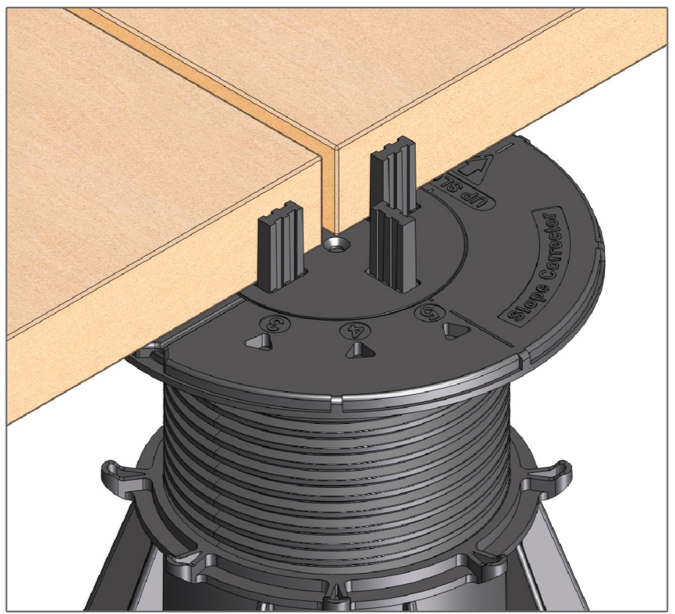

  • Top and/or bottom slope correction
  • Easy access to concealed services and waterproofing membranes
  • Made from recycled plastics
  • Supports Green Building certification
  • Easily removed and reused
Scope of Use

Used in the construction of:

  • Roof terraces
  • Pedestrian walkways
  • Roof gardens
  • Plaza decks
  • Sun decks
  • Balconies
  • Pool surrounds
  • Podium landscapes and verandas
Limitations on Use
  • Height range of VersiJack SP is 12mm to 74mm, in 1mm increments
  • VersiJack F caters to a wide range of height requirements, from 37mm - 1016mm
Other Performance Attributes
  • High Compressive Strength: VersiJack SP with Extenders up to 119mm has a compressive strength of ≥ 20kN
  • Supports Green Building Certification: Manufactured from recycled materials which meet European Union RoHS requirements
Documents
Data Sheet
Brochure: VersiJack F
Brochure: VersiJack SP
