SPAX Decking Screw
SPAX
All products

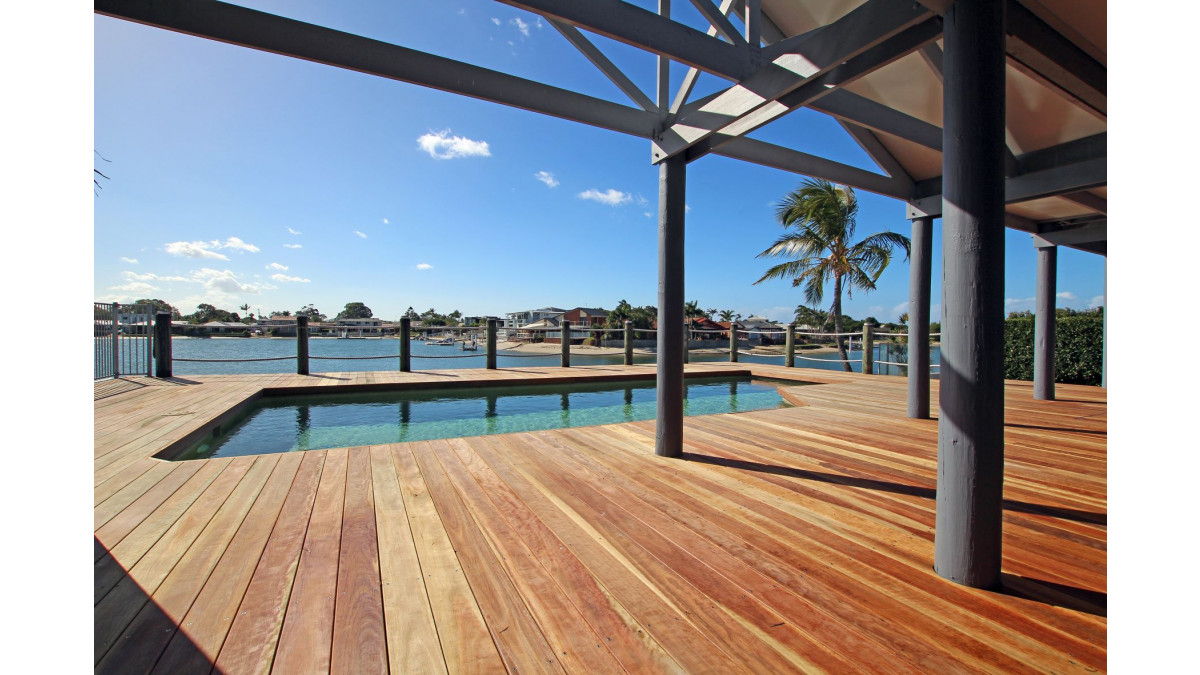

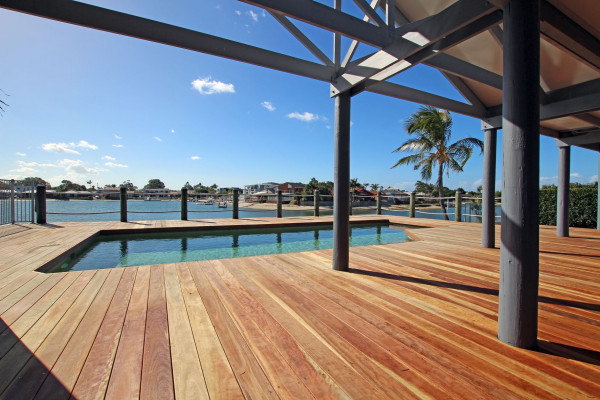

SPAX Shakespeare Decking no pool hose 3000px wide Med res

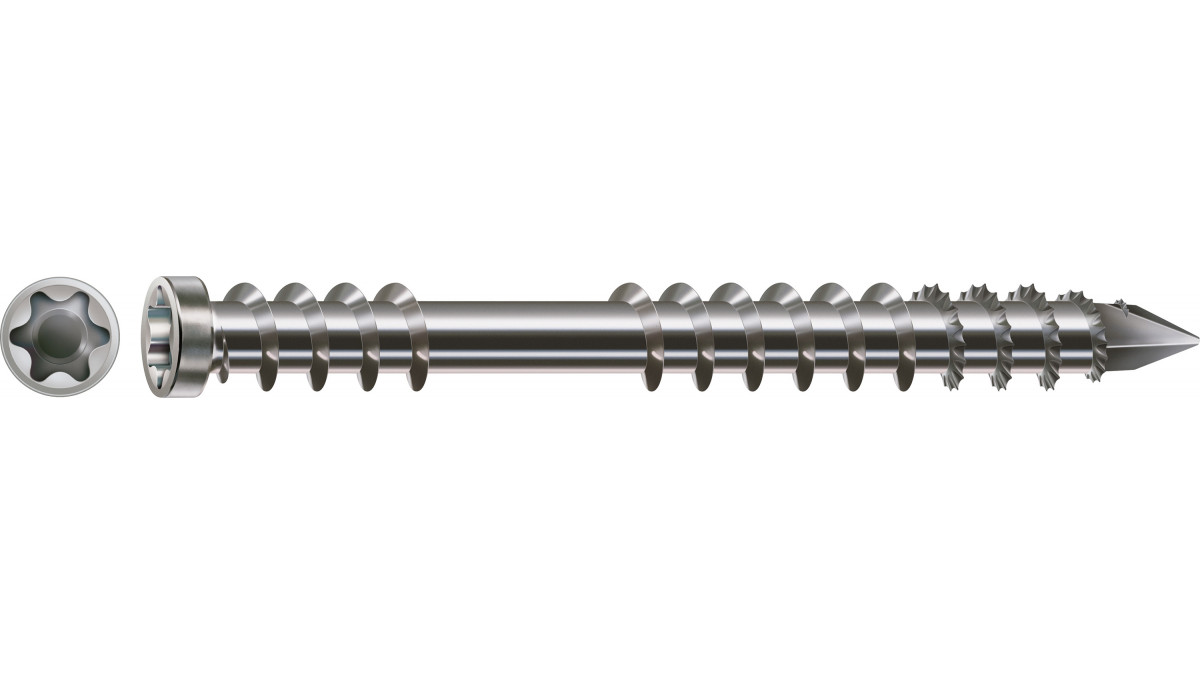

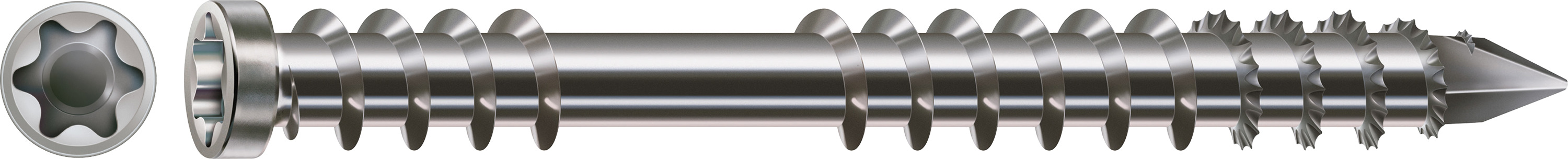

KS A8B6D4E2F10H3L1N1

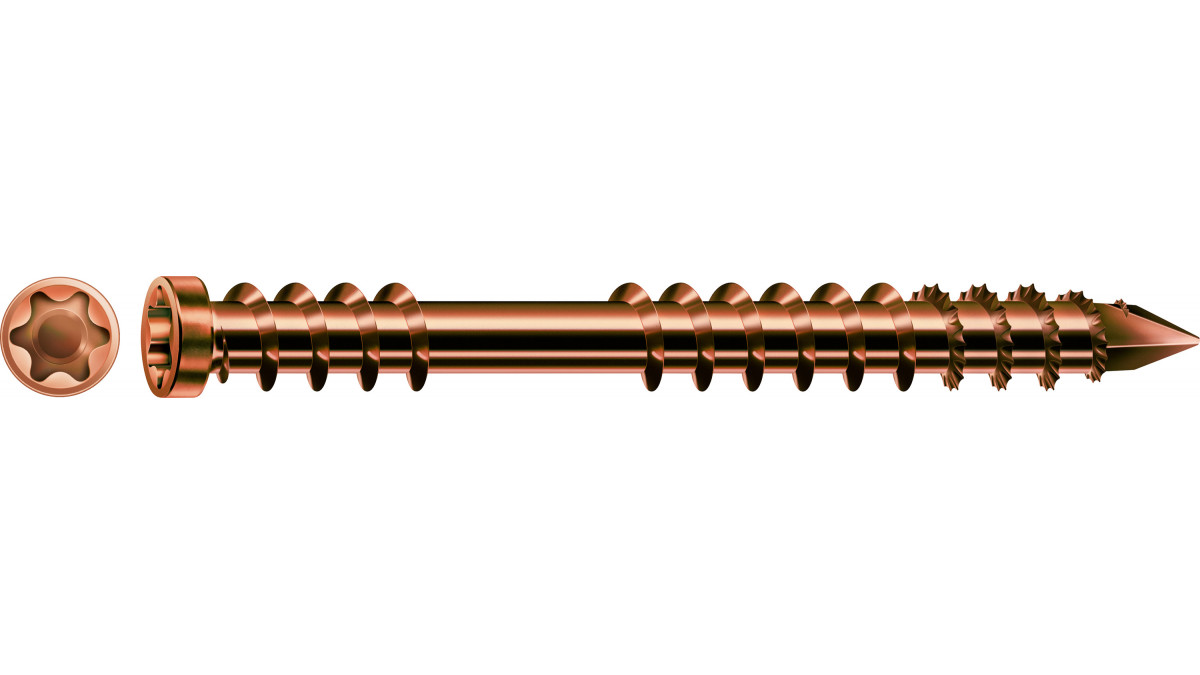

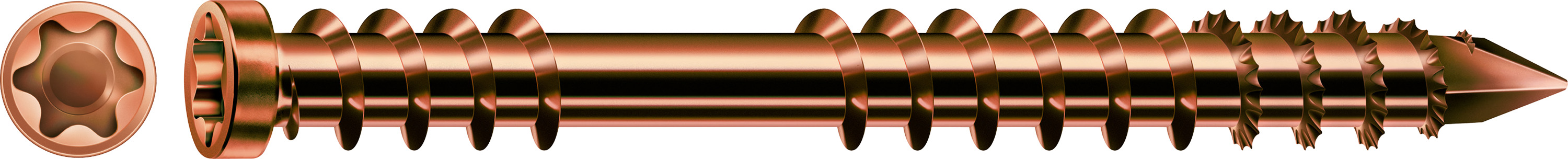

KS A8B6D4E2F5H3L1N1

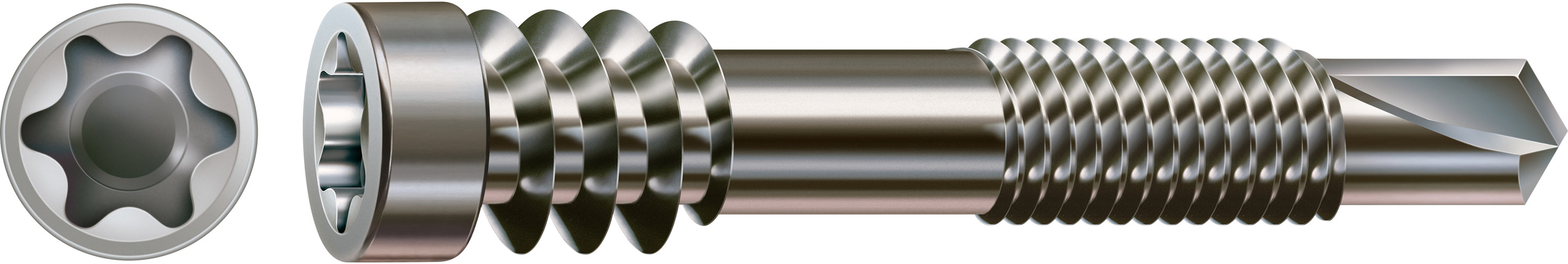

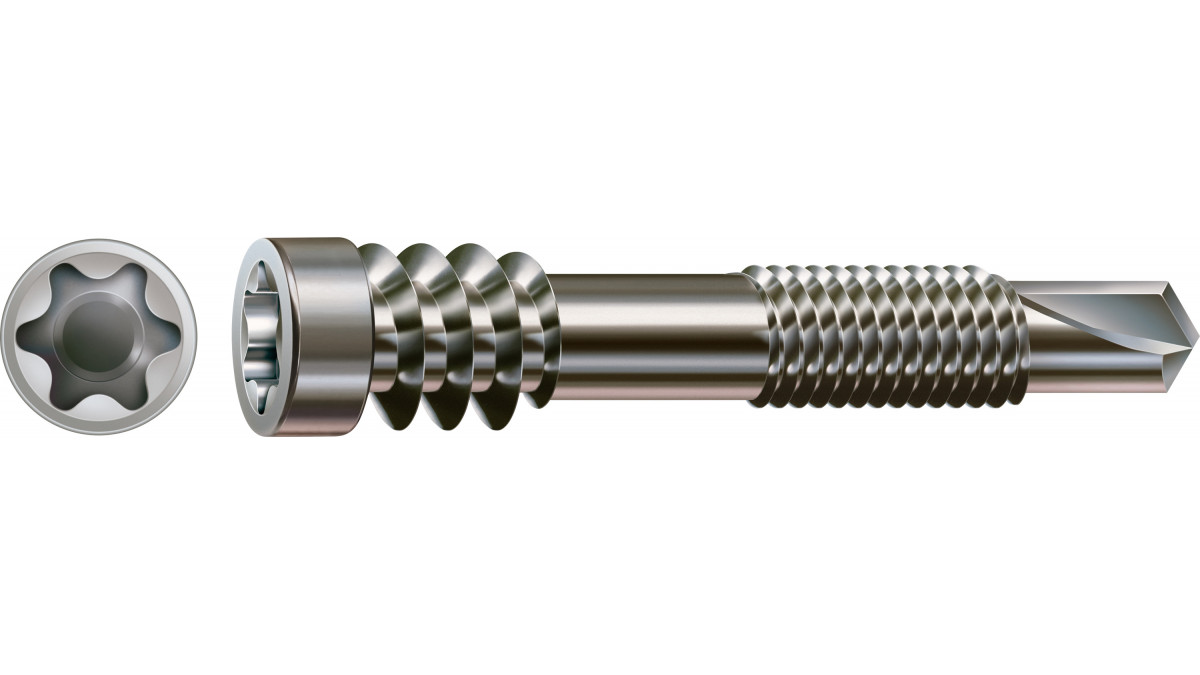

KS A8B6D6E3F10H3N1
Description

Ideal for fastening timber or composite decking boards to joists made of timber, steel or aluminium, the SPAX decking screw will pull the deck down tightly while also allowing the timber to expand and contract without splitting or leaving the screw head proud.

The unique features of the screw are designed for ease of installation, extended durability and attractive appearance.

Key Features
  • Fixing thread under the head to lock the decking board in place while still allowing the timber to expand during wet weather and shrink during hot dry weather without the deck moving or the screw head protruding
  • Small cylinder head for attractive appearance
  • Cut point for easy guidance
  • Serrated thread to cut through the timber, reducing any chance of splitting and reducing the torque required during installation
  • T-Star Plus recess for easy driving of the screw and maximum torque transfer
  • Available in grade 304 and grade 316 stainless steel as well as a decorative antique finish
  • Large version available for boardwalks
Categories
Fasteners and Connectors Roofing and Decking Ancillaries
Scope of Use
  • Fastening timber or composite decking boards to timber, steel or aluminium joists
  • Also used for fastening timber fencing to steel or aluminium posts
  • Ideally suited to coastal environments
  • Best practice for decking installation is provided at https://www.youtube.com/embed/jFx7TT8OEpI?rel=0&ecver=2
Limitations on Use

The full SPAX system, including SPAX air spacers and step-drill bit must be used with steel and aluminium joists.

Statement of Building Code Compliance
  • SPAX products are manufactured in Germany and comply with the latest European requirements but have also been tested in local New Zealand timbers
  • Timber connection design can be performed according to either European Technical Assessments or to NZS 3603
  • News
Documents
Data Sheet: SPAX Decking Screw

v1

pdf
SPAX Timber To Aluminium Screw

v1

pdf
SPAX Timber to Steel Screw

v1

pdf
SPAX Boardwalk Solutions
pdf

SPAX is a German manufacturer of quality, innovative screws for timber connections such as framing, timber construction, decking, flooring, and cladding.
