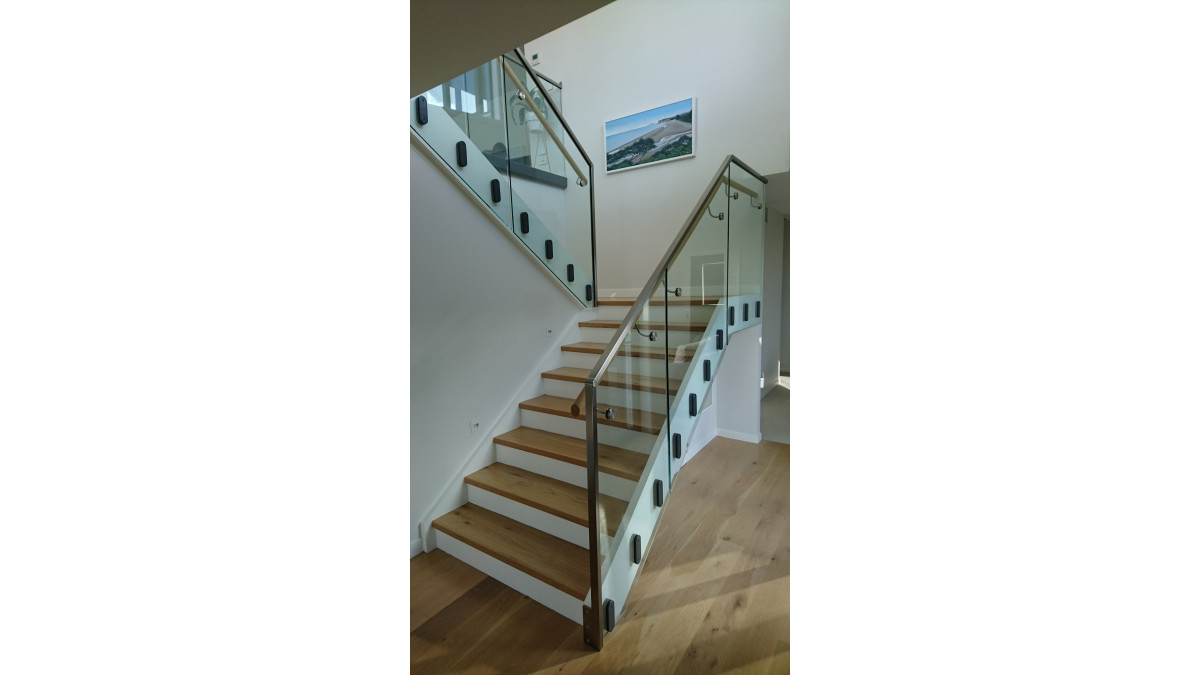

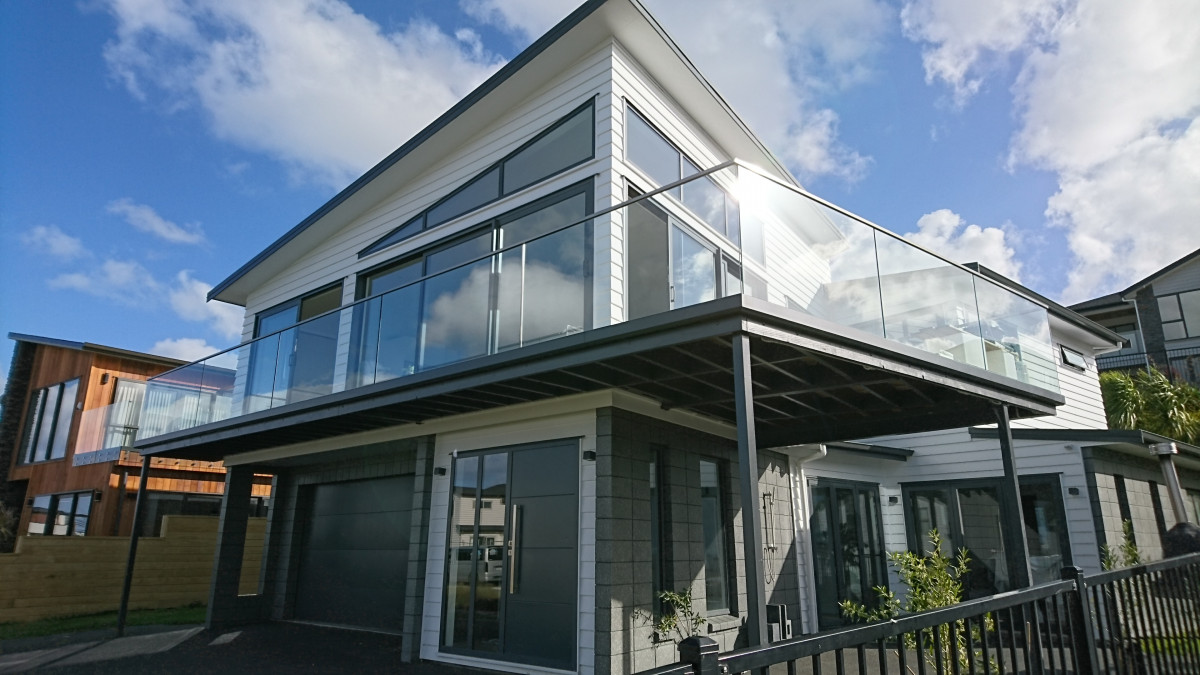

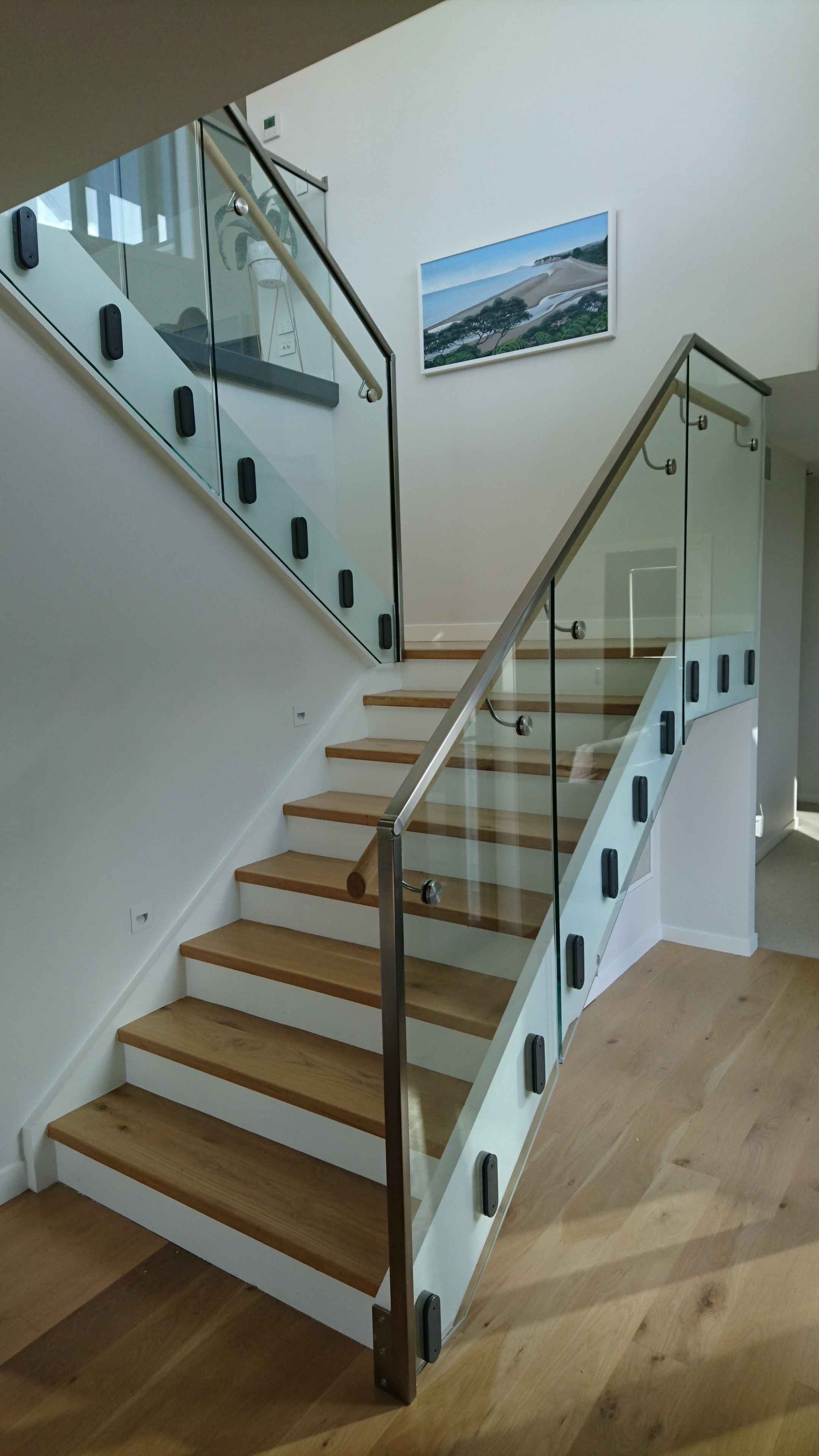

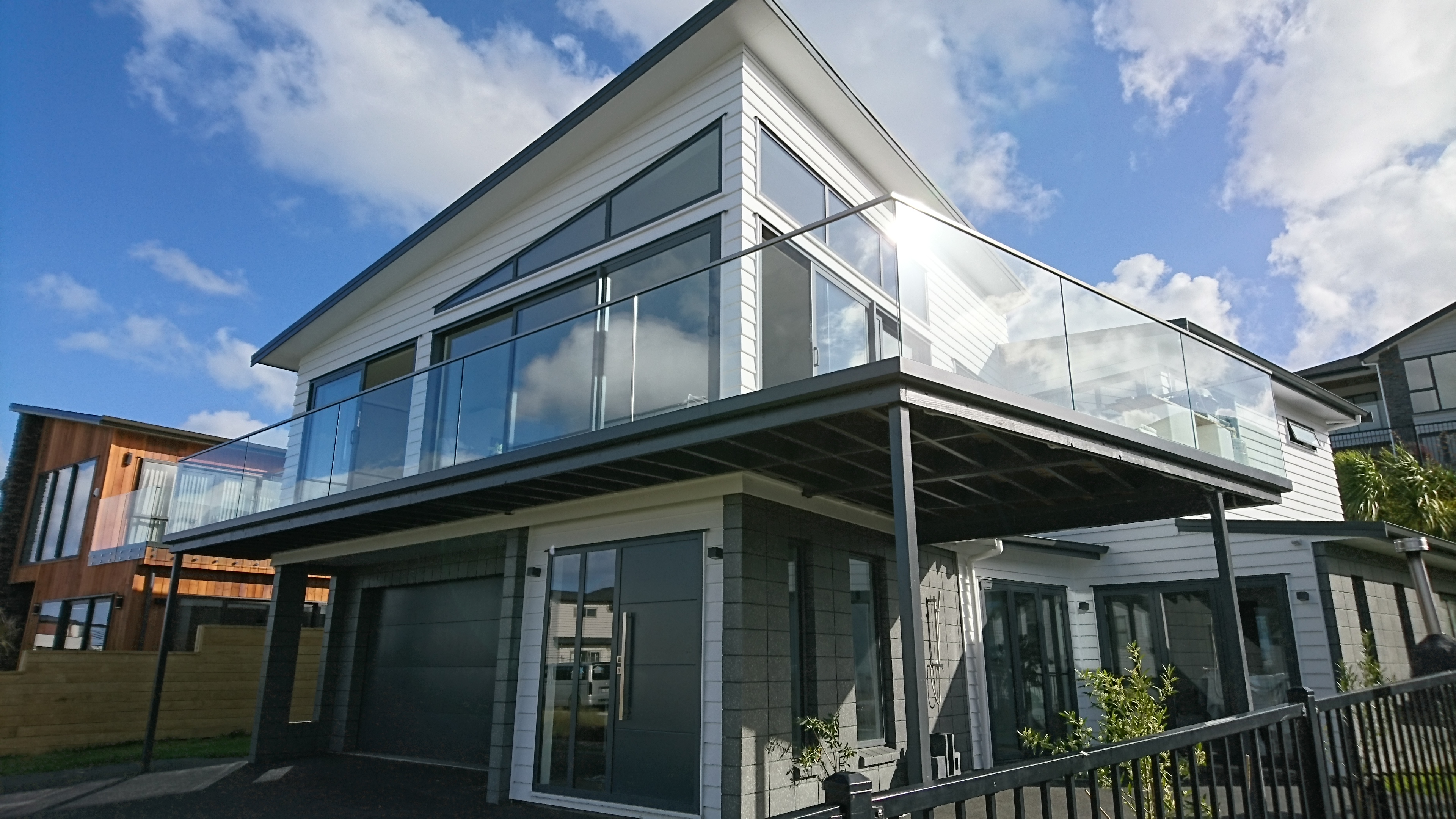

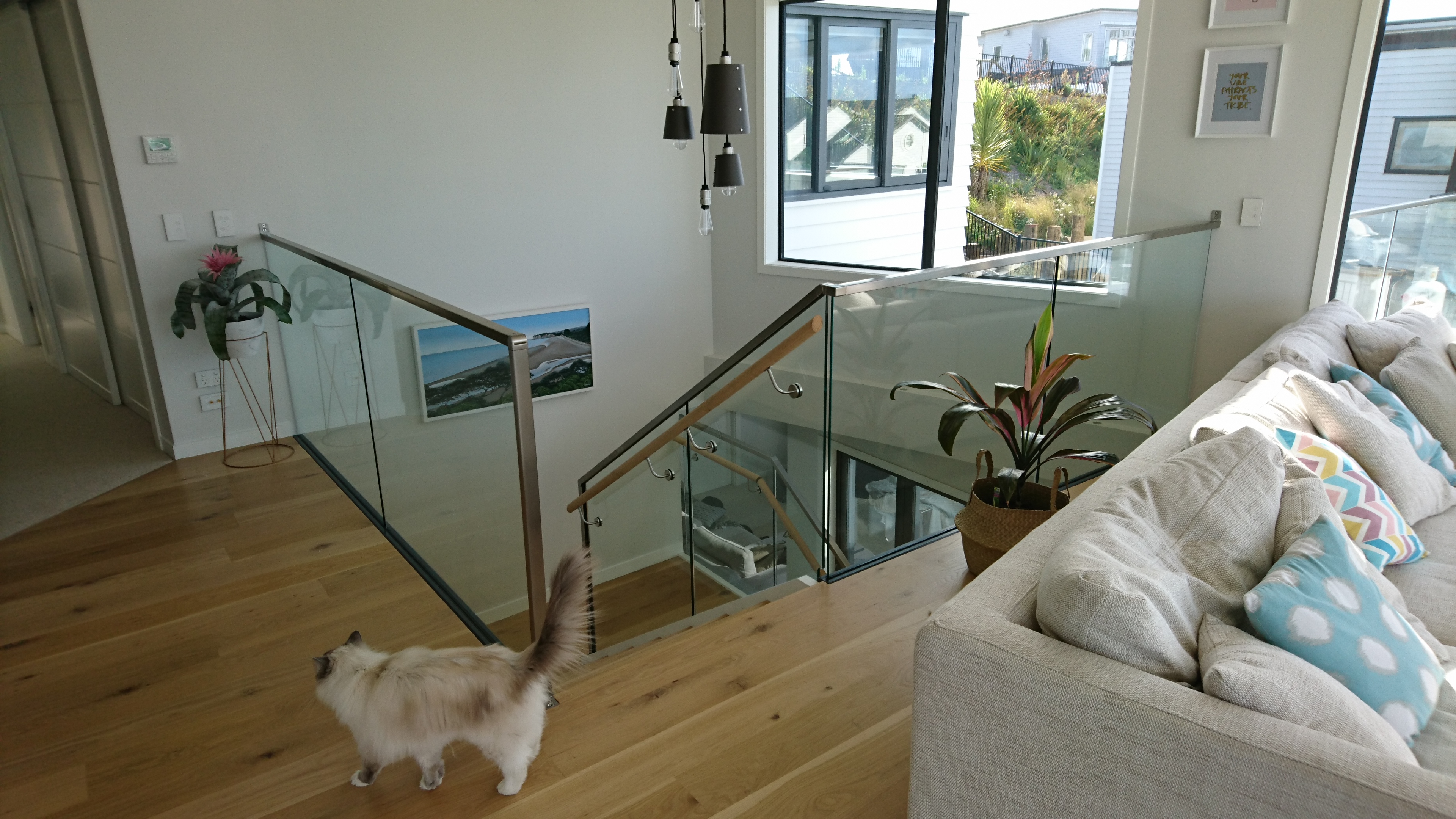

Linkrail S25 and S40
Description

Metro Frameless Glass offers the S25 and S40 Linkrail systems made from tough 2205 stainless steel.

  • The Linkrail S25 has a 25mm square extrusion, cut at lengths to suit. It is suitable for 10-12mm glass thickness.
  • The Linkrail S40 has a 40mm square extrusion, cut at lengths to suit. It is suitable for 12-19mm glass thickness.

Linkrail offering includes wall bracket, adjustable and fixed joiners, and end caps.

Documents
5.45 - Link Rail S25 for 10mm or 12mm Glass
CAD/PDF Details

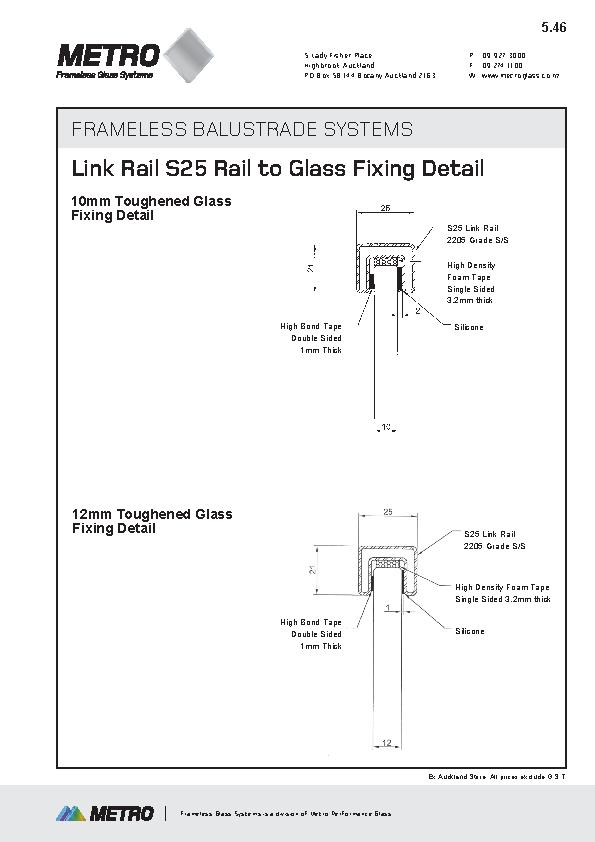

5.46 - Link Rail S25 Rail to Glass Fixing Detail
