Description

The cassette panel offers a modern and flat appearance. As a self supporting system it relies on the panels being connected by way of interlocking groove. This gives the elegant appearance of a recessed joint. The Cassette system can be installed horizontally or vertically and is fixed with concealed fixings directly over cavity battens. This profile may be completed in a range of materials including Copper, Zinc, pre-painted Aluminium and pre-painted steel.

Key Features

Unsupported
Concealed fixings
Available in copper, zinc, pre-painted steel and pre-painted aluminium

Ranges

Vertical Wall Cladding Horizontal Wall Cladding

Scope of Use

Residential and Commercial cladding
Installed vertically and horizontally
Concealed fixings

Limitations on Use

Narrow pan widths

Statement of Building Code Compliance

Installation of the profile is undertaken by an experienced Metal Design Solutions installers with installation carried out in accordance Metal Design Solutions standard details and in compliance with the NZ Metal Roof and Wall Cladding Code of Practice.

This product, if installed in accordance with the manufacturer's standard installation details, will on reasonable grounds meet the requirements of the following New Zealand Building Code clauses:

Clause B1: Structure, Performance, B1.3.1, B1.3.2, B1.3.3 (a, b, c, d, g, i), B1.3.4 (a, b, c, d, e)
Clause B2: Durability, Performance, B2.3.1 (b), B2.3.2 (b)
Clause C3: Fire, Performance C3.4(a), C3.7(a)
Clause E2: External Moisture E2.3.1, E2.3.2, E2.3.5, E2.3.7 (a, b, c)
Clause F2: Hazardous Building Materials, Performance, F2.3.1

Other Performance Attributes

Regular maintenance is required to maximise the lifespan of this profile and components
Full maintenance guides are available based on material selection
Product warranties and material selection are available on request for specific projects
Metal Design Solutions warranty period is 5 years from the date of Practical Completion of the Contract Works for installation and workmanship

Documents

E2 Evaluation

Version 1

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Murihiku Marae’s Tohorā-Inspired Design Showcases Techlam's Curved Glulam Beams

Achieve Complex Decking Designs without Budget Blowouts

Electric, Like You've Never Seen Before: Introducing Escea LE Series

SECTIONS

What Shading is Needed for Summer Cooling?

The Relationship Between E1 and E2

What Happens When a Warm Roof System with PIR Insulation Catches Fire?

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

Other Performance Attributes

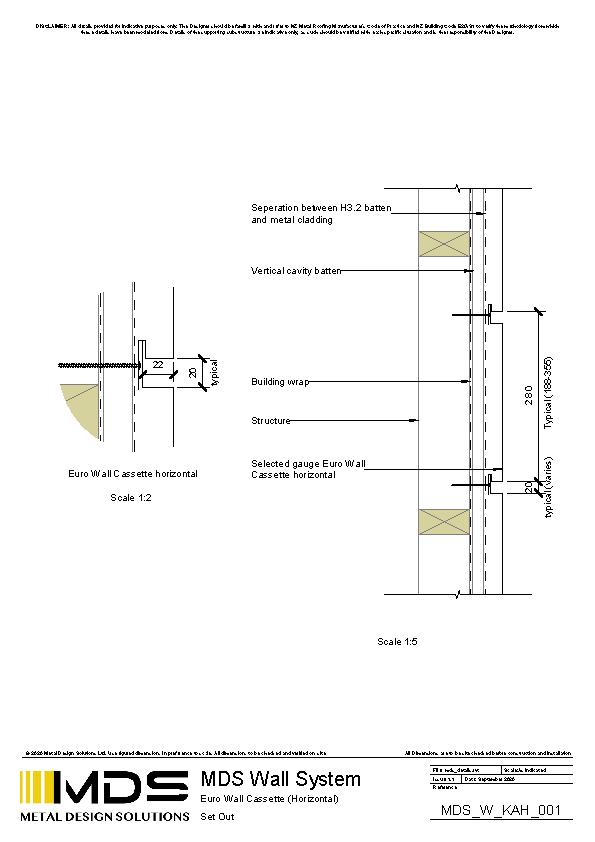

Euro Wall Cassette (Horizontal): Set Out

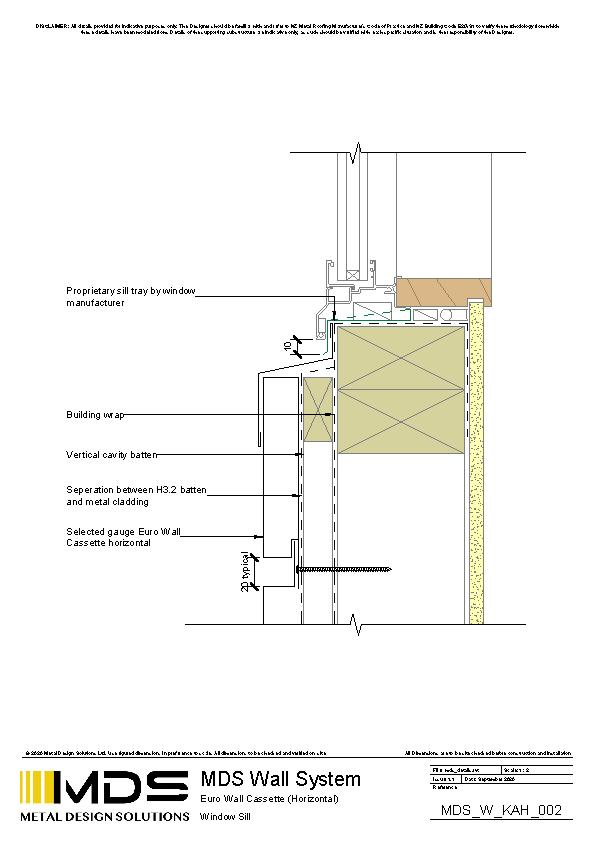

Euro Wall Cassette (Horizontal): Window Sill

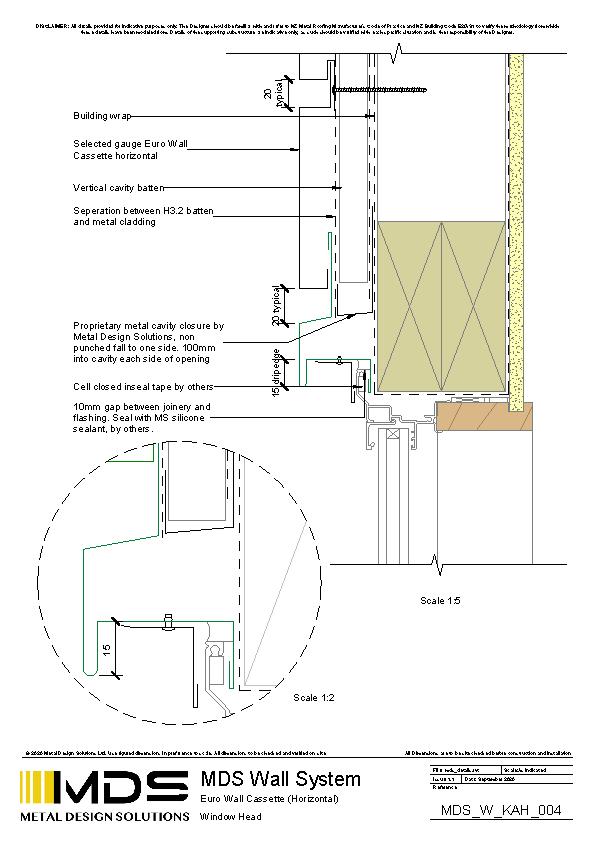

Euro Wall Cassette (Horizontal): Window Head

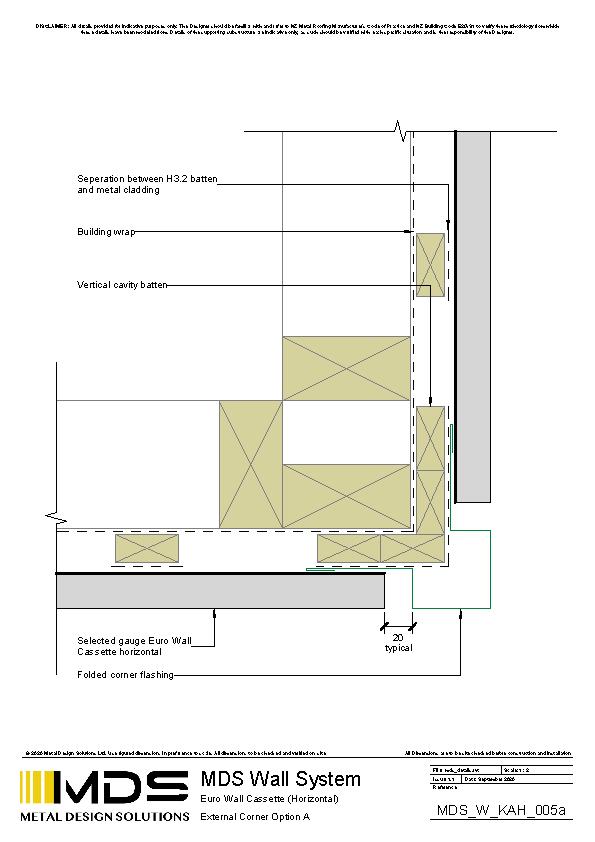

Euro Wall Cassette (Horizontal): External Corner Option A

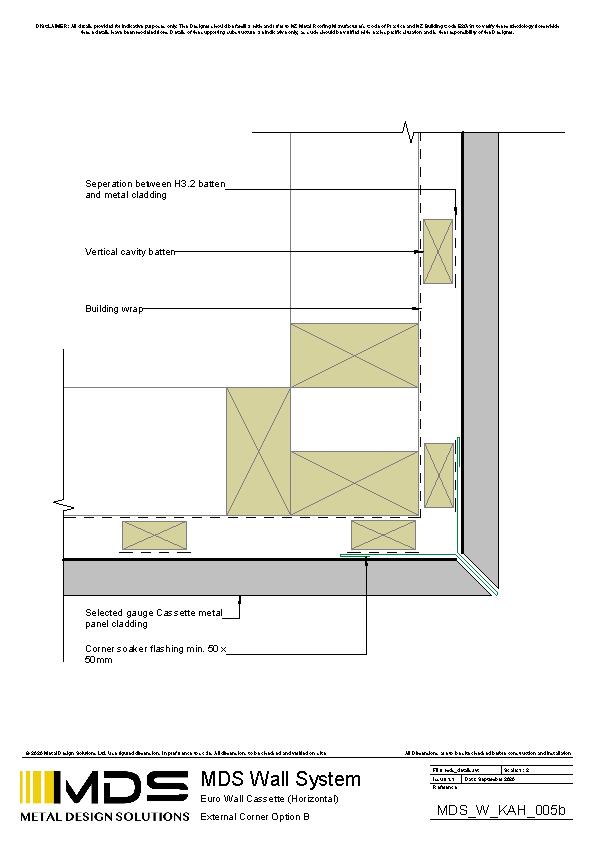

Euro Wall Cassette (Horizontal): External Corner Option B

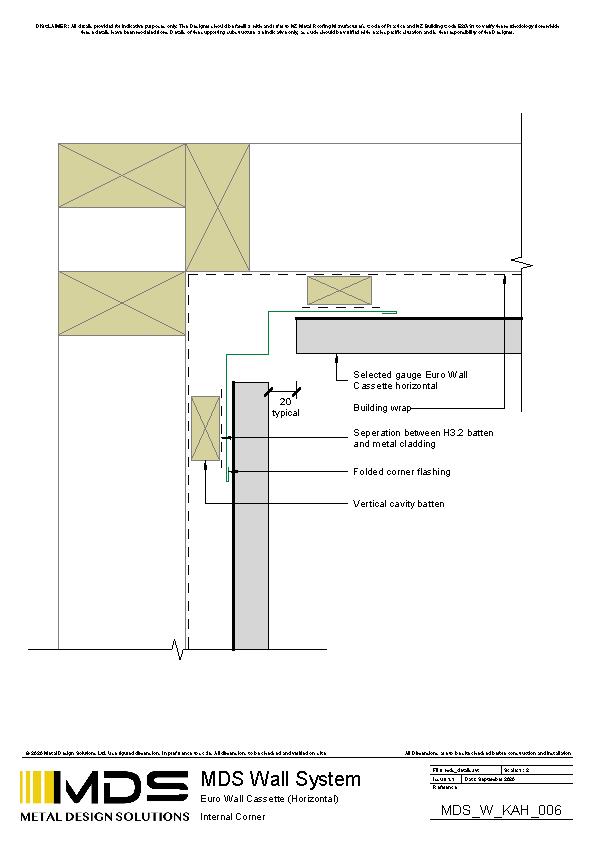

Euro Wall Cassette (Horizontal): Internal Corner

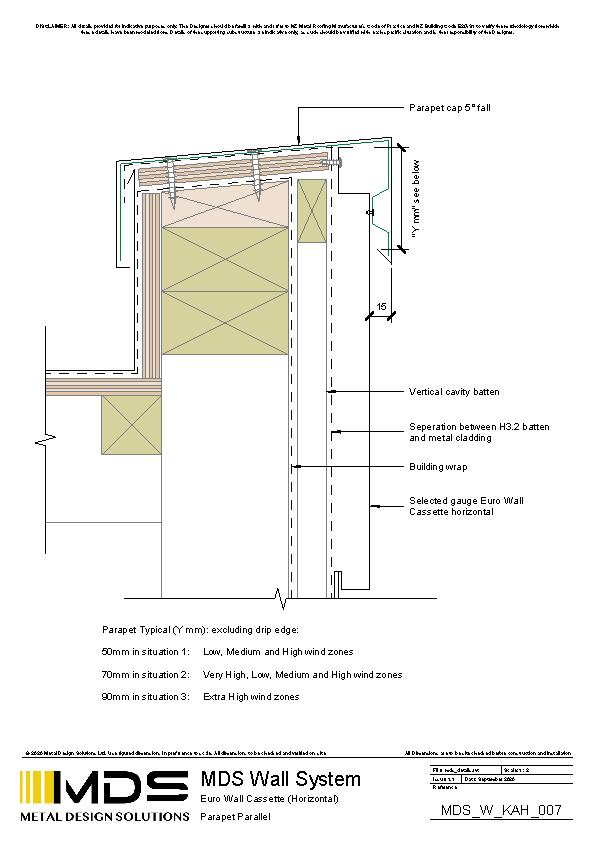

Euro Wall Cassette (Horizontal): Parapet Parallel

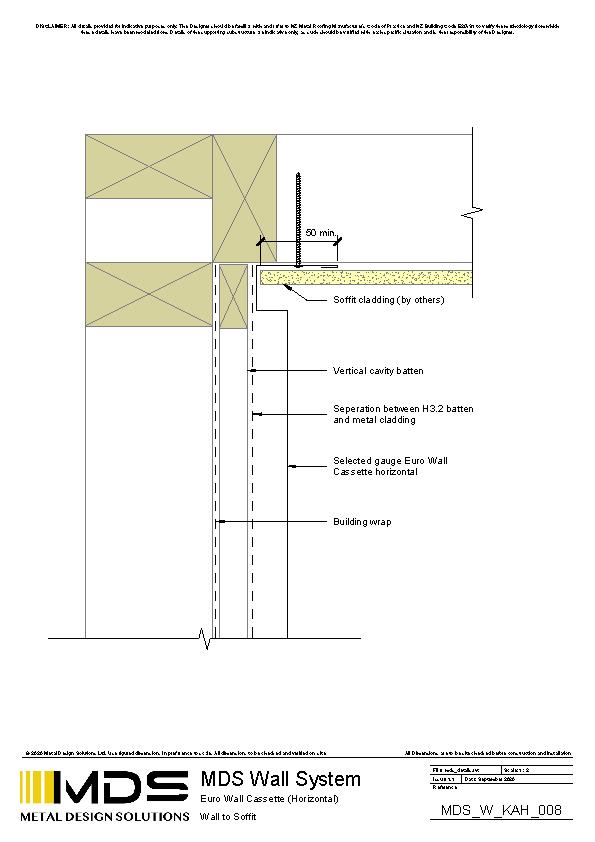

Euro Wall Cassette (Horizontal): Wall to Soffit

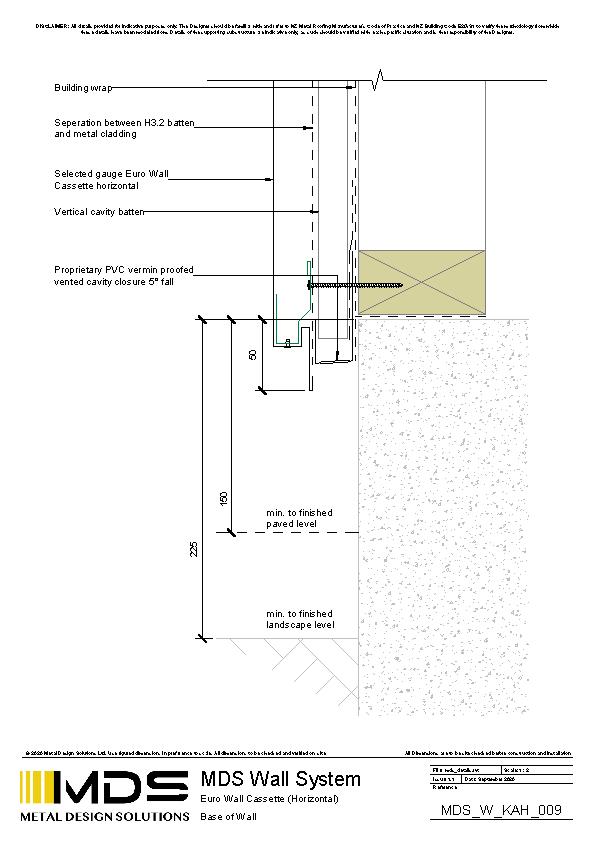

Euro Wall Cassette (Horizontal): Base of Wall

Euro Wall Cassette (Horizontal): Full Set

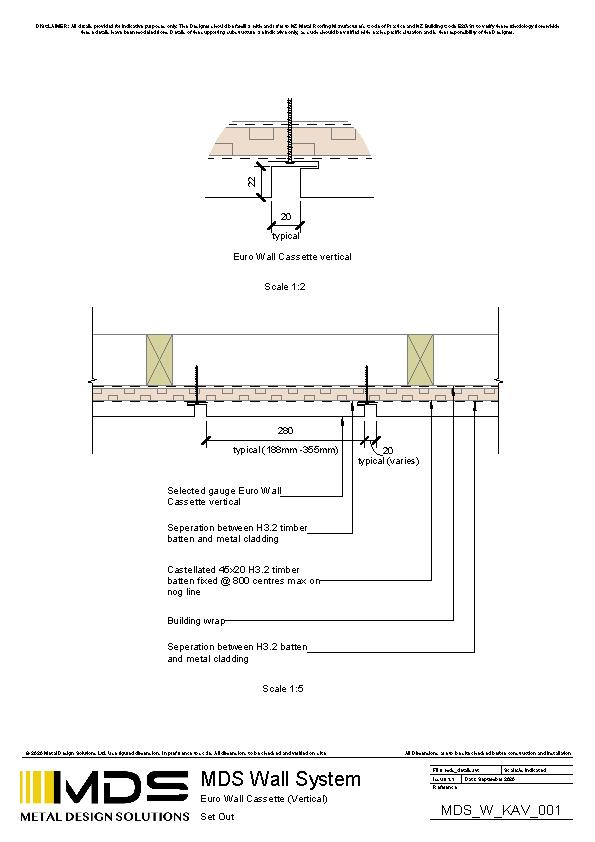

Euro Wall Cassette (Vertical): Set Out

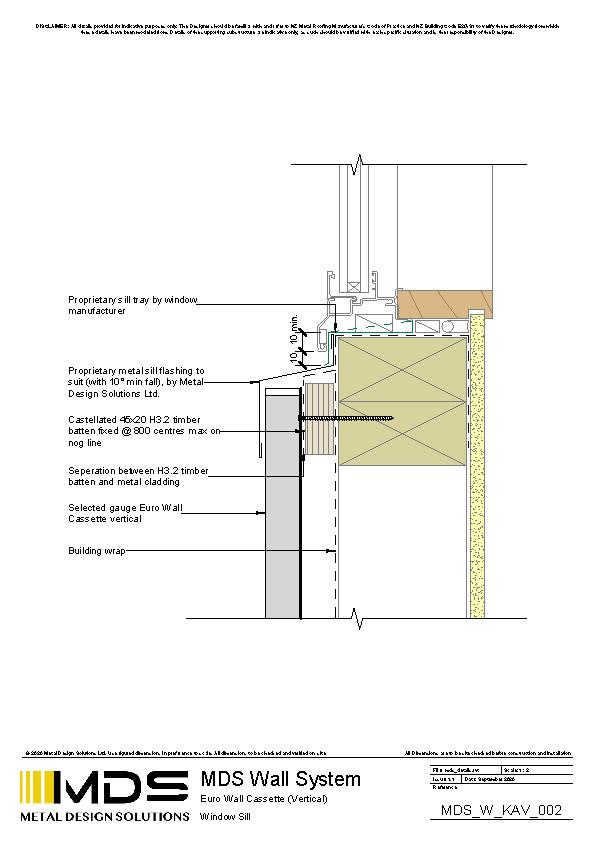

Euro Wall Cassette (Vertical): Window Sill

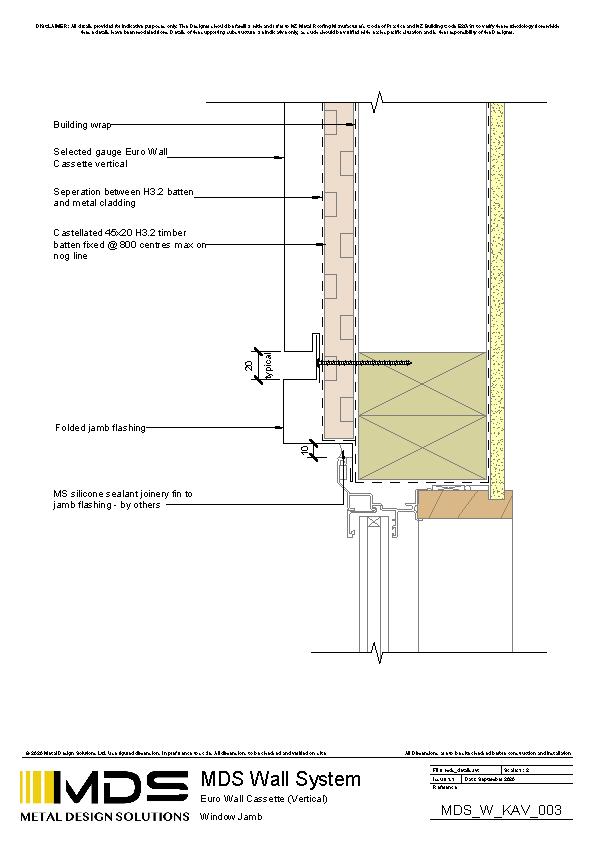

Euro Wall Cassette (Vertical): Window Jamb

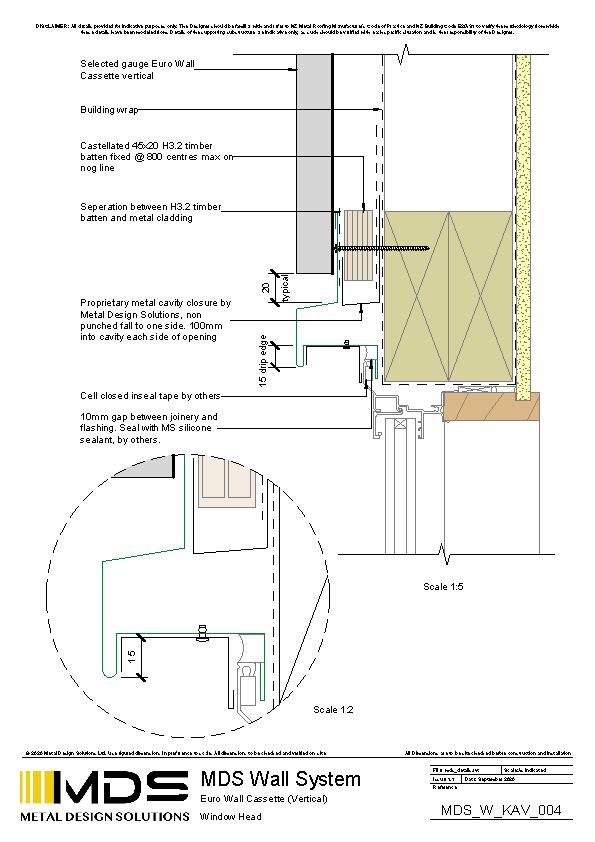

Euro Wall Cassette (Vertical): Window Head

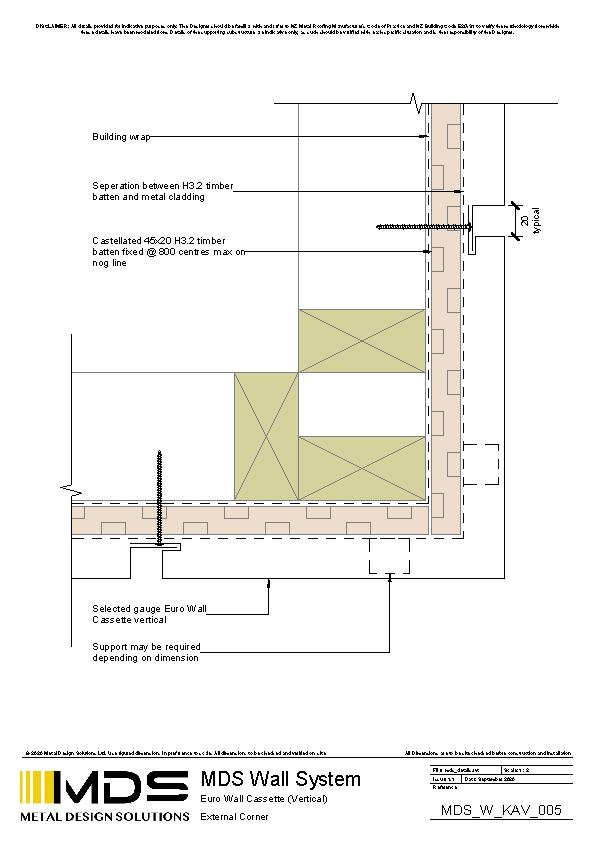

Euro Wall Cassette (Vertical): External Corner

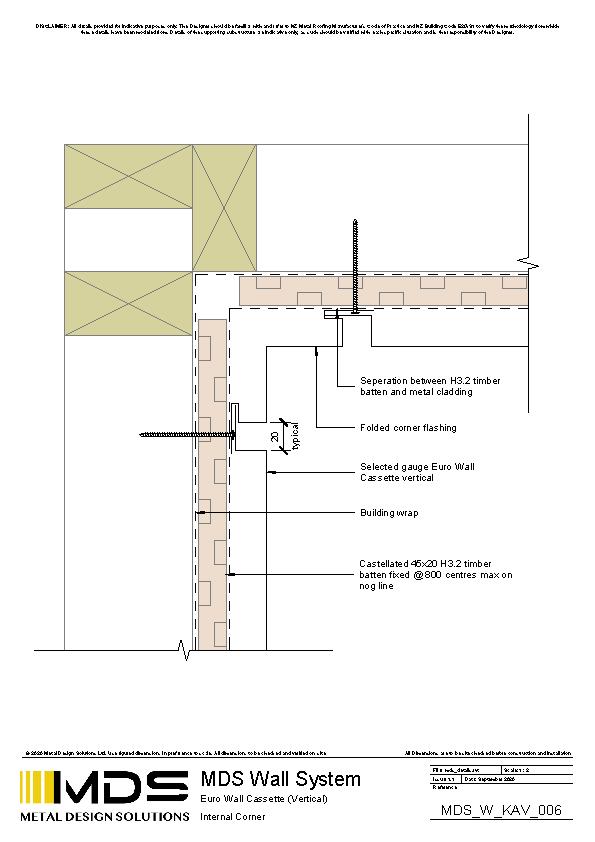

Euro Wall Cassette (Vertical): Internal Corner

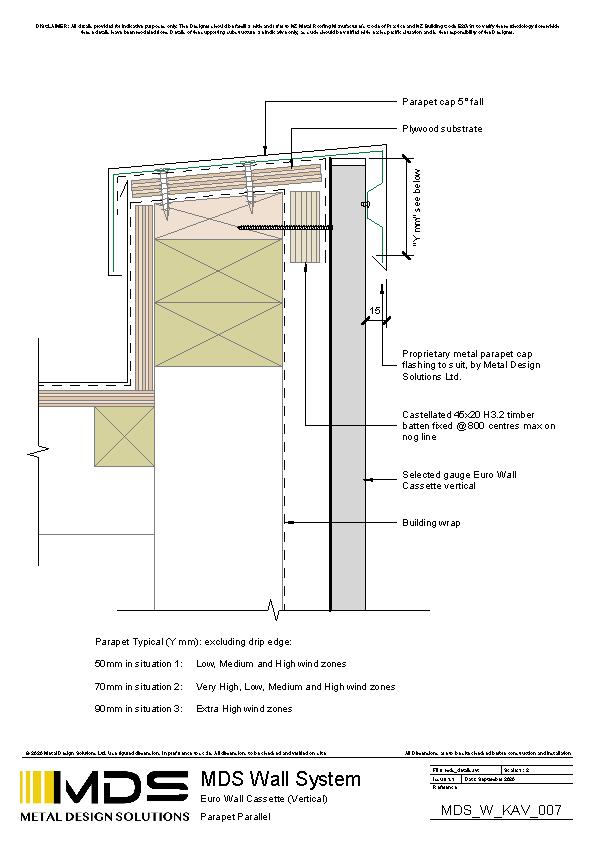

Euro Wall Cassette (Vertical): Parapet Parallel

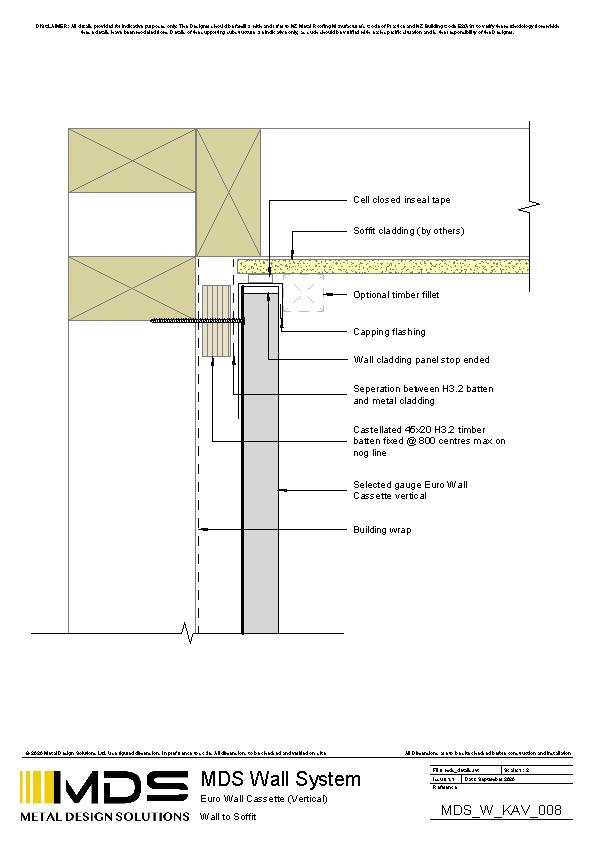

Euro Wall Cassette (Verticall): Wall to Soffit

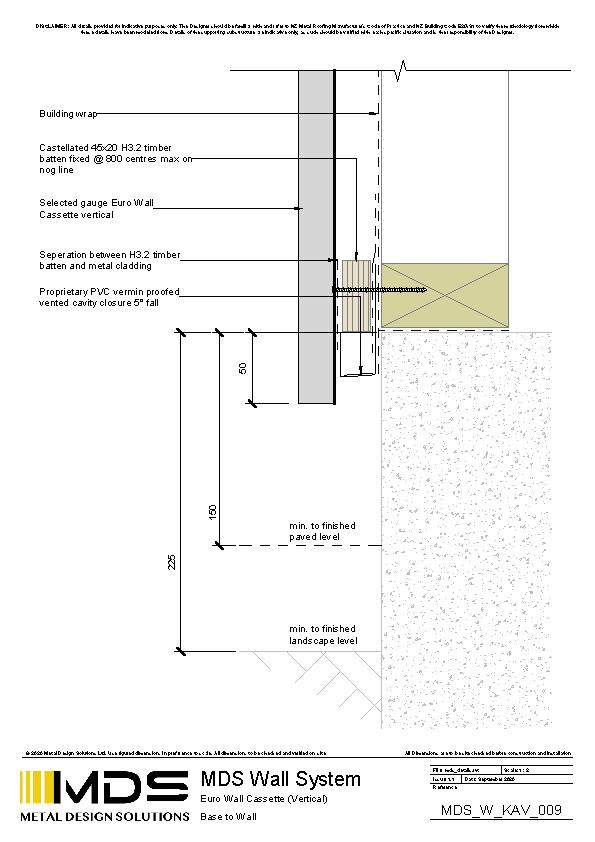

Euro Wall Cassette (Vertical): Base of Wall
