Marley Round Downpipe
Description

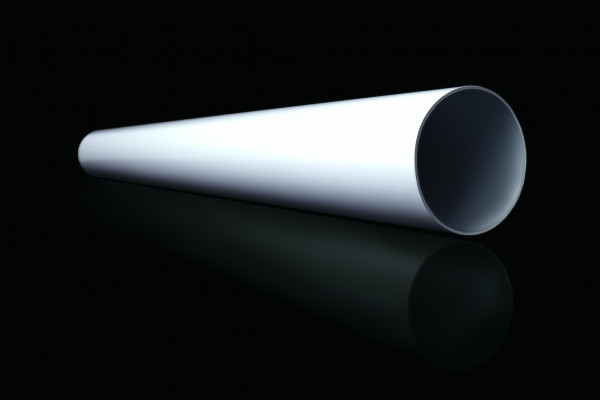

Marley round downpipes available in 80mm and 65mm diameter.

The Marley RP80® 80mm Round Downpipe System is the standard choice for residential applications across New Zealand. Available in 3m lengths with a full range of fittings.

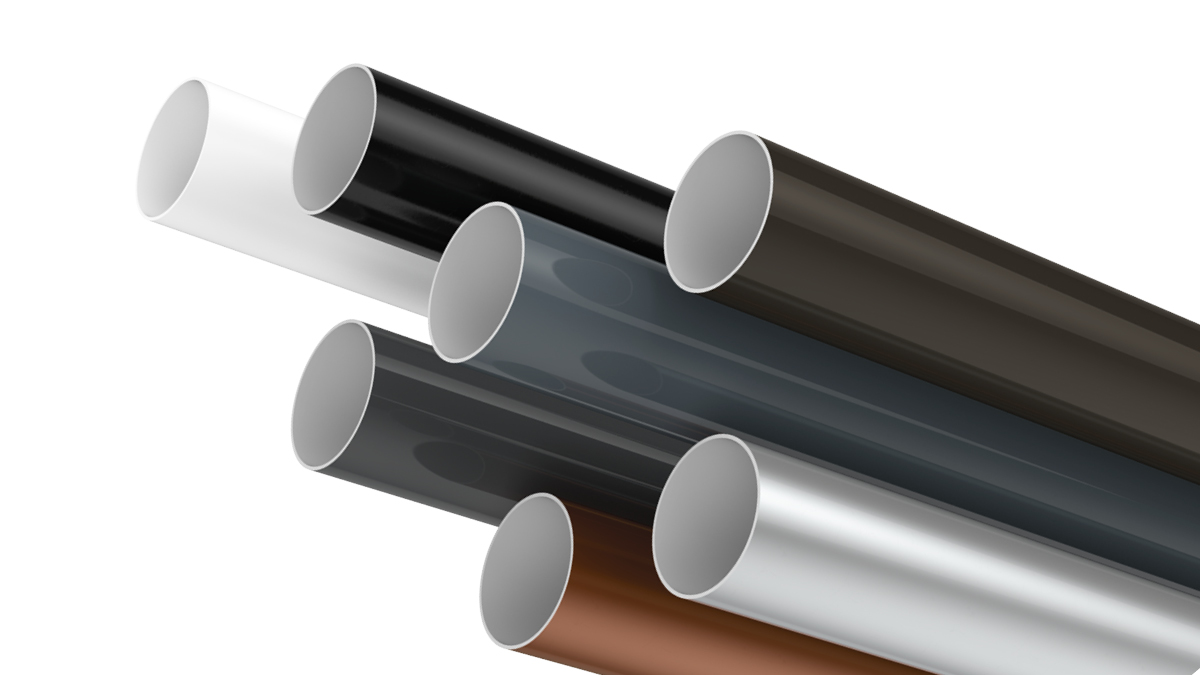

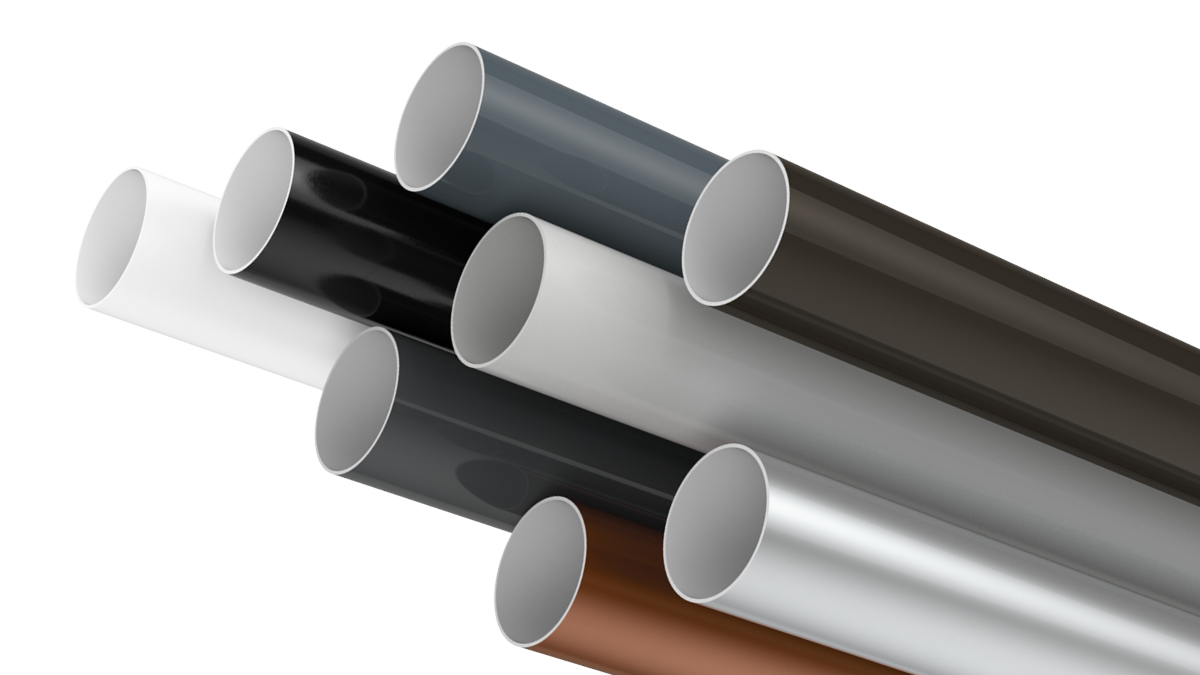

The Marley RP80® 80mm Round Downpipe System is now available in 7 colours – White, Black, Ironsand®, Grey Friars®, FlaxBlack®, Titanium and Copper. RP80® 80mm downpipe has the colour range to suit any style of home.

One of the key reasons Marley’s downpipe range has proved so popular is its extensive range of injection moulded fittings that make installation fast and simple. They can also be painted to match the particular cladding colour or tie in with the overall colour scheme of the home.

The RP80® system is able to be used with any of Marley’s range of uPVC spouting and also compatible with all metal spouting options available in New Zealand.

The Marley RP65® 65mm Round Downpipe System is an unobtrusive choice for those with small to medium size houses or those living in areas with below average rainfall. Available in 3m lengths with a full range of fittings.

One of the key reasons Marley’s downpipe range has proved so popular is its extensive range of injection moulded fittings that make installation fast and simple. They can also be painted to match the particular cladding colour or tie in with the overall colour scheme of the home.

The RP65® system is able to be used with any of Marley’s range of white uPVC spouting and also compatible with all metal spouting options available in New Zealand.

Marley RP80® 80mm Round Downpipe and the RP65® 65mm Round Downpipe System are manufactured from uPVC. It is an extremely tough and long-lasting material that will not rust, requires little maintenance and is UV resistant. All RP80® components come with a 15 year guarantee



Key Features
  • Streamlined design for greater style

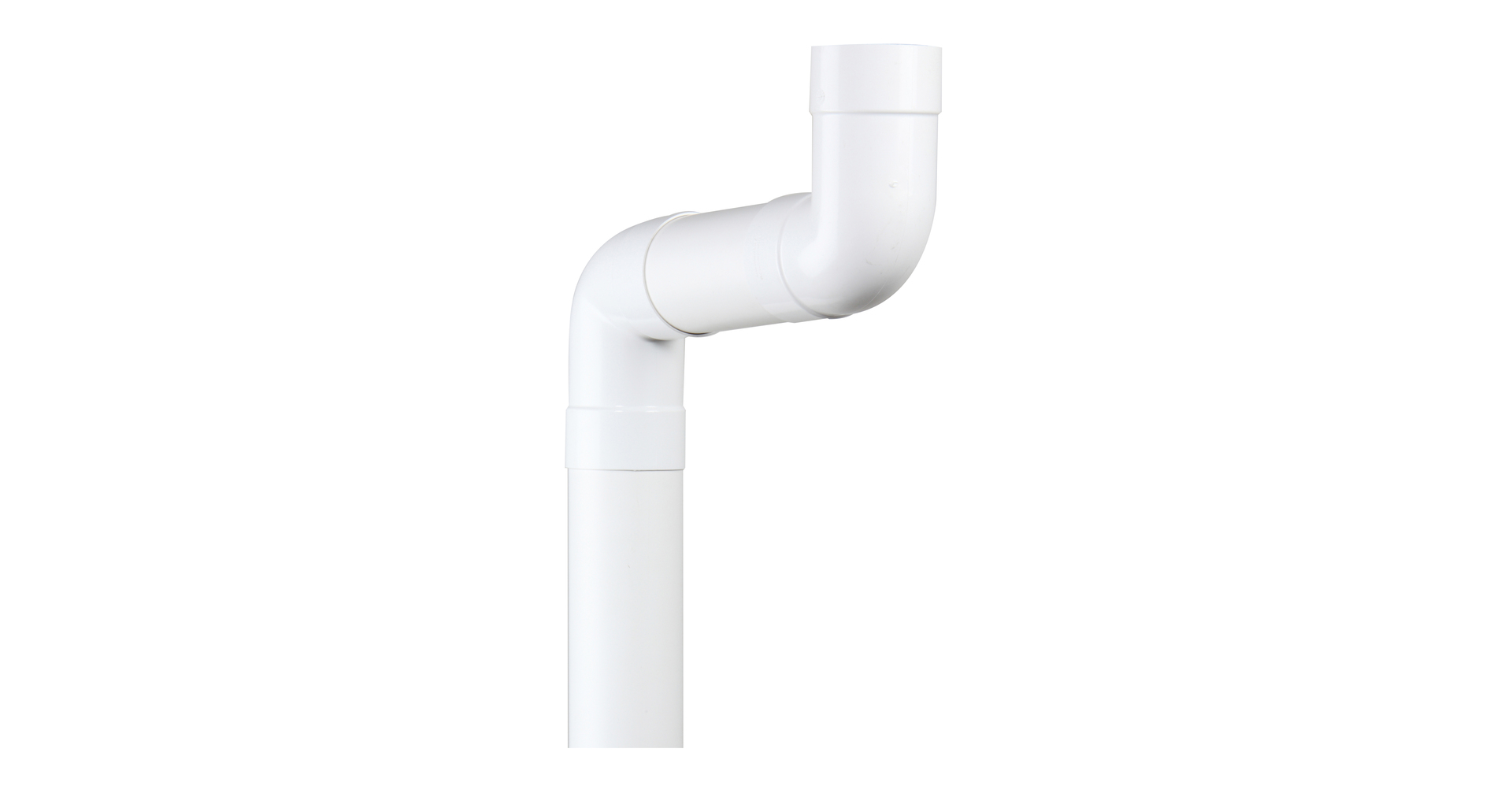

  • Compact 43˚ bends available for greater versatility — e.g. tight soffits or stormwater installs
  • Adjustable clips with spacers to suit any cladding variation
  • 15 year guarantee
  • 100% recyclable
  • Made in New Zealand
Scope of Use
  • Will not rust / corrode — Designed for NZ's salt-laden coastal air
  • UV resistant — UV resistant to handle NZ's harsh summer sun, high UV levels and long, hot days
  • Compact 43˚ bends available for greater versatility — e.g. tight soffits or stormwater installs
  • Adjustable clips with spacers to suit any cladding variation
Limitations on Use
  • Matching range of standard components available
  • RP80® is compatible with the following Marley Spouting systems: Classic™, Stormcloud®, FL2®, Typhoon®
  • RP65® is compatible with the following Marley Spouting systems: Classic™, Stormcloud®, FL2®
  • The Marley RP80® 80mm Round Downpipe System is available in 7 colours to match our spouting range
  • Compatible rainharvesting accessories such as Marley Curve® and Twist®
In-Service History

RP80® 80mm round downpipe has been the most popular downpipe system in New Zealand for over 30 years.

Other Performance Attributes
  • Certified for use with potable water AS/NZS 4020
  • Environmental certification: ISO 14001, BEP certification
  • 15 year guarantee
  • 100% recyclable
Documents
Environmental Information
Installation and Operation
Maintenance Instructions
Warranty
CAD/PDF Details

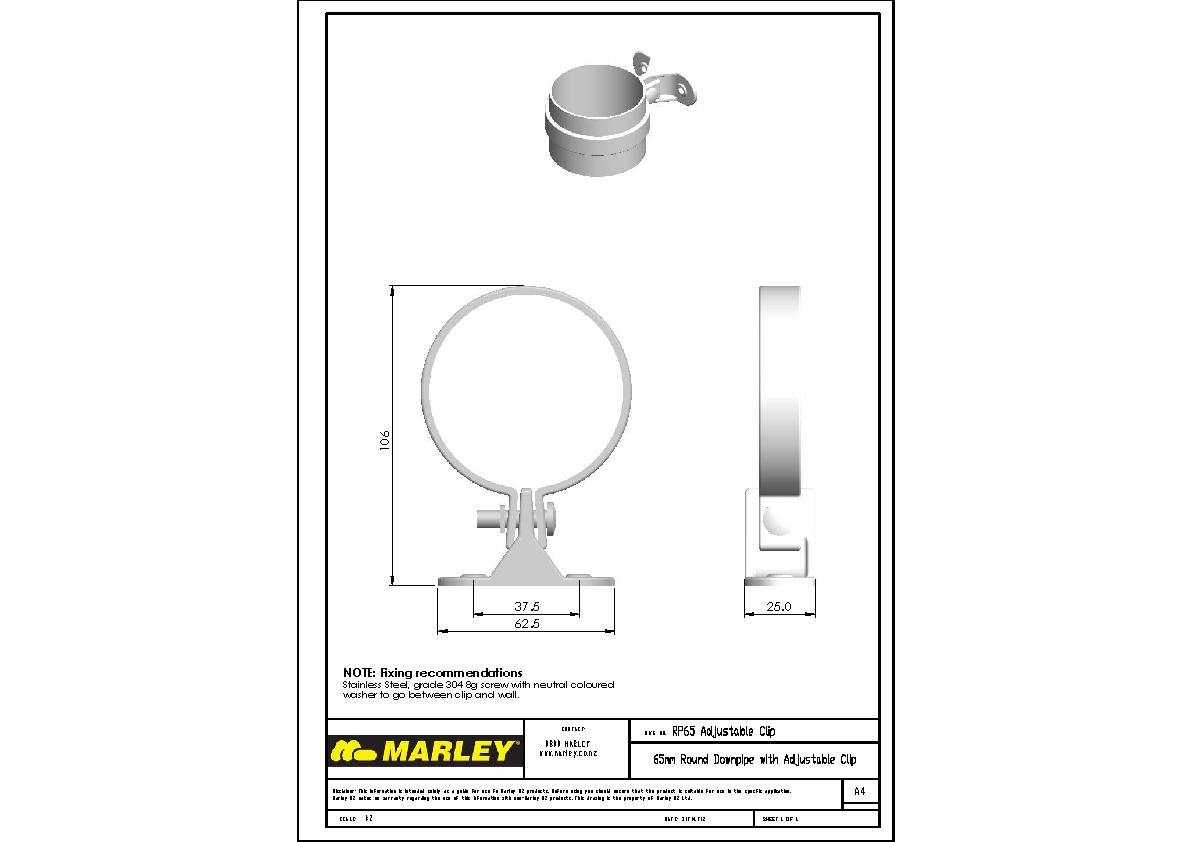

RP65 Adjustable Clip

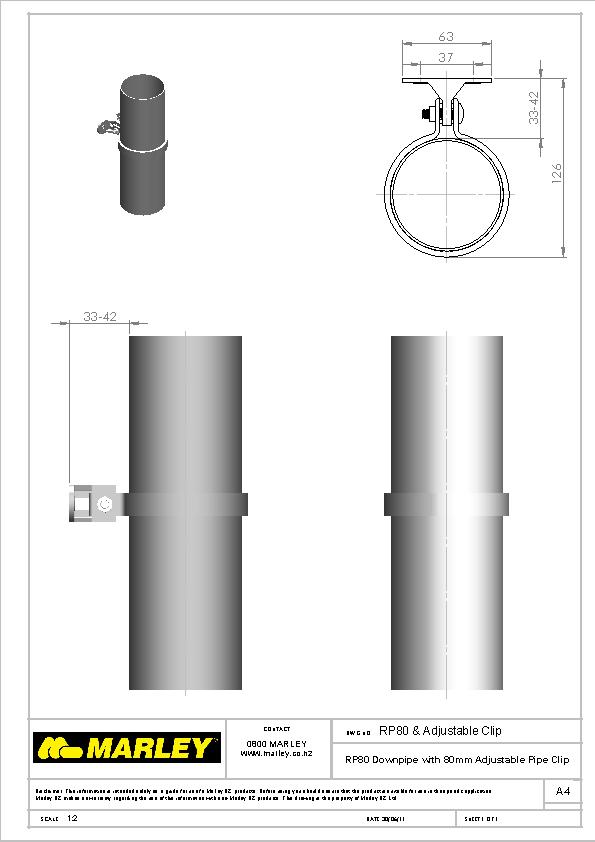

RP80 & Adjustable Clip

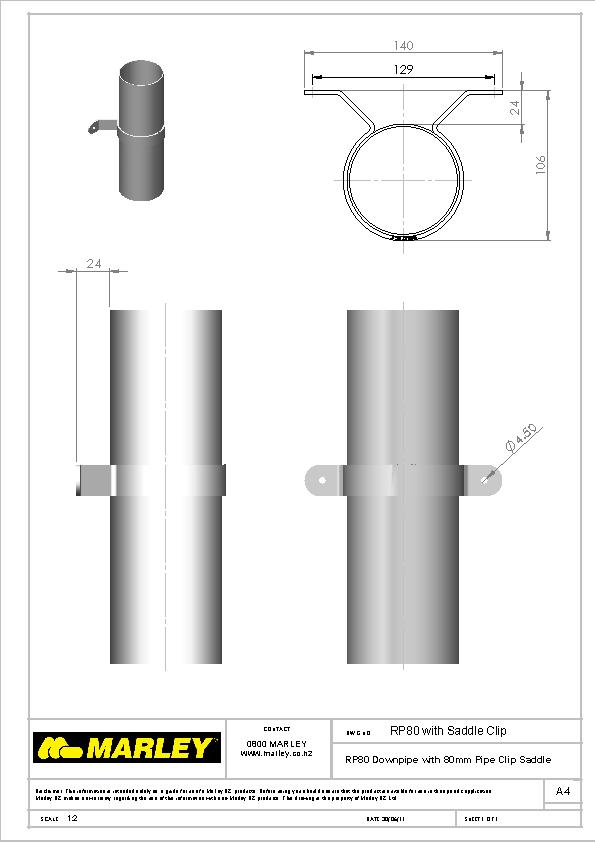

RP80 with Saddle Clip
