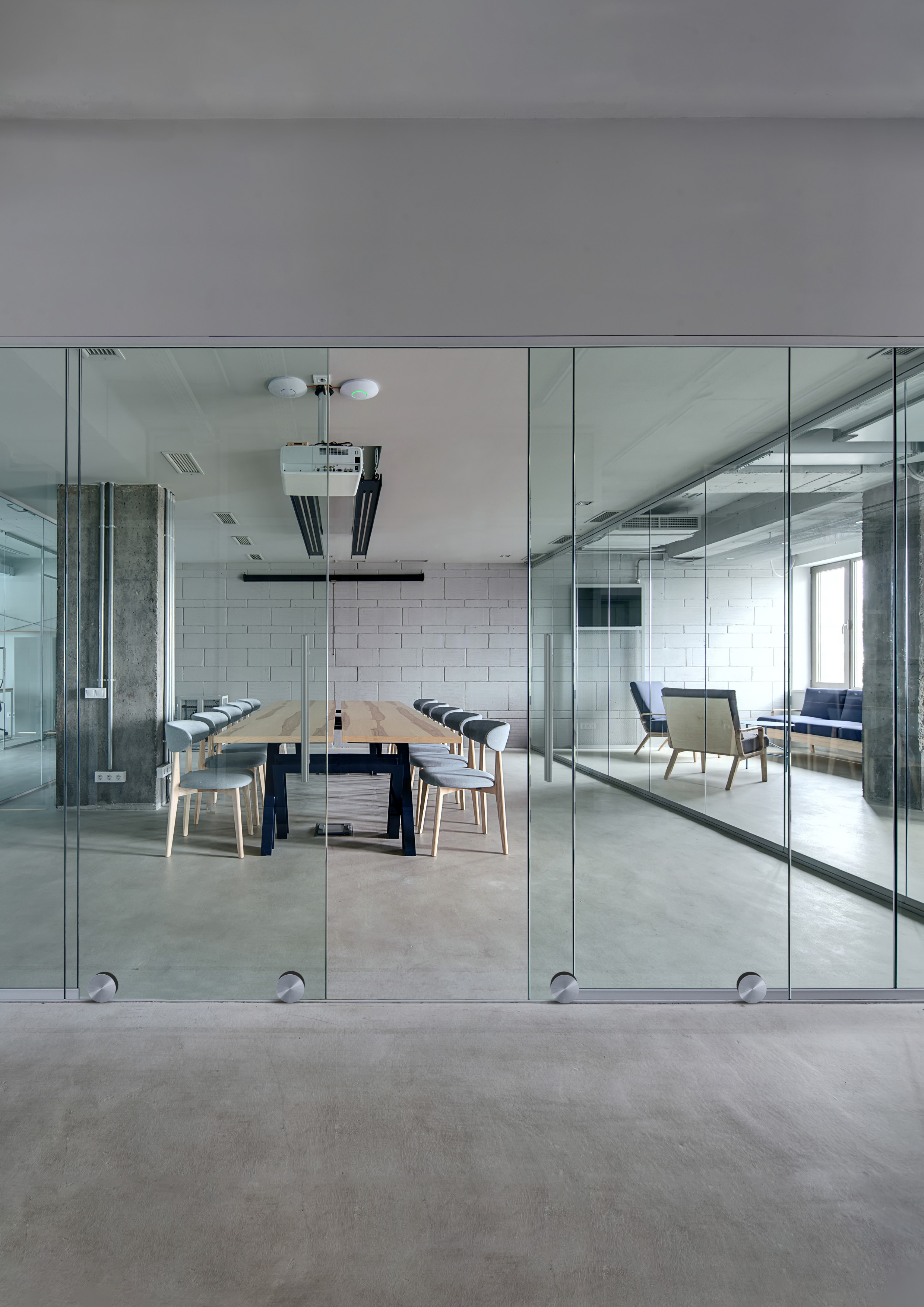

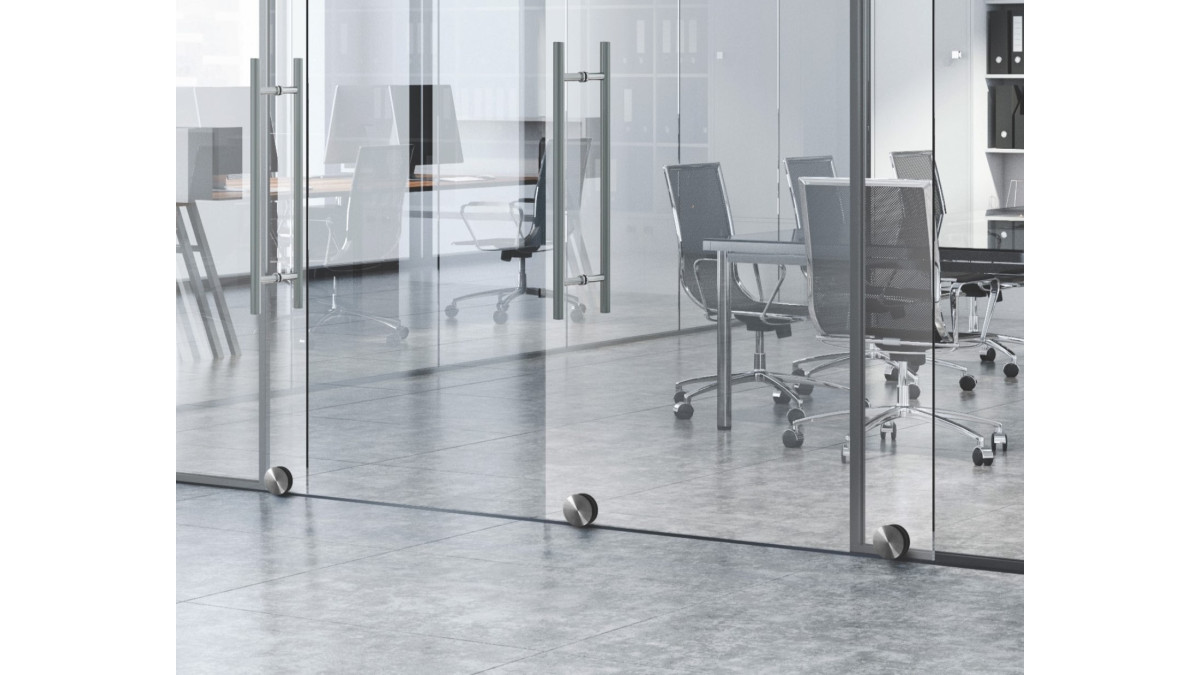

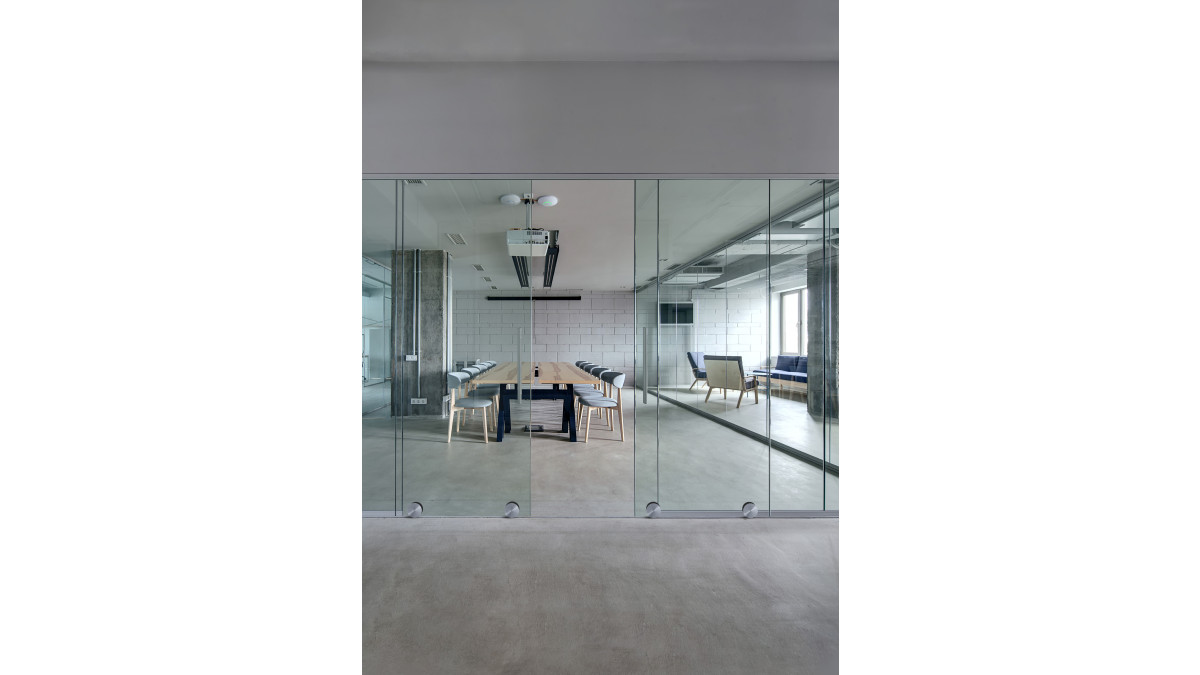

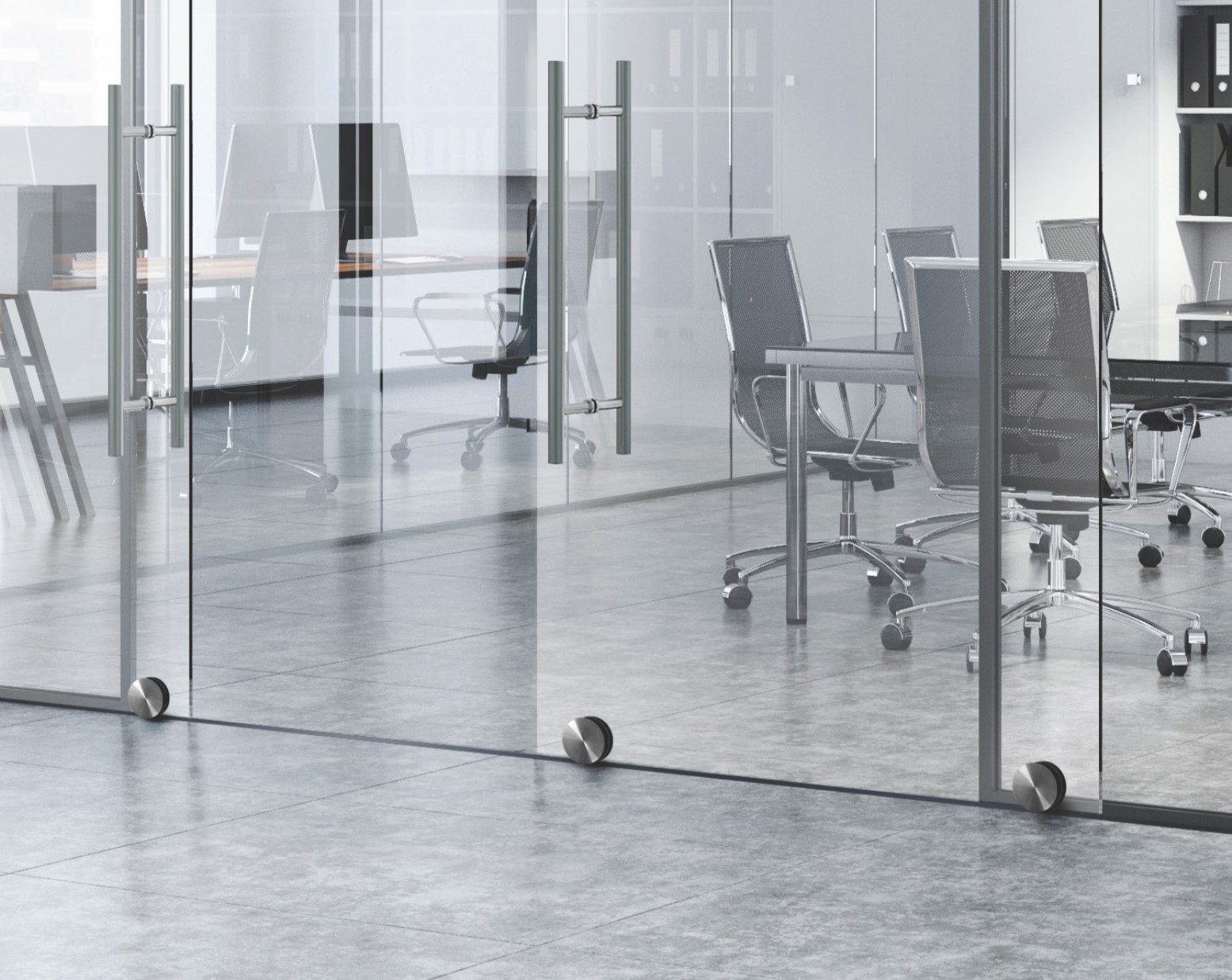

Rolline™ Frameless Glass Sliding Door System
Description

The Juralco Rolline Frameless Glass Sliding Door System is particularly suitable for high-end internal residential and commercial applications.





Key Features
  • Fitted with 10 or 12mm toughened glass
  • Up to 3.0m wide and 2.7m high
  • Maximum glass weight 200kg (depending on wind zone)
  • External non-waterproof applications are available for Low wind zones
  • Specifiable with a Producer Statement (PS1)
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Commercial
  • Residential
  • Internal
  • External (non-waterproof and Low wind zones)
Limitations on Use
  • Rolline™ Frameless Glass Sliding Door System is NOT a barrier for Safeguard from Falling (F4)
  • Cannot be considered as an access route as detailed in Building Code Clause D1 Access Route
  • Any deviation from the standard fabrication or installation/fixing must be accompanied by a site-specific PS1 with site-specific calculations and drawings
Statement of Building Code Compliance

Compliant with the structural requirements of the New Zealand Building Code:

  • B1 Structure
  • B2 Durability (15 yrs)
  • F2 Hazardous material
  • AS/NZS 1170.0-2002 Structural Design Actions-Part 0: General Principals AS/NZS 1664.1:1997 Aluminium structures limit state design NZS4223.3:2016 Glazing in buildings — Human impact and safety requirements NZS4223.4:2008 Glazing in buildings
Other Performance Attributes

Surface Finishing — Juralco Aluminium Building Products Ltd is a Dulux Registered Applicator site, registration number 2101. JABP uses only Dulux branded powder coating materials — Dulux Duralloy® powder coating systems are suitable for properties greater than 100m from high tide level AAMA 2603 performance.

  • Residential buildings, 3 levels max: Warranty 10 years
  • Dulux Duralloy Plus® powder coating systems are suitable for properties greater than 10m from high tide level. AAMA 2603 performance. Residential and Light commercial buildings, 3 levels max: Warranty 15 years
  • Dulux Duratec® powder coating systems are suitable for properties greater than 10m from high tide level AAMA2603 and 2604 performance. All Residential and Commercial buildings: Warranty 25 years
  • Juralco products come with a minimum 5 year warranty
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
BPIR/PTS

06-24v1

Technical/Design Manual

6-24 v1

Additional Information

Juralco design and supply exceptional aluminium building products through the nationwide HomePlus network.
