Acoustic Plus Sound Absorbing Cloud Panels
Ecoplus Systems
All products

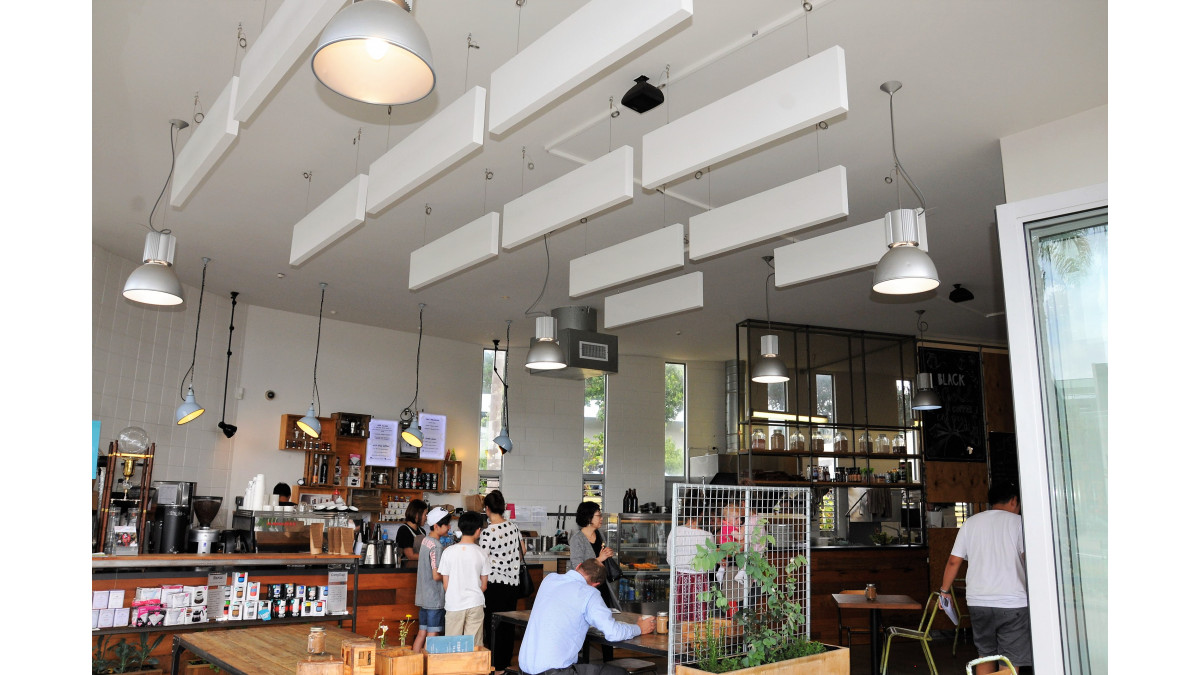

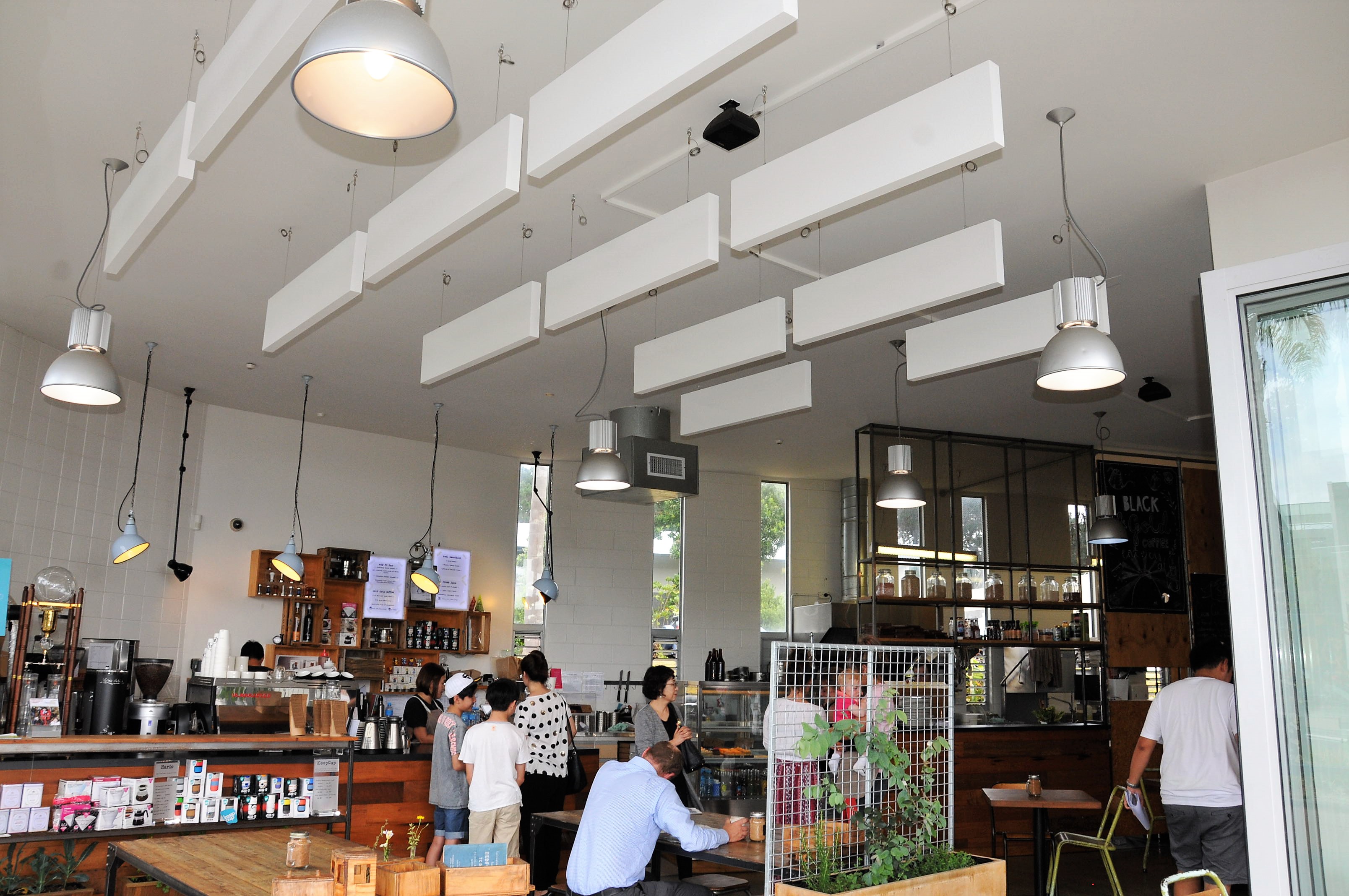

STC 0526

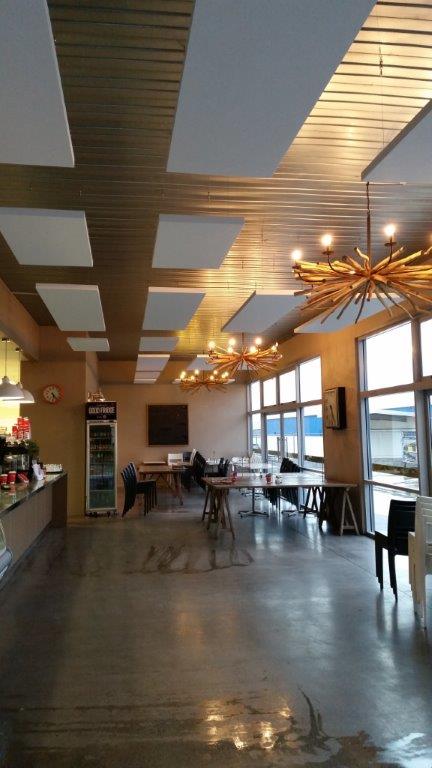

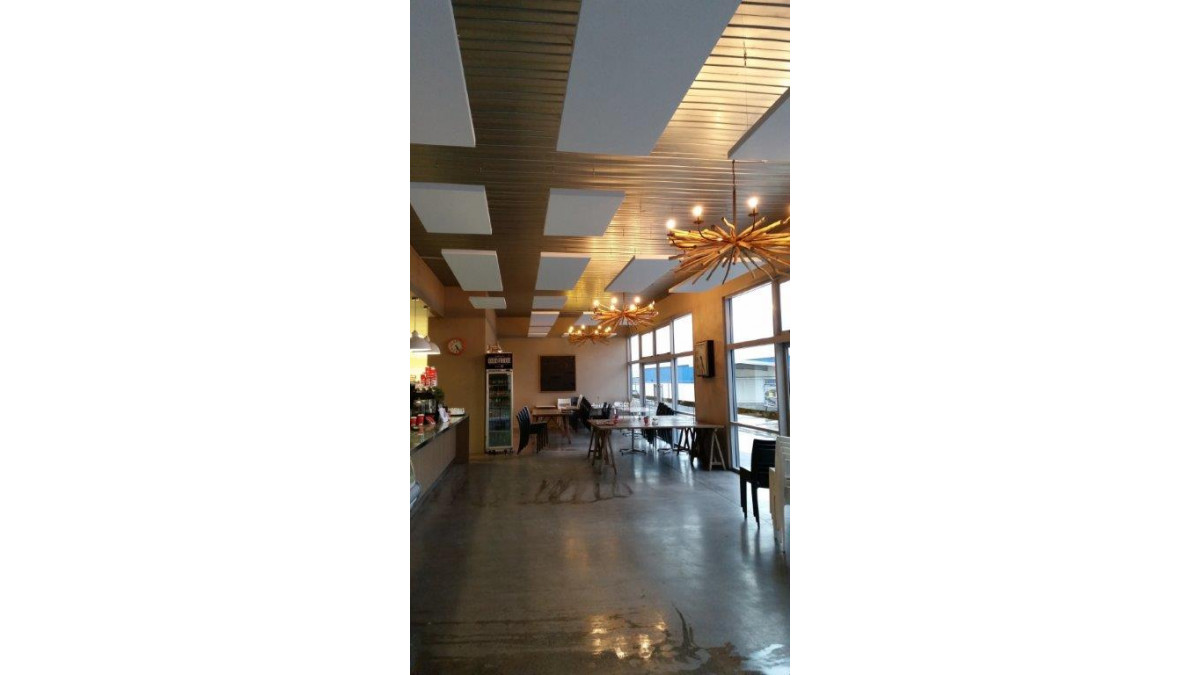

after

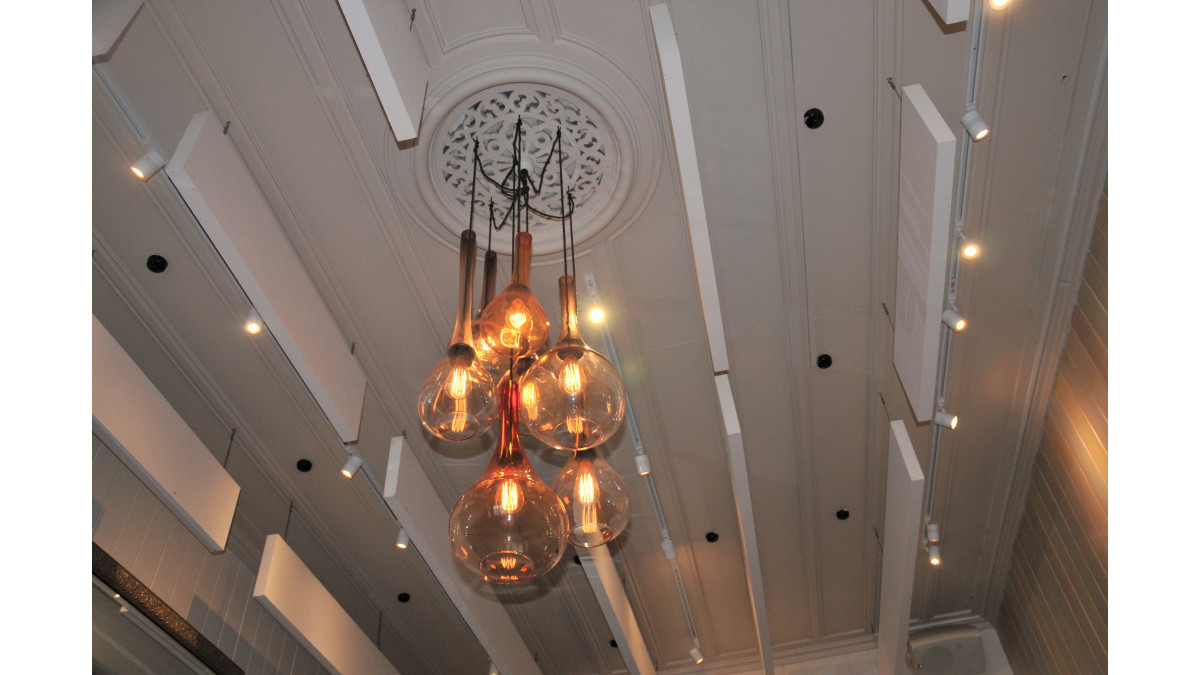

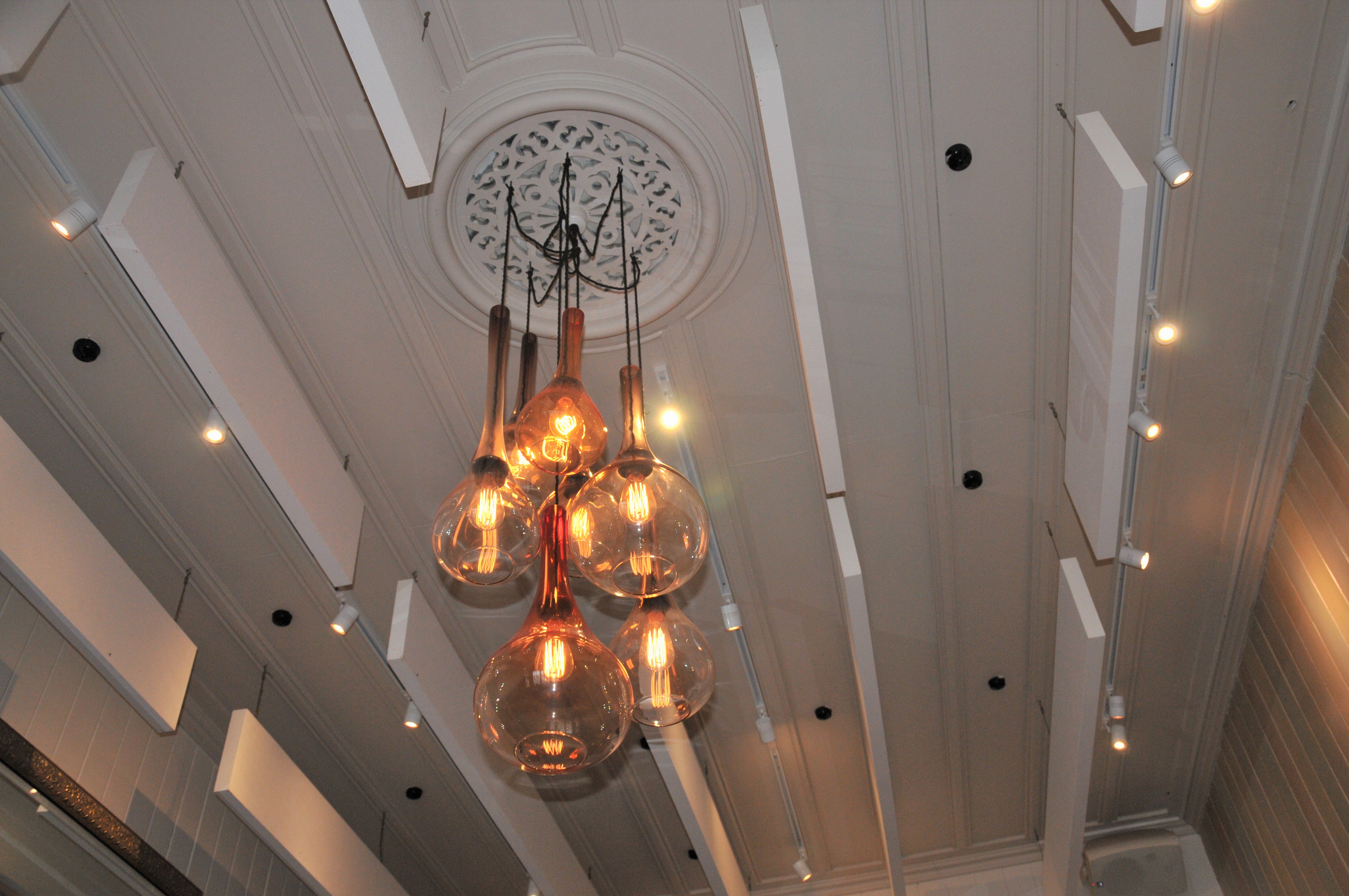

STC 0830

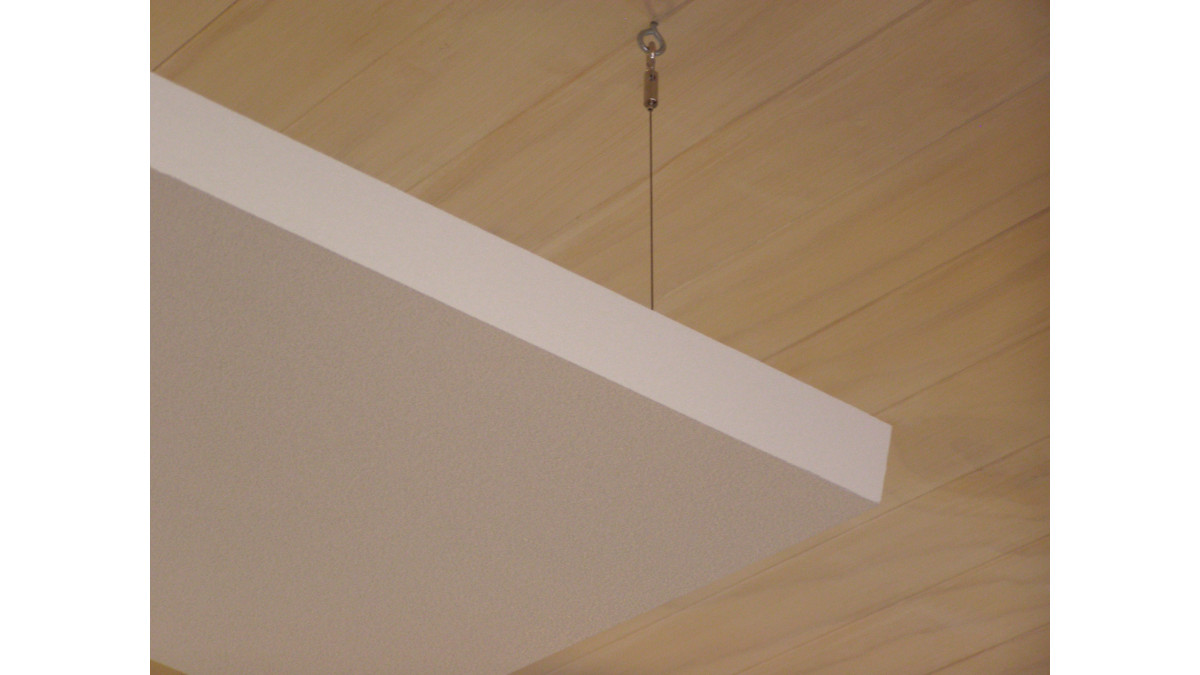

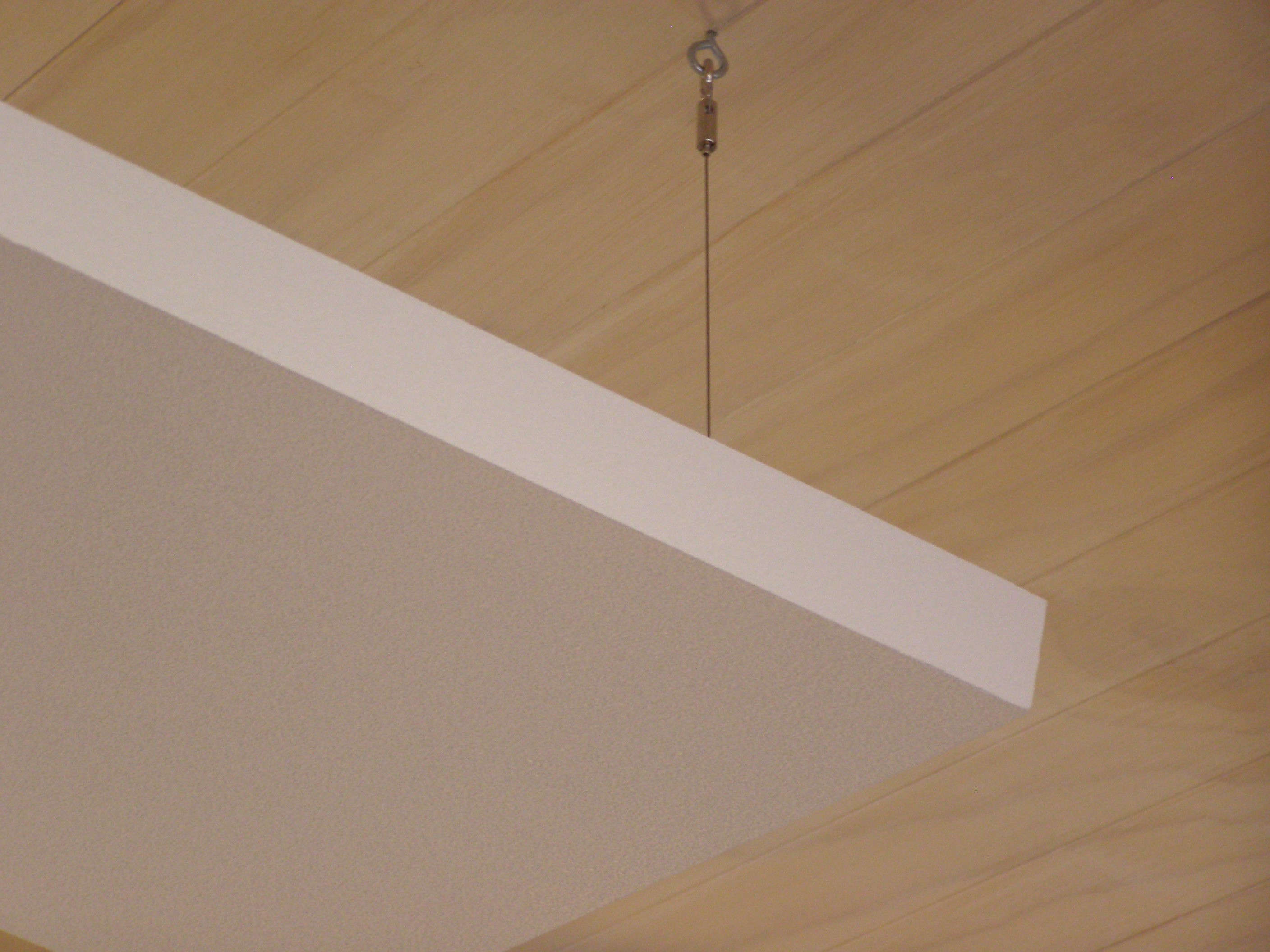

P1010040

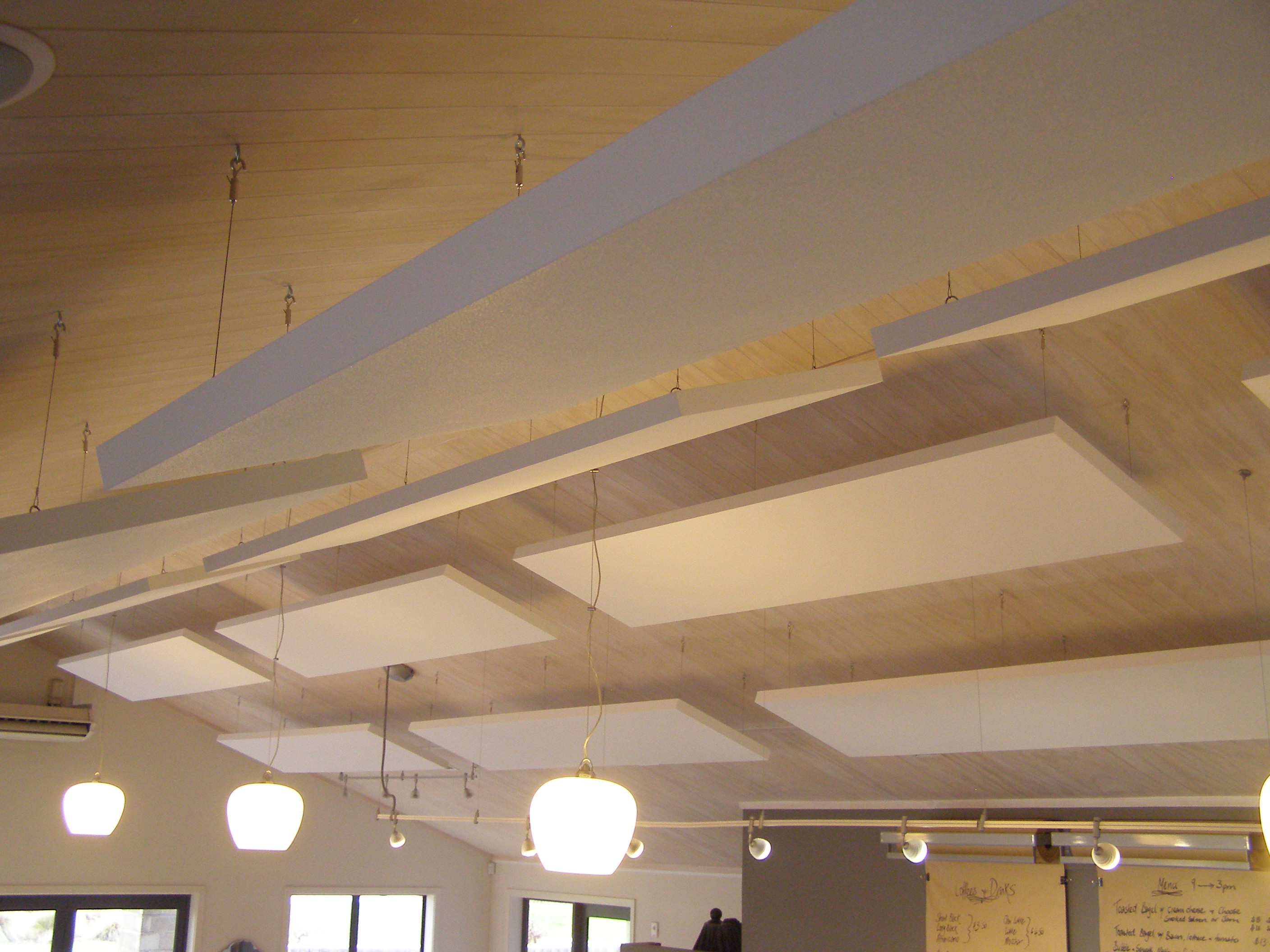

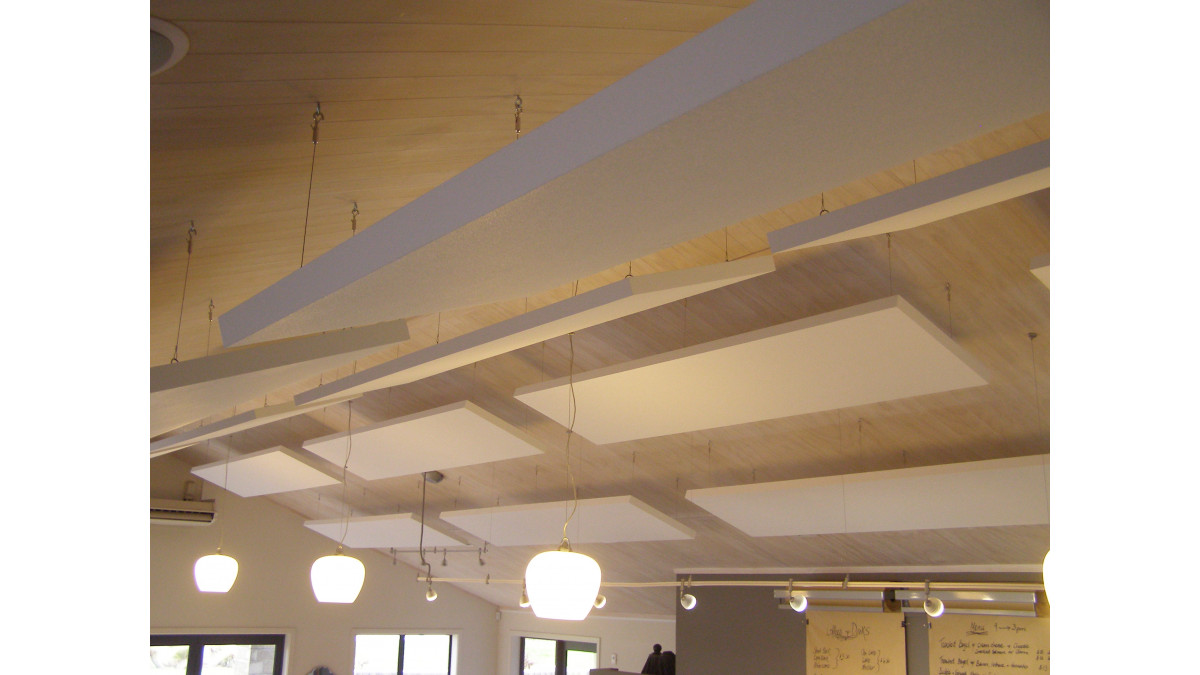

P1010043
Description

Acoustic Plus Cloud Panel is a 50mm thick pre-finished acoustical panel providing a specialised sound absorbing solution.

Key Features
  • Can be glue fixed directly to the ceiling or free floating using cables and anchors
  • Can also be mounted onto walls and framed with proprietary U channel and wrapped with selected fabrics for decorative effect.
  • Available in a range of standard sizes up to 1200mm wide and 2400mm long and can be custom sized for project specific applications.
  • The acoustic performance of this product material has been tested and measured at Auckland University Acoustic Services — NRC .95 to reduce background noise
  • Pre-finished, no frames required
  • Easy install, installation kits available
  • Fire Classification NZBC Group 1-S
Categories
Fire, Acoustic & Special Performance Ceilings
Ranges
Acoustic Cloud Panels and Baffles
Homestar / Green Star (Envirospec) Compliant
Homestar / Green Star
Scope of Use
  • Ideal for hospitality applications to reduce reverberation
  • The standard 50mm thick panels have tested at NRC 0.95
Limitations on Use
  • Internal use only
  • Cannot be painted
Statement of Building Code Compliance
  • Fire Classification NZBC Group 1-S
In-Service History
  • Les Mills Newmarket
  • Les Mills Hamilton
  • Orphans Kitchen
  • Ponsonby Community Pre-School
  • Nichols Garden Cafe
  • Kreem Cafe
Other Performance Attributes

The acoustic performance of this product material has been tested and measured at Auckland University Acoustic Services

  • NRC .95 to reduce background noise
  • Case Studies
  • News
Documents
Data Sheet
pdf
Order Samples
URL
Project Case Study: Central Otago Café
pdf

Ecoplus Systems supply innovative and performance tested suspended ceiling systems, acoustical ceiling solutions and decorative wall treatments.

Product Enquiries

News from Ecoplus Systems

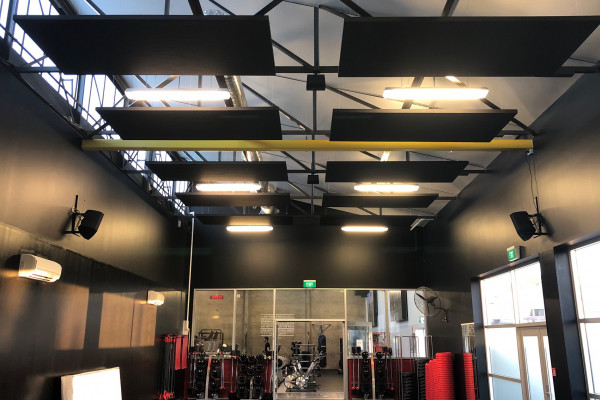

Eye-catching Ceiling Panels Improve Acoustics for Les Mills Hamilton
