Kilargo IS7071si Meeting Stile / Perimeter Seal
Description

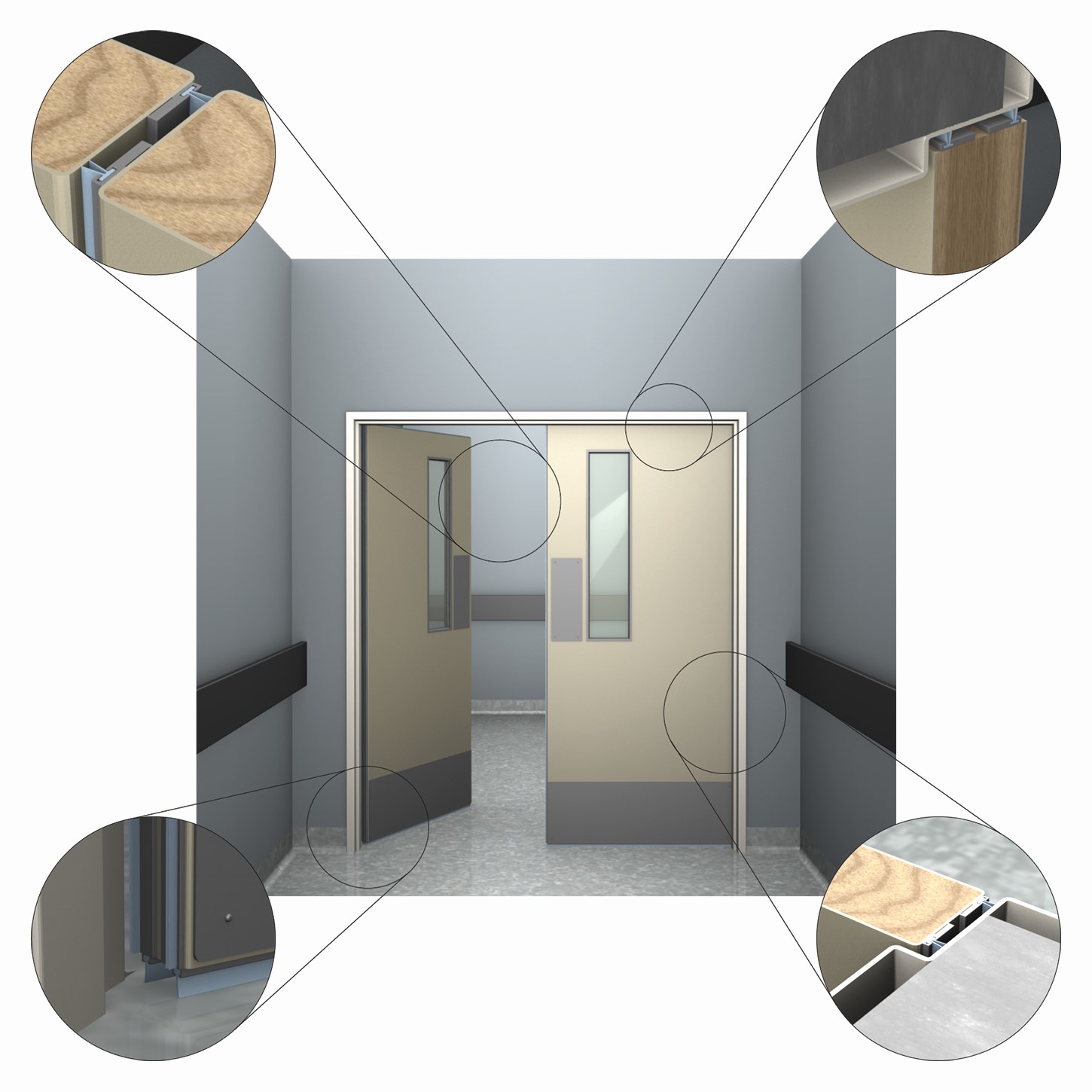

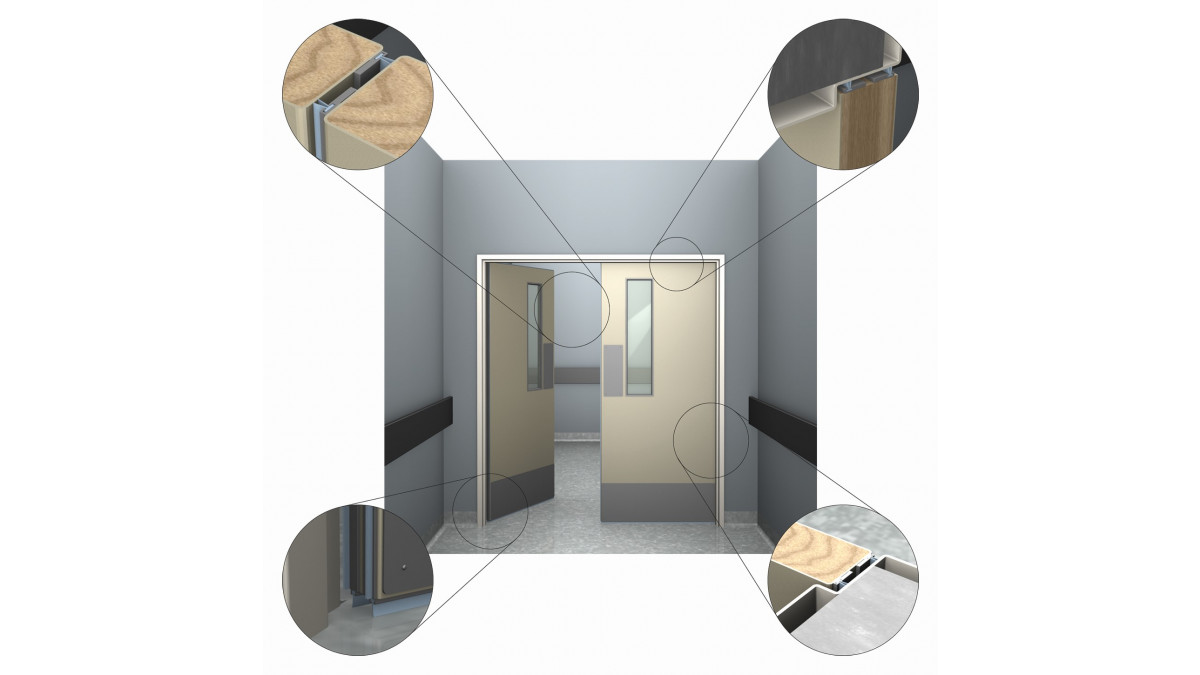

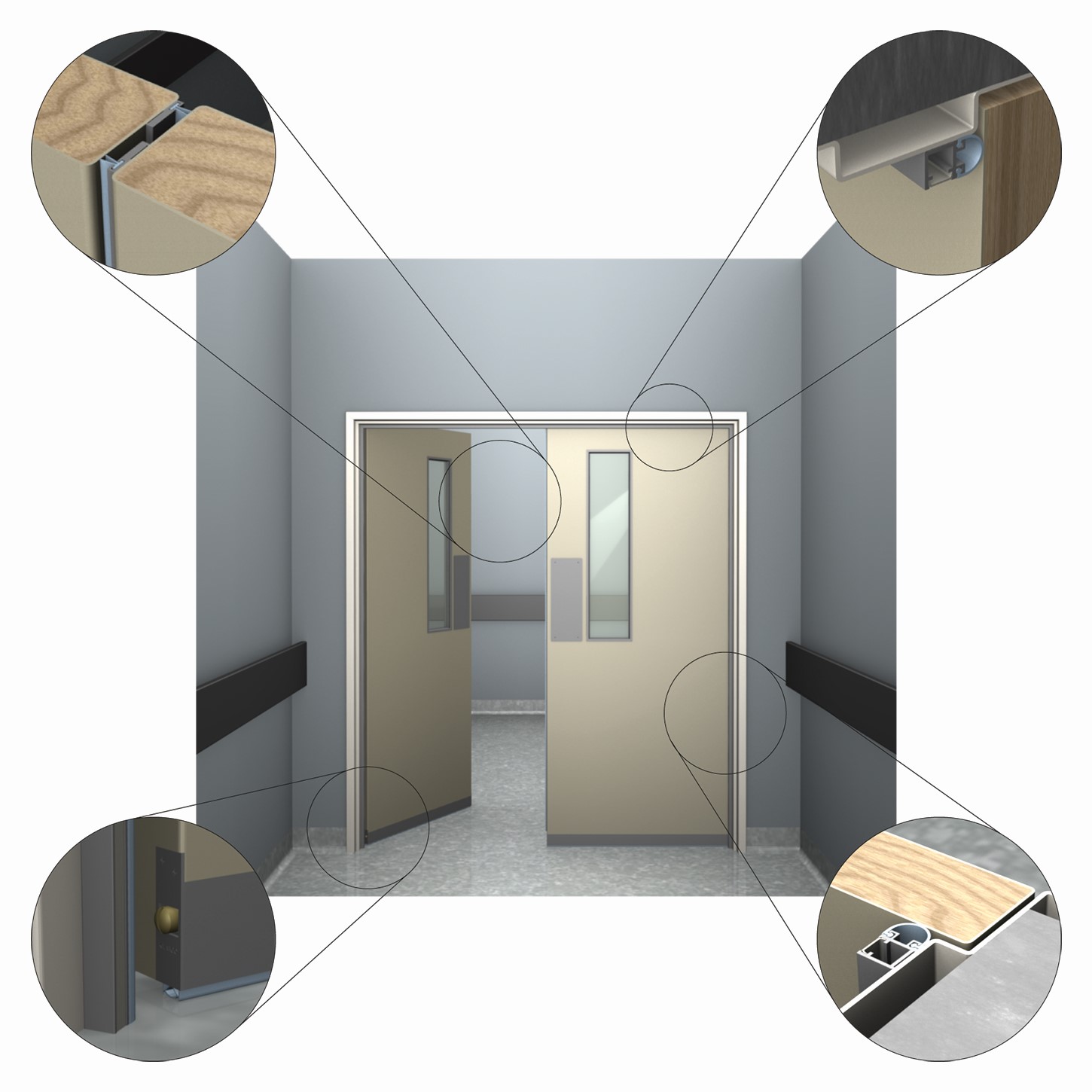

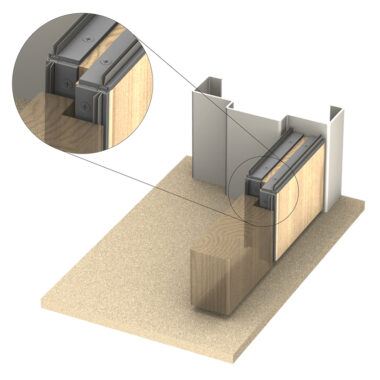

A perimeter and meeting stile seal designed to be fitted to door perimeters and to plain or rebated meeting stiles of single swing and double swing, double doors. Two IS7071si seals can be installed onto one stile, allowing a space for a latch between the seals if required. These seals can be surface mounted or rebated.

It provides an excellent acoustic, smoke, light, dust and weather seal. IS7071si can be utilised as a perimeter seal around the head and jambs of single and double doors.

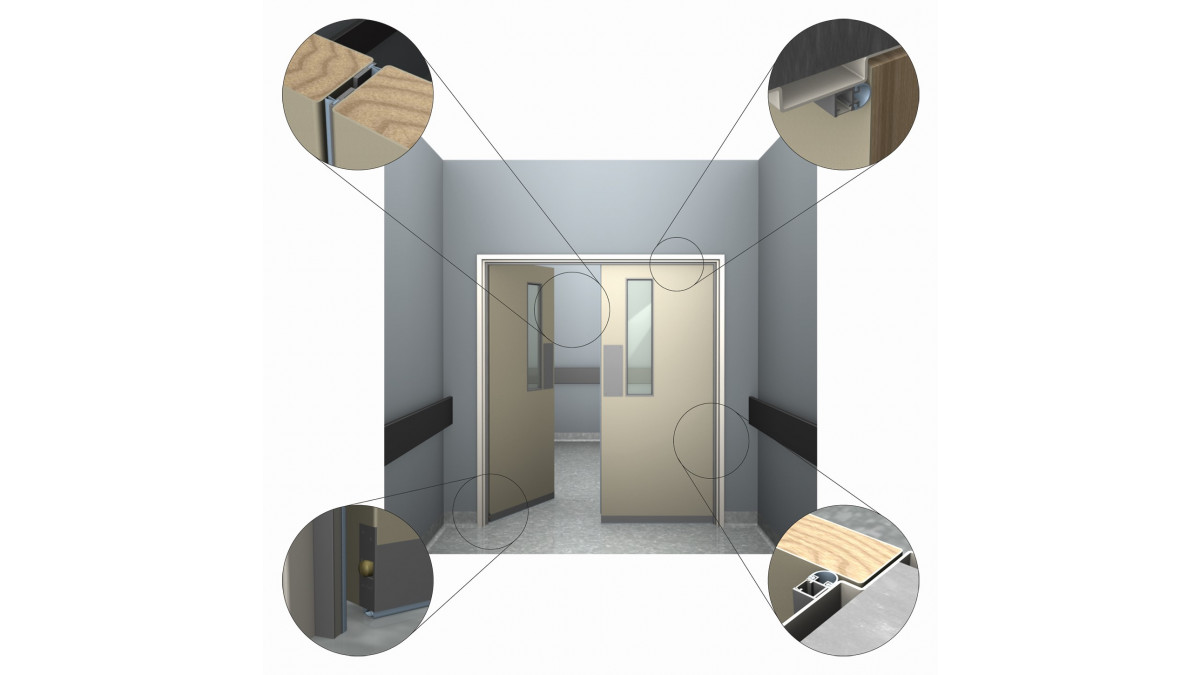

This seal is also available with antimicrobial silicone gasket(s).

Standard colours:

  • Silver anodised aluminium with grey silicone twin-fin gasket
  • Black anodised aluminium with black silicone twin-fin gasket
Key Features

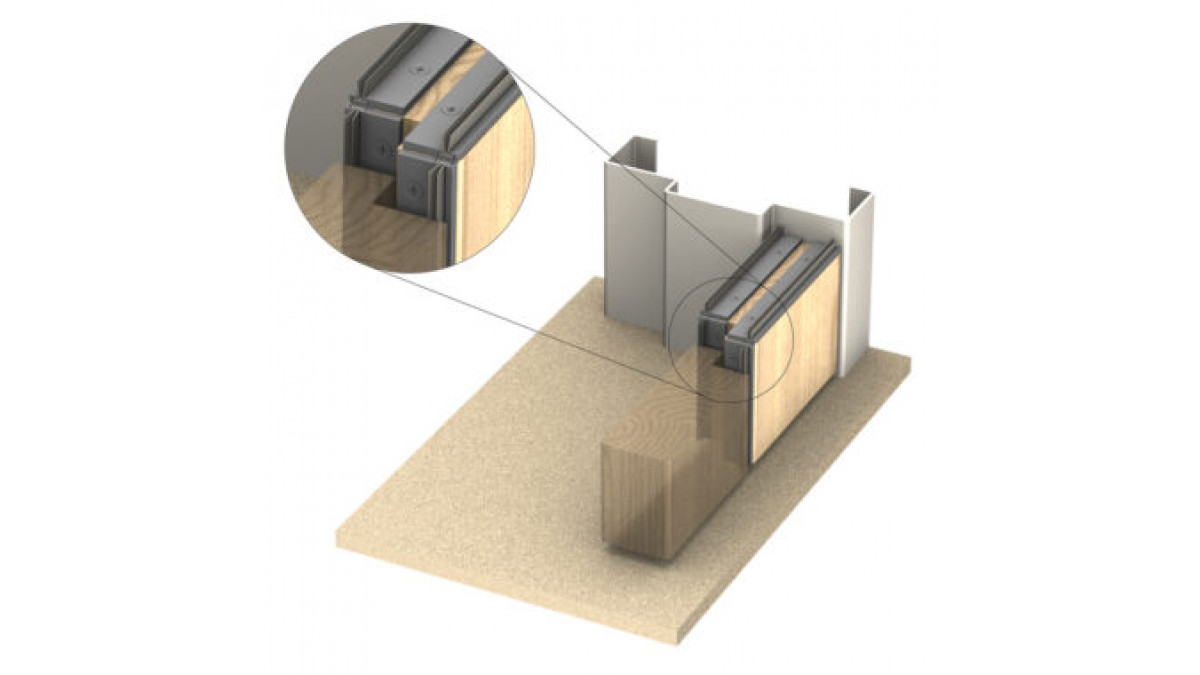

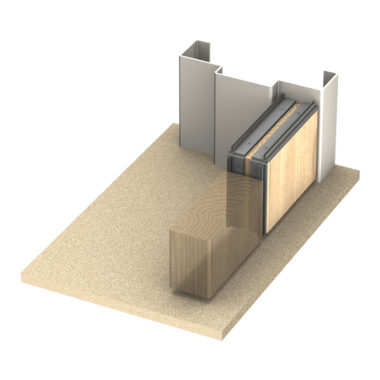

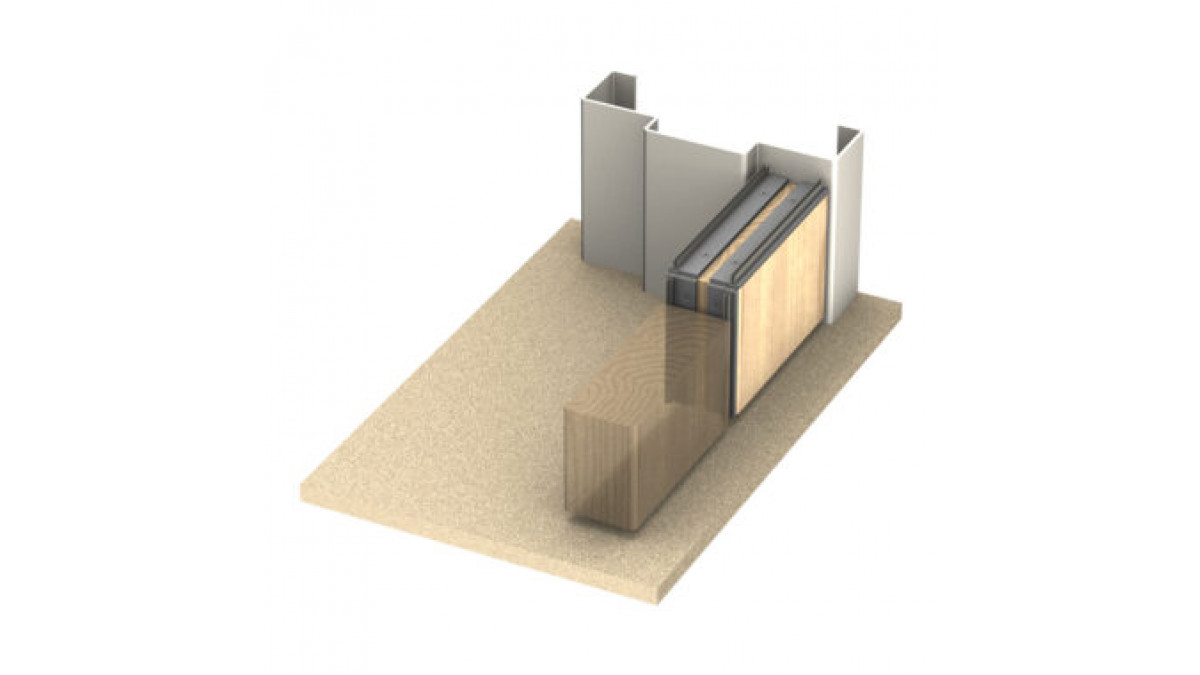

  • Designed to be fitted to door perimeters and to plain or rebated meeting stiles of single swing and double swing, double doors
  • Two IS7071si seals can be installed onto one stile, allowing a space for a latch between the seals if required
  • Can be surface mounted or rebated
Scope of Use
  • Door perimeters and plain or rebated meeting stiles
  • Single swing and double swing, double doors
  • Two IS7071si seals can be installed onto one stile, allowing a space for a latch between the seals if required
  • Surface mounted or rebated
  • Excellent acoustic, smoke, light, dust and weather seal
  • Also available with antimicrobial silicone gasket(s)

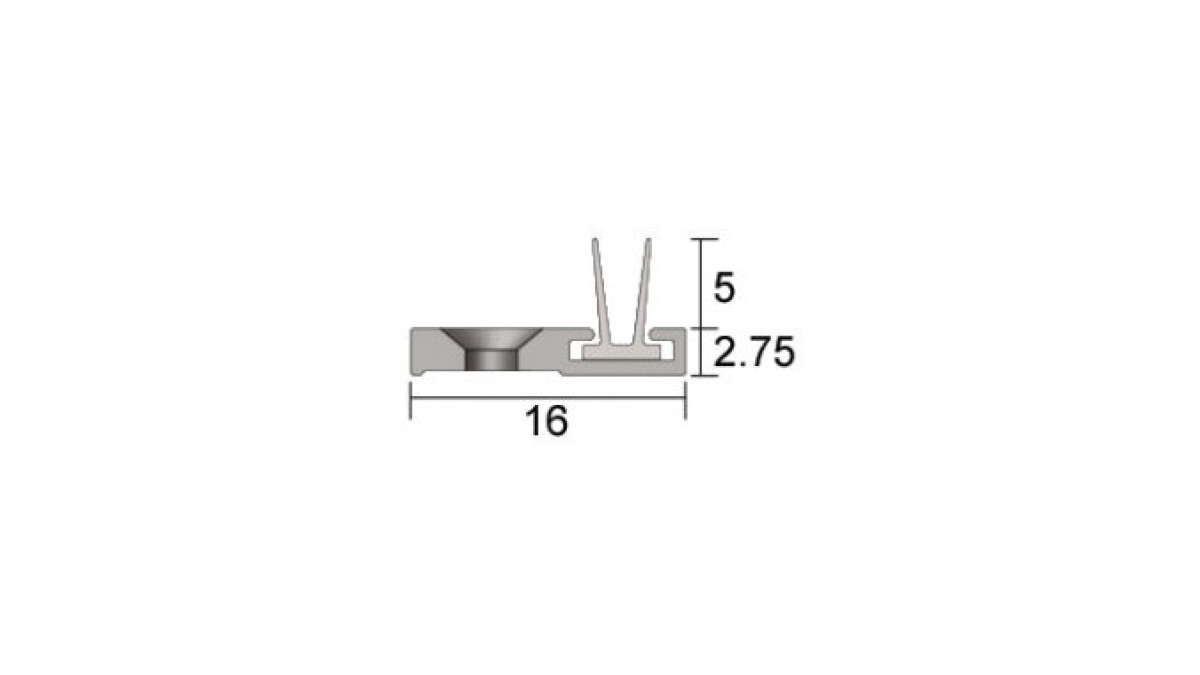

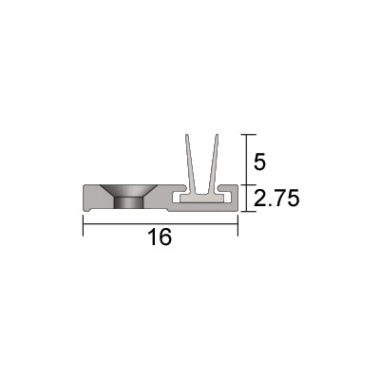

Gap size:

  • Surface-mounted: min. 5mm / max. 7mm
  • Rebated application: min. 2mm / max. 4mm

Standard lengths:

  • 2250mm
  • 3000mm
  • Also available in: 250mm increments from 1000mm to 5000mm

Fixing:

  • Fixing screws are supplied
  • Fixing holes are pre-drilled and countersunk
  • A door sequence selector should be considered unless one leaf is intended to be fixed
Limitations on Use
  • A door sequence selector should be considered unless one leaf is intended to be fixed

Fire doors are a proprietary product. Despite similarities in manufacture and supply, each fire door must have its own test data outlining its field of application as mandated by the Building Code of Australia through the requirements set out in AS1905 Part 1.

Please contact a dormakaba representative for confirmation on which seals are suitable for the specified fire doors.

Statement of Building Code Compliance
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1 (Perimeter Seal)
  • Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
  • Conforms with BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
In-Service History

Notable projects include:

  • Adelaide Oval Redevelopment
  • Gold Coast University Hospital
  • Tune Hotel & Apartments, Melbourne
  • Royal Adelaide Hospital (RAD)
  • Gold Coast University Hospital
  • Medica Centre, NSW
  • Chris O’Brien Lifehouse
  • Royal Children's Hospital, Melbourne
  • Perth Arena, Western Australia
  • Crowne Plaza, Adelaide
  • Trio Apartments, Sydney
Other Performance Attributes
  • All seals manufactured in Australia
  • Durability tests demonstrating over 1,000,000 open and close cycles
