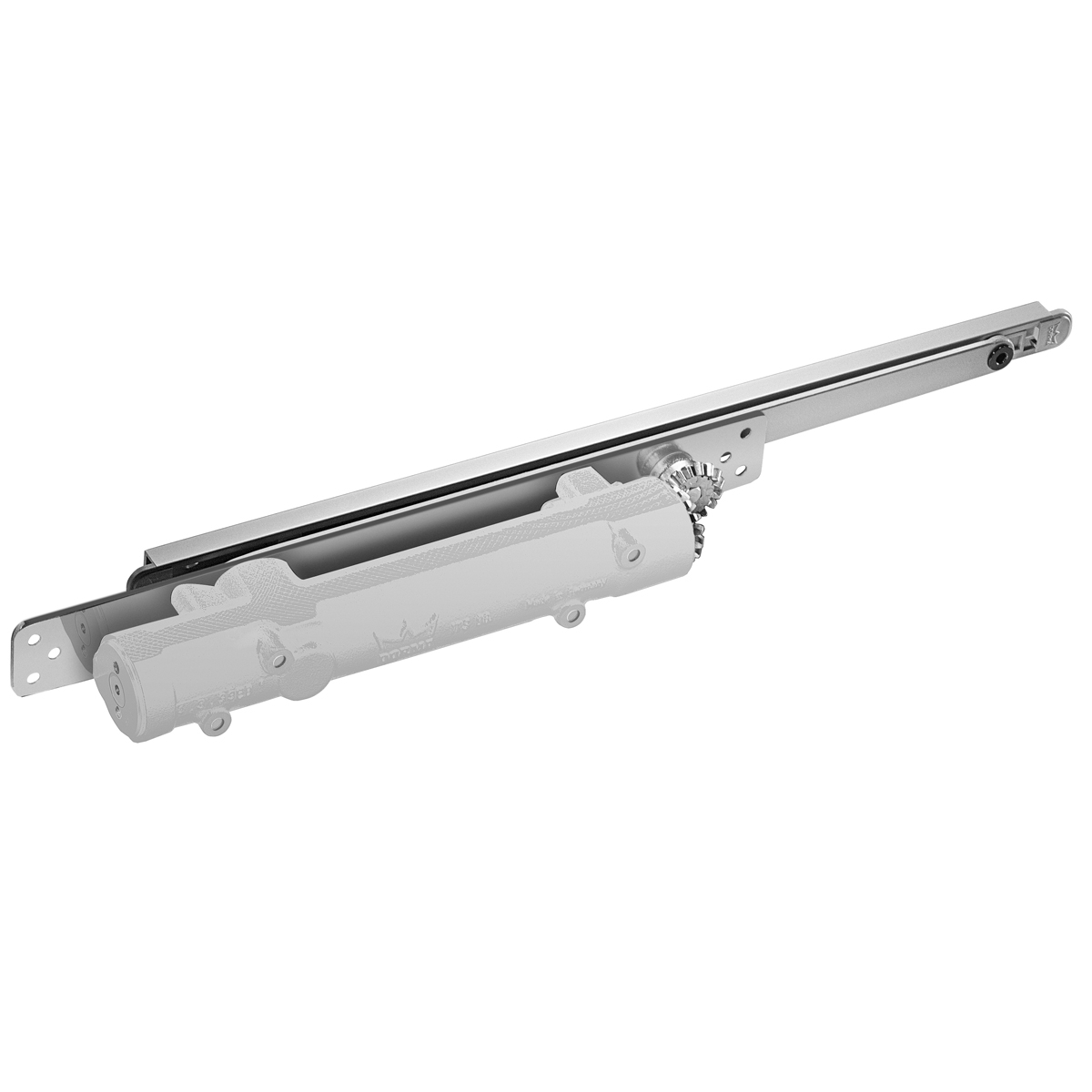

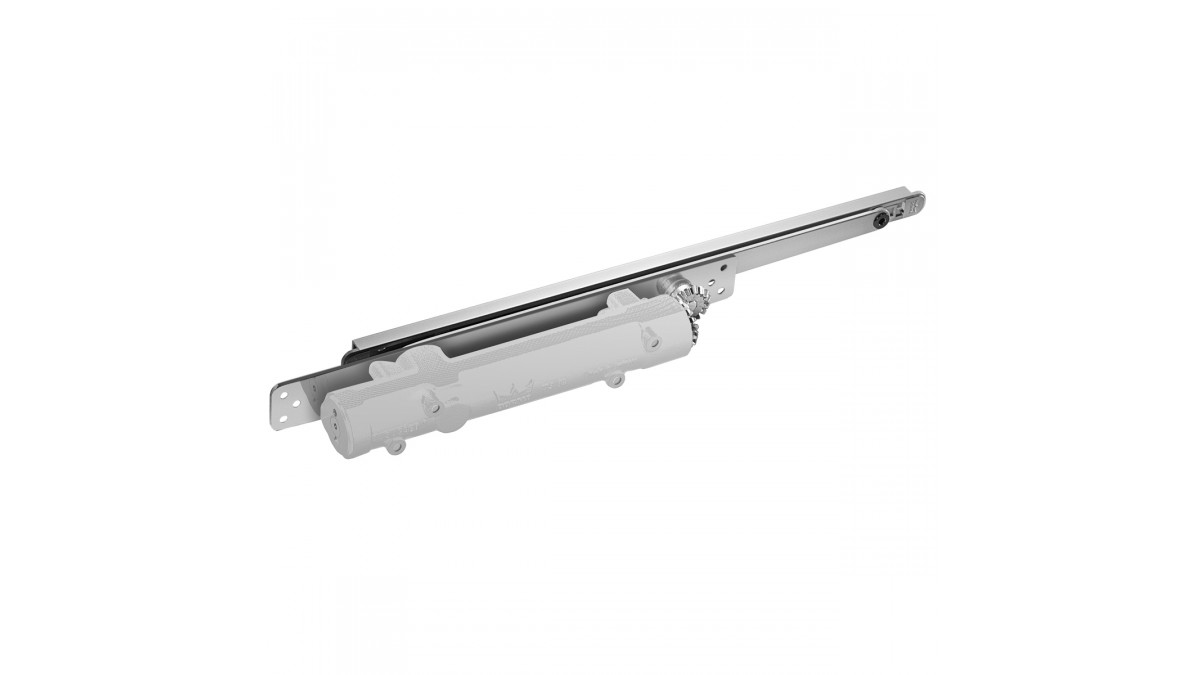

DORMA ITS 96 Door Closer System
Description

Concealed door closer with cam-action technology.

The DORMA ITS 96 door closer is designed for concealed installation in the door leaf and frame. Suitable for almost every type of door, it offers a wide variety of functions for both single or double doors and flexibility combined with a high level of quality.

Further, the ITS96 features the proven DORMA heart-shaped cam technology which ensures exceptional ease of opening. A perfect choice for hotels, apartment entries, office partitions and detention applications.

Key Features
  • Concealed installation
  • Two models offering different strengths
  • Adjustable spring strength
  • Optional hold-open
  • Cushioned limit stop for wall & door protection
Categories
Door Closers
Ranges
Door Closers
Scope of Use

The DORMA ITS 96, ushered in a new era for concealed door closer technology. The door closer and slide channel are so compact that they can be installed into the door or door frame.

Suitable for timber, hollow metal and aluminium doors of 40mm minimum thickness and above and door widths to 1400mm by selection of the correct strength size.

Even once the closer has been installed the speed control and strength can be adjusted without removal of the closer body from the door for user and installer convenience.

Statement of Building Code Compliance

Certified manufacture to ISO 9001

In-Service History

The Shard - London

The Shard, also referred to as The Shard of Glass, has been described as a ‘vertical town’ and is set to dominate the London skyline for years to come.

The tallest building in Western Europe at 309 metres, The Shard features offices, luxury apartments, restaurants, a visitor attraction and a five star hotel on its 72 habitable floors.

The Dorma ITS 96 Door Closer was an important component to this project.

Documents
ITS 96 (including G96N arm) Technical Brochure
ITS 96 Technical Brochure
ISO Certification
G96 N Fixing Bracket for Metal Doors Instruction
G96 N Fixing Bracket for Timber Doors
G96 N20 Fixing Bracket for Metal Doors
GSR Installation Instructions
GSR-EMF Installation (Text)
Pivot Block for G96 N & GSR Instructions
Warranty
Options
Additional Information
Additional Information
Can't find what your looking for? Contact Dorma for more information
CAD/PDF Details
Installation Details

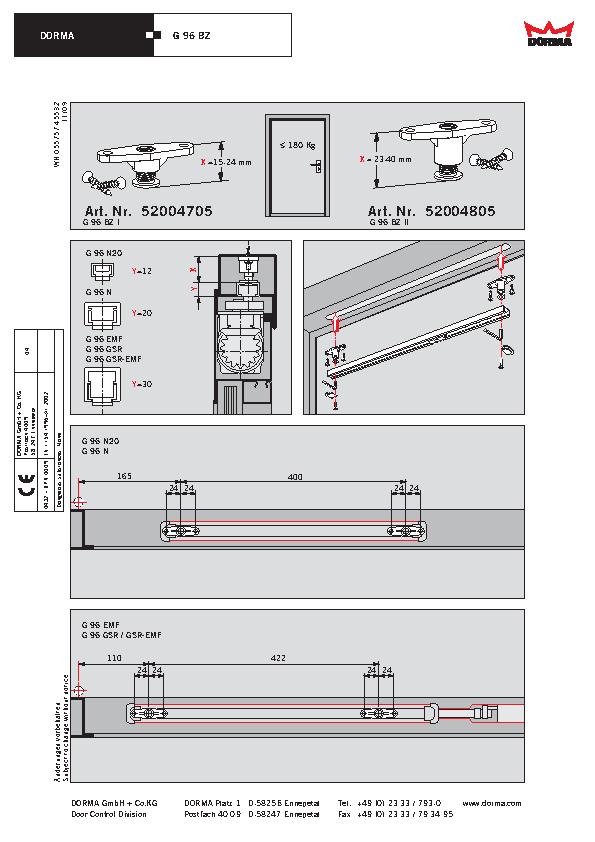

BZ (Fixings for G96 N20 EMF GSR) Installation

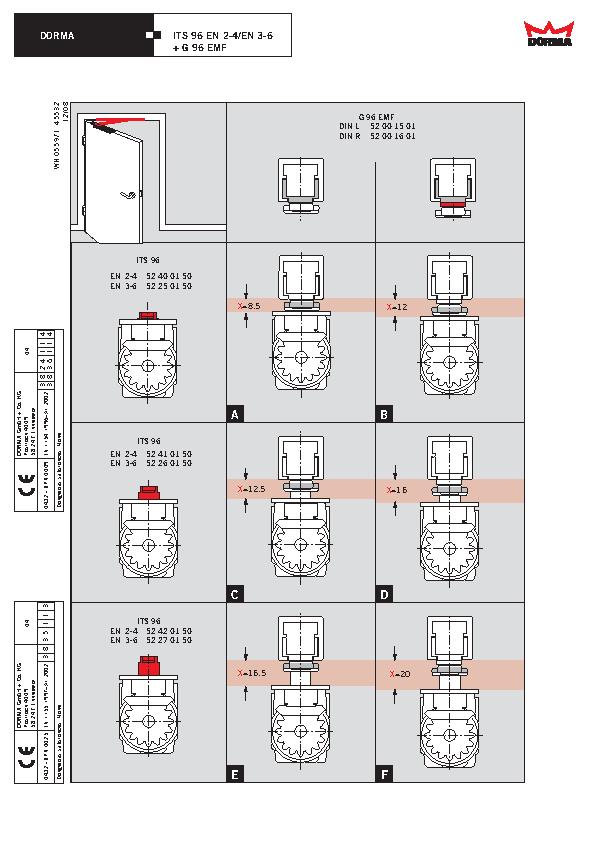

EMF Installation
EMF Installation (Text)
EN2-4 & EN3-6 G96 N Installation

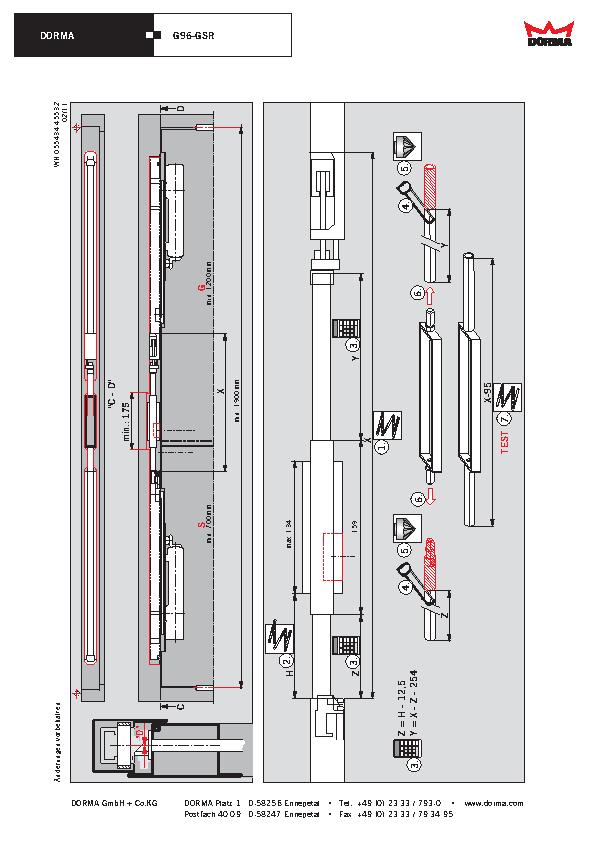

G96 GSR Connecting Frame Installation

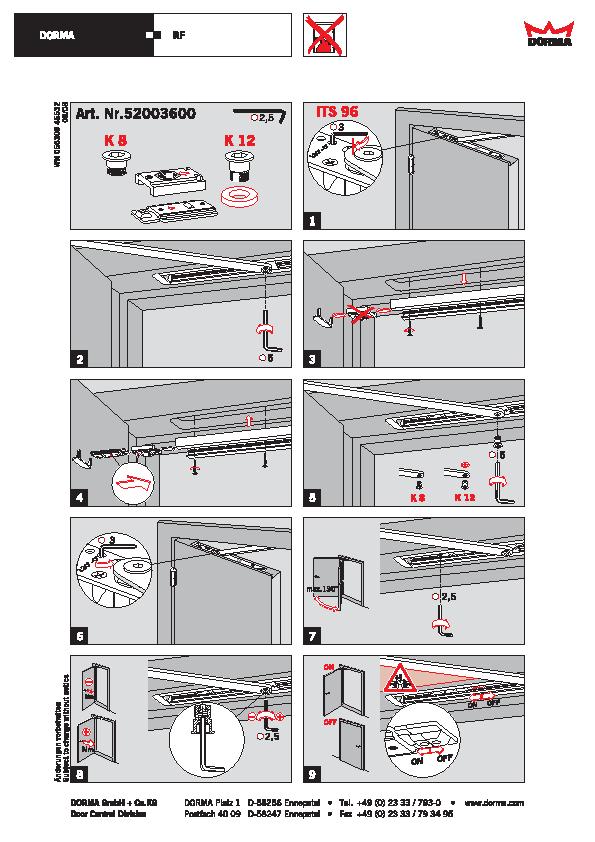

G96 N RF Hold Open Unit Installation

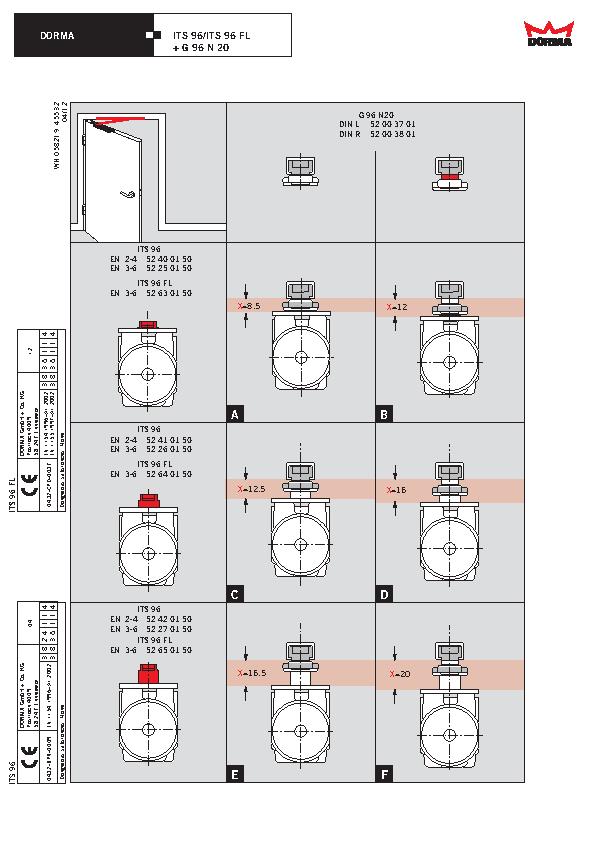

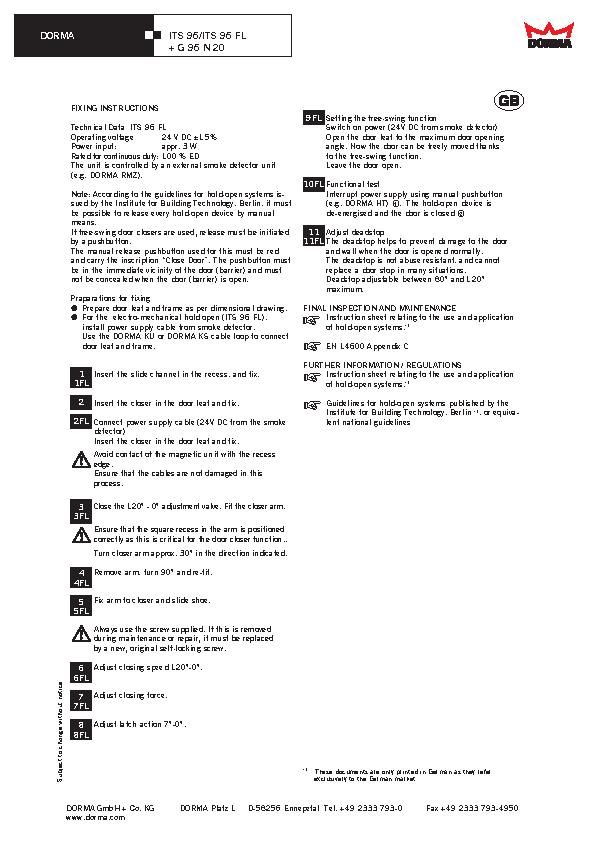

G96 N20 Installation

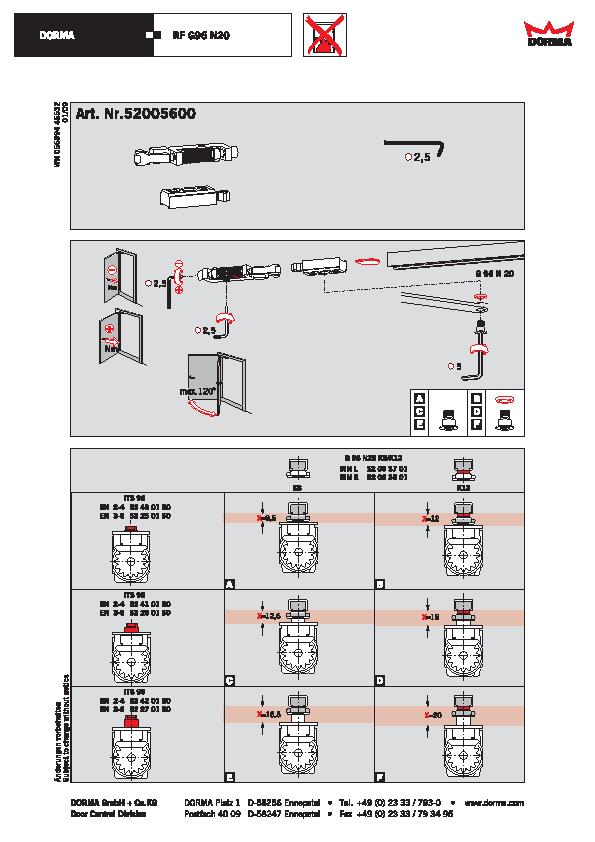

G96 N20 RF Hold Open Unit Installation

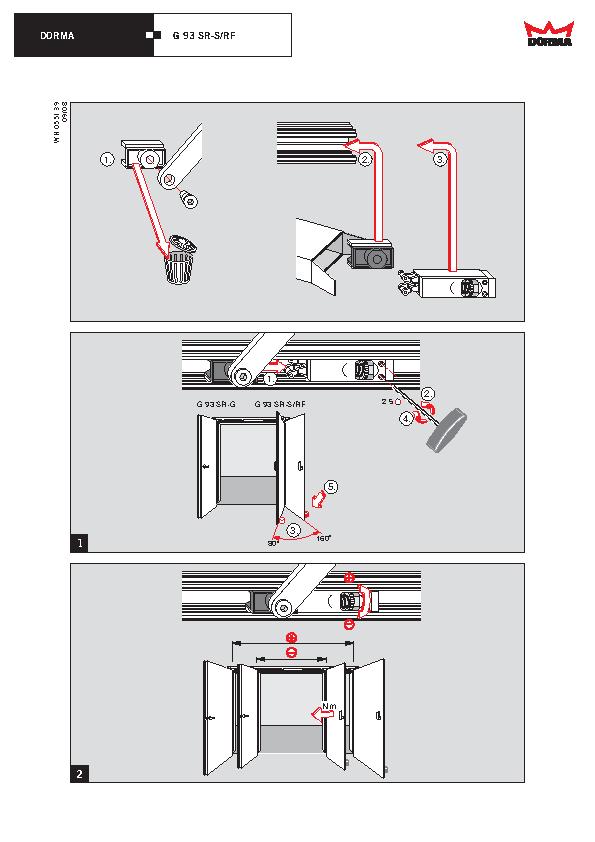

G96 SR-S RF Hold Open Unit Installation

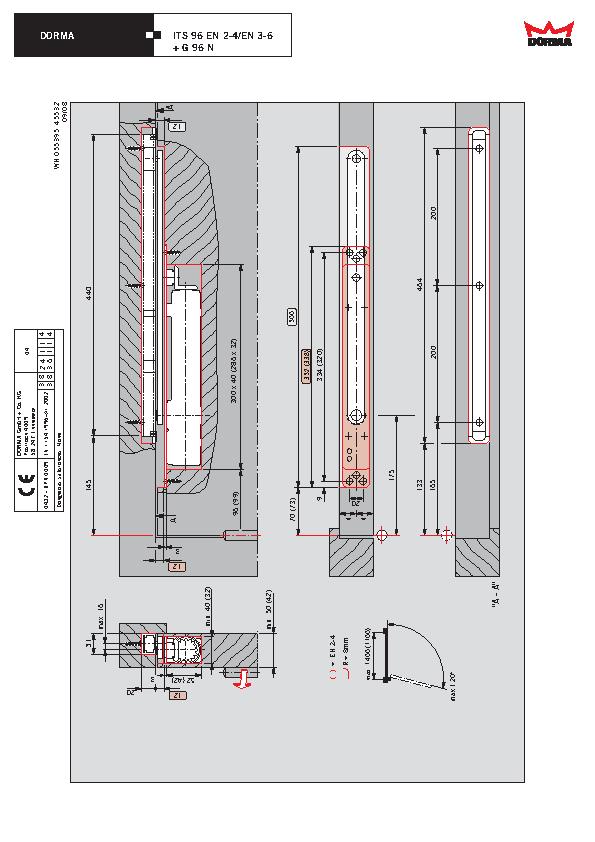

G96N Non Handed Installation

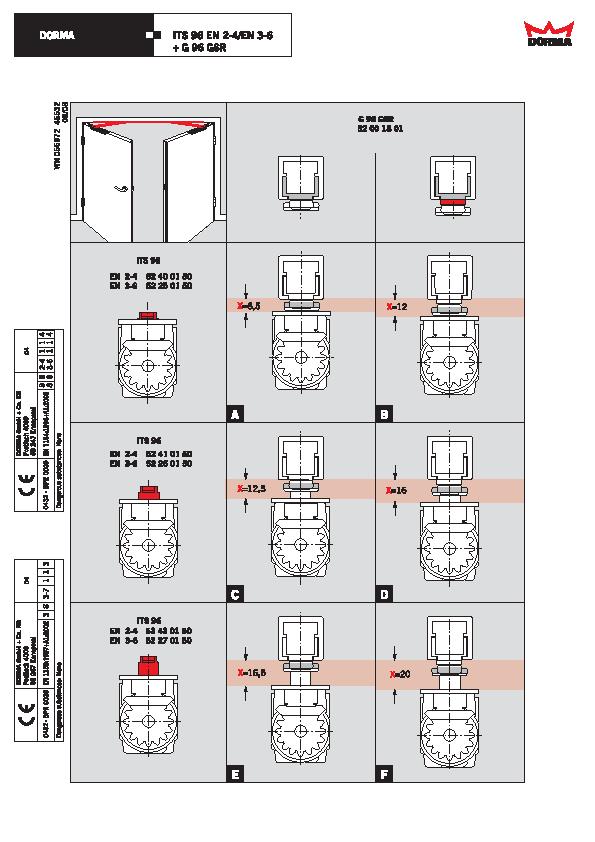

GSR Installation

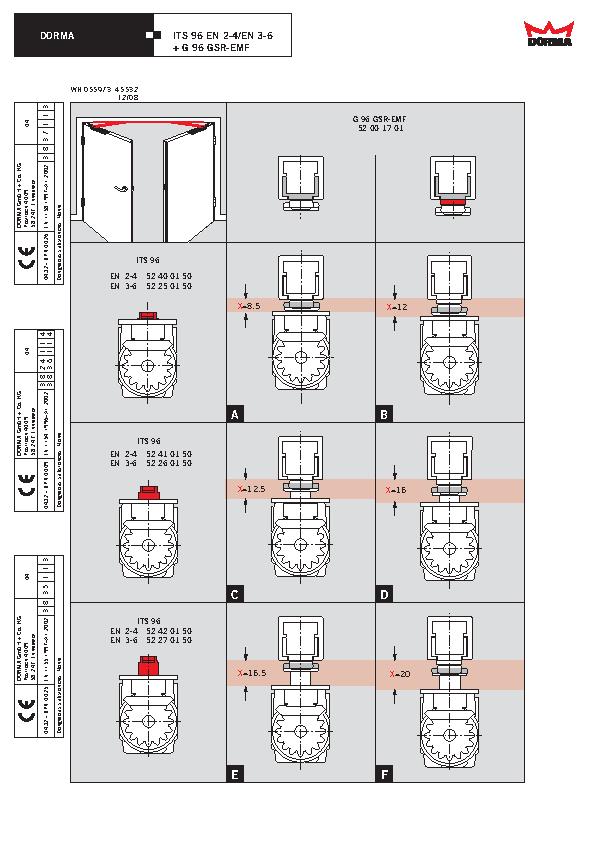

GSR-EMF Installation
N20 Installation

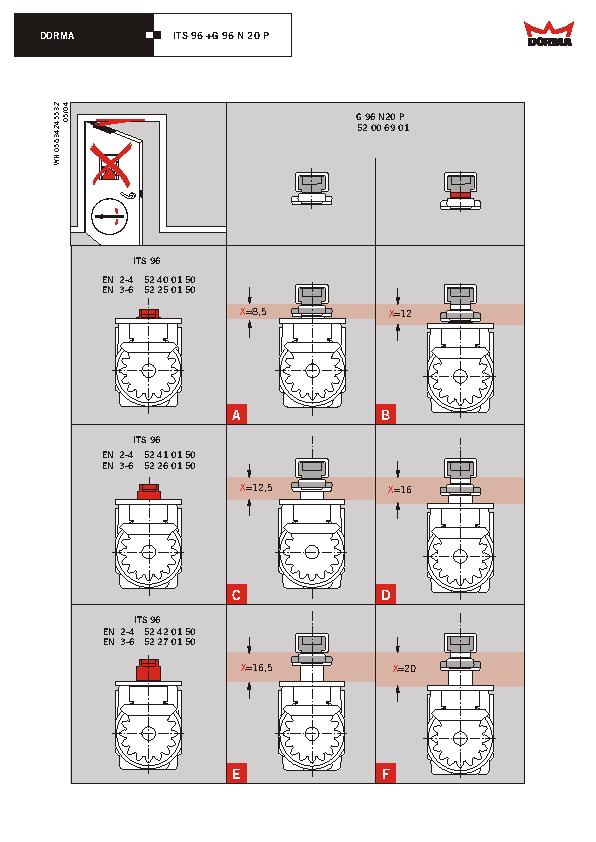

N20P Double Action Installation
