Soundpoof a Home with ENVIRO AAC Panels

The ENVIRO Exterior Cladding System which has a Beal appraisal, transfers all of the same principals and properties to the flooring system with the additional thickness enhancing the noise absorption and strength.

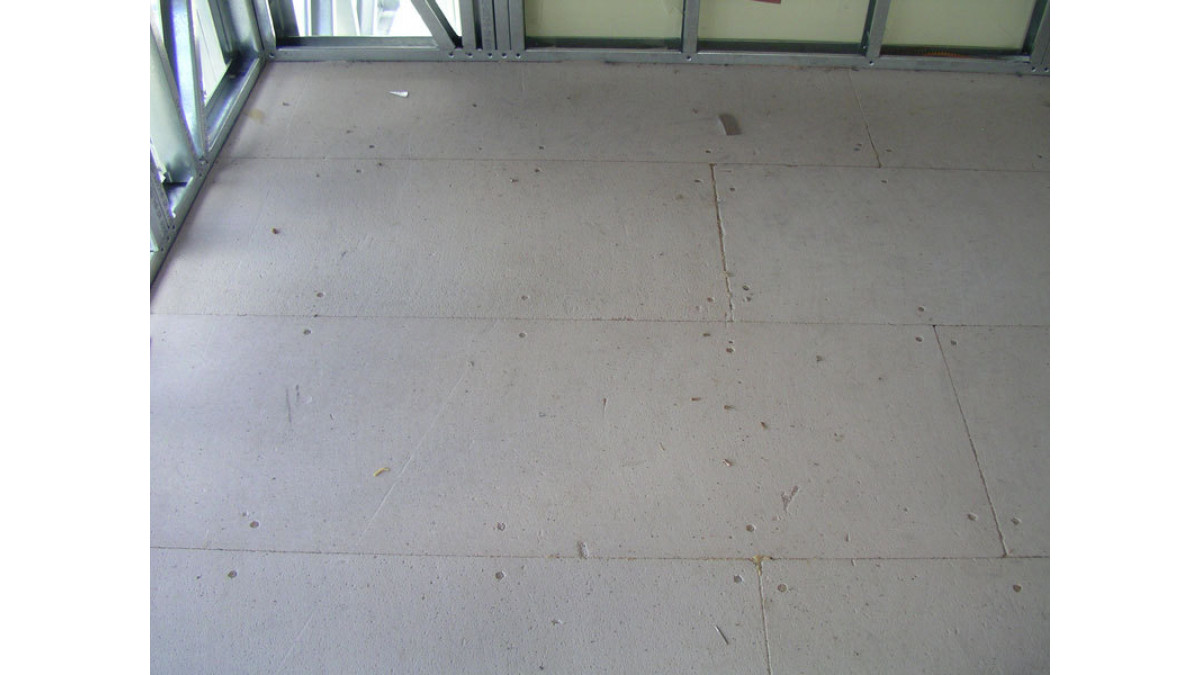

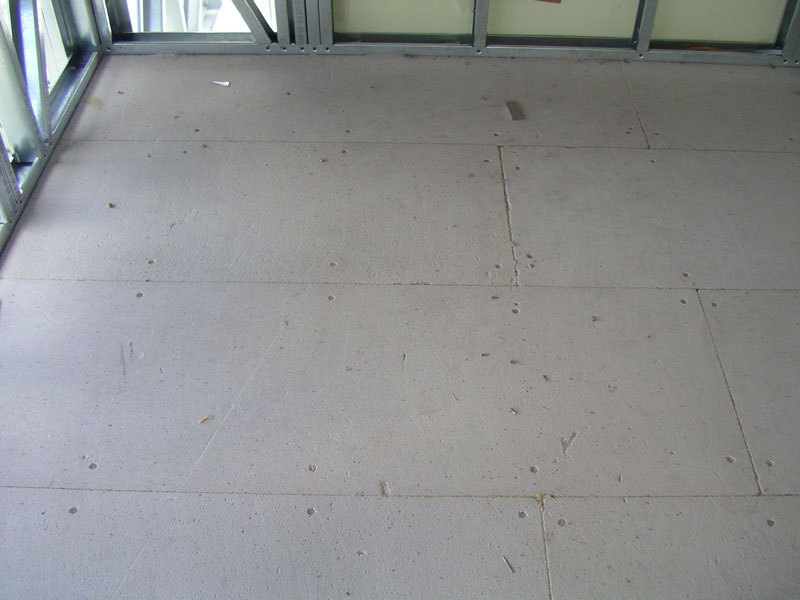

Once the ENVIRO AAC panels have been sealed, standard floor coverings can be laid directly on top. In the event there should be any overflow of water onto a floor with carpet, when lifted, you can be assured you will not have to deal with any swelling as you would with a particle board floor.

For full technical information on the loading and installation of the panels please view the online resource.

Enviro AAC Flooring Panel

Masons

View Product

Autoclaved Aerated Concrete (AAC) is a lightweight concrete substrate that has all the benefits of building with concrete but its light weight.

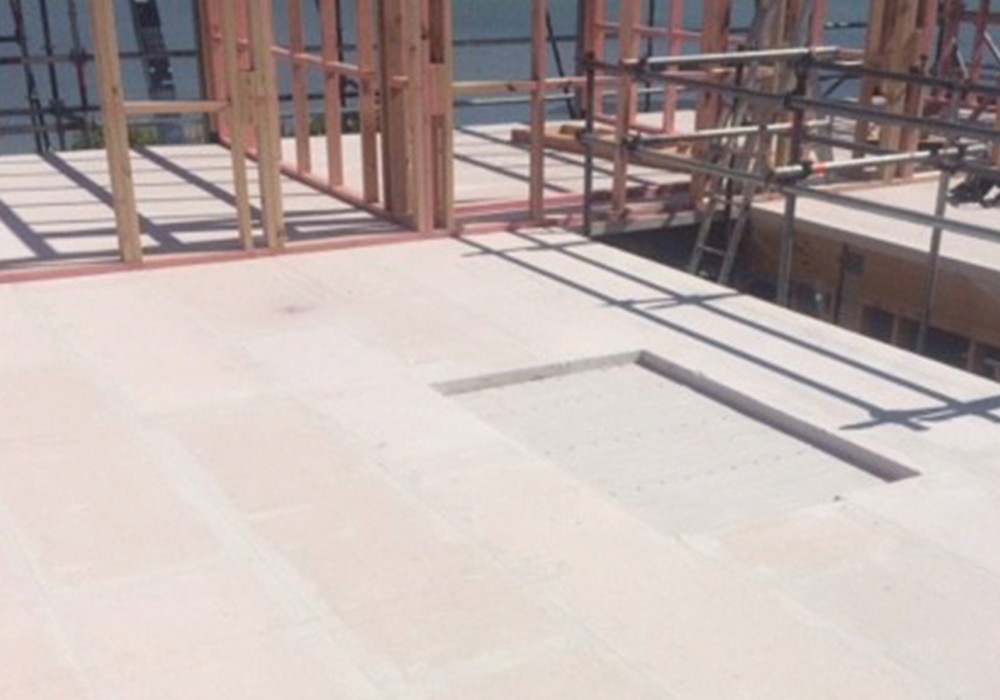

The panels are fixed to the floor framing of the building using galvanised bugle for timber framing or dual grip hexhead screws for steel framing. The panels are 600mm wide, with a dry density of 520 kg/m³, about 1/5th that of concrete. Enviro 75mm floor panels are available in standard length of 2200mm and upon request can be sourced in 1800mm panels.

Masons Enviro AAC Panel System has been evaluated by Certmark as meeting the following provisions of the NZ Building Code:

B1 Structure: B1.3.1, B1.3.2 and B1.3.4
B2 Durability: B2.3.1(b)
C3 Protection from fire: C3.4(a) and C3.6
E2 External Moisture: E2.3.2, E2.3.3, E2.3.5
F2 Hazardous Building Materials: F2.3.1

Structure

Durability

External Moisture

Hazardous Building Materials
