Outdure Offers Easy Deck Frame Installation with Qwickbuild

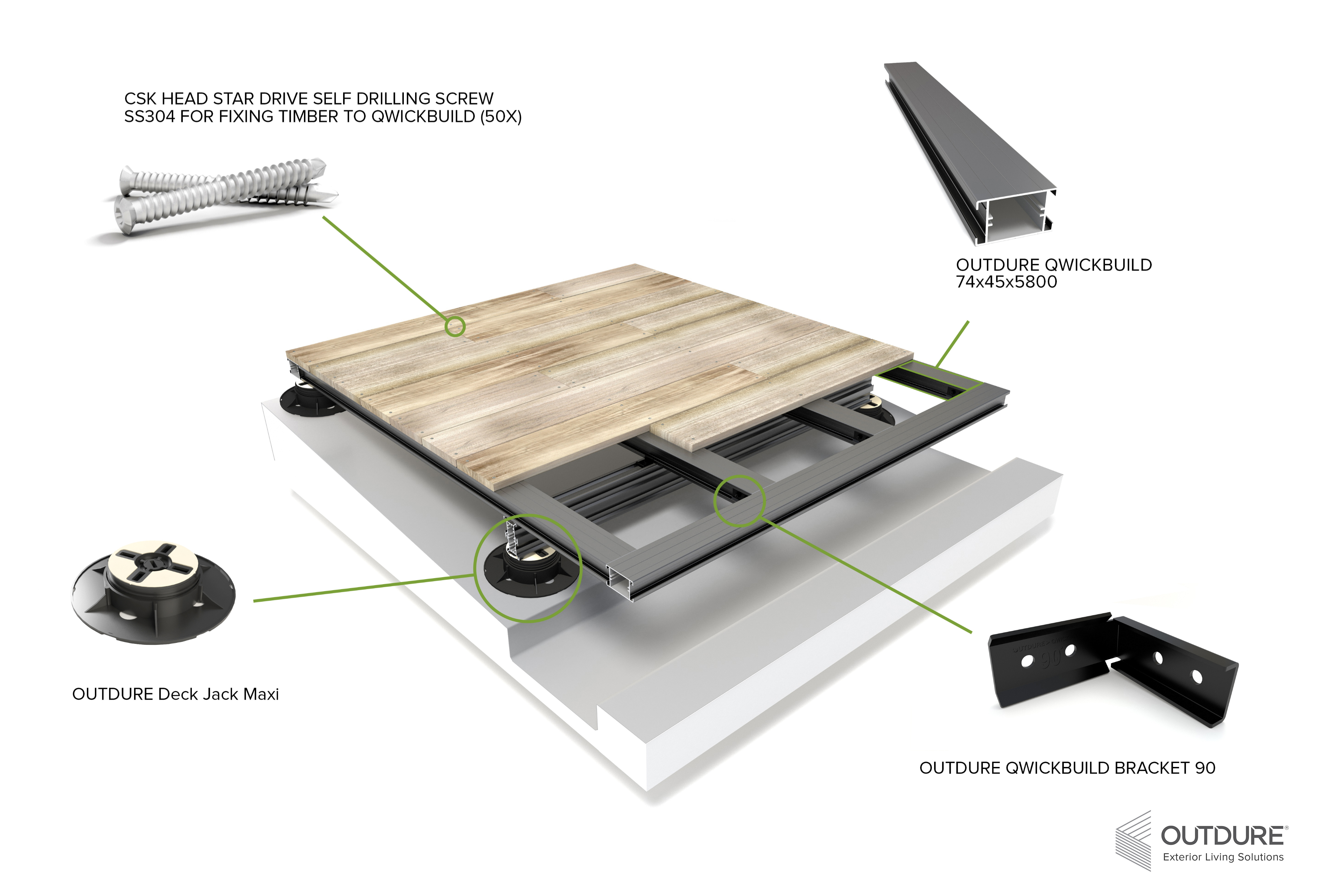

With Qwickbuild users can install decks with heights as low as 73mm, while maintaining a long span and high load bearing capabilities. Qwickbuild is available in multiple joist sizes that are specifically engineered for traditional timber decking, structural tiles and Outdure's own Resortdeck and Eco-decking composite decking products.

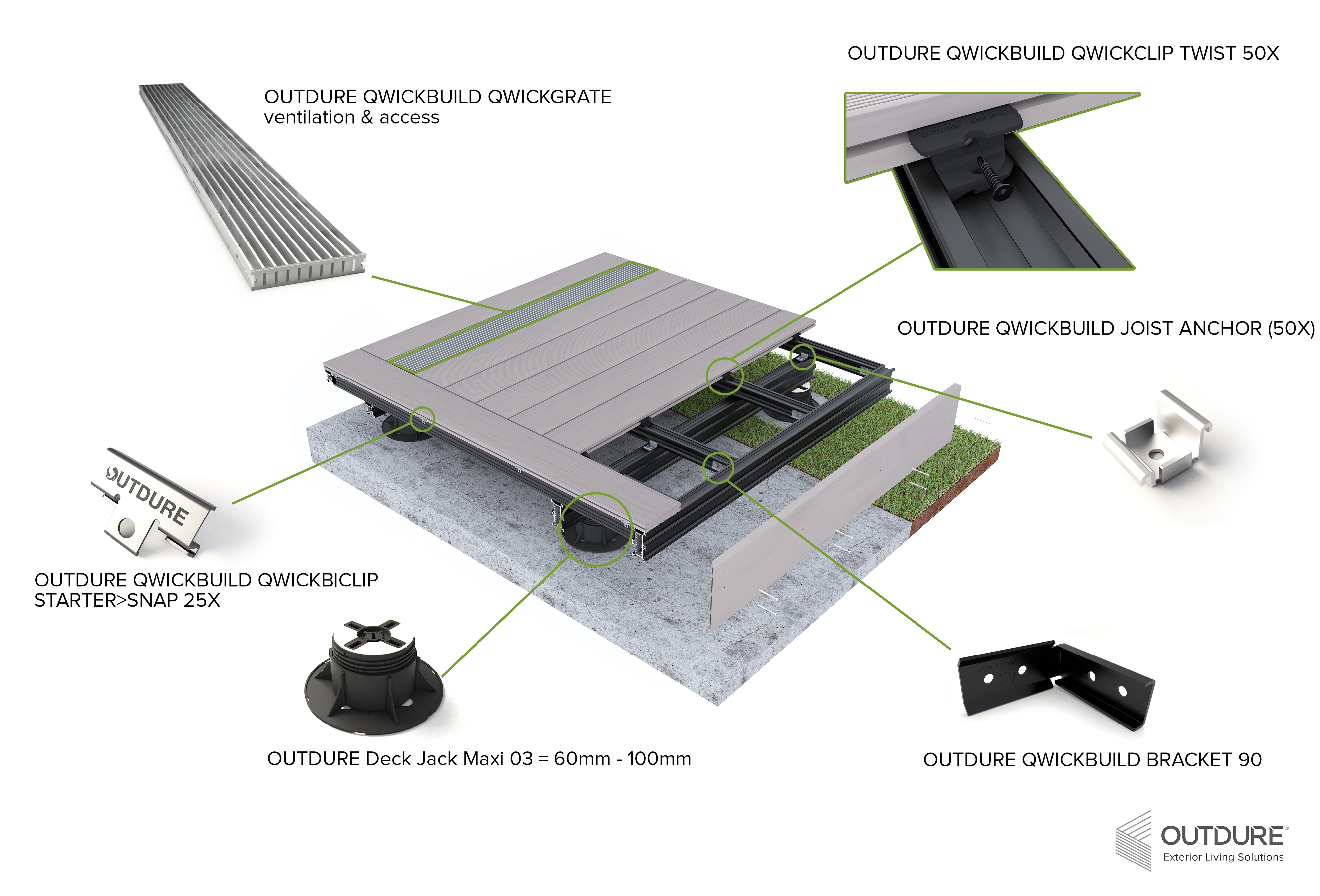

Another benefit of Qwickbuild is that the sub-frames can be supplied pre-manufactured, or cut to length as a kit-set, making installation simple, easy and fast. Innovative Qwickbuild twist clips can be used with Eco-decking or Resortdeck to lock boards into place, cutting out the need for screws and nails.

The Qwickbuild subframe structure is made from durable, dimensionally stable, moisture-proof material, such as structural aluminium with marine grade anodising and 304 stainless steel components.

For more information regarding Qwickbuild, visit Outdure's website, and for CAD details, view Outdure's resource centre.

QwickBuild Deck Frame System for Decking, Tiles and Synthetic Turf

Outdure

View Product

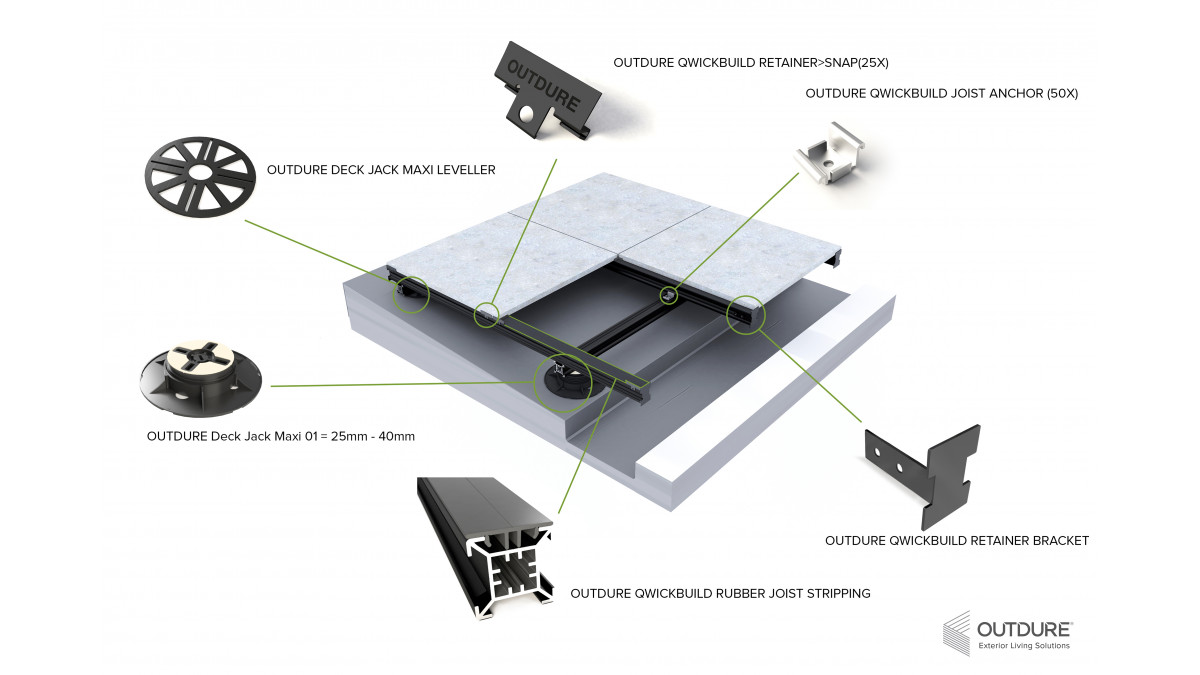

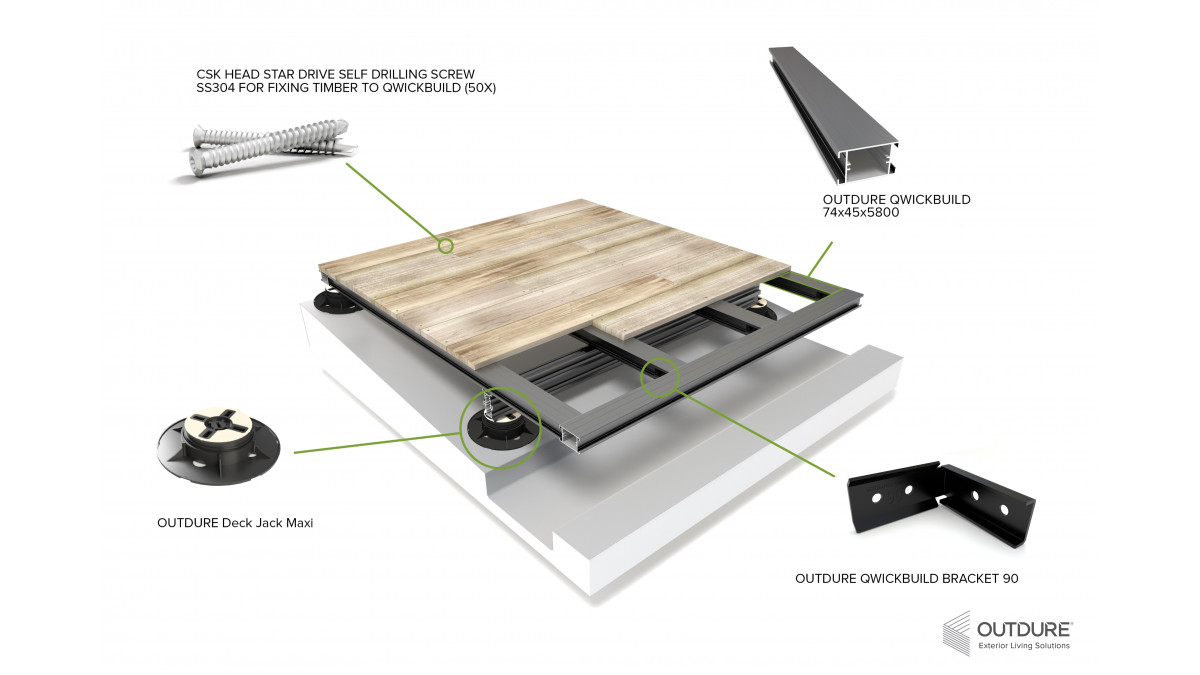

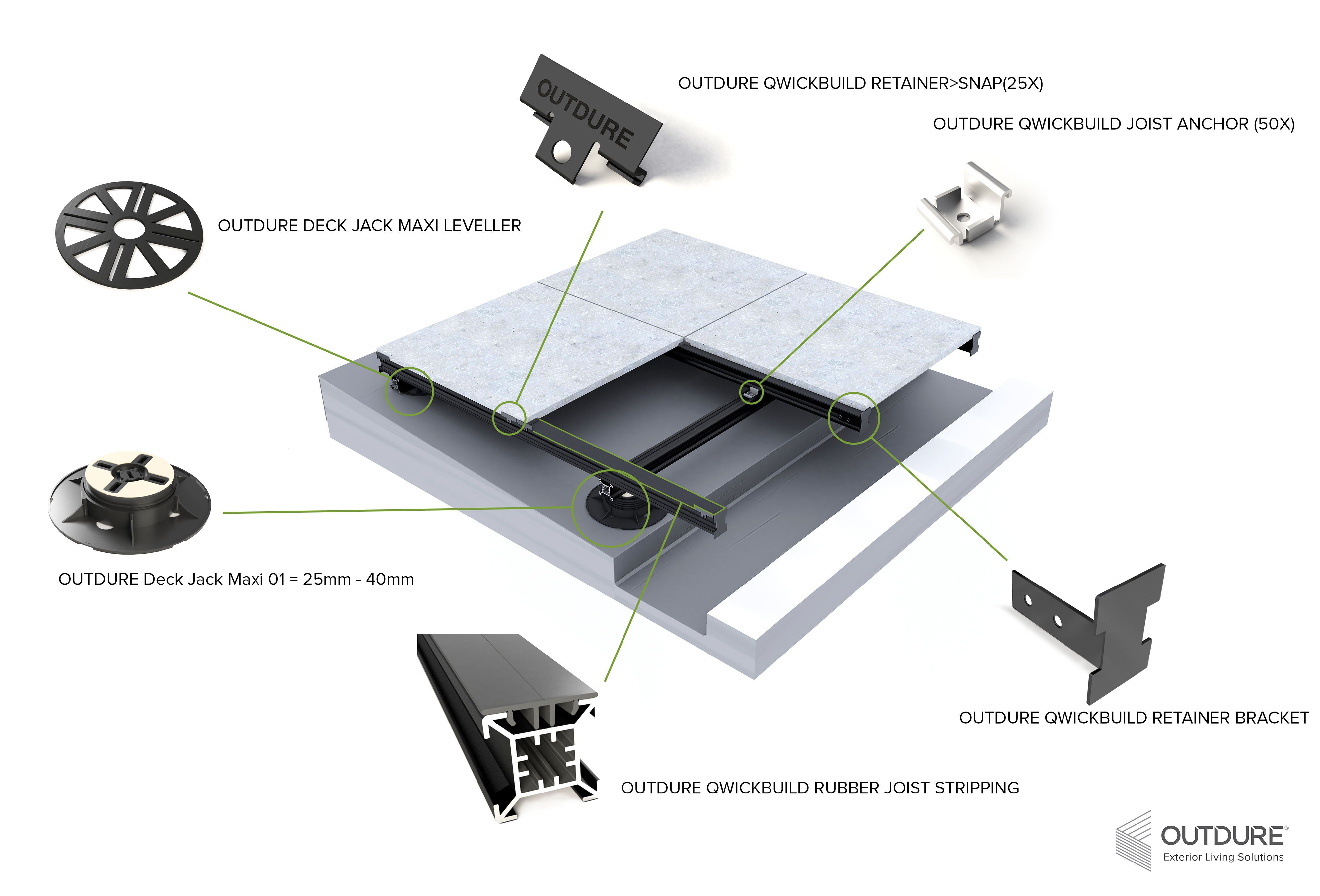

QwickBuild is an external flooring system that provides strong, durable, stable structures to support hardwood and composite decking boards, exterior tiles, and synthetic turf, or a combination of surfaces.

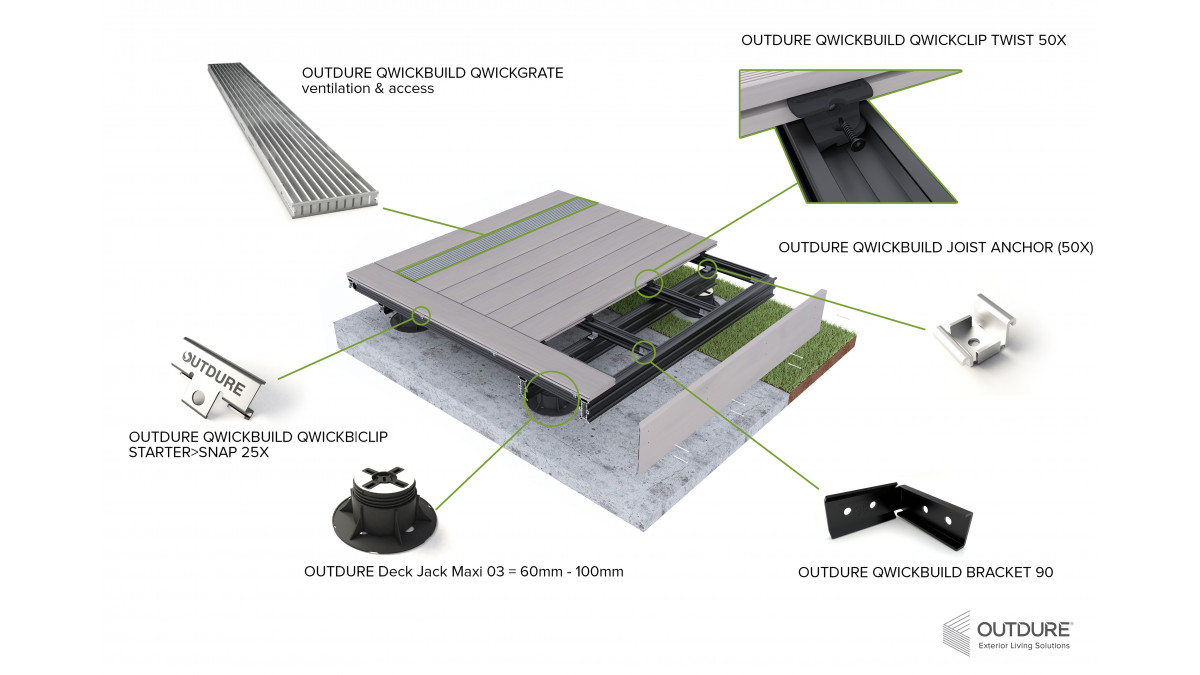

QwickBuild is designed for installations over natural ground, concrete pads, existing pavers and waterproof membranes. The system allows for the construction of support structures ranging from ultra-low height through to structures 3m+.

Benefits for deck structures under 400mm in height, especially areas where deck structures are built over a waterproof membrane, this includes rooftop spaces and apartment balconies. The system has low height capabilities enabling a flush internal and external floor levels that are of complex integrating surfaces.

Residential and commercial applications

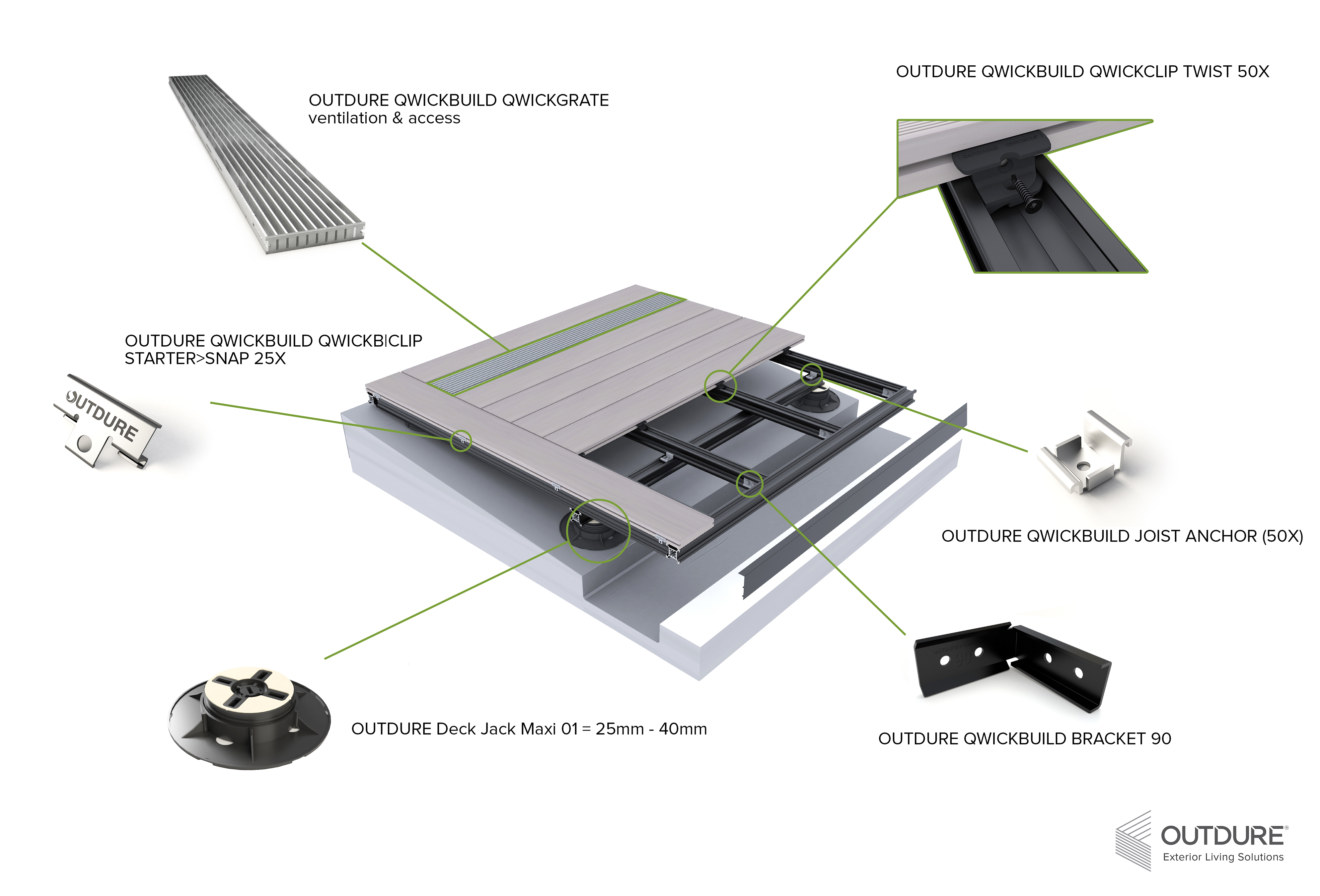

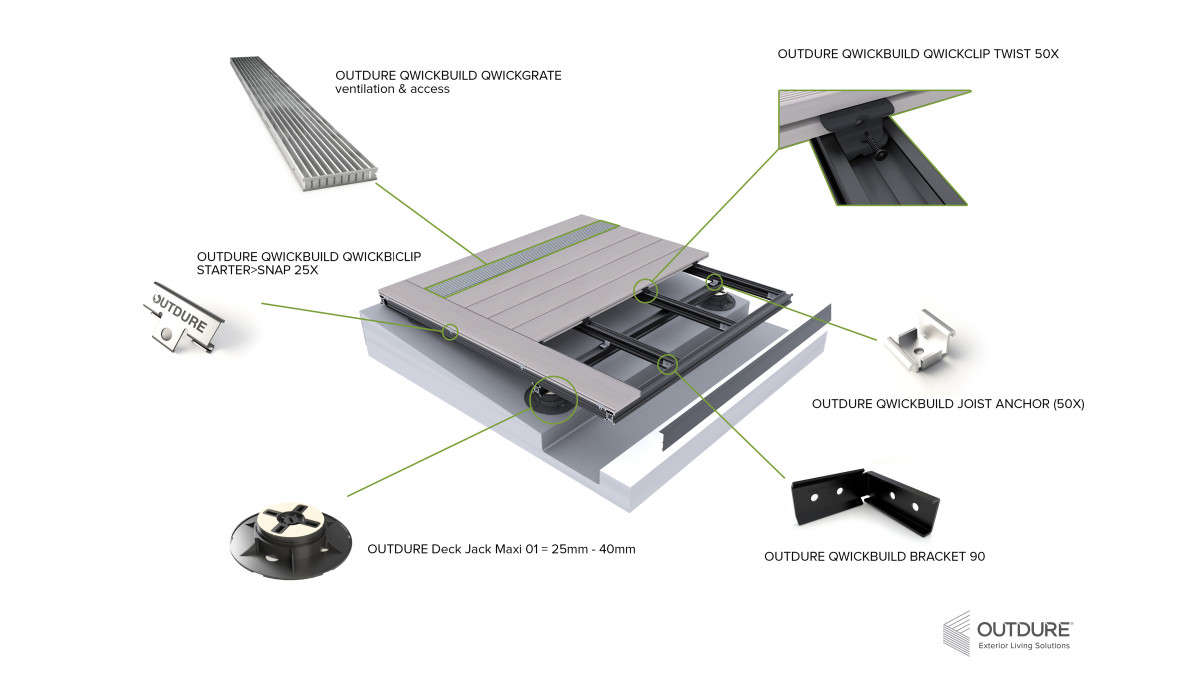

Framework designed to 'float' on a waterproof membrane without penetrating it
Low-height, long-span capabilities
Load capacity of up to 5kN point load and 5kPa UDL
Accessible solution — enables flush levels between interior and exterior floor surfaces

Suitable for:

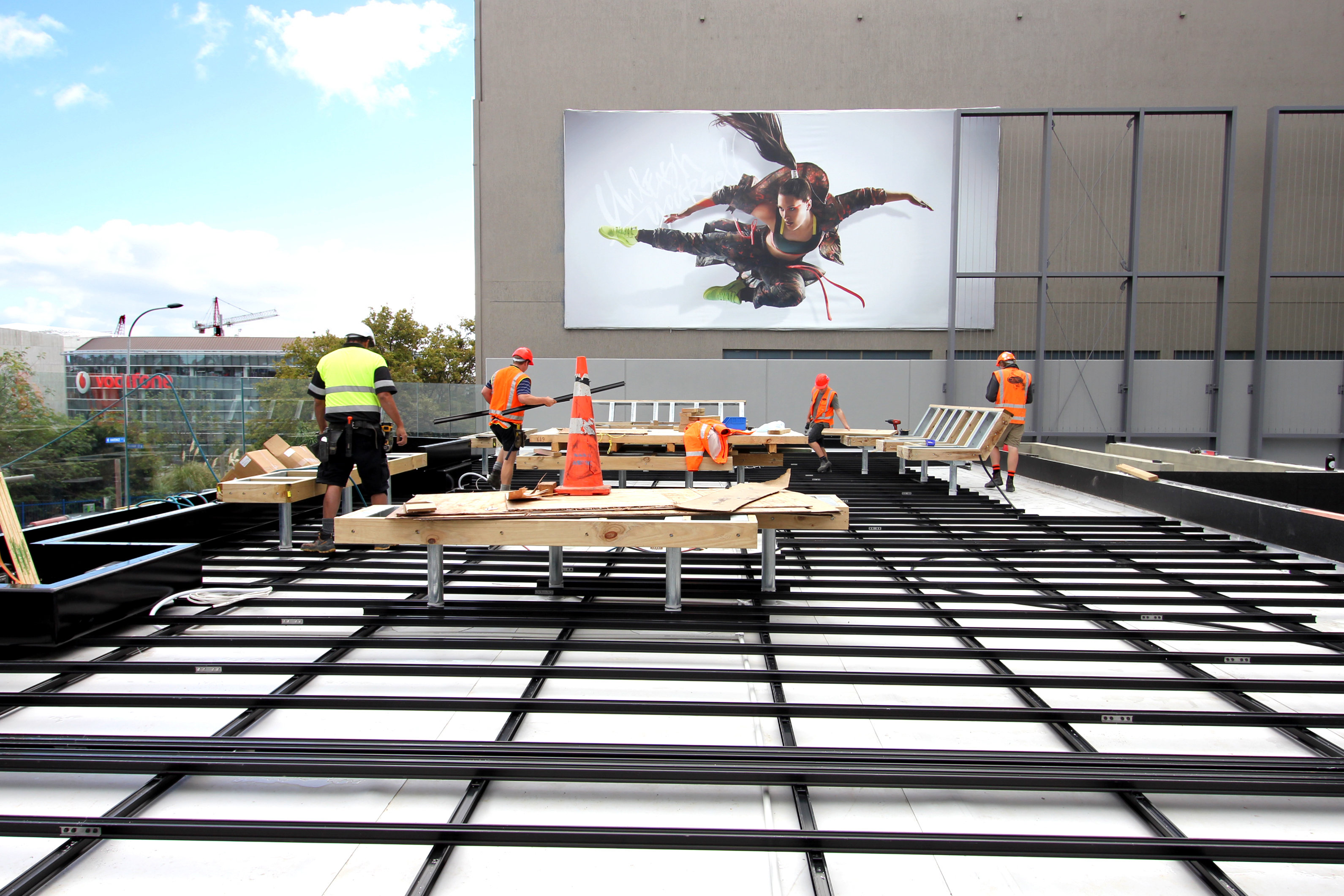

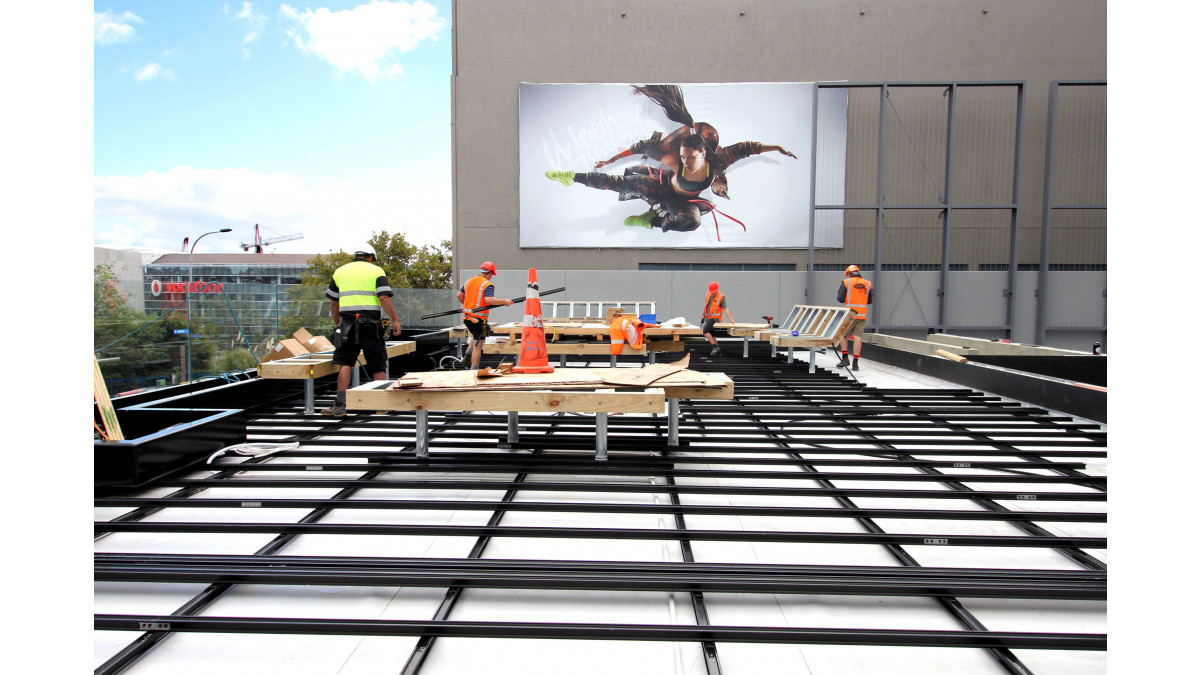

Commercial rooftop decks
Apartment complexes
Resorts
Educational facilities
Aged care facilities
Backyard renovations

Commercial rooftop decks
Apartment complexes
Resorts
Educational facilities
Aged care facilities
Backyard renovations

Profiles are manufactured from lightweight structural aluminium with marine-grade anodised or powder-coated finish.
