Pitch Perfect Louvres for Mono Pitched Roofs

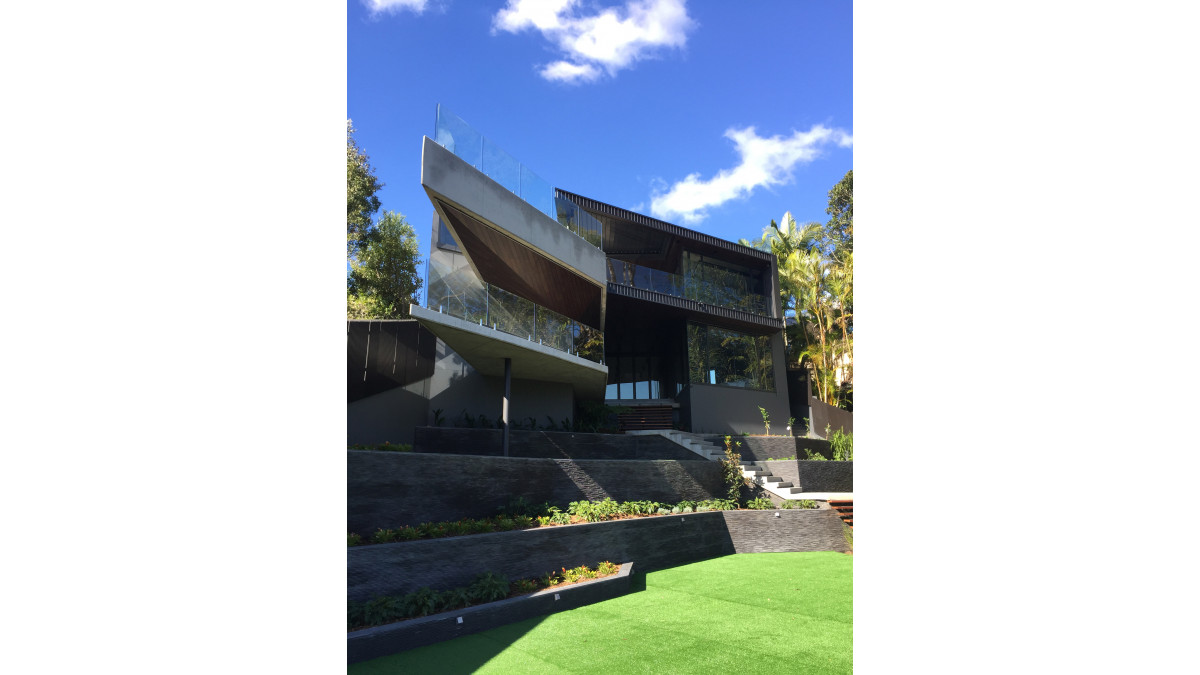

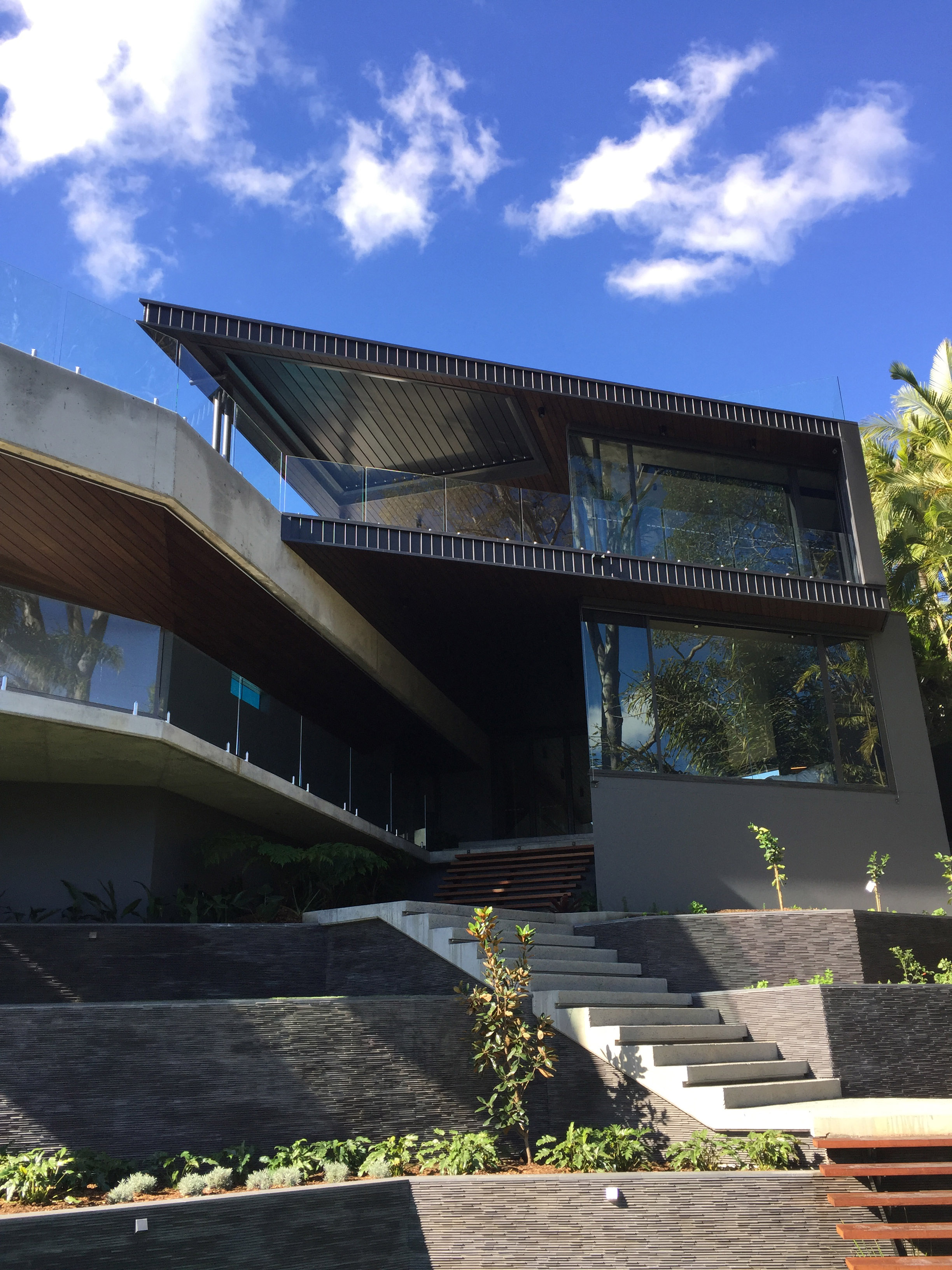

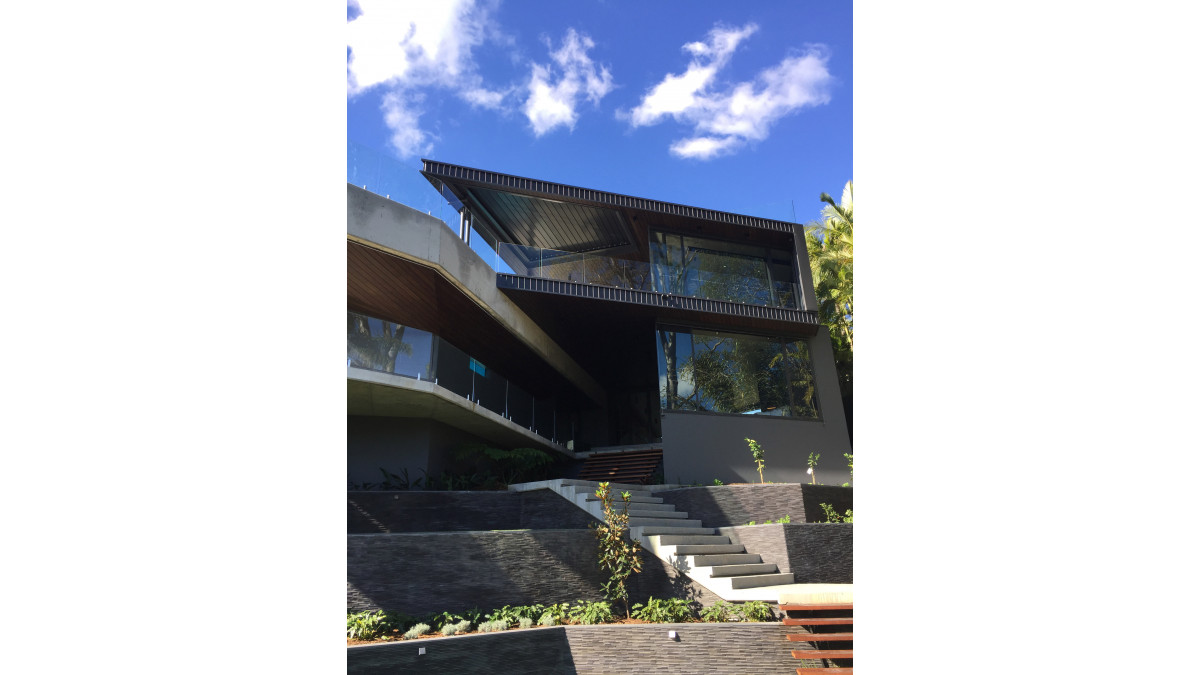

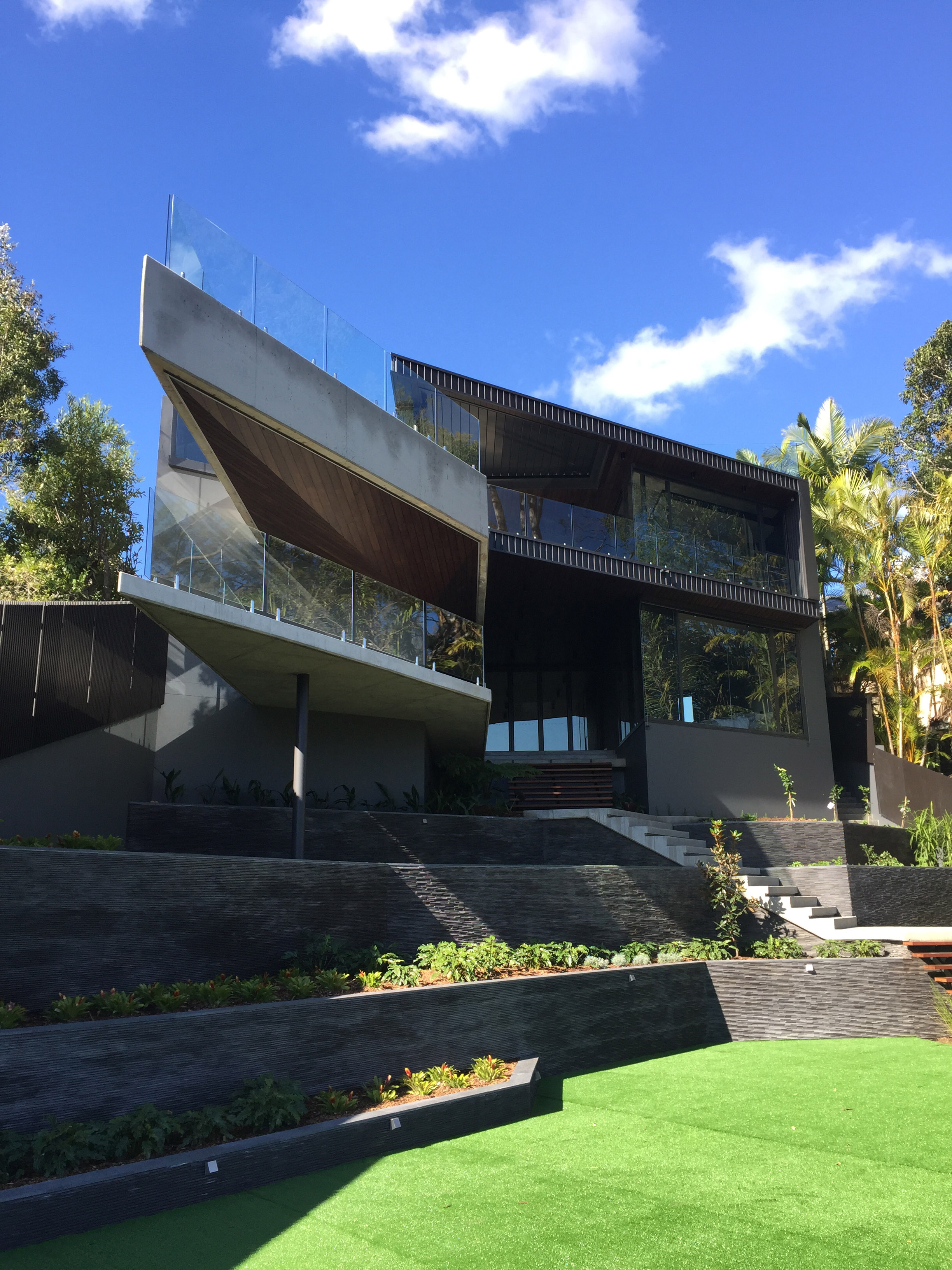

Mono-pitched roofs are impressive — especially when sun louvres are incorporated into the design, adding even more functionality and distinguishing aesthetics to a home or building.

Louvretec often gets asked if their louvre systems can work with a skillion roof. The answer is yes.

Louvretec offer the following options to complement a skillion/mono-pitch roof:

A motorised sun louvre system that sits in a Louvretec frame with stepped blades (if required). The sun louvre blades can be open or closed, providing privacy and shading
End-fixed sun louvres in a Louvretec frame or frame by others

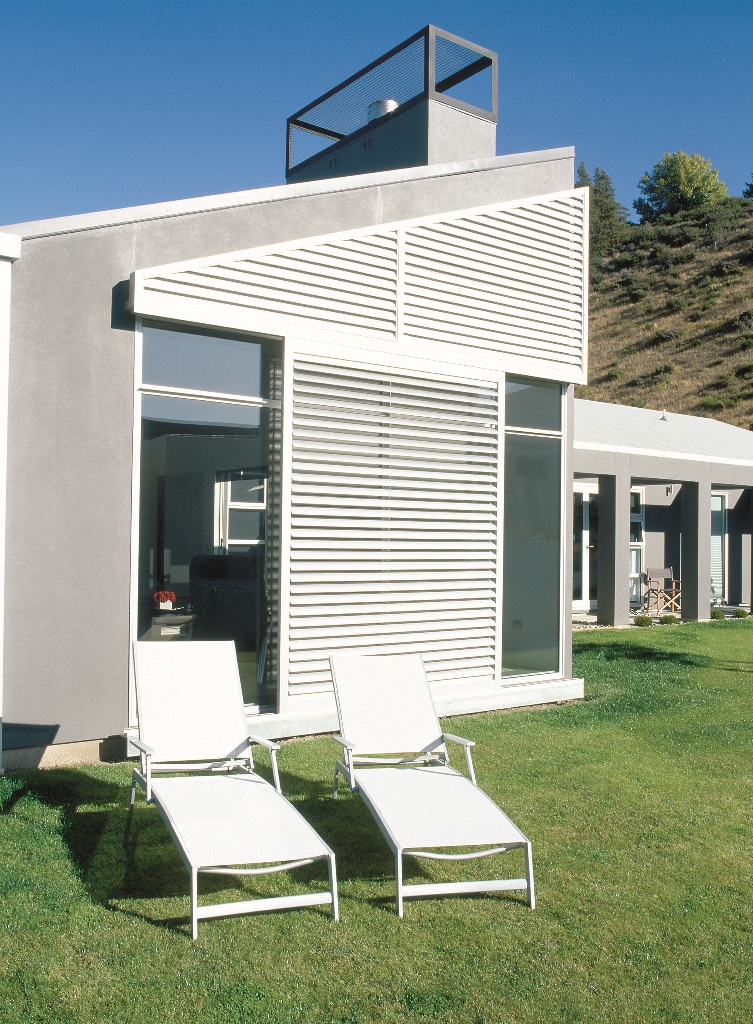

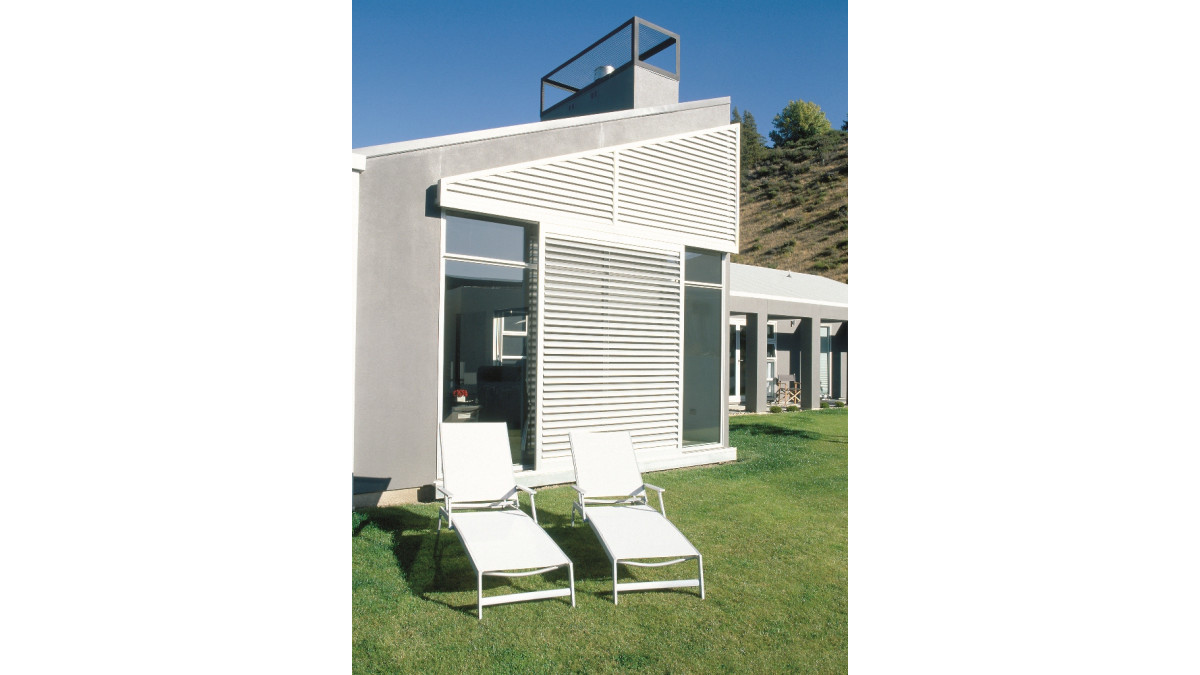

Bracket-fixed sun louvres that follow the skillion shape to a point

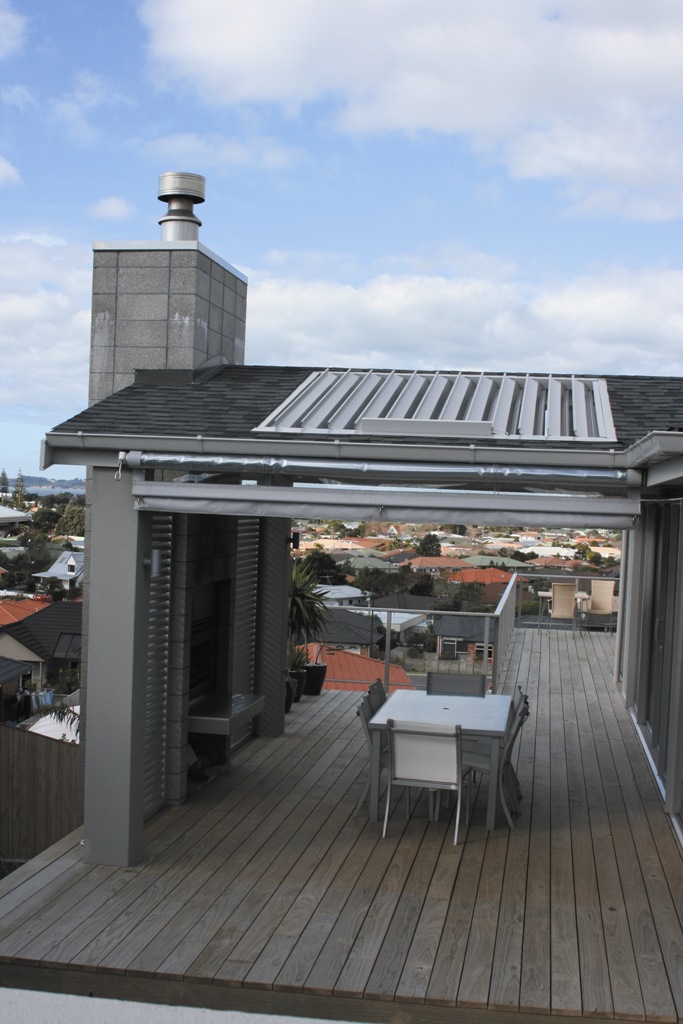

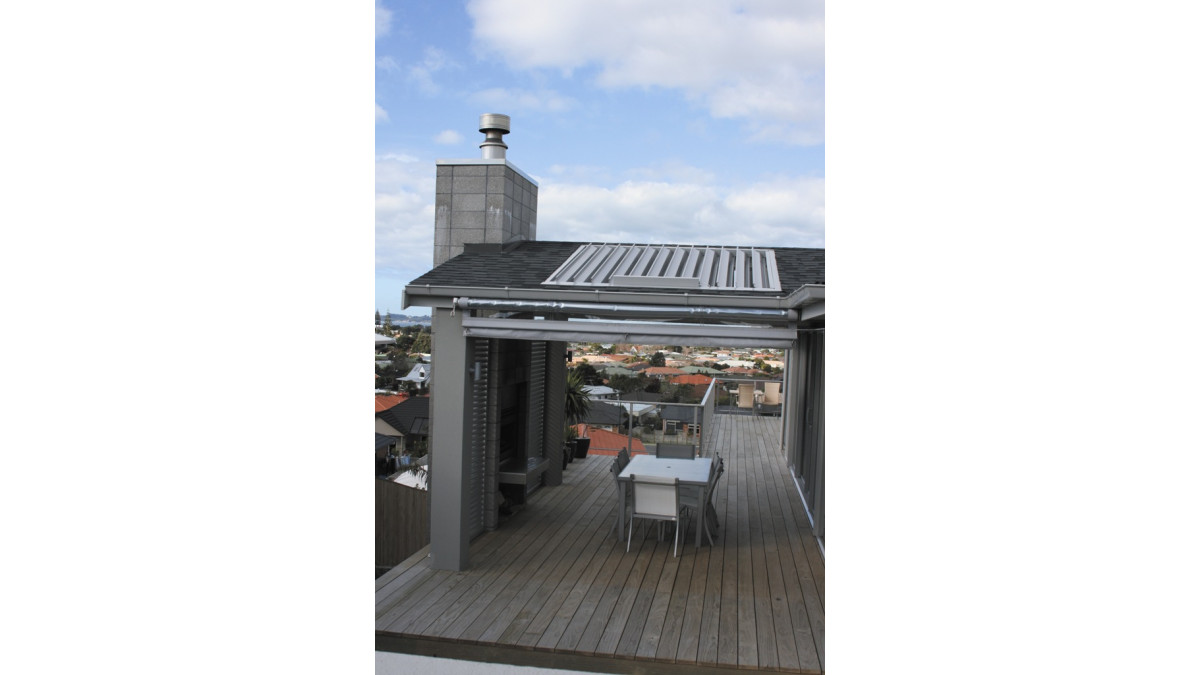

A motorised Opening Roof System (complete with gutter and motorisation) that sits in a specially designed Louvretec frame. Blades are cut to the shape of the roof slope. End users can enjoy the functionality of their opening/closing roof, letting them set the scene as they wish.

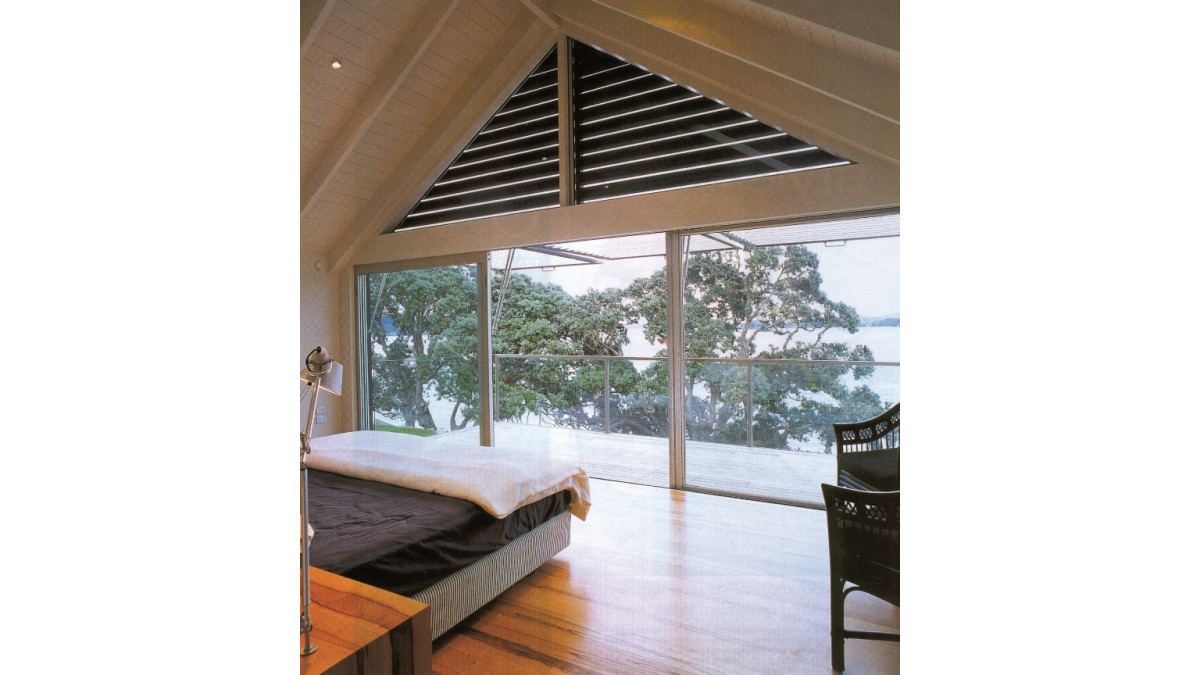

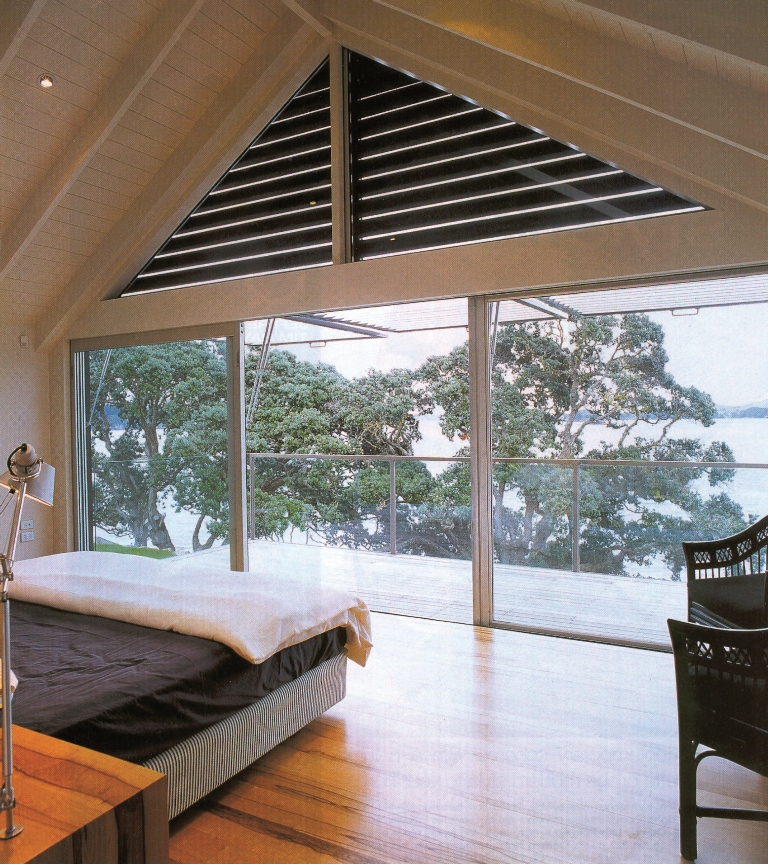

A Louvretec frame provides a great structure for stepped louvre blades to be housed in and also allows for motorisation.

Gain more with skillion roof projects and consider incorporating a Louvretec system.

200 Super Roof

Louvretec

View Product

The 200 Super Roof leads the way with outstanding spanning capabilities.

NZ Made

Used as a weather resistant cover over decks/ patios, outdoor restaurants/ bars, outdoor areas, school play areas, smoking areas, pool/spa covers.
Suitable for coastal, inland, snow, residential, commercial installation.
Opening Roofs are generally installed horizontally overhead. Can be installed on an angle. Can be an irregular shape(refer Louvretec design office)and can be motorized or manually adjustable using the Louvretec Spiral Pivot system.
The Spiral pivot system allows for 180° rotation of the louvres.
Louvre/Beam/Post spans, as per tables 1 and 2, section 12 of the Louvretec Product Catalogue, are certified by Markplan Consulting Limited (Consulting Structural Engineers) and meets the requirements of AS/NZS 1170:2011, NZS3604:2011, AS/NZ 1664:1997.

Corrosion Exposure Zone D

Very High Earthquake Zone

Extra High Wind Zone

Specific Design Wind Zone

Refer to attached Engineering notes and PS1 provided by Markplan Consulting Limited(Consulting Engineers) with regard to B1 and B2.

180mm Airfoil Sun Louvre

Louvretec

View Product

The 180mm wide Airfoil Sun Louvre provides for increased spans for wider openings.

NZ Made

Can be used for sun shading, wind break, privacy and Architectural feature.
Suitable for coastal, inland, snow, residential, commercial installation.
Louvres can be installed horizontally, vertically or at an angle and can be motorized, manually adjustable (Louvretec Spiral Pivot system) or fixed (end or bracket).
The Spiral Pivot system allows for 180° rotation of the louvres.
Louvre spans , as per tables 1 and 2, section 12 of the Louvretec Product Catalogue, are certified by Markplan Consulting Limited (Consulting Structural Engineers) and meets the requirements of AS/NZS 1170:2011, NZS3604:2011, AS/NZ 1664:1997.

Corrosion Exposure Zone B

Very High Earthquake Zone

Extra High Wind Zone

Specific Design Wind Zone

Refer to attached Engineering notes and PS1 provided by Markplan Consulting Limited(Consulting Engineers) with regard to B1 and B2.

180 Linear Opening Roof

Louvretec

View Product

The 180 Linear Opening Roof is all about straight lines.

NZ Made

Used as a weather resistant cover over decks/ patios, outdoor restaurants/ bars, outdoor areas, school play areas, smoking areas, pool/spa covers
Suitable for coastal, inland, snow, residential, commercial installation
Opening Roofs are generally installed horizontally overhead. Can be installed on an angle. Can be an irregular shape (refer Louvretec design office) and can be motorized or manually adjustable using the Louvretec Spiral Pivot system
The Spiral pivot system allows for 180° rotation of the louvres
Louvre/Beam/Post spans, as per tables 1 and 2, section 12 of the Louvretec Product Catalogue, are certified by Markplan Consulting Limited (Consulting Structural Engineers) and meets the requirements of AS/NZS 1170:2011, NZS3604:2011, AS/NZ 1664:1997

Corrosion Exposure Zone D

High Earthquake Zone

Low Earthquake Zone

Medium Earthquake Zone

Very High Earthquake Zone

Specific Design Wind Zone

Refer to attached Engineering notes and PS1 provided by Markplan Consulting Limited (Consulting Engineers) with regard to B1 and B2.
