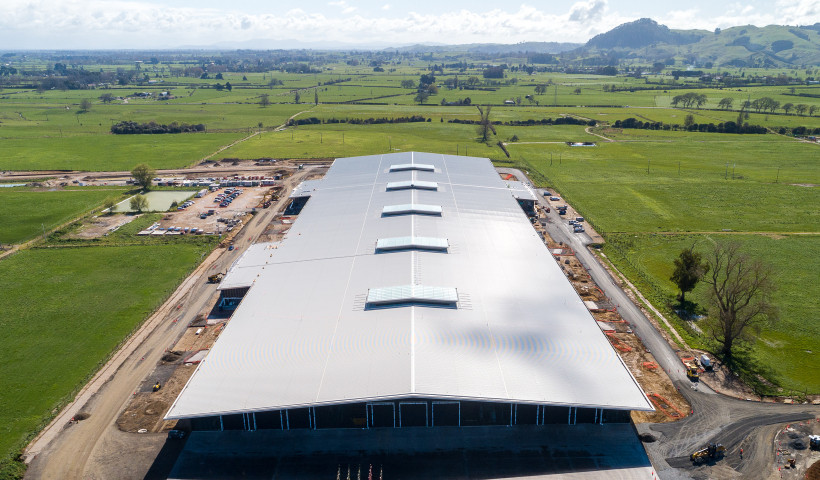

The KS1000RW Trapezoidal Roof Panel is a through-fixed, trapezoidal profiled roof system which can be used for building applications with roof pitches of 4° or more after deflection. For lower pitches, please contact Kingspan.

The standard specification for KS1000RW Trapezoidal Wall Panels is suitable for both vertical or horizontal walls — alternative specification available including high humidity and low temp.

All Kingspan panels, including the KS1000RW Trapezoidal Roof and Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, up to and beyond the Extra High wind zones.

Show more

When designed, used, installed and maintained in accordance with Kingspan standard details, the KS1000RW Trapezoidal Roof & Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4

B2 Durability — B2.3.1(b)

C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7

E2 External Moisture — E2.3.1 (roof only); E2.3.2; E2.3.7

E3 Internal Moisture — E3.3.5

F2 Hazardous Building Materials — F2.3.1

H1 Energy Efficiency — H1.3.1

Codemark Certification demonstrates compliance to the NZBC equivalent of an Acceptable Solution. Some specialist buildings may fall partially or wholly outside of the scope of the Codemark Certificate, should this occur then please contact Kingspan Technical for assistance in demonstrating NZBC compliance via an Alternative Solution.

Show more

CodeMark

Independent Assessment

Test Results

• An insulated wall panel system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings

All Kingspan panels, including Architectural Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones.

Show more

Architectural Wall Panels hold a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE — Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Architectural Wall Panel is compliant with the following clauses on the NZBC:

• B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
• B2 Durability — B2.3.1(b)
• C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
• E2 External Moisture — (contributes to) E2.3.2; E2.3.7
• E3 Internal Moisture — E3.3.5
• F2 Hazardous Building Materials — F2.3.1
• H1 Energy Efficiency — (contributes to) H1.3.1

Codemark Certification demonstrates compliance to the NZBC equivalent of an Acceptable Solution. Some specialist buildings may fall partially or wholly outside of the scope of the Codemark Certificate, should this occur then please contact Kingspan Technical for assistance in demonstrating NZBC compliance via an Alternative Solution.

Show more
