Hale Manufacturing's Swiss CDF Brings New Life to Toilet Partitions and Washrooms

Versatile and durable, Hale's Swiss CDF 13mm Partitioning System is an economical alternative to Compact Laminate. Utilising Kronoswiss Compact Density Fibreboard (a black-cored exceptionally high-density fibreboard) faced with a high-pressure Laminate, with Kraft paper backing and a clear overlay, the CDF system is impact resistant, flame retardant and splash water-resistant, making it an ideal solution in hose-down environments such as showers toilets and changing rooms.

Certified antimicrobial to JIS Z2801:2000, Hale's Swiss CDF is proven to prevent bacterial growth to 99% within 24 hours.

Hale Swiss CDF panels are 2070mm wide, eliminating the need for joints in most cases and the Swiss CDF boards feature black panel edges which can either be sealed with paint, wax or oil to finish the design or left as is for a natural finish.

Hale Manufacturing offers a two-year installation guarantee when using its experienced installation team, and the Swiss CDF board comes with a five year guarantee. A flexible design and available in ready to install flat packs, this system comes complete with shop drawings and installation manuals for self-installation.

The Hale Swiss CDF Partitioning System has been teamed with the Xcel suite of hardware with rise and fall hinges, adjustable pedestals and full-length wall channel fixing. This system features flush doors for a clean and elegant look, while privacy strips are available as an optional additional feature to ensure maximum privacy.

Hale Manufacturing works closely with architects to ensure both the design visions and client requirements are achieved.

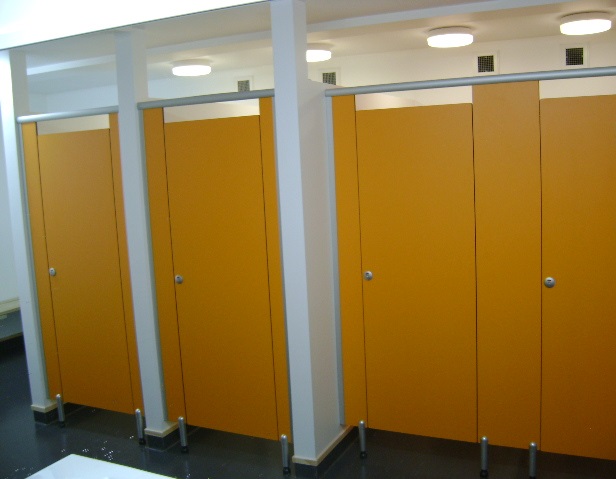

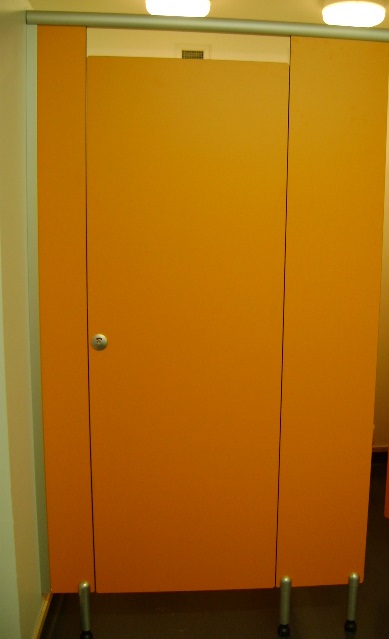

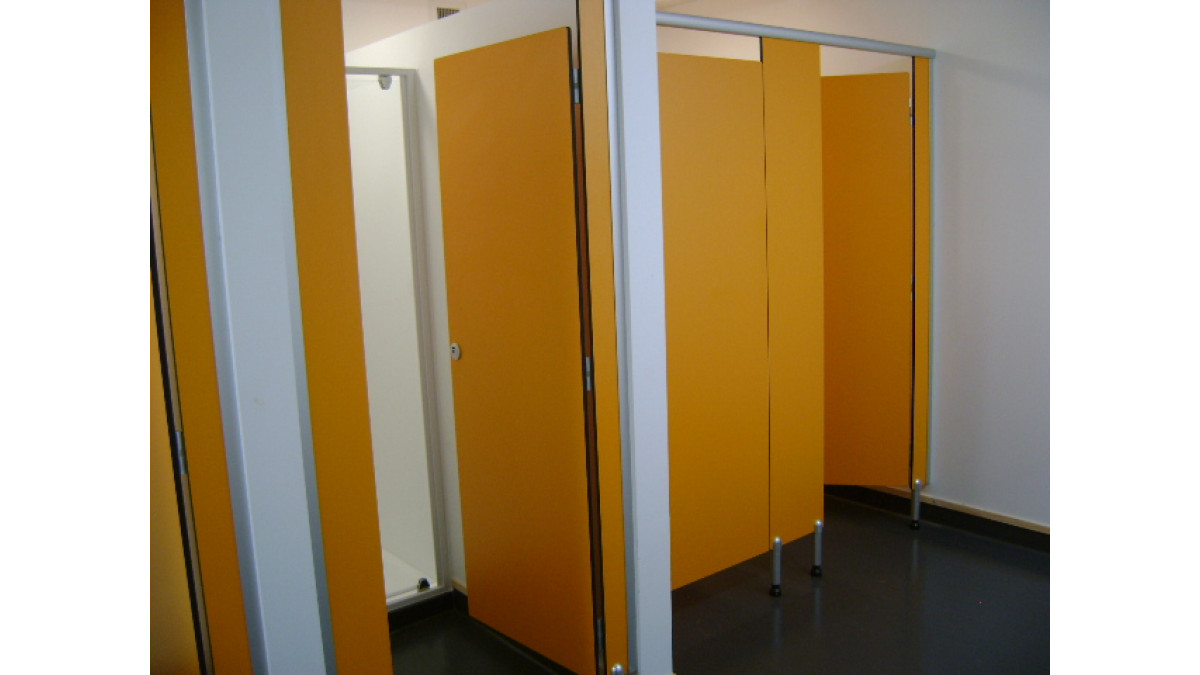

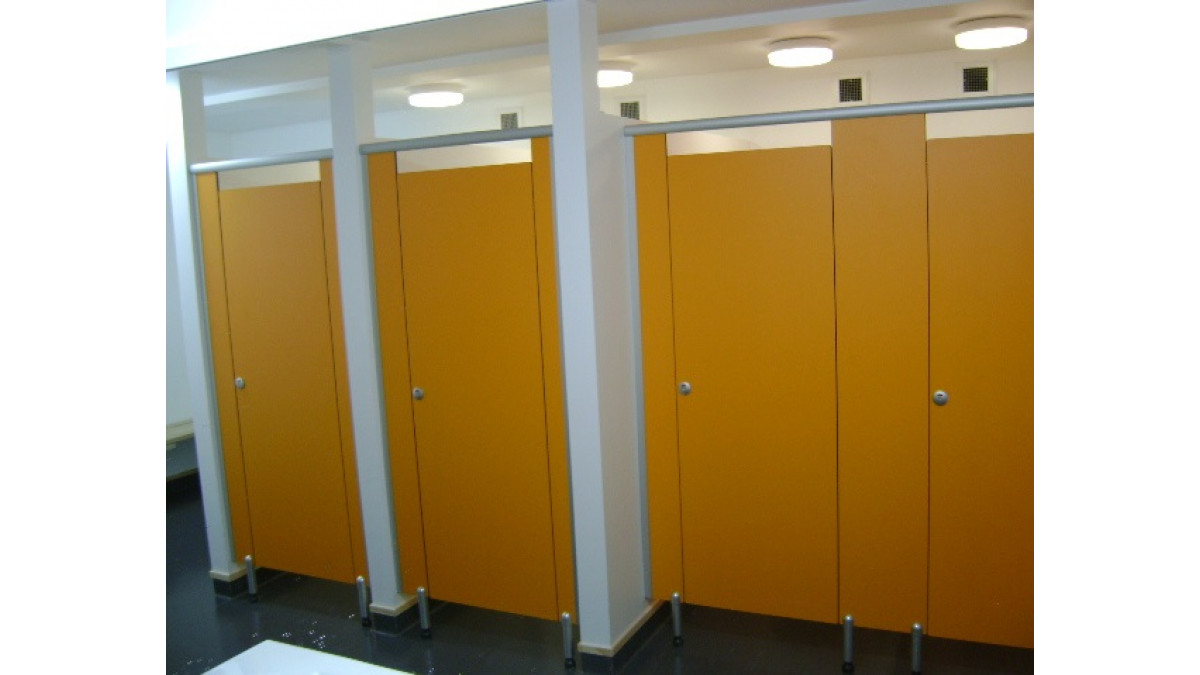

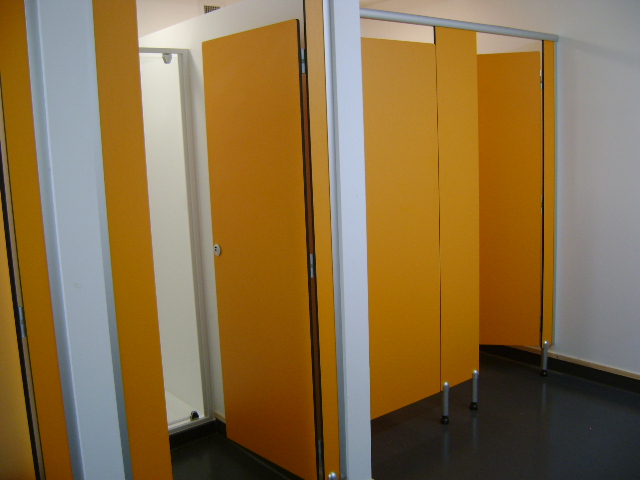

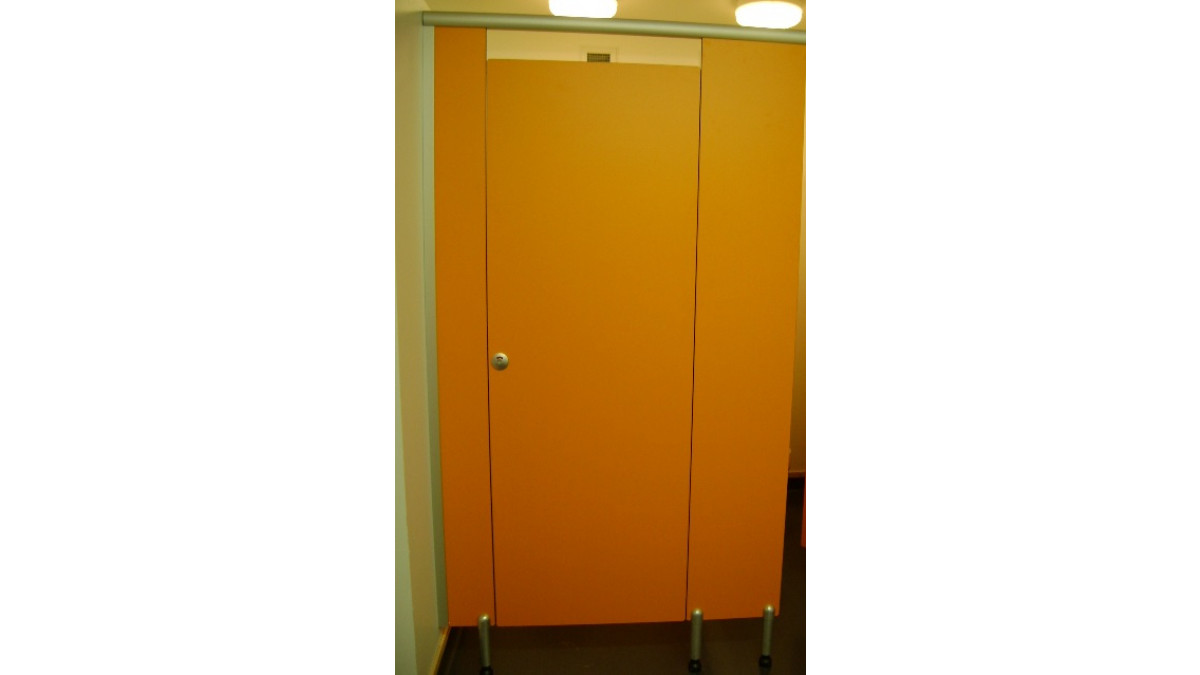

Project Location: Glen Eden

Partition System: Hale Swiss CDF 13mm Partition System

Colour: Jaffa Orange

Contractor: Cape Interior Construction.

View more information on Hale Manufacturing, including contact details.
