Extra High Wind Resistance from CertainTeed Asphalt Shingles

Viking CertainTeed is a BRANZ-appraised system of asphalt shingles that has a successful 28 year history in New Zealand and the Pacific Islands. Its portfolio includes profiles capable of reaching an uplift resistance of 205 km/h, achieving an Extra High wind rating.

Before the shingles are laid, a substrate of 15mm plywood or 16.3mm SuperStrand is installed, fixed directly to the truss which provides the base for the CertainTeed Shingles. This substrate provides additional bracing to the entire building, increasing its strength.

Securing each shingle (915mm wide) to the substrate are five stainless steel clout nails with a ring shank, for greater pull out resistance, and a large 9mm head.

CertainTeed Shingles are installed with multiple overlapping layers, providing a strong barrier against wind-driven rain. Even if water is able to track under a shingle, it will come out on top of the underlying shingle, preventing any damage to the substrate or insulation within the home.

The CertainTeed Shingles also have a factory adhesive strip which bonds the multiple layers of shingles together. When the shingles are fixed down on top of each other, the natural heat from the sun activates the adhesive strips (on the underside of the shingles), and these shingles bond to those underneath. This provides strength to the shingles and prevents the risk of the tabs lifting and tearing off in windy conditions.

The CertainTeed Shingle has been manufactured in the USA for over 100 years, providing a century of research and development into the formulation of the adhesive strips.

Asphalt shingles are available with wind ratings ranging from Medium (133 km/h) to Very High (175 km/h). Fixing specifications and warranties are available from Viking Roofspec for users seeking an Extra High wind rating of 205 km/h.

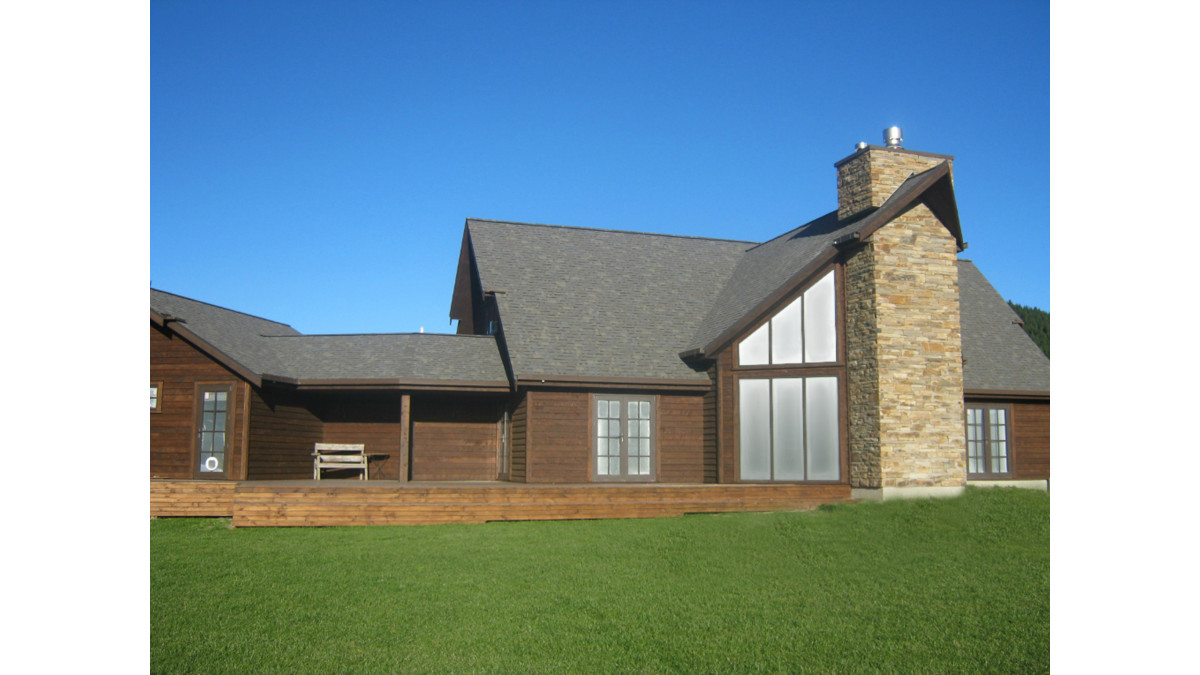

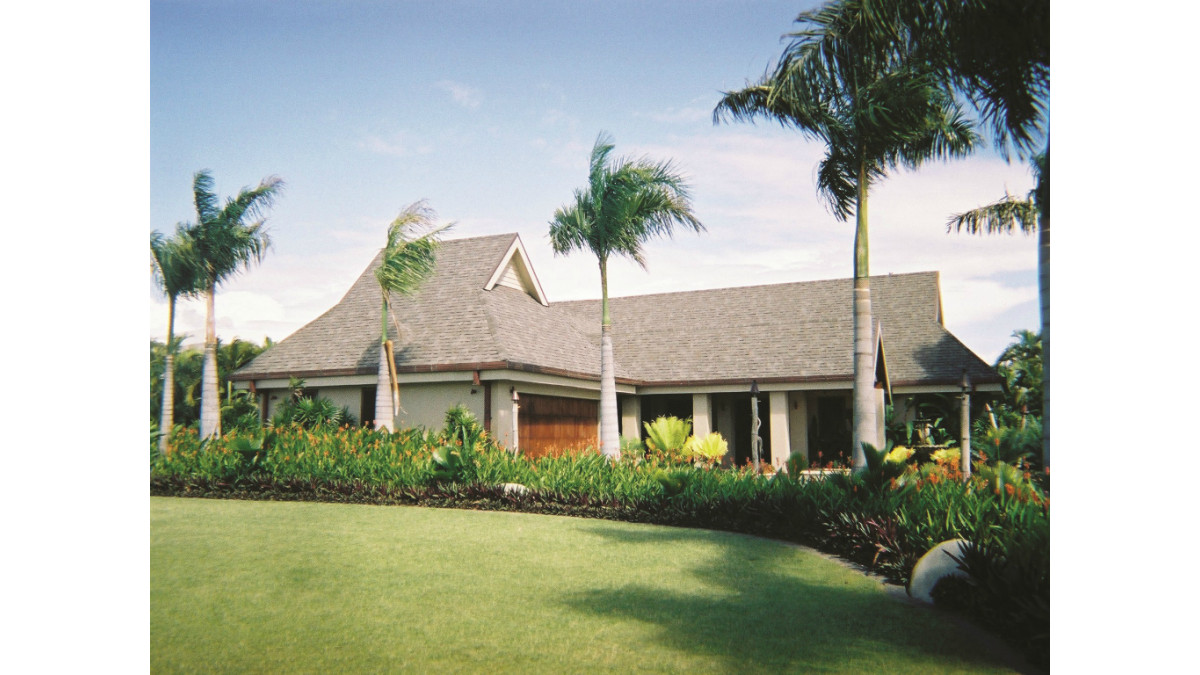

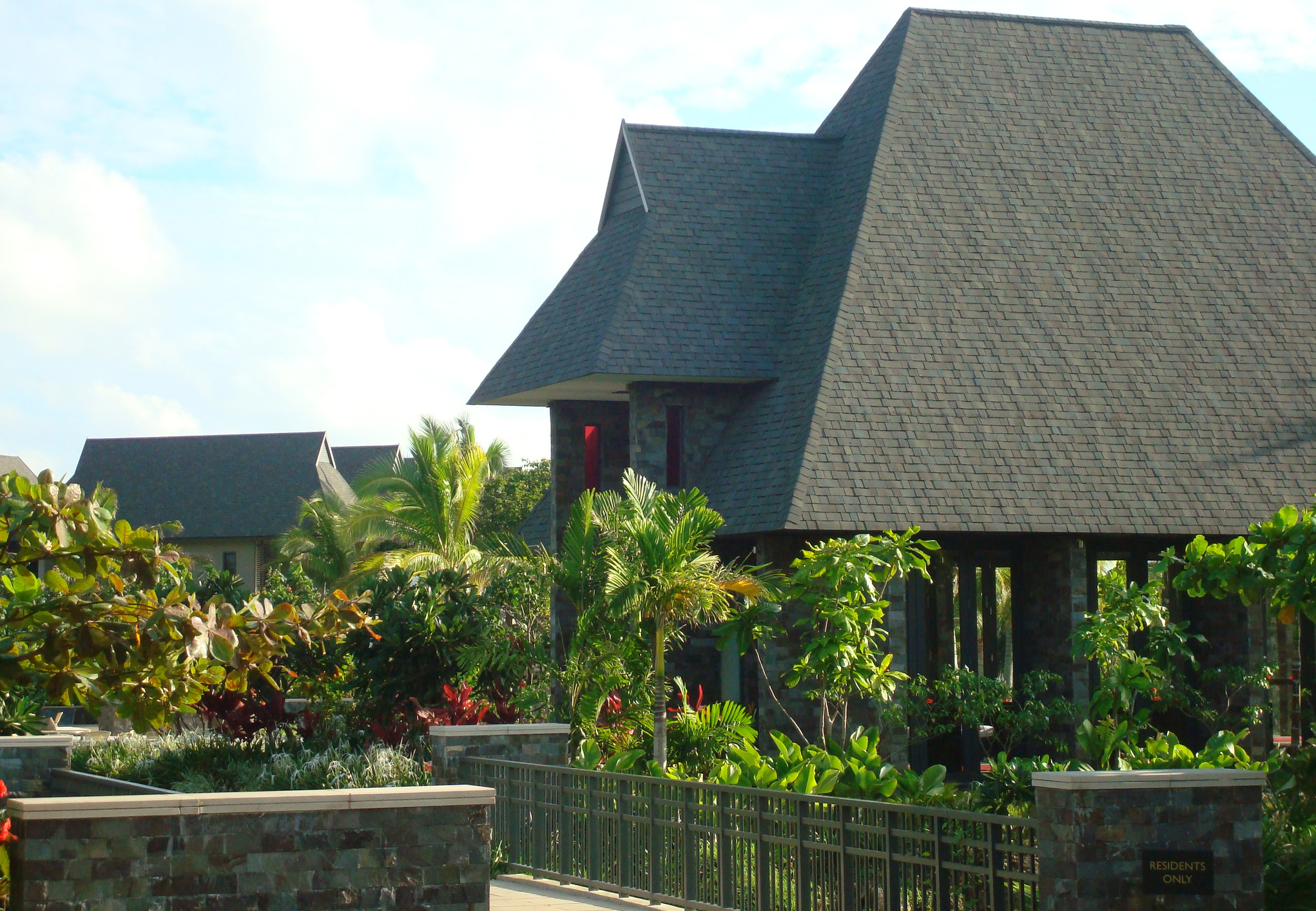

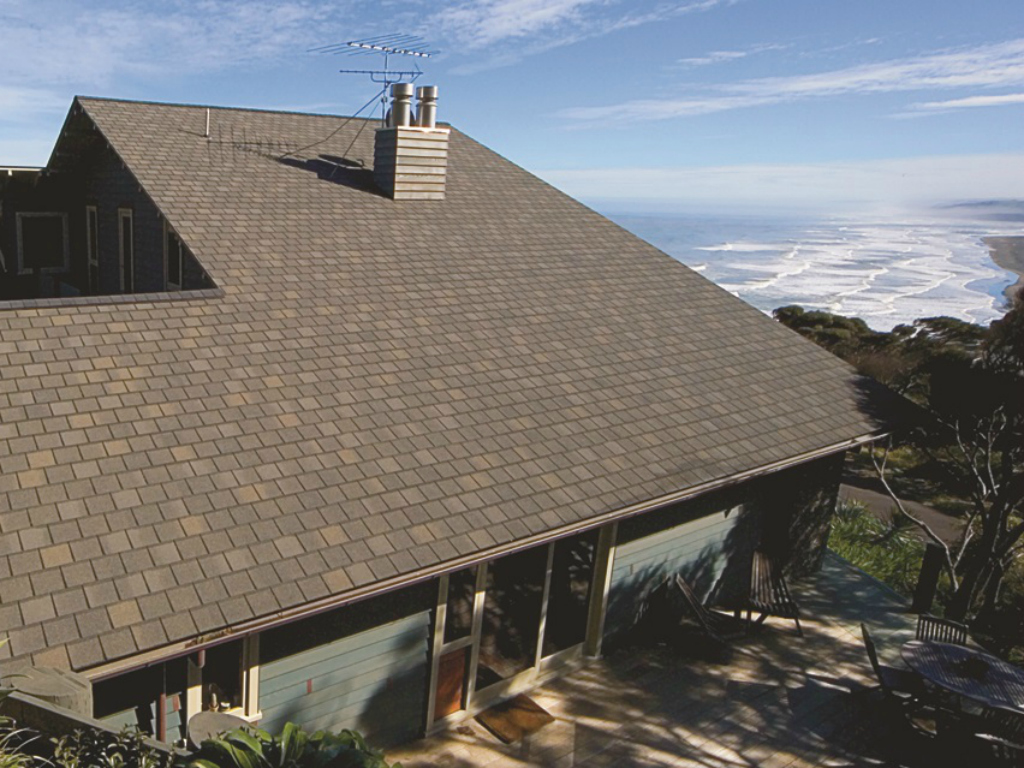

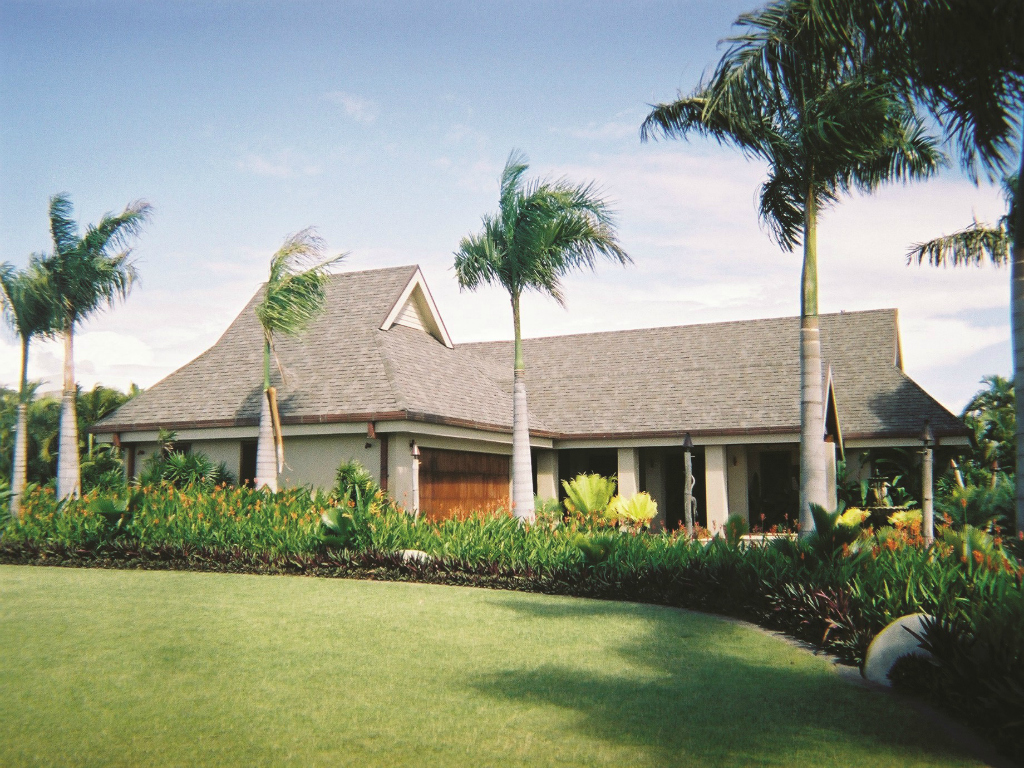

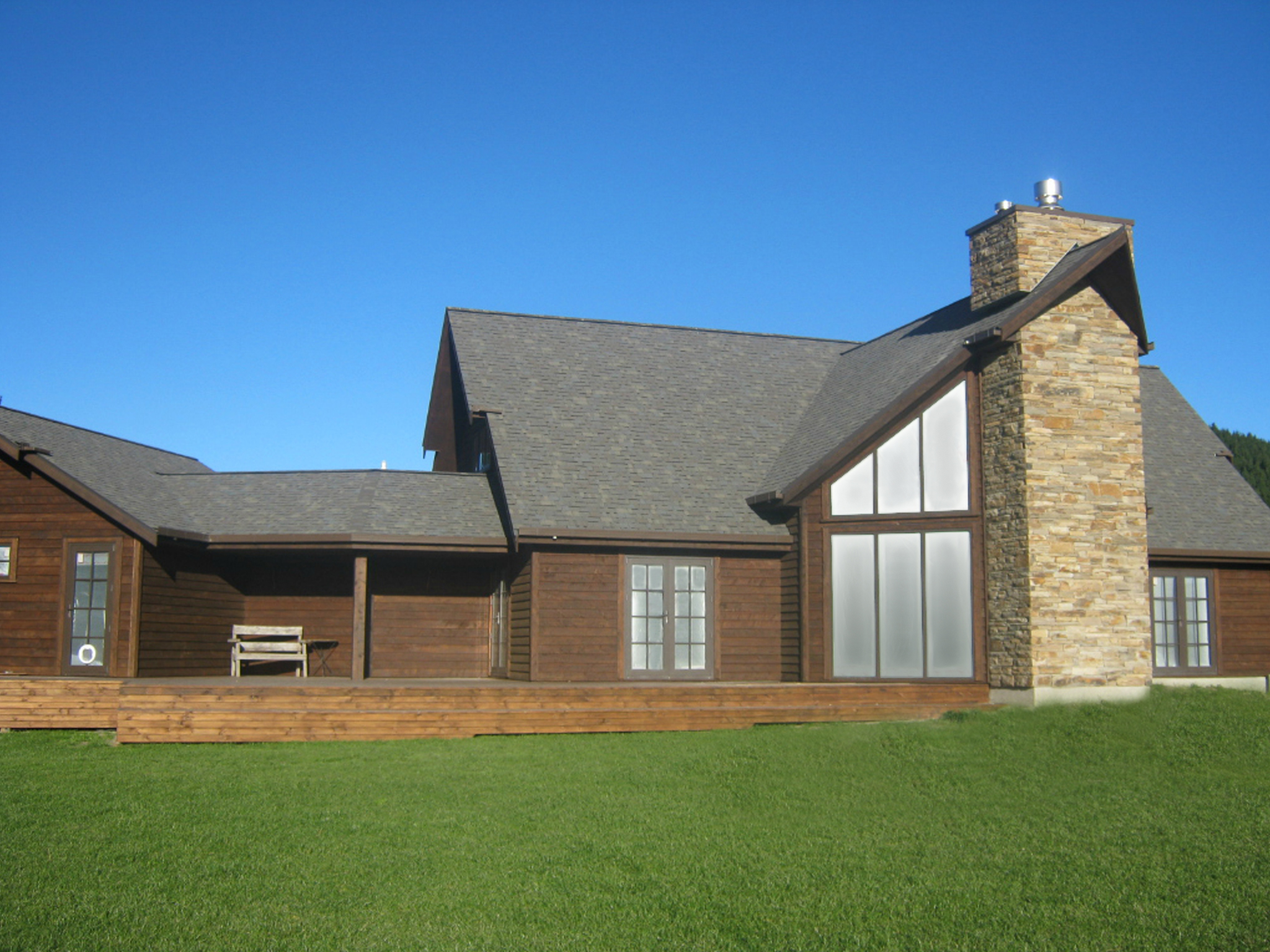

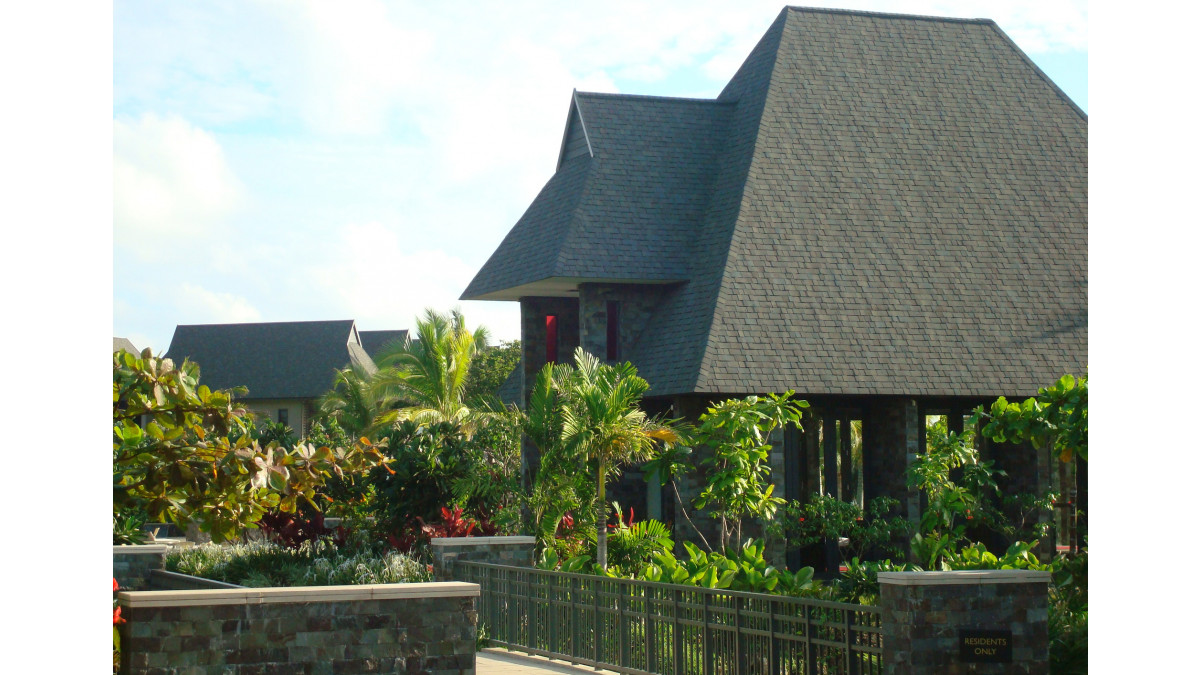

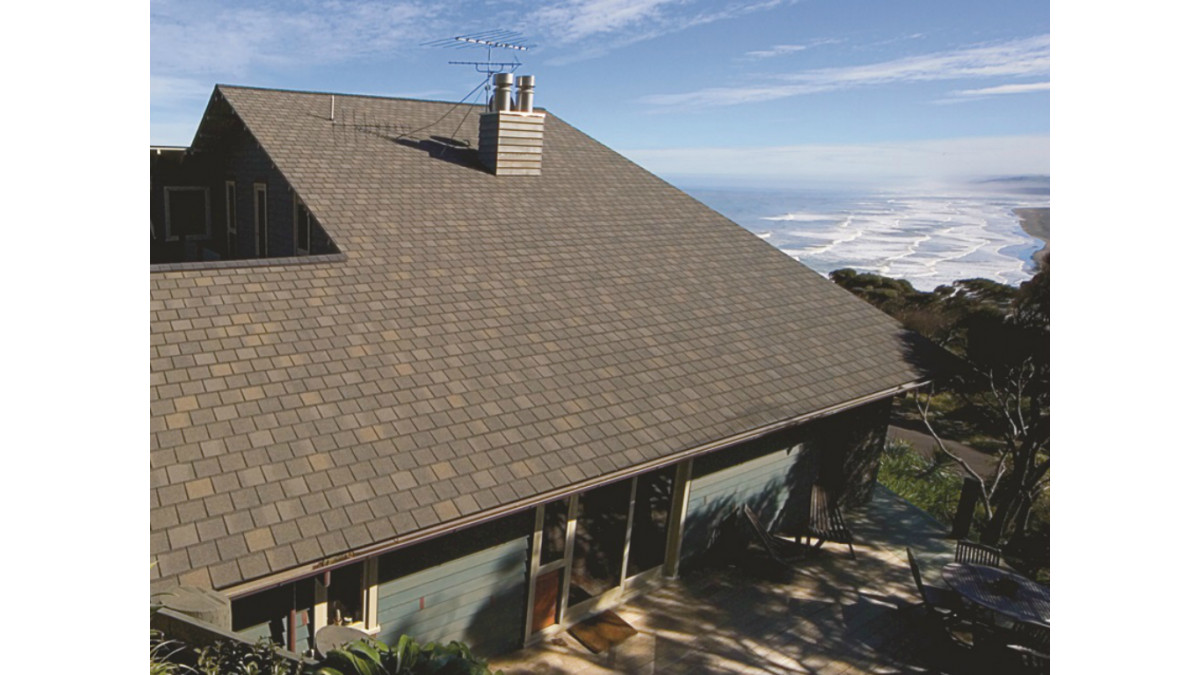

Renowned for its resilience in extremely high winds, resorts and cliff-top homes in New Zealand and the Pacific Islands have requested the CertainTeed Asphalt Shingle system by name, to protect their buildings where many alternatives have failed.

Read more about CertainTeed's warranties, wind ratings and other benefits, or for further information get in touch with a Viking Territory Manager.

CertainTeed Asphalt Shingles

Viking Roofspec

View Product

Asphalt shingles are individual bituminous sheets (usually 915mm long), nailed on top of a timber-sarked roof substrate with either a layer of bitumen felt or self-adhering membrane in-between.

NZ-Owned Business

Suitable for residential and commercial pitched roofs and can be used as a re-roofing solution.

Viking CertainTeed Asphalt Roofing Shingles have been appraised as a roof cladding for buildings within the following scope:

The scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1, with regard to floor plan area and building height; and,
Constructed with timber roof framing and sheathing complying with the NZBC; and,
Where the roof slope is 9 degrees or greater for plywood and 10 degrees or greater for Strandsarking; and,
Situated in NZS 3604 Wind Zones up to and including High, or Extra High for the Landmark Series, Hatteras and Independence shingles only.

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.3 and B1.3.4. Viking CertainTeed Asphalt Roofing Shingles meet the requirements for loads arising from self-weight, gravity loads, temperature, snow, wind, impact and creep [i.e. B1.3.3 (a), (b), (c), (g), (h), (j) and (q)]. See paragraphs 8.1 - 8.9 of the Viking CertainTeed BRANZ Appraisal.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking CertainTeed Asphalt Roofing Shingles meet this requirement. See paragraphs 9.1 and 9.2 of the Viking CertainTeed BRANZ Appraisal.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.6. Viking CertainTeed Asphalt Roofing Shingles meet these requirements. See paragraphs 13.1 and 13.2 of the Viking CertainTeed BRANZ Appraisal.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking CertainTeed Asphalt Roofing Shingles meet this requirement and will not present a health hazard to people.

BRANZ Appraised
