The challenges of urban heat and stormwater management
The impacts of climate change are something we have all witnessed. In cities, this often manifests as what we call the "urban heat island effect." Traditional building materials like asphalt and concrete absorb and trap heat, leading to significantly higher temperatures in urban areas compared to their rural surroundings. This, coupled with the increasing frequency of intense rainfall events, exacerbates urban flooding. The challenge for architects and urban planners is clear: how do we create buildings that not only withstand these environmental pressures but also contribute to a healthier urban ecosystem?
![](/assets/Uploads/detailed/2024/08/Auckland-Street-showcasing-Urban-Heat-Island__ResizedImageWzQ2NSw3NDhd.jpg)

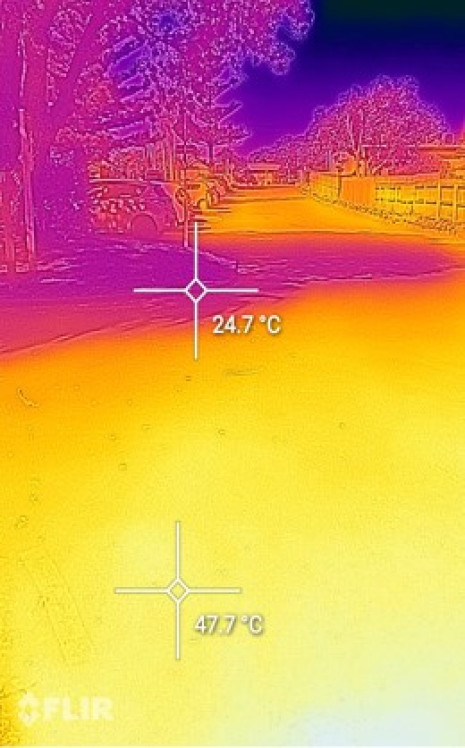

Image: Auckland Residential Street highlighting that the road has reaches 47.7 degrees, meanwhile below the shade of the tree it is 24.7 degrees.
Green Roofs are a complex system that requires careful consideration of multiple factors, including weight, water retention, and the type of vegetation.
Understanding Green Roof Types
The first step in green roof design is selecting the right type of green roof. Generally, green roofs can be categorised into four main types:
Extensive green roofs
These are the lightest and most cost-effective. They have a shallow growing medium (about 75mm), which makes them ideal for buildings with limited load-bearing capacity. The vegetation is usually limited to hardy, low-maintenance plants like sedums and succulents.
Semi-intensive green roofs
These roofs have a medium depth growing medium (around 150mm) and can support a wider variety of plants, including some native species like grasses and ground covers. They offer a balance between weight, cost, and biodiversity.
Intensive green roofs
These have a deep growing medium (300mm or more), allowing for a diverse range of plants, including trees and shrubs. However, they require significant structural support due to their weight.
Blue-green roofs
A newer concept, these roofs combine the vegetation of green roofs with water management systems. They are designed to slow down and retain stormwater, reducing the strain on urban drainage systems during heavy rain events.
The benefits of green roofs
Green roofs are not just about aesthetics; they offer tangible benefits that address some of the most pressing issues in urban design today. Some of these benefits include:
Stormwater management
A well-designed green roof can absorb up to 70% of the rainwater that falls on it. This not only reduces the volume of water entering stormwater systems but also improves water quality by filtering out pollutants.
Urban heat island mitigation
Green roofs keep buildings cooler, which in turn reduces the demand for air conditioning. Cooler roofs also enhance the efficiency of solar panels.
Biodiversity
By providing a habitat for plants, insects, and birds, green roofs contribute to urban biodiversity. This is particularly important in dense urban environments where natural habitats are scarce.
Human wellbeing
Green roofs can transform unused rooftops into vibrant spaces for relaxation, socialising, or even urban farming, contributing to the overall wellbeing of city dwellers.
A closer look: The green roof build-up
Understanding the technical aspects of a green roof’s build-up is essential for ensuring its optimal performance. The process begins with the substrate of the building, which may be concrete, metal, or plywood, depending on the design. This substrate must be structurally sound to support the weight of the green roof.
Next, a vapour barrier is installed to protect the insulation from moisture rising from the building below, ensuring the insulation maintains its thermal resistance, or R-value, over time. The insulation itself is crucial; it must provide effective thermal resistance while being strong enough to support the additional weight. At Nuralite, we recommend placing insulation on the exterior of the structure, known as the "Warm Roof" concept, to maximise thermal efficiency.
On top of the insulation, we apply the roofing membrane. At Nuralite, we use the Nuraply 3PG, a double-layer bituminous membrane system specifically designed for green roofs. This membrane includes a root inhibitor to prevent plant roots from damaging it, crucial for maintaining the integrity of the waterproofing layer.
The next layer is the drainage layer. We use Nuramat Green Drain, a specialised product for green roofs. This drainage layer facilitates the flow of water away from the soil while preventing stagnant water. It also features small cups that act as water reservoirs, intentionally retaining moisture to irrigate the living roof.
The final layer consists of the green roof build-up itself. For a cost-effective solution this can start with pebbles and can later be upgraded to a full living roof, depending on the design and requirements of the project.
Conclusion
Green roofs represent a crucial innovation in the future of urban design. They offer practical solutions to pressing challenges such as urban heat islands and stormwater management while enriching city landscapes with biodiversity and enhancing human wellbeing.
As urban areas expand and climate pressures intensify, integrating green roofs into our architectural strategies will become increasingly essential. Their ability to mitigate heat, manage stormwater, and transform unused spaces into thriving environments positions them as a key component in building resilient, sustainable cities. Embracing green roofs not only addresses immediate environmental concerns but also paves the way for vibrant, adaptable urban spaces that foster both ecological and human health. As we look ahead, green roofs will undoubtedly play a pivotal role in shaping a greener, more sustainable urban future.
For more information watch the latest Green Roof webinar by Nuralite
