Description

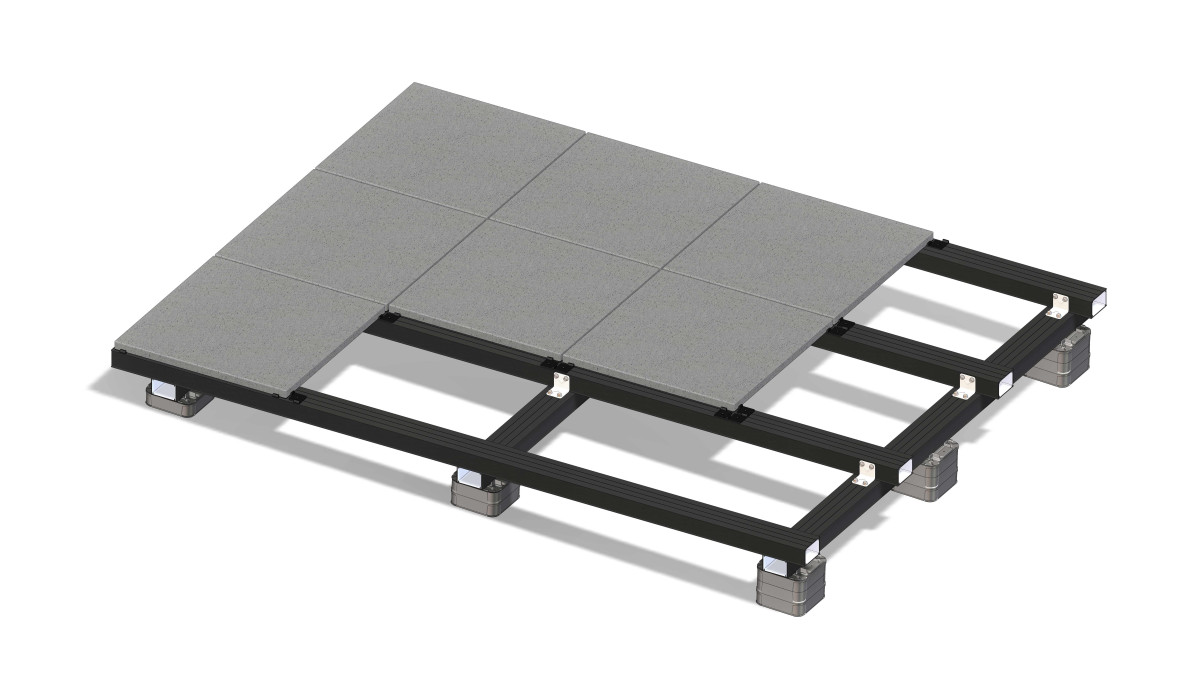

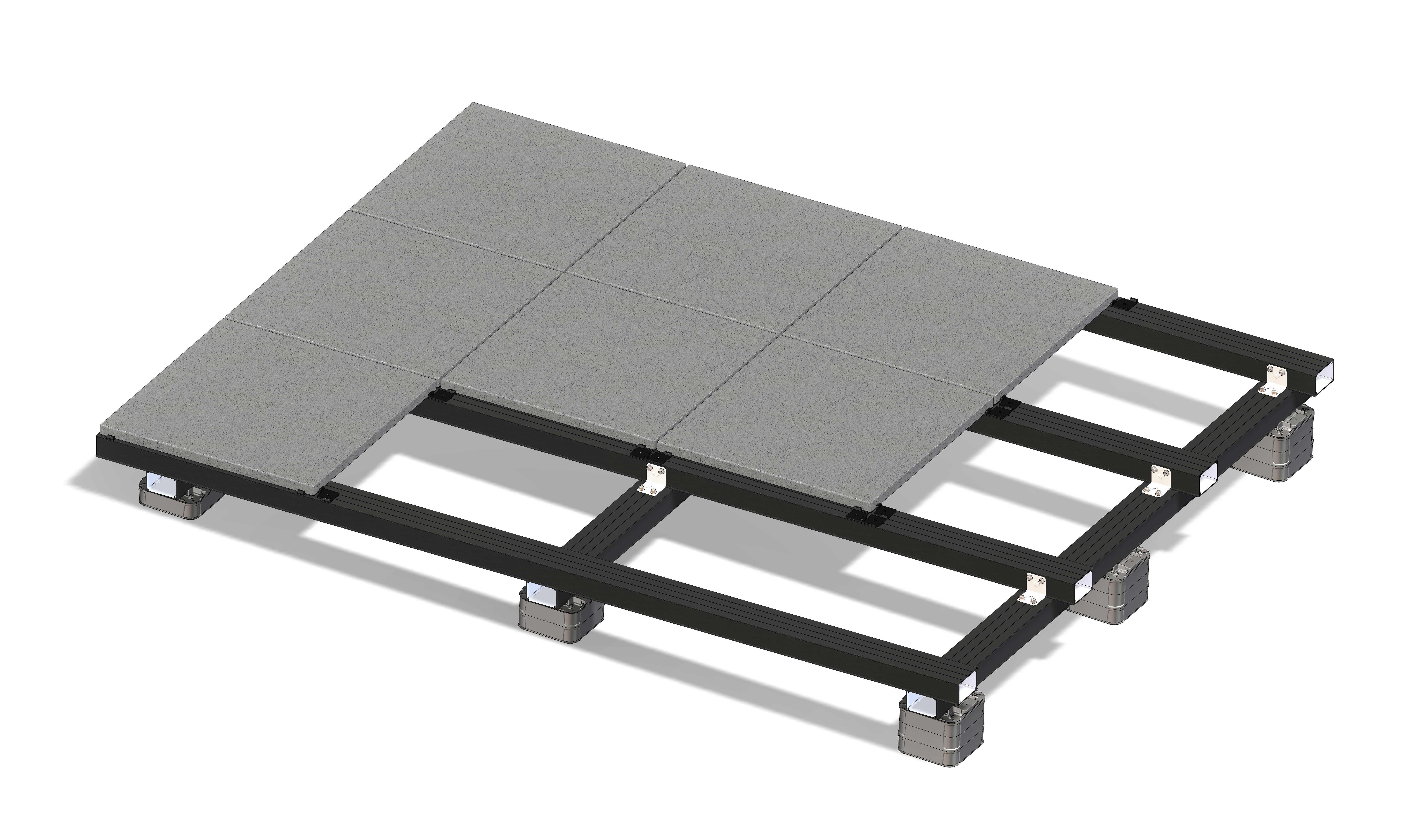

Proframe Alumiunium Framing provides a strong and stable platform for structural tiles and pavers to be laid, and makes it easy to build low level support over membrane and concrete substrates.

The system consists of:

Extruded aluminium joist and bearer manufactured from 6063 T5 powdercoated aluminium: 70x45mm in 3 standard lengths (3.6m, 4.8m, 6.0m)
Extruded aluminium deck and tile trim manufactured from 6063 T5 powdercoated aluminium (43 x 43mm)
Projack support feet manufactured from polypropylene (125 x125mm): 5 sizes — can be stacked in any combination to make any height from 5mm to 300mm
Joist connectors and connector fasteners in 304 grade stainless steel with black coating: right angle connector and straight connector

Key Features

Speeds up installation of the tiles — installed in less than half the time
The tiles won’t move or wobble in high foot traffic areas
There is no ongoing adjustment required to maintain a flat level safe surface
Tile edge trim locks the tiles into place
Suitable for commercial load ratings

Scope of Use

For residential and commercial applications for 2kpa to 4 kpa as standard design
Fleixability to transition from tiles to decking or Tiger turf

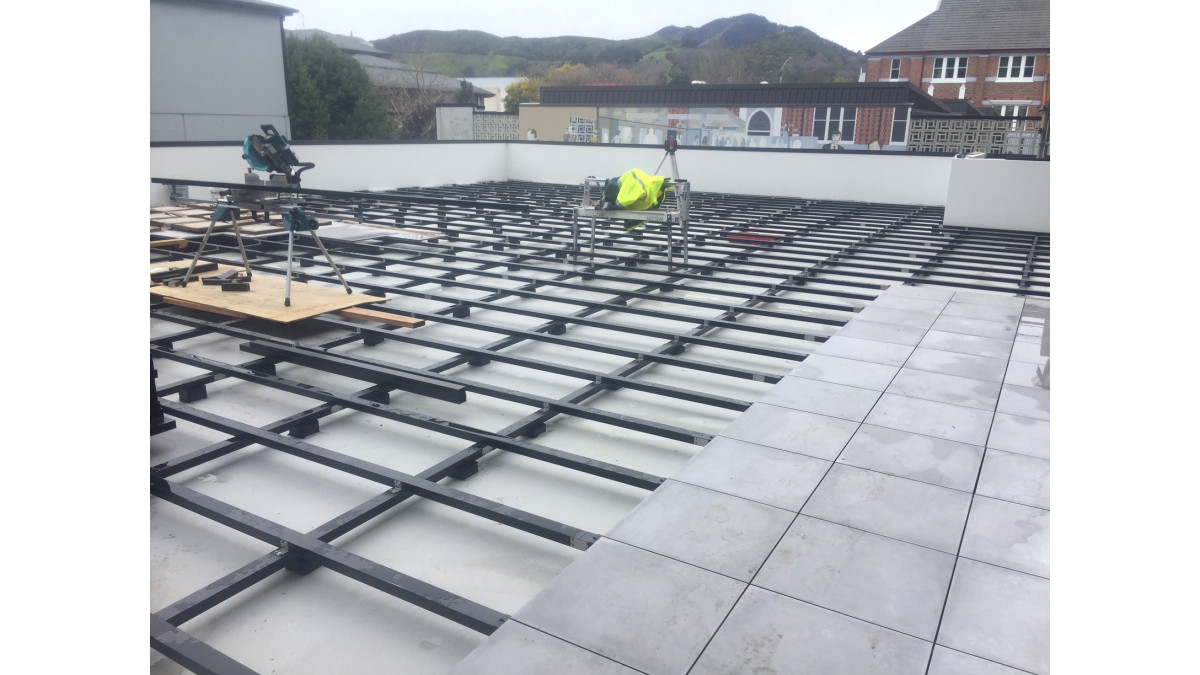

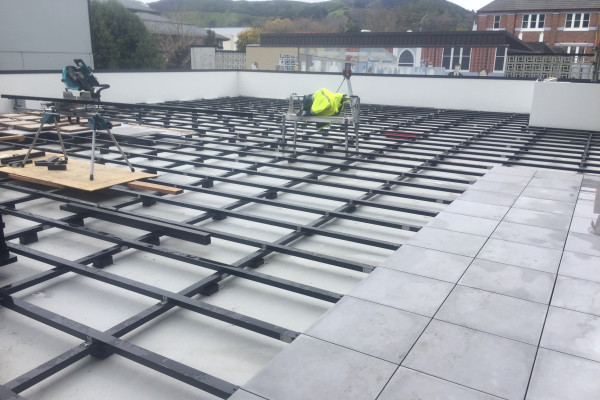

Over existing or new membrane structures as a floating frame
Low height around a pool applications
Decks as low as 70mm

Limitations on Use

No handrails should be supported either surface or face mounted to the Proframe joists, unless specifically designed by an engineer
Ensure a 15mm standoff is maintained around all deck edges where they meet any vertical surfaces
