JESANI Accessible Solution Channel
Description

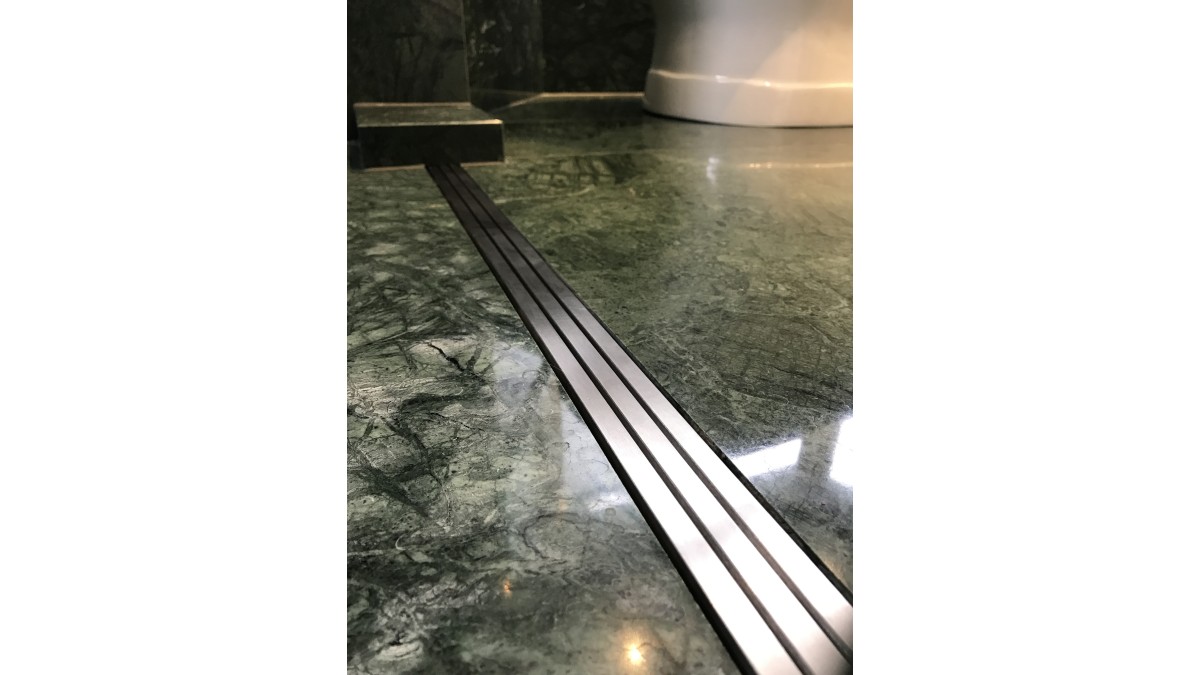

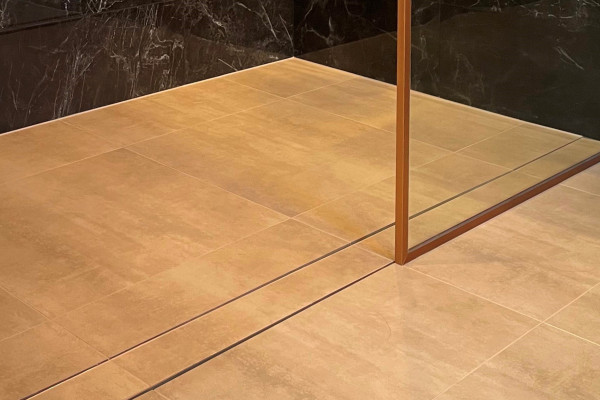

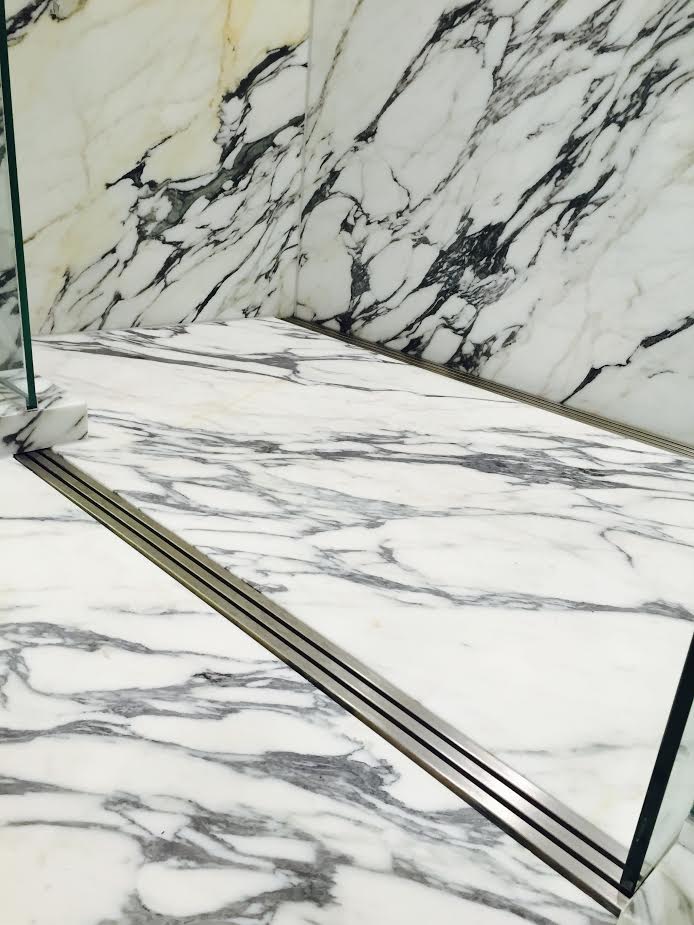

The JESANI Accessible Solution Linear Drainage Channel is designed on a per project basis to allow ease of access to a shower zone, whilst ensuring the water is all drained away to eliminate the possibility of water overflow that can create a slippery hazard outside the shower area.

The channel is manufactured in Grade 304, 1.5mm thick Stainless Steel with a 10-40mm deep trough and extensive vertical and horizontal flanges.

The accessible entry channel design creates a more accessible and safer floor area for all ages, abilities and mobility aids, eliminating hazardous nib walls/step overs. These hazards are effectively designed to contain water with-in the shower with direction to the small circular waste.

Key Features
  • BRANZ appraised
  • LIFEMARK product approved
  • Grade 304 stainless steel (316 upon request)
  • Stainless finish
  • Powdercoated grill/grate finish available upon request
  • Tile insert option upon request
  • Flange configuration to suit tiled walls or glass walls
  • Custom designed lengths and outlet positioning
  • 50mm threaded outlet
  • Easy installation
Lifemark Product Partner
Lifemark Product Partner
NZ Made
NZ Made
Scope of Use

The JESANI Accessible Shower Channel allows for level entry access to Shower areas eliminating the need for nib/step over walls. This prevents hazards for people of all ages, abilities and more importantly, the use of mobility aids.

The channel design is specified to suit so only a one way fall is required removing the four way uneven fall configuration. This prevents another hazard and allows peace of mind living for everyone.

Limitations on Use
  • Designed for interior use only
Statement of Building Code Compliance

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
  • Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
  • Clause F2 Hazardous Building Materials: Performance F2.3.1
  • Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

In-Service History

The JESANI Accessible Solution Channel has been in use since 2018

Other Performance Attributes
  • BRANZ Appraisal 934
  • LIFEMARK product approved
  • Grade 304, 1.5mm thick stainless steel (Grade 316 if requested/required)

Durability

The serviceable life of JESANI Shower and Door Channels, when subjected to normal conditions of environment and use, is expected to be compatible with the waterproofing membrane and floor finishes to which they are fitted.

Maintenance

Cleaning care of the stainless steel channel:

  • Avoid carbon steel brushes or steel wool and abrasive detergents; the brushes and wool may leave particles embedded on the surface which can lead to rusting, and abrasive cleaners could introduce the possibility of scratching the surface
  • Clean warm water and wipe are the simplest and safest method, followed by a clean water rinse and dry wipe. Stainless steels thrive with frequent cleaning
  • Periodically allow a cup of clean water to flow down the drain to keep it clear of dust/lint buildup
BRANZ Appraised
BRANZ Appraised
Documents
BRANZ Appraisal 934

934 [2021]

Installation and Operation
Brochure
Video Demonstrations
CAD/PDF Details

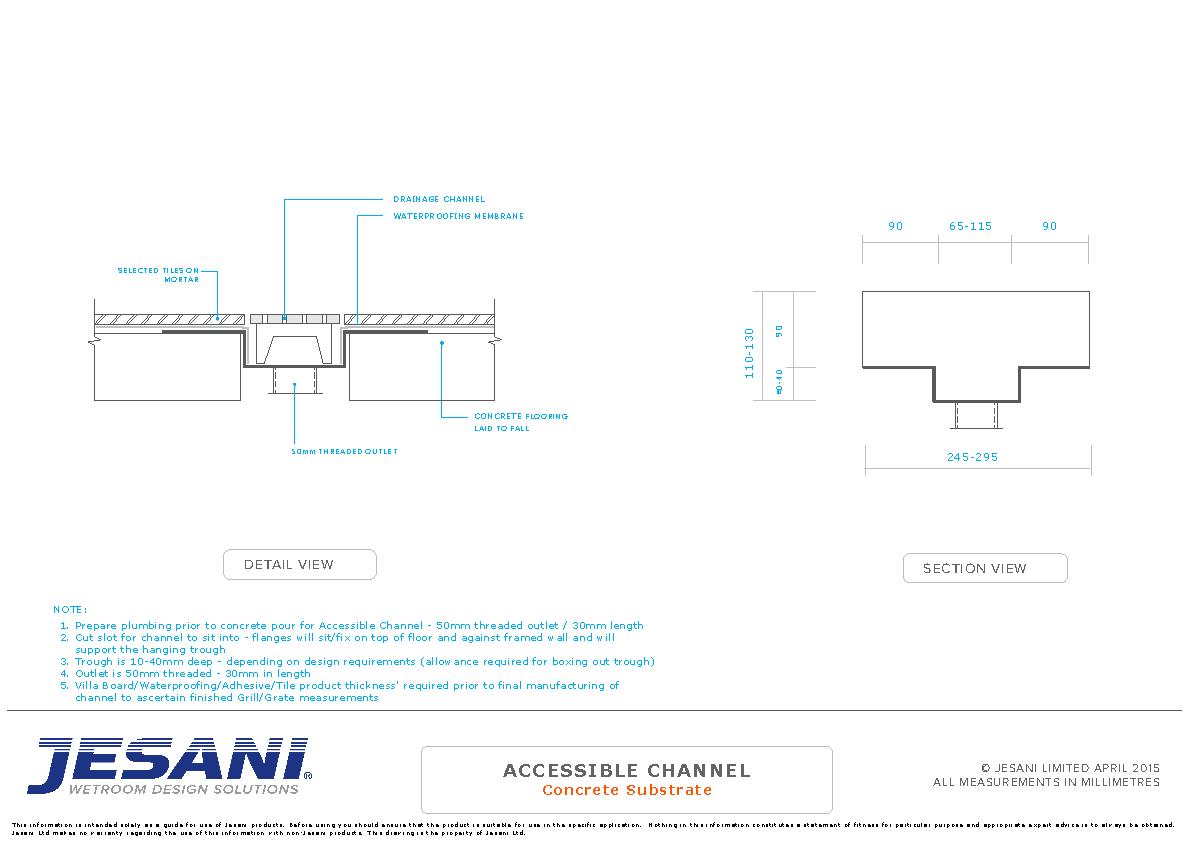

Accessible Shower Door Channel — Concrete Substrate

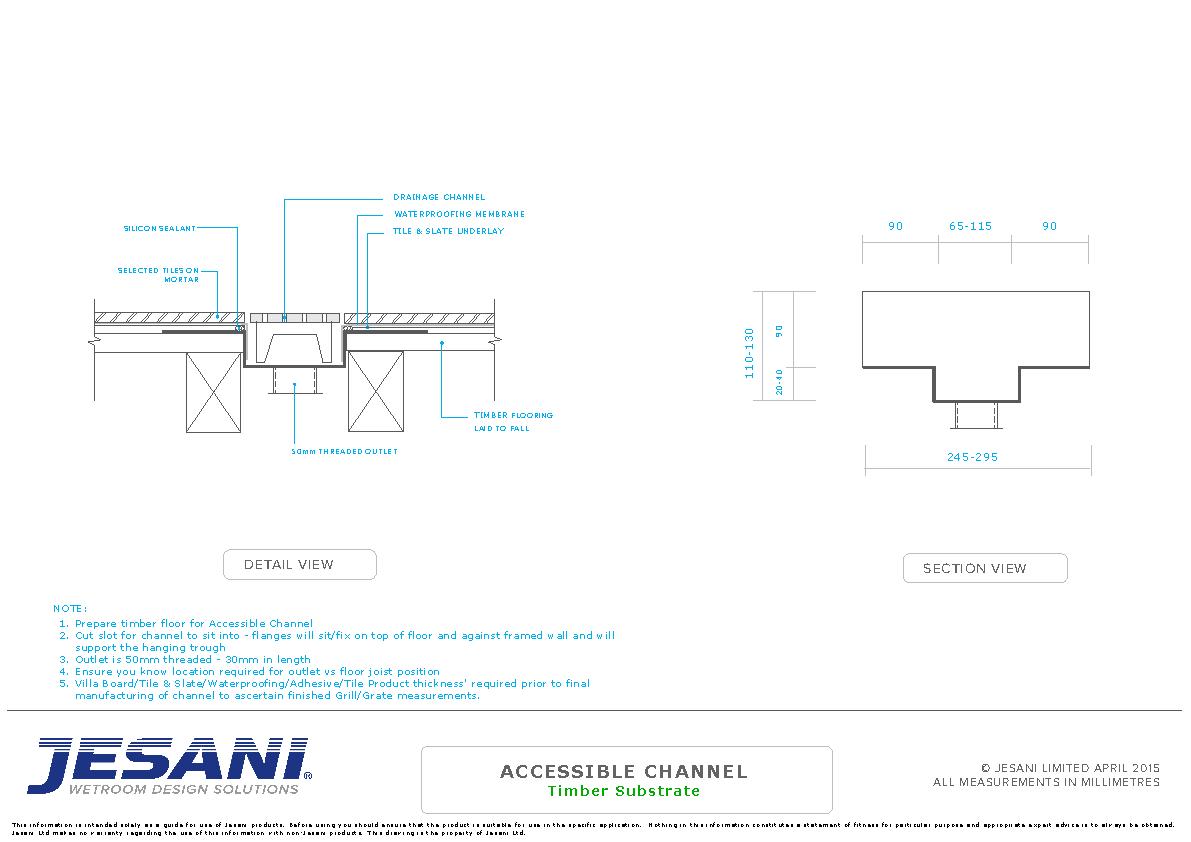

Accessible Shower Door Channel — Timber Substrate
