Hideaway Soft Close: 1 x 40L Door Pull
Hideaway Bins
All products
SC140D

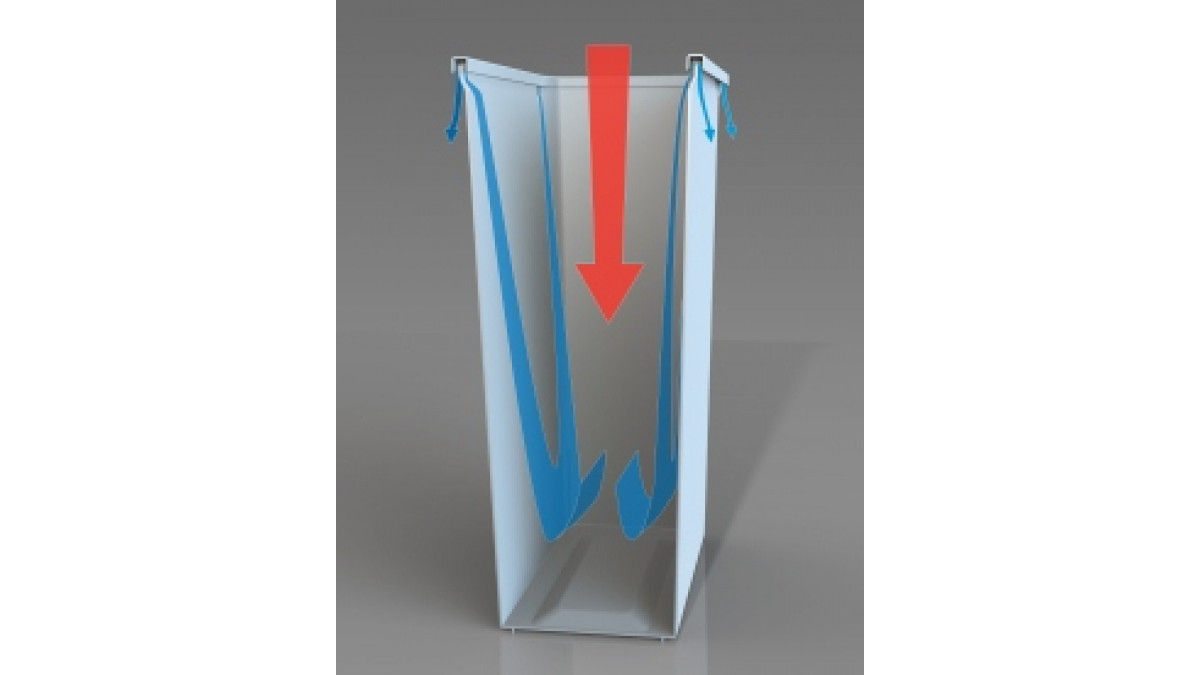

Bin Venting Explanation Image 2

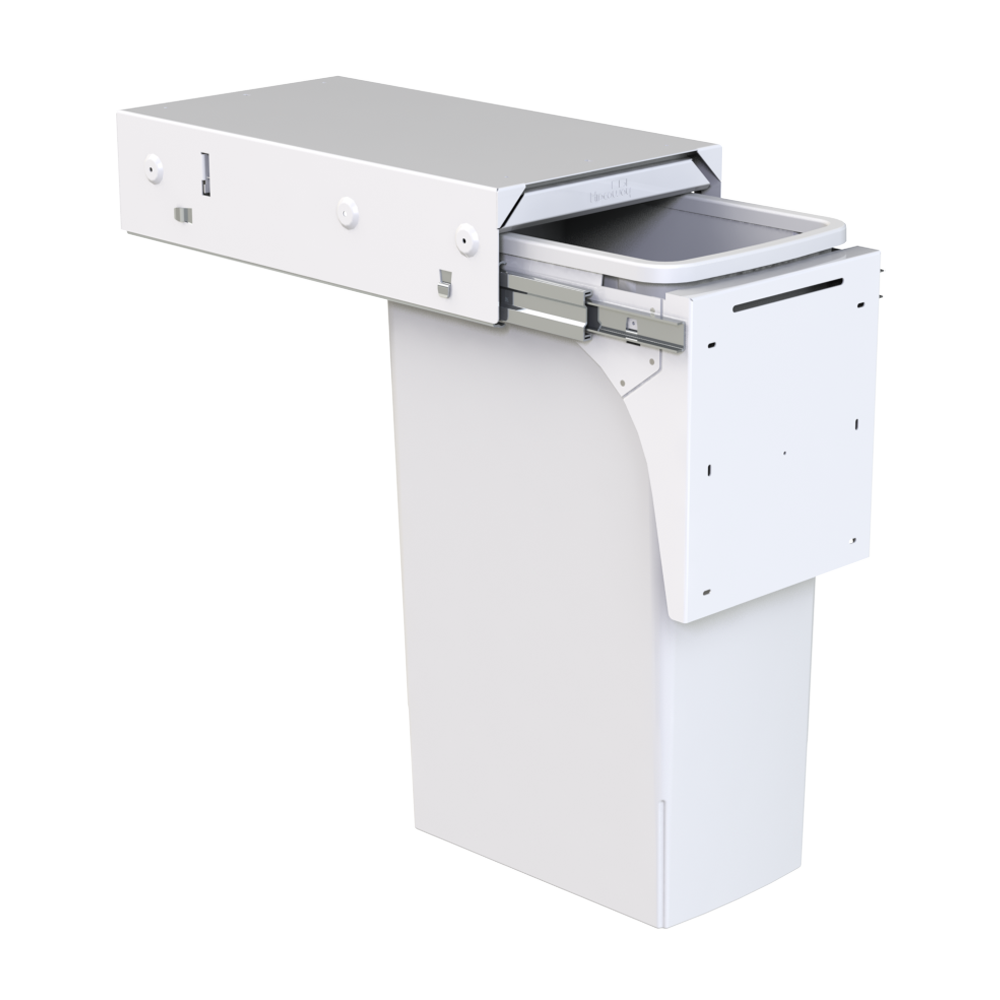

HideawayProdShots 1000pxsq SC140D May2020
Description

Hideaway Soft Close bins are fitted with high quality German ball bearing soft close runners which allow a smooth and controlled closure of the unit.

Hideaway Soft Close units also have a friction-fitted lid that stays inside the cabinet when the units are open and form a seal across the buckets when closed. The friction-fitted lid is treated with a Clinikill antibacterial powder coating to fight yeast, bacteria and fungi for a hygienic waste solution.

Key Features
  • Lid — Removable foam-sprung friction-fitted lid that creates a seal across the bucket(s) when the unit is closed, assisting in odour control. The lid has a Clinikill antibacterial powder coating to fight harmful bacteria, yeast and fungi, keeping this waste solution hygienic
  • Metal Gauge — 1.2mm zinc treated steel for strength and powder coated for durability
  • Runners — High quality German ball bearing soft close runners that create a controlled close through the use of an air vacuum dampener
  • The runners over-extend to ensure the bucket will come clear of the bench top and have a dynamic weight loading of 52kgs
  • Colour — Arctic White
  • Bucket — made from a food-grade polypropylene plastic that is recyclable. All buckets come complete with a liner holder to hold bin liner in place
  • Air Vents — Patented air vent system to maximise bag volume. 40L models only
  • Mounting Options — Top mount and / or side mount
  • Pitch Adjustment — Provided in the door bracket for ease of installation. Adjustment also provided in the top mounting panel and door bracket
  • Door Pull — One step action. The front fascia of the cabinet is attached to the door bracket of the Hideaway Bin. The bin is accessible by simply pulling open the cabinet door
Categories
Bathroom Joinery and Cabinetry Kitchen and Laundry Fixtures and Fittings
Ranges
Hideaway Soft Close
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Scope of Use
  • Recommended use — Large bucket capacity for those looking for a single bin solution
  • Idea where only a narrow width is available, and a a hygienic waste solution is required
  • Width: 285mm, height: 655mm, depth: 520mm
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Mounting Options — Top mount and / or side mount
Limitations on Use
  • Bench Overhang Clearance — The SC140 has been designed with over extension drawer runners which allow for a bench overhang of up to 40mm. If more bench overhang clearance is required, please mount the bin lower in the cabinet
Other Performance Attributes
  • Lid — Removable foam-sprung friction-fitted lid that creates a seal across the bucket(s) when the unit is closed, assisting in odour control
  • The lid has a Clinikill antibacterial powder coating to fight harmful bacteria, yeast and fungi, keeping this waste solution hygienic
  • Metal Gauge — 1.2mm zinc treated steel for strength and powder coated for durability
  • Runners — High quality German ball bearing soft close runners that create a controlled close through the use of an air vacuum dampener
  • The runners over-extend to ensure the bucket will come clear of the bench top and have a dynamic weight loading of 47kgs
  • Bucket — made from a food-grade polypropylene plastic that is recyclable
  • Air Vents — Patented air vent system to maximise bag volume. 40L models only
  • Global GreenTag Certified — GreenRate Level C
  • NZ Patent Number 585372
  • News
Documents
Hideaway Commercial Bins Presenter
pdf
Global GreenTag: GreenRate Level C

December 2023

pdf
Installation and Operation
pdf
Maintenance and Warranty
pdf
Brochure

June 2023

pdf

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
