Anti Climb 358 Mesh
Description

Anti climb mesh is designed with closely spaced wire which is too narrow for finger and toe holds and too small for hand tools. The inability to climb or cut through this mesh panel make it the best panel for high security applications.

Key Features

358 mesh comes in 2 options:

358DV (Double Vertical):

  • Horizontal wires run between a vertical wire on both sides
  • Hot dip galvanised after welding to maximise corrosion performance
  • Available in two sizes — 2.4m high x 2.2m wide  &   3.6 x 2.2m
  • Retains good visibility and air flow

358SV (Single Vertical):

  • Horizontal wires are welded to a single vertical wire on one side
  • Hot dip galvanised after welding to maximise corrosion performance
  • Available in one size 2.2m high x 1.2m wide
  • Retains good visibility and air flow
Scope of Use

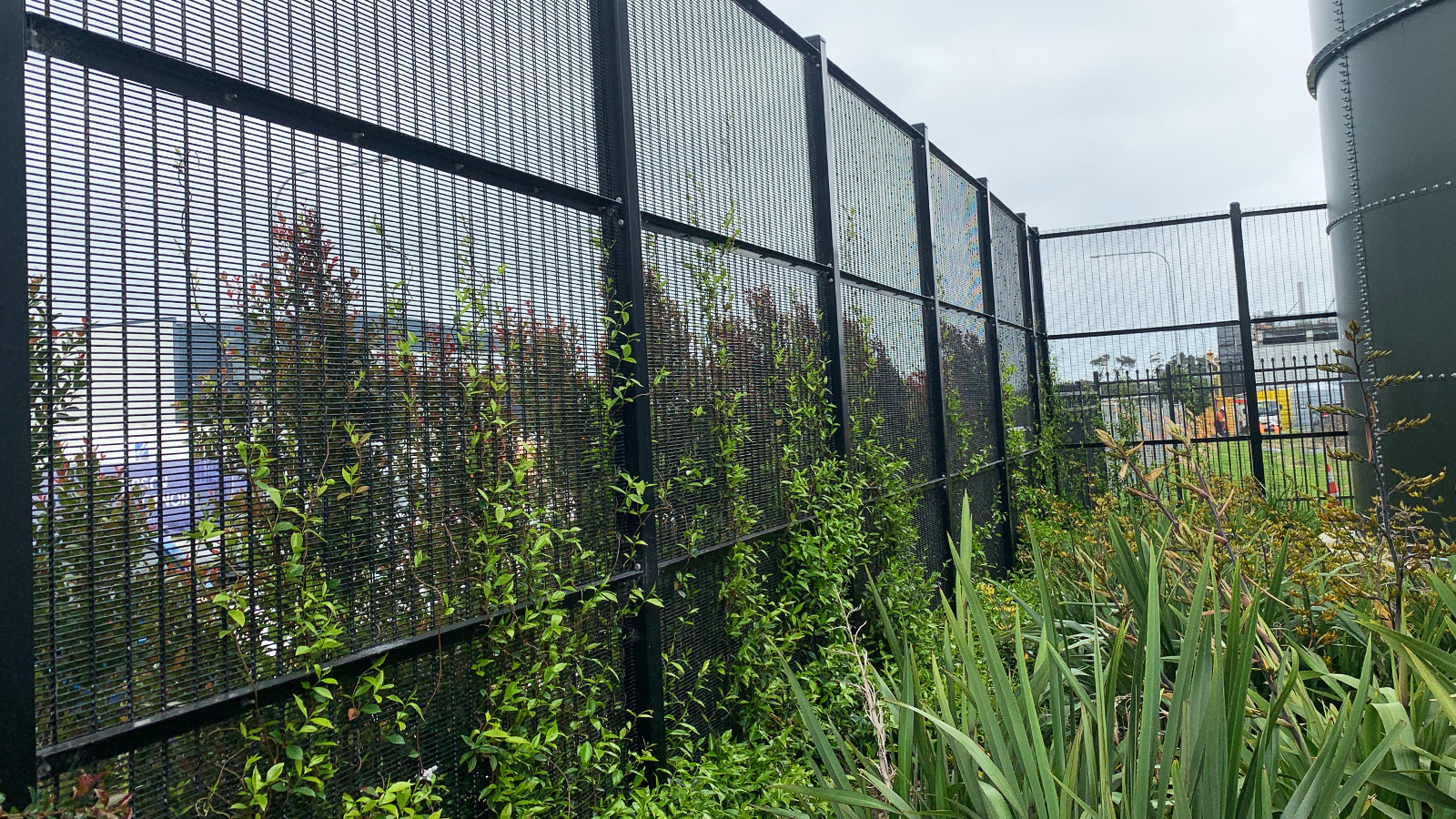

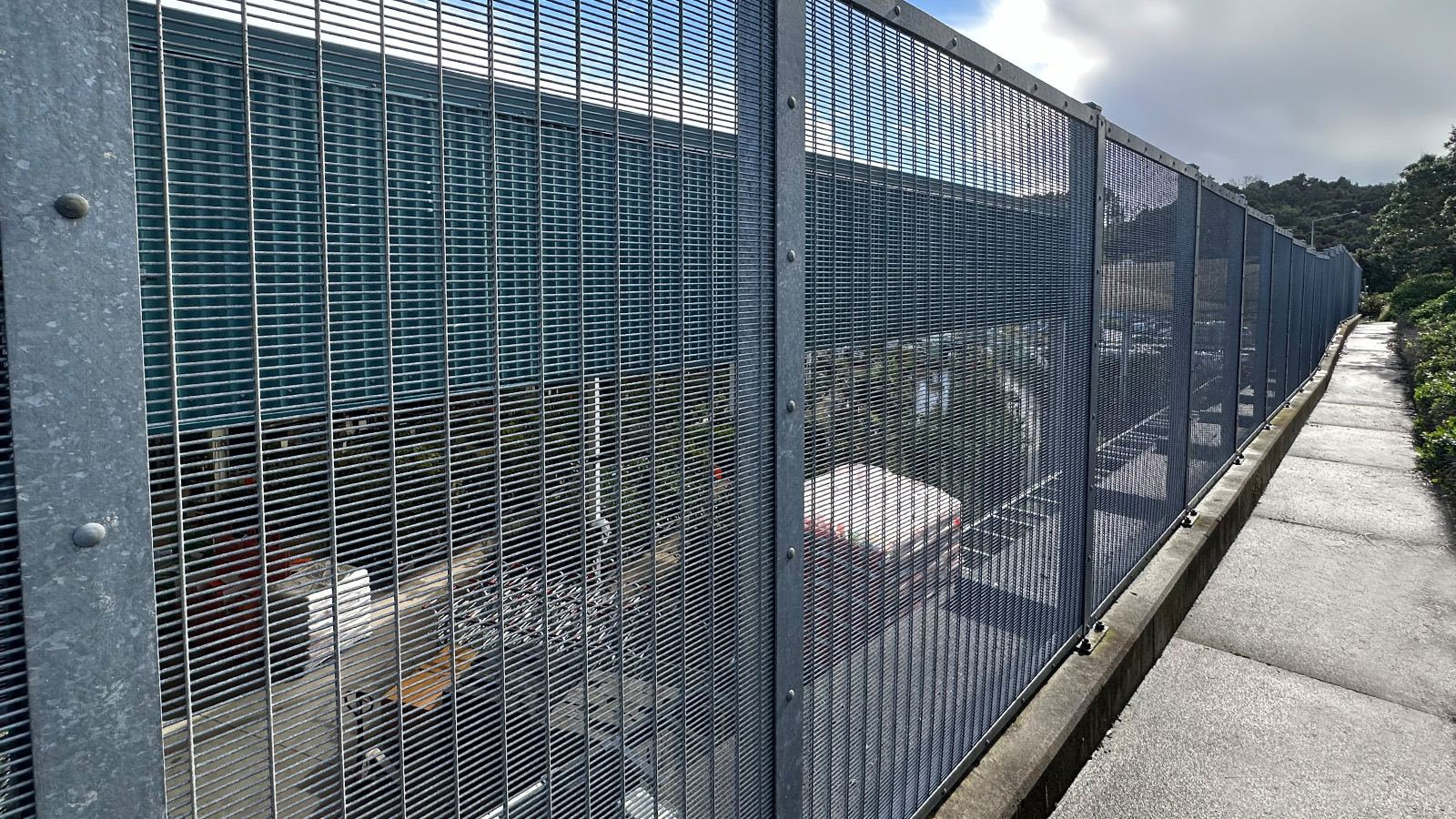

  • Security fencing

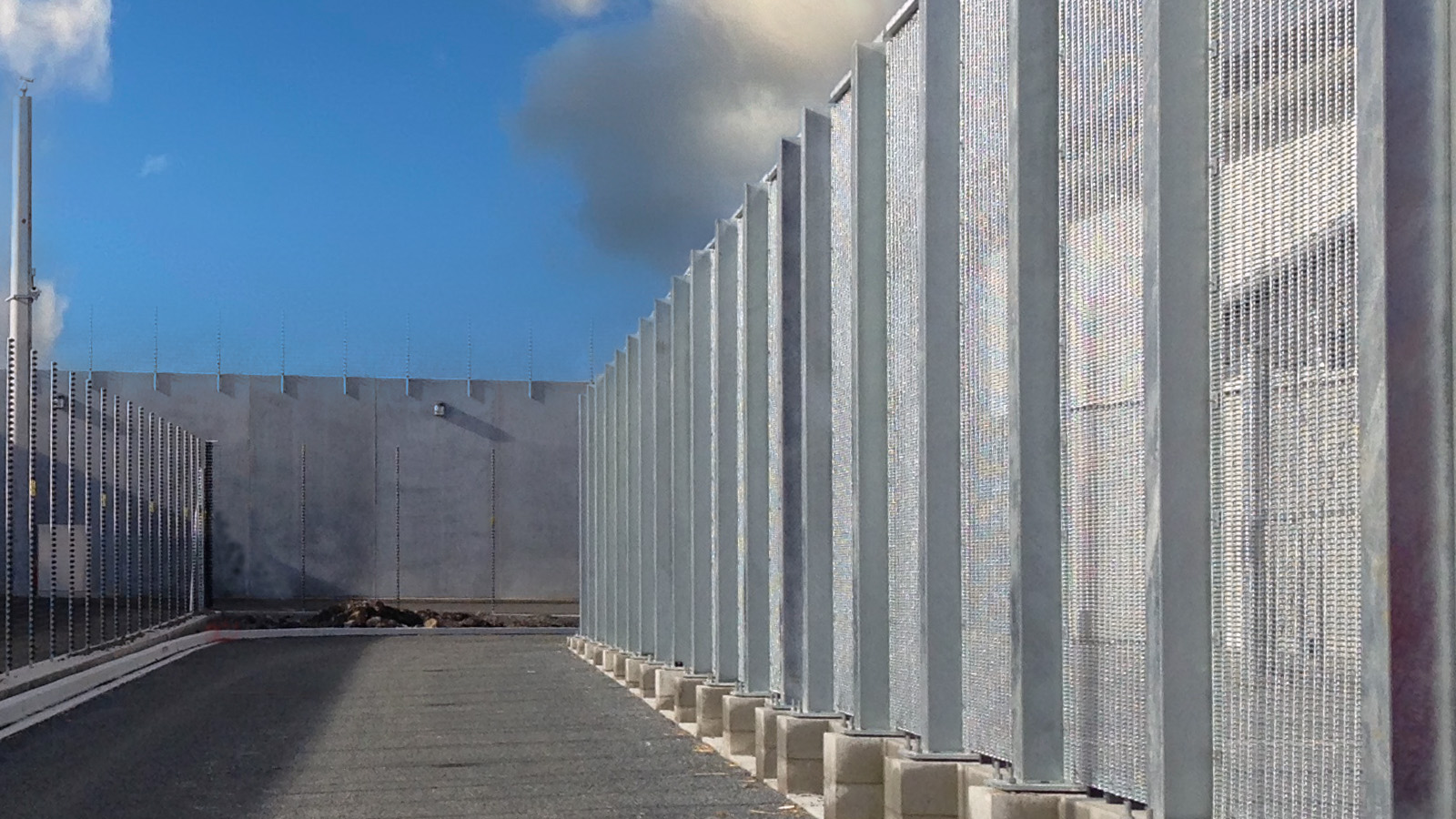

  • Prison fencing

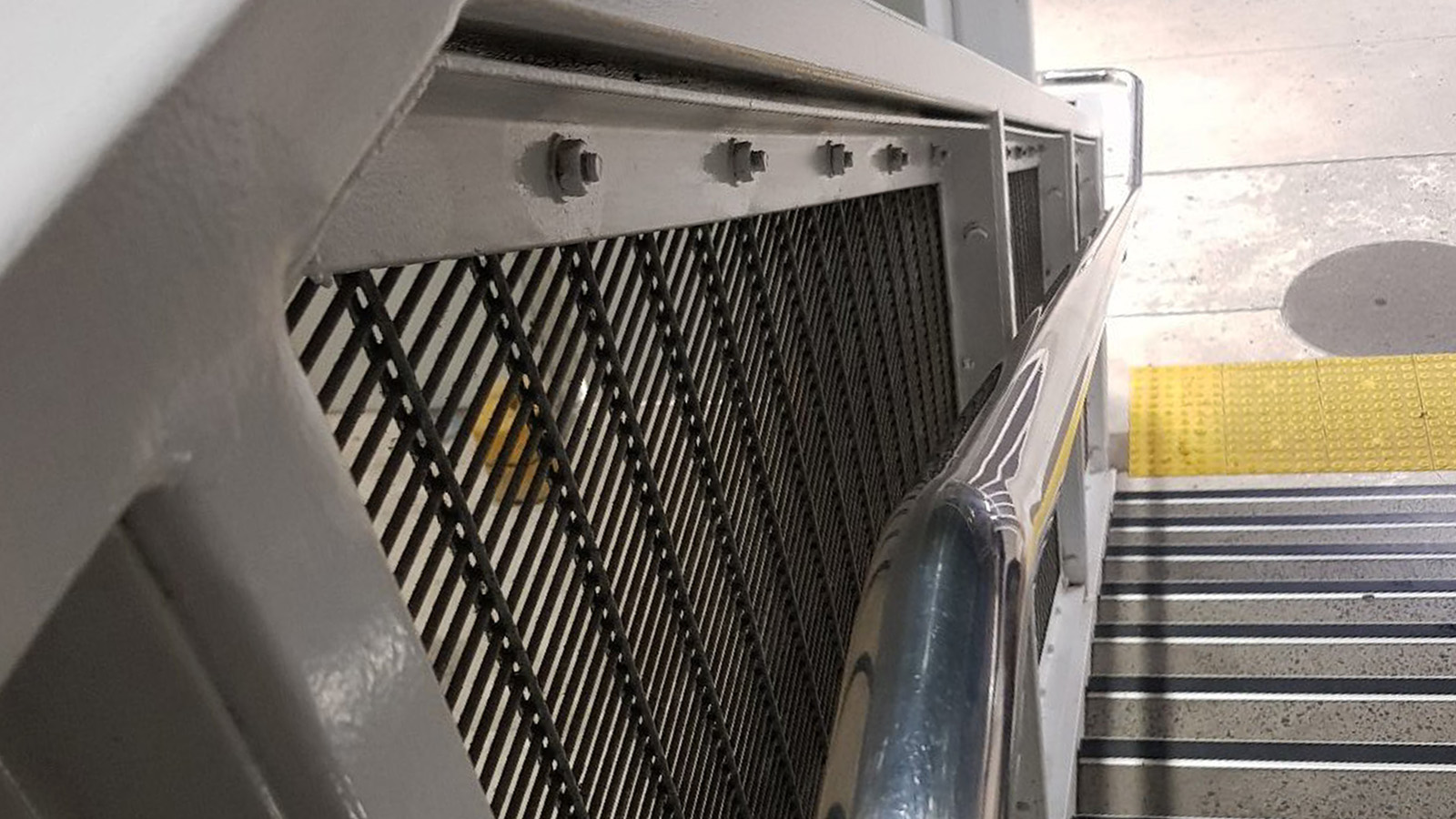

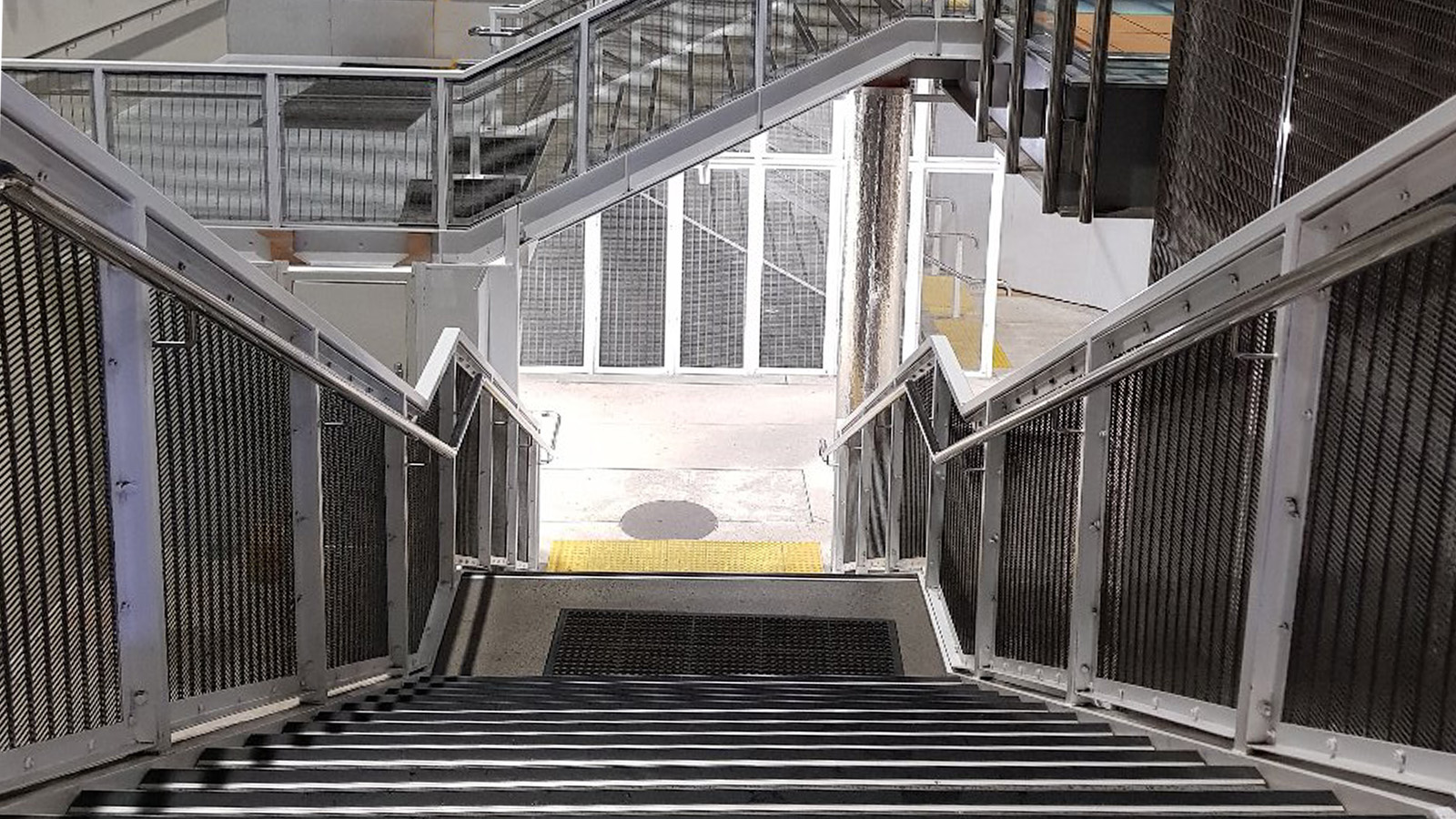

  • Infill panels along stairs or over bridges

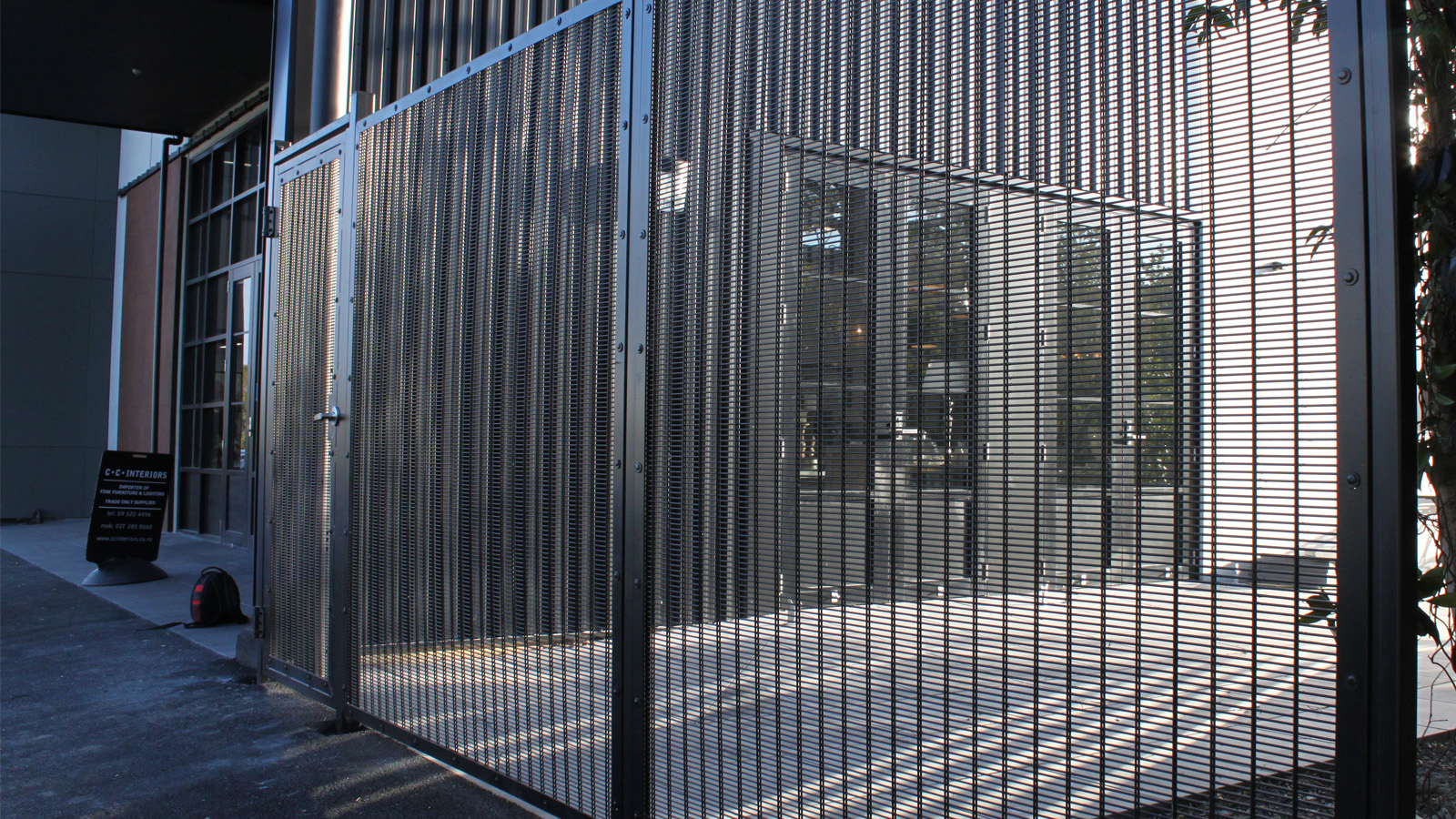

  • Courtyard security fencing
  • Bike parking storage

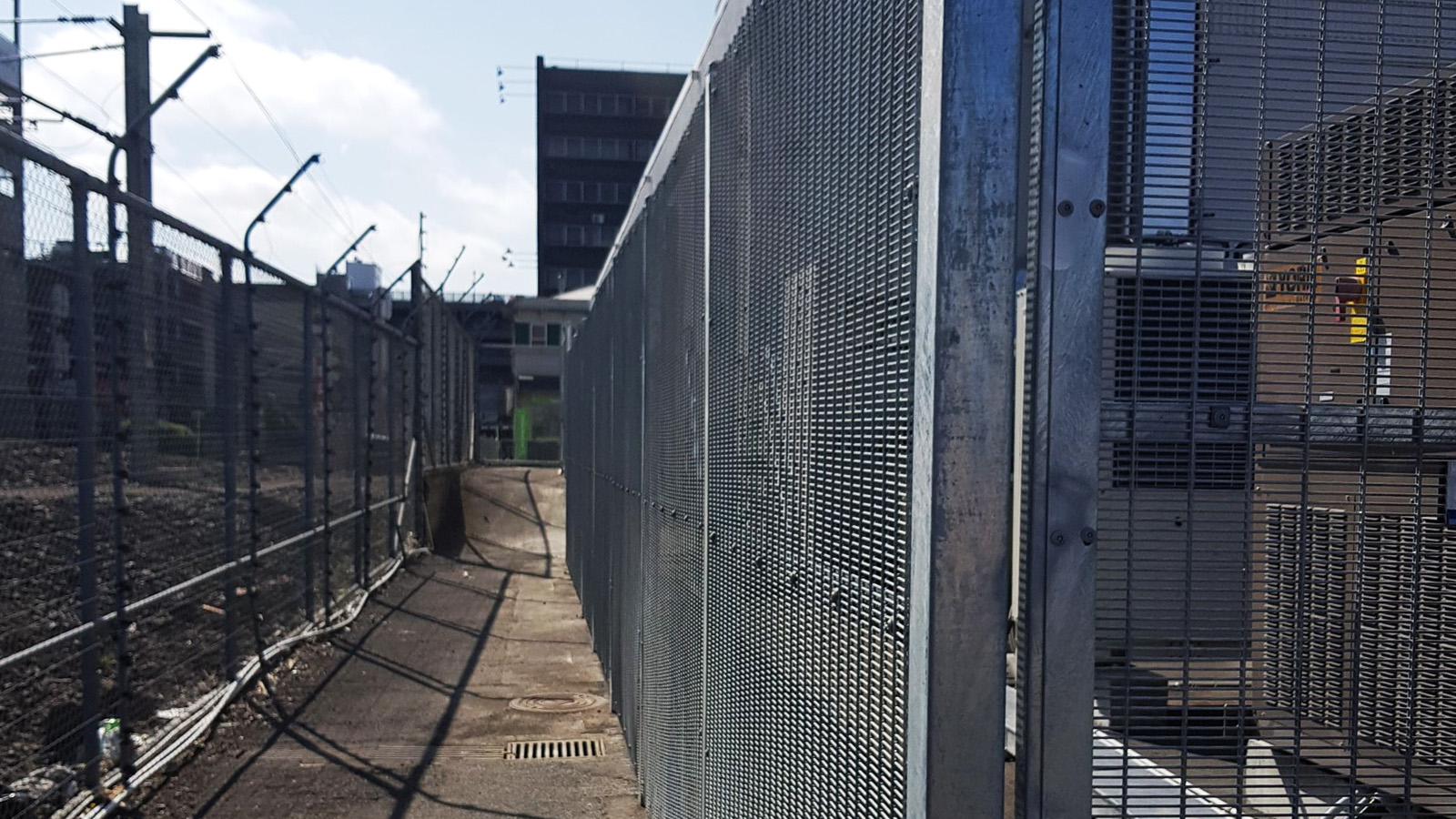

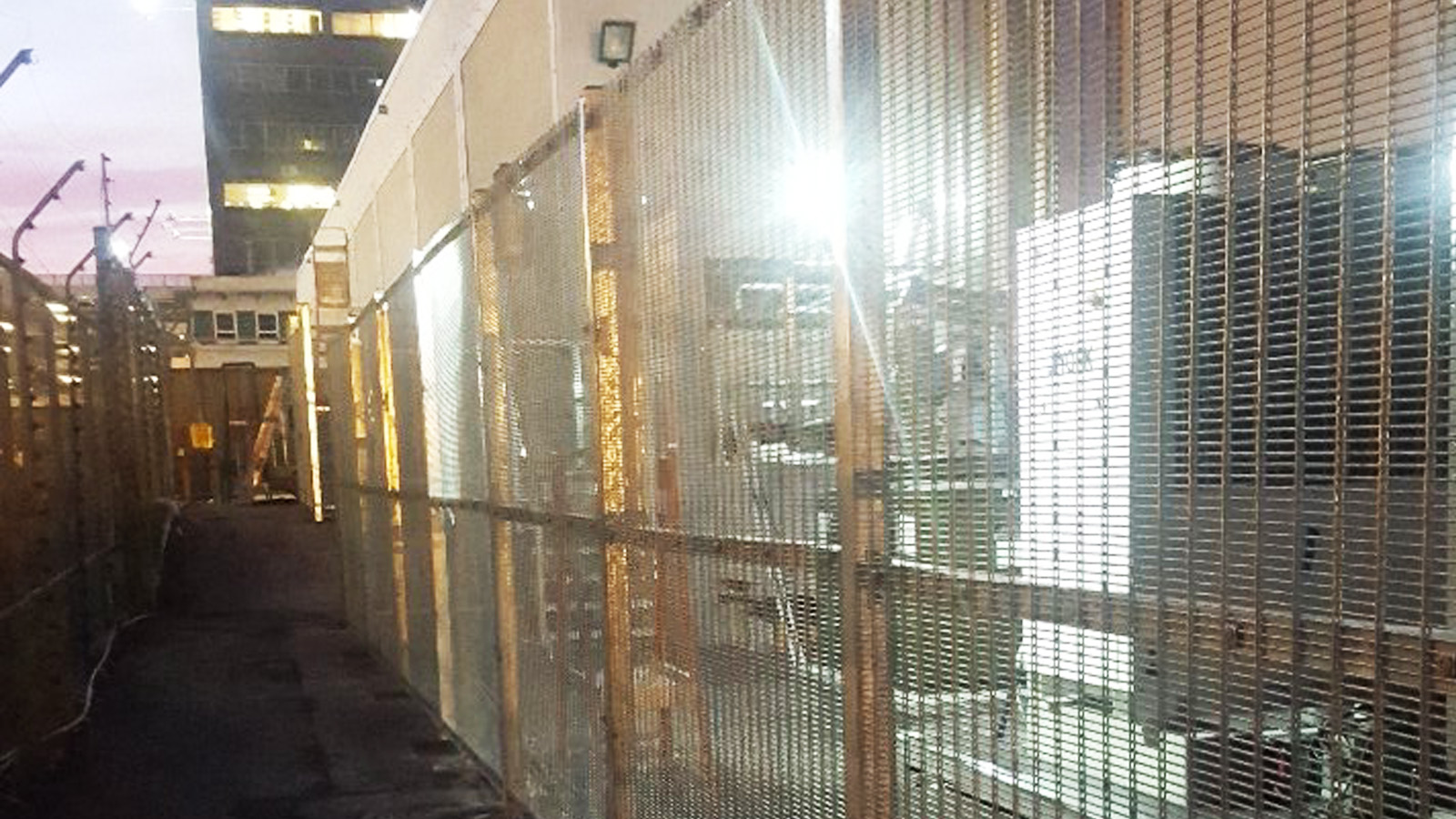

  • Around services
  • Secure storage in warehousing
Limitations on Use

How the panel is installed is determend by the level of security that is required.

Review the drawings avaiable and ask a member of the Edgesmtih Team to assist with the desired outcome.

In-Service History

In service within NZ for 10 years.

Documents
Product Guide: 358DV Double Vertical anti climb mesh
Product Guide: 358SV Single vertical anti climb mesh
Installation Details

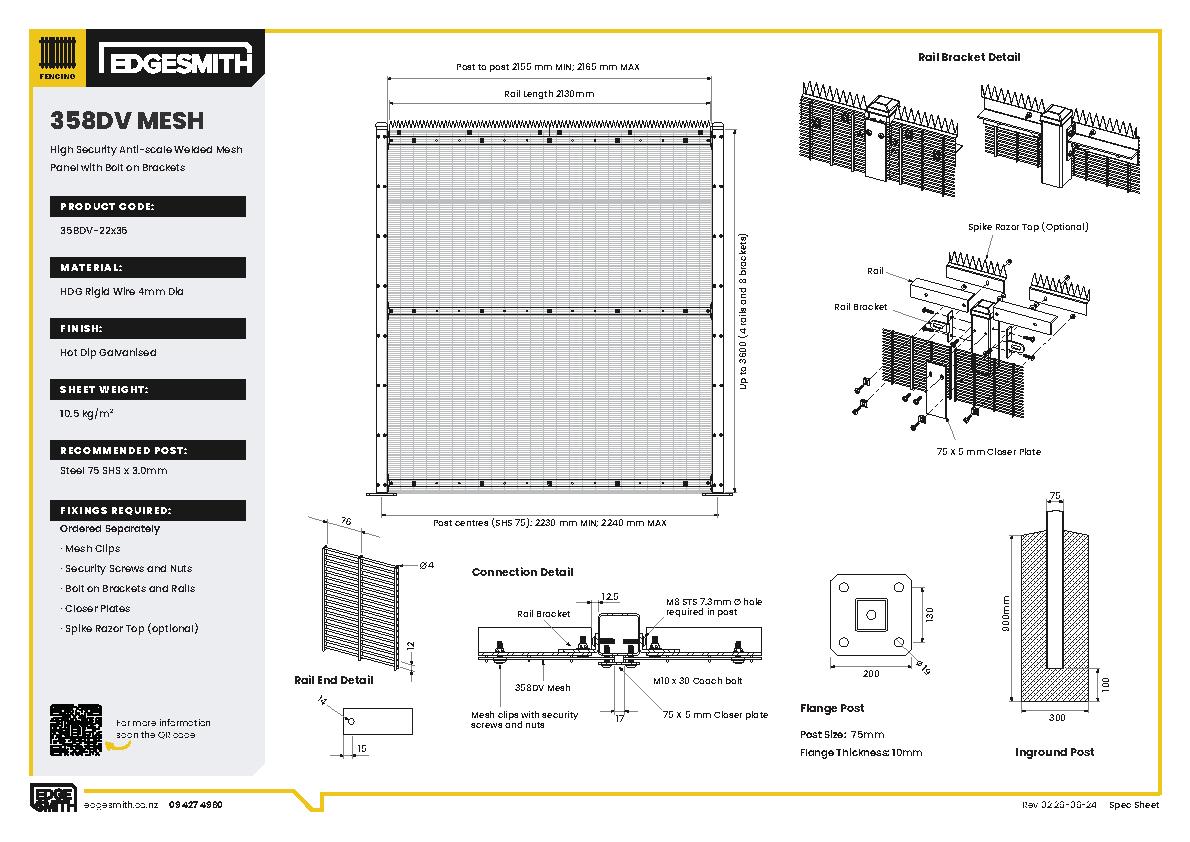

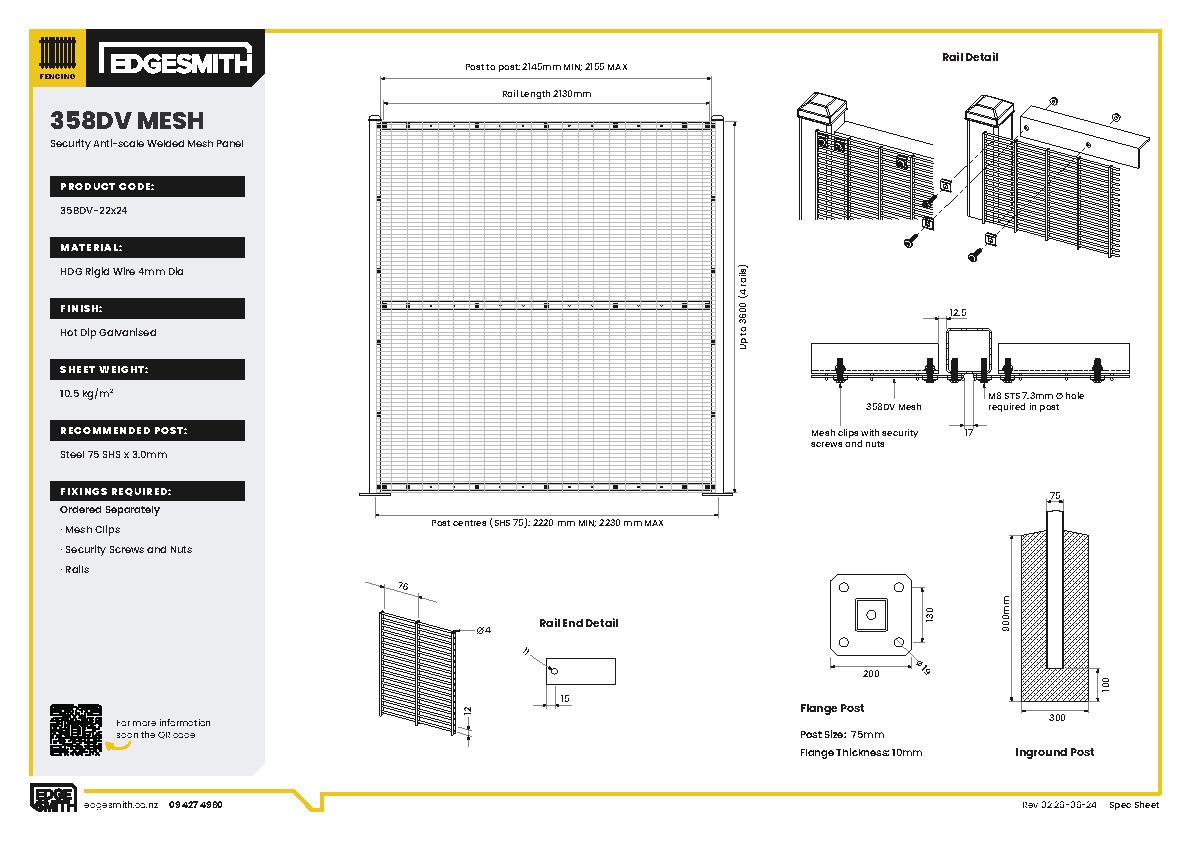

358DV 2.6H Spec sheet & install guidance
358DV 3.6H Spec Sheet & install guidance for high security applications

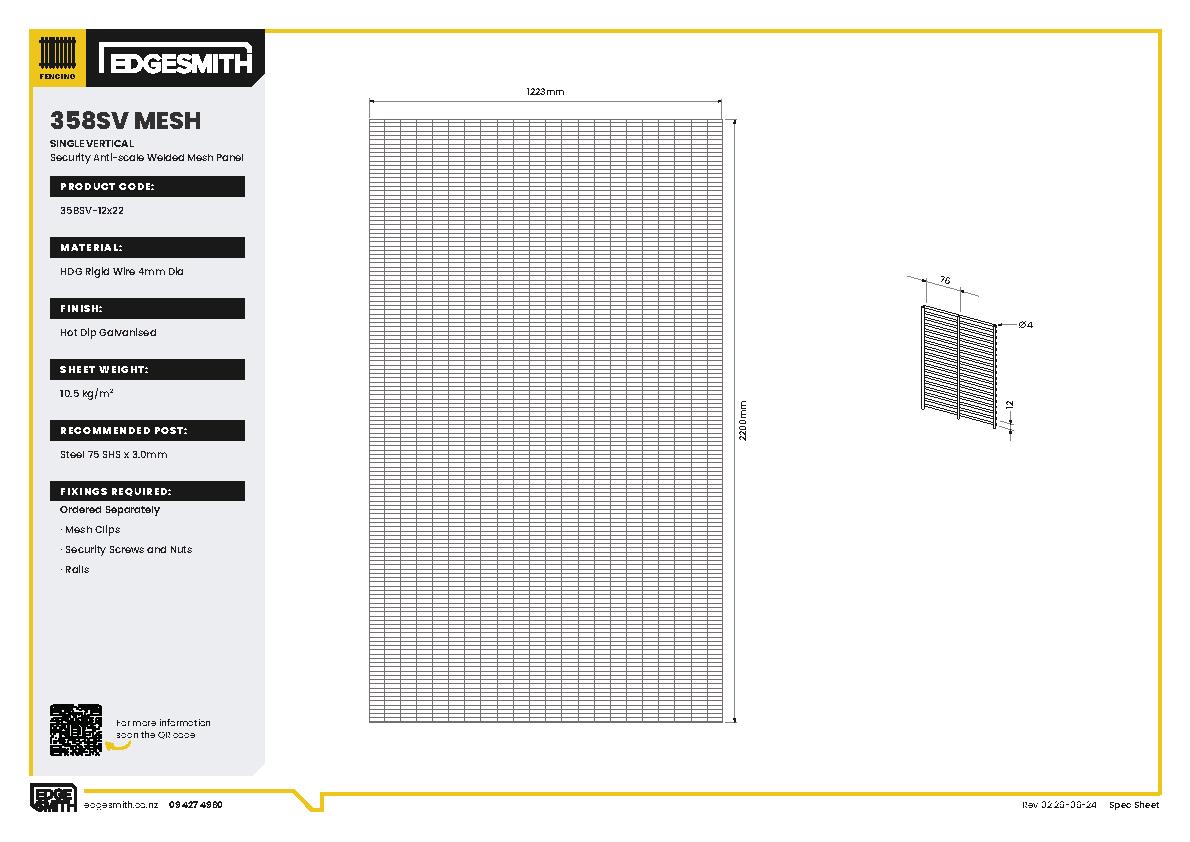

358SV Spec Sheet
