Description

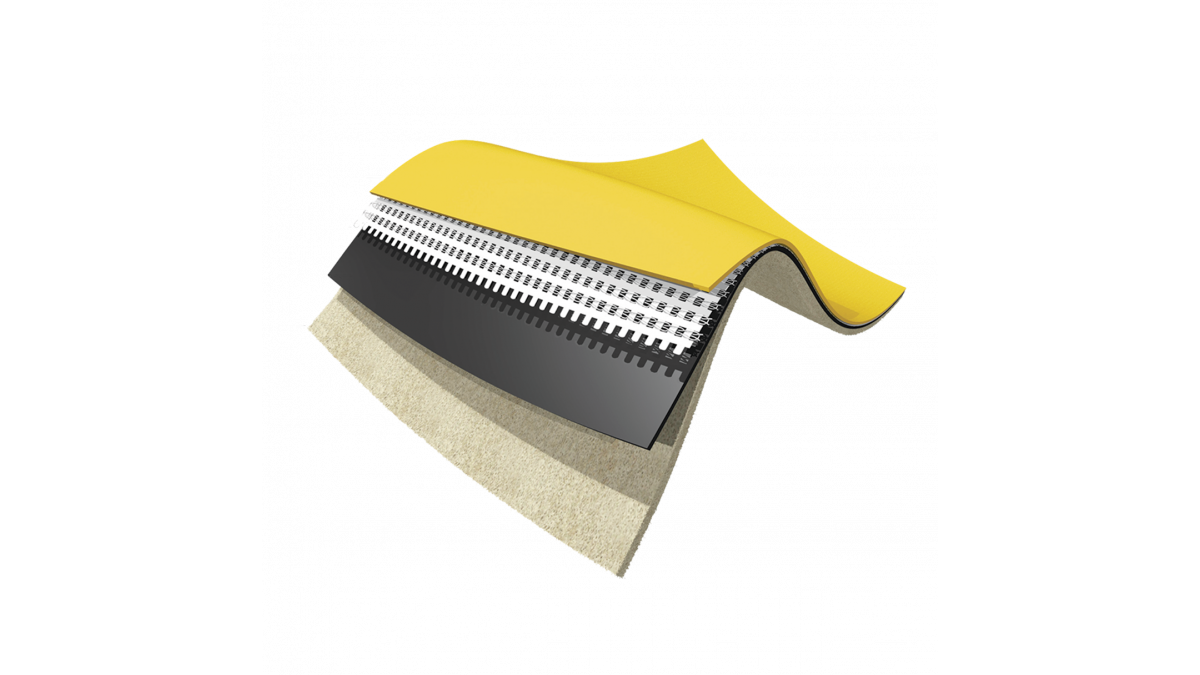

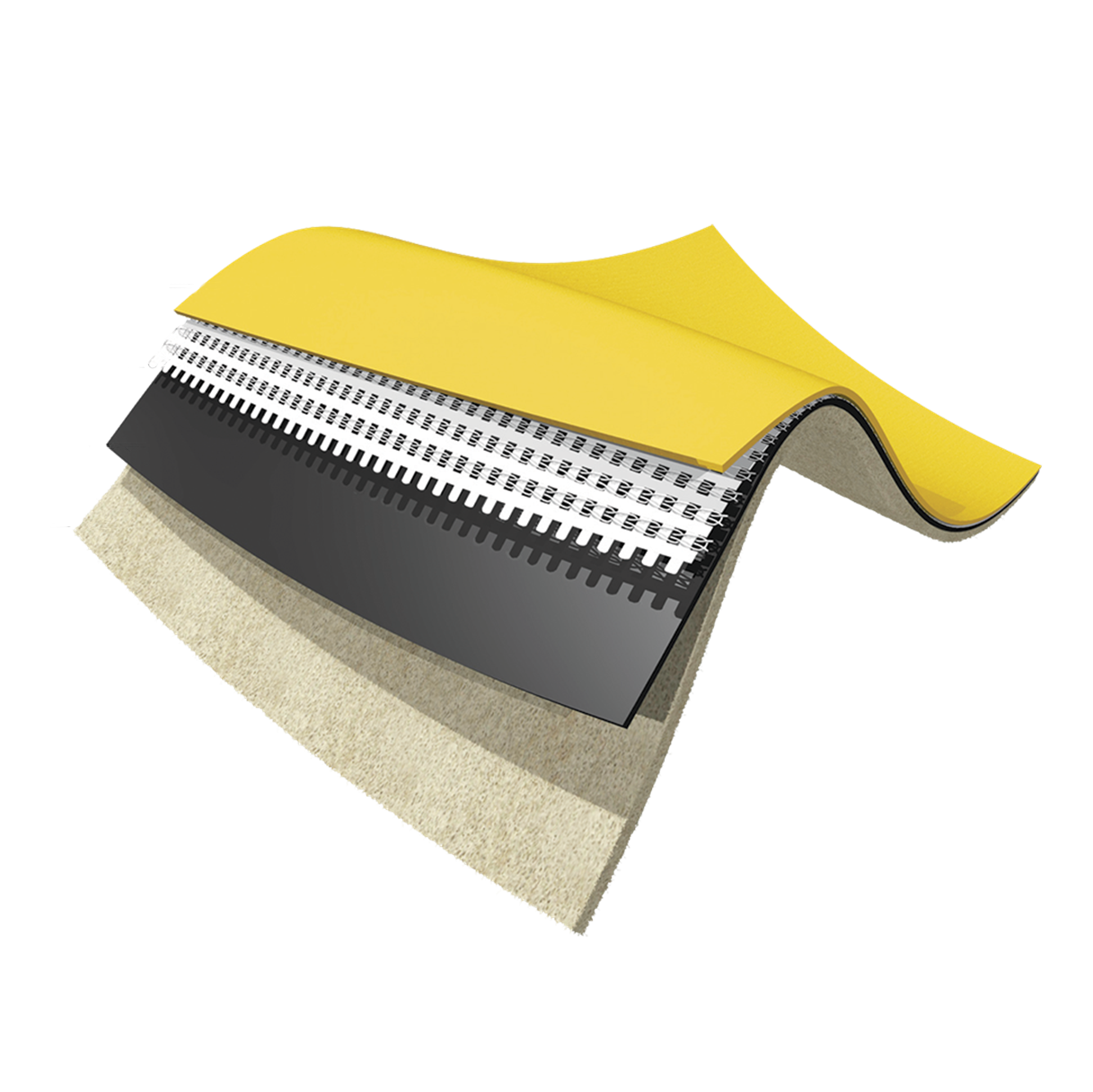

Thermoplastic waterproofing membrane with active polymer core (APC). COREFLEX consists of a thermoplastic membrane integrally bonded to a proprietary Active Polymer Core (APC) layer. Combined with fully welded seams, this provides the ultimate waterproofing protection. Whether the project requires foundation waterproofing, plaza deck restoration, or green roof construction, COREFLEX provides superior waterproofing performance.

The COREFLEX reinforced thermoplastic membrane is engineered to resist high hydrostatic pressure and groundwater contaminants typical of foundation conditions. In addition to waterproofing performance, the membrane has an extremely low water vapour transmission that qualifies it as a Class “A” Vapour Retarder per ASTM E1745.

Dual membrane protection

If COREFLEX's thermoplastic membrane component is ever punctured or damaged, the superior water barrier performance continues with an APC technology layer that is engineered to actively control water ingress by swelling to produce a reliable seal at the breach. To maximise the performance of the APC Technology, the layer is installed in direct contact with the concrete to be waterproofed, thus preventing water ingress into the structure.

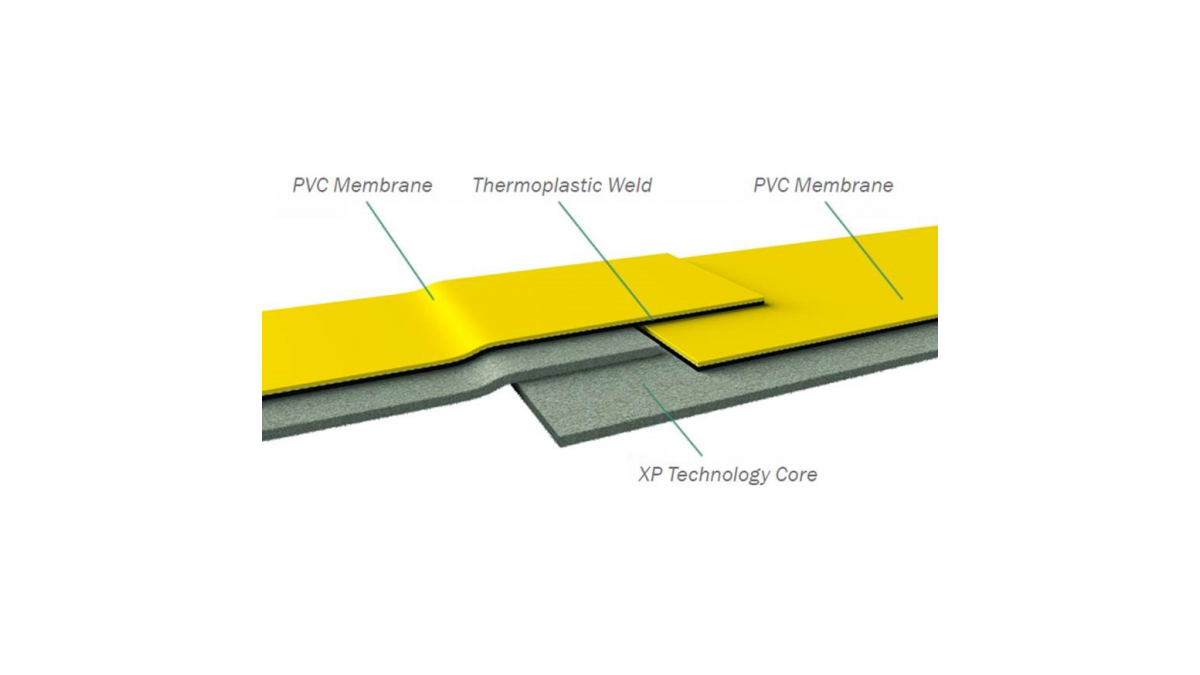

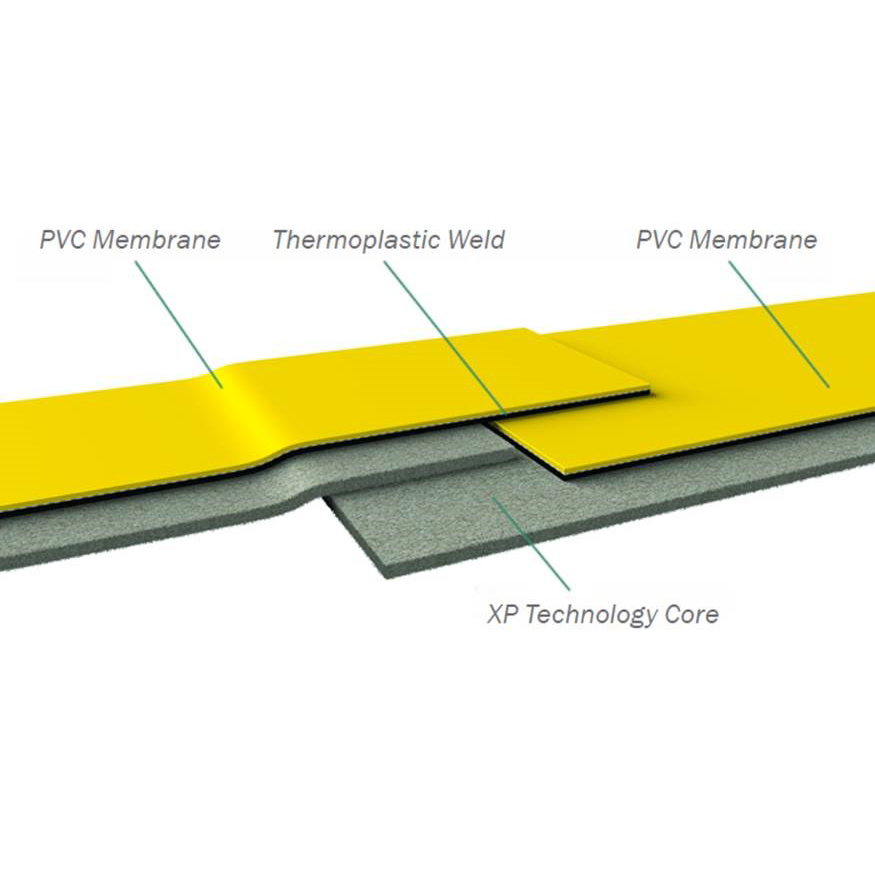

With COREFLEX, each membrane overlap seam utilises both a conventional weld and an overlap assembly of the APC Technology to assure water-tightness. This combination of passive and active barrier technologies provides enhanced seam performance and eliminates the reliance of seam integrity strictly on installation labour.

Key Features

Protection from water ingress:

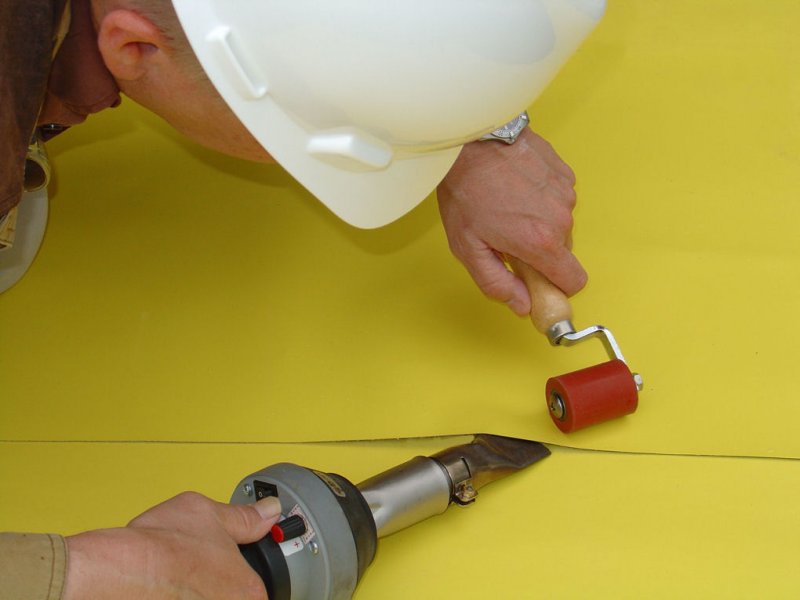

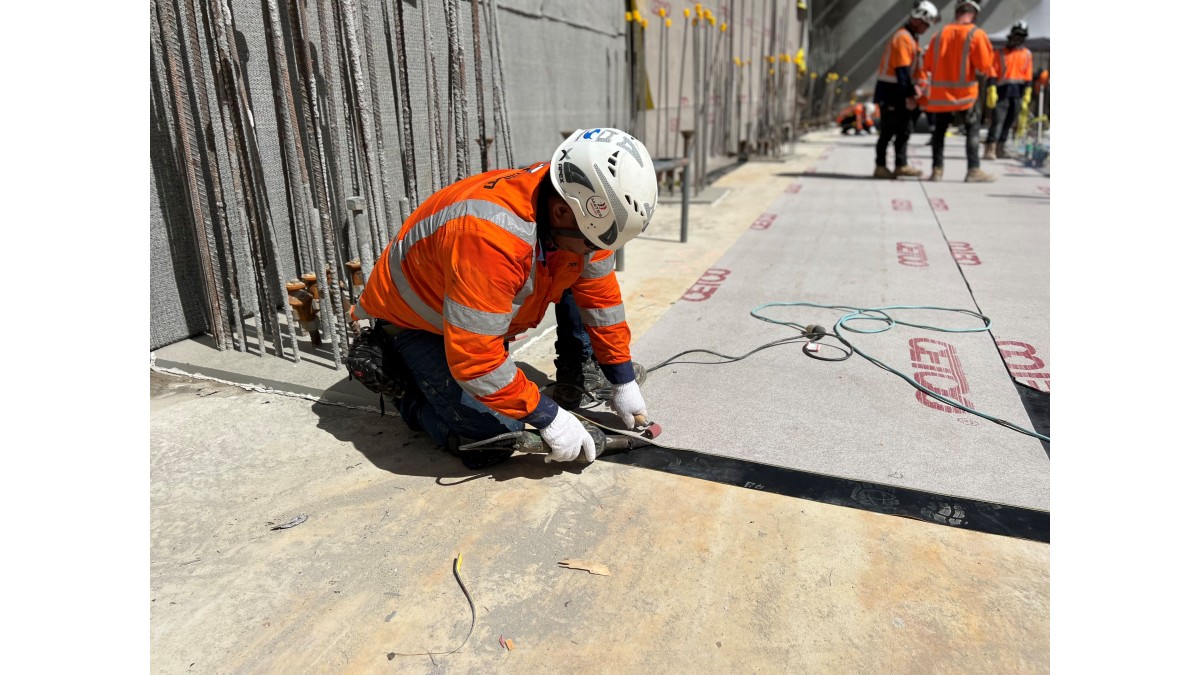

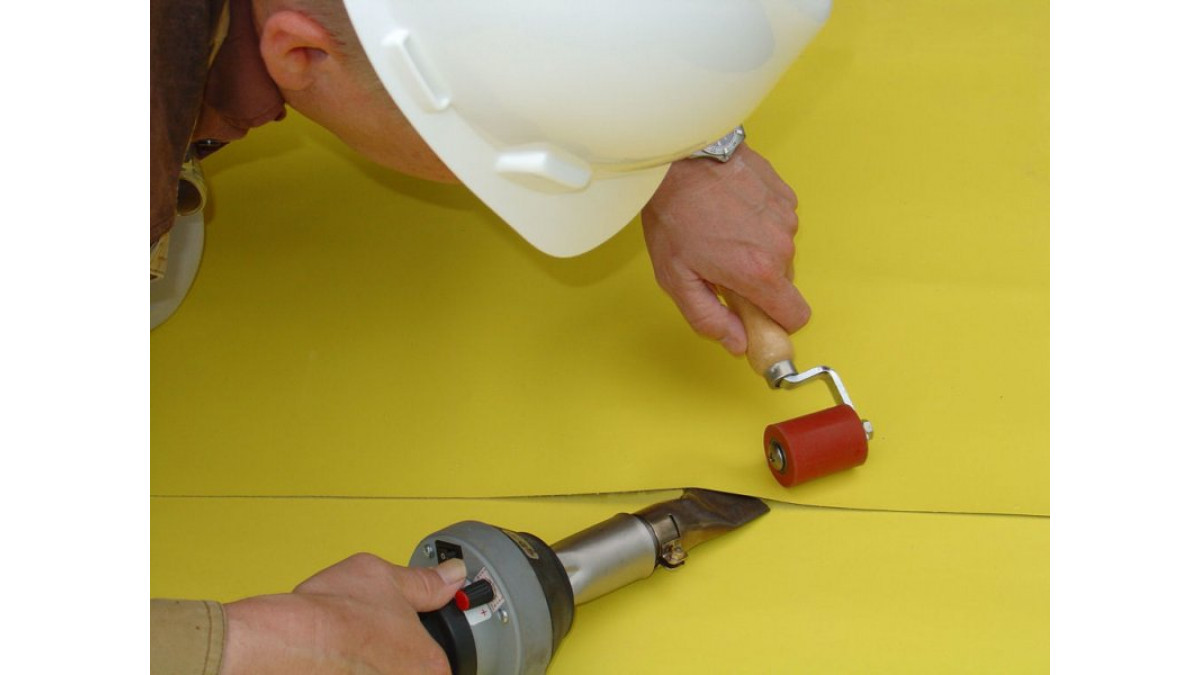

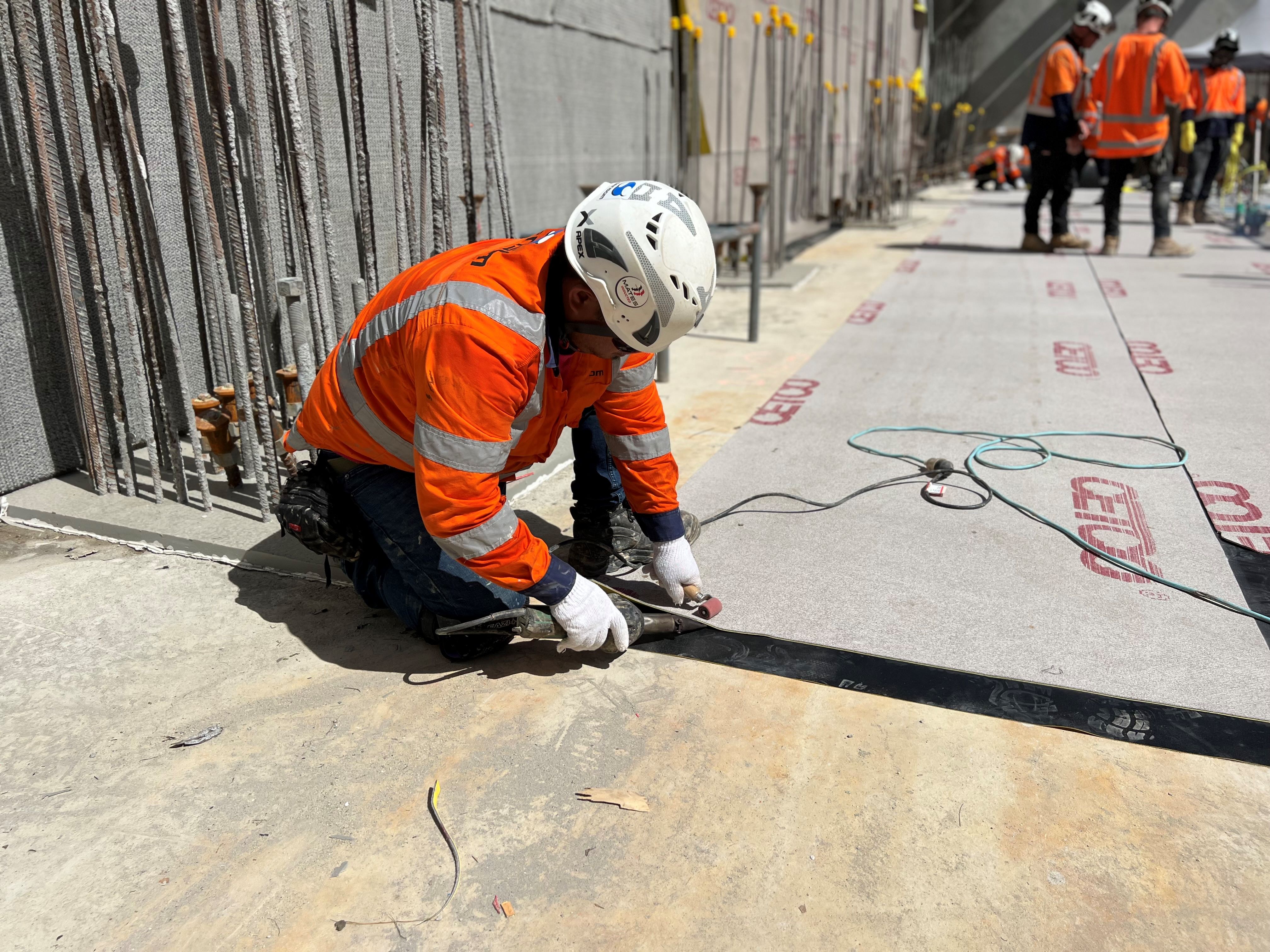

All seams are heat welded together to form a strong, monolithic waterproofing membrane.
Incorporating a high molecular weight plasticiser, the PVC membrane properties will remain intact through the life of the product.

Protection from contaminants:

The APC and PVC resist harsh contaminants, including brownfield sites and remedial plaza decks over existing membranes.
COREFLEX can solve both water and gas barrier concerns as a Class “A” Vapour Barrier and Certified Methane Barrier.

Fast and easy:

Can be installed over existing membranes, dramatically reducing exposure of finished space.
No kettles, solvents, fumes or open flames necessary.
Faster dry-in time than traditional systems.

Versatility:

A true dual-membrane waterproofing system in a single application. The PVC layer of COREFLEX also serves as a root barrier, reducing the number of assembly components for green roof applications.

Ranges

Volclay Tanking Membranes

Scope of Use

COREFLEX 60: A dual component waterproofing membrane system that combines a modified PVC reinforced thermoplastic membrane with an Active Polymer Core (APC) layer into one high-performance, easy-to-use product. This composite membrane provides both a fully welded thermoplastic membrane with an integrally bonded self-sealing active waterproofing layer to assure optimal performance.

Suitable for installation in:

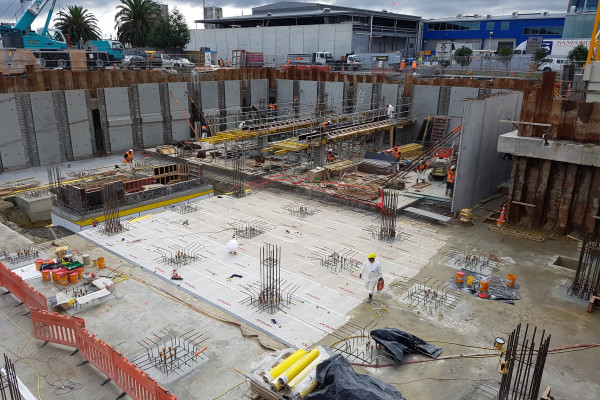

underslab
property line walls
backfilled foundation walls
tunnels
earth covered structures
new and restoration plaza decks
split-slab construction
greenroofs

COREFLEX XP: COREFLEX XP offers the same installation and performance benefits as COREFLEX 60, but features XP technology, the latest innovation in active waterproofing. This advanced polymer technology provides exceptional performance in a wide range of ground contaminants, including high-salinity conditions. COREFLEX XP should be used with other XP detailing products: COREFLEX XP, SEAL-X XP, and WATERSTOP XP.

Limitations on Use

COREFLEX is designed for waterproofing applications where the product is properly covered and confined.
COREFLEX should only be installed after substrate preparation has been properly completed and is suitable to receive the waterproofing system.
COREFLEX should be used with structural grade reinforced cast-in-place concrete with conventional forms that produce a smooth surface.
For Shotcrete applications using COREFLEX, reinforced shotcrete walls must be a minimum of 200 mm thick, applied from the bottom up in their full wall structural design thickness in a single application per shotcrete lift.
COREFLEX should not be installed in standing water or over ice.
Site groundwater samples should be submitted to Allco for compatibility testing.
COREFLEX is designed for use under reinforced concrete slabs 150 mm thick or greater with a mud slab substrate.
COREFLEX is capable of bridging typical shrinkage cracks in concrete up to 1.5 mm.
COREFLEX membranes are not designed to waterproof expansion joints. Consult with Allco regarding all expansion joint applications and limitations.
