ACO SlabDrain
Description

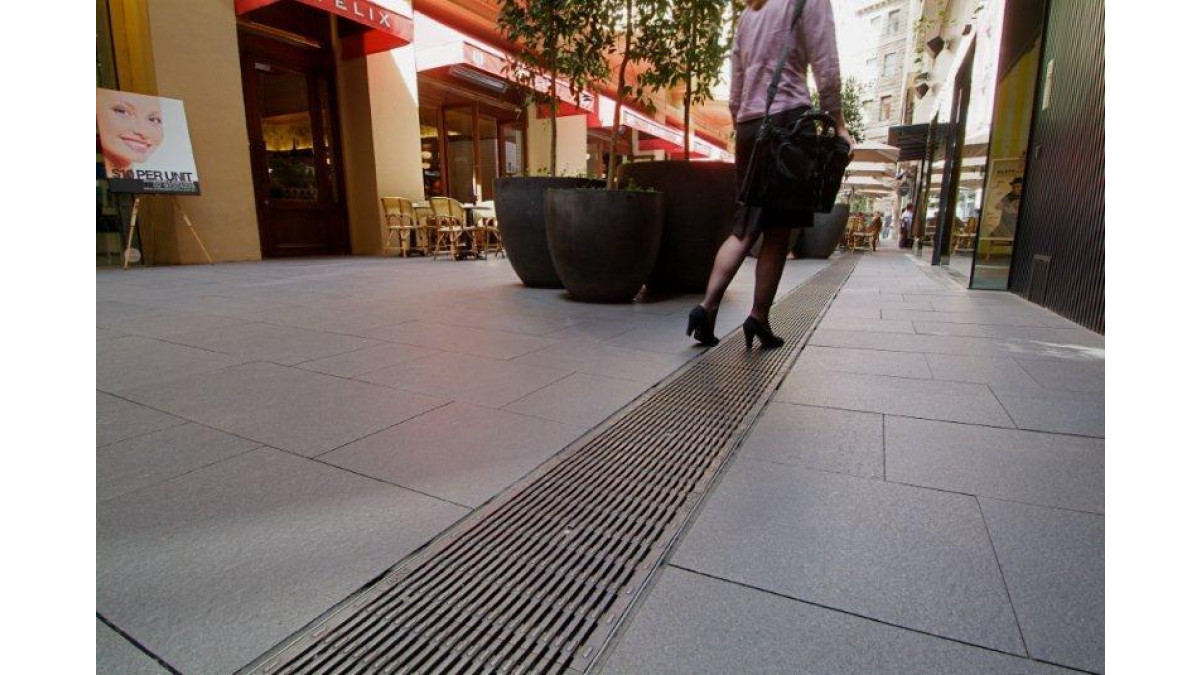

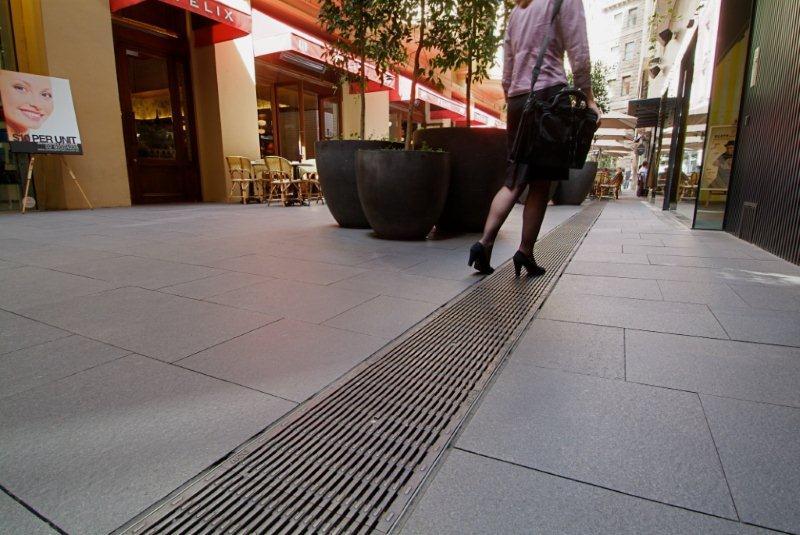

ACO SlabDrain is a shallow grated trench drain system for restricted depth applications, it is offered in three widths, at depths no greater than 130mm. A wide variety of grates in different materials, slot designs, and load ratings are available.

SlabDrain's interconnecting polymer concrete channels feature an integrally cast-in wearing edge rail made from galvanised or stainless steel. Channels can be assembled to produce constant depth runs.

Shallow depth trench drain system, available in 100mm, 200mm and 300mm internal widths for both general purpose and heavy duty applications.

  • HK series: Light to medium duty steel edged drains

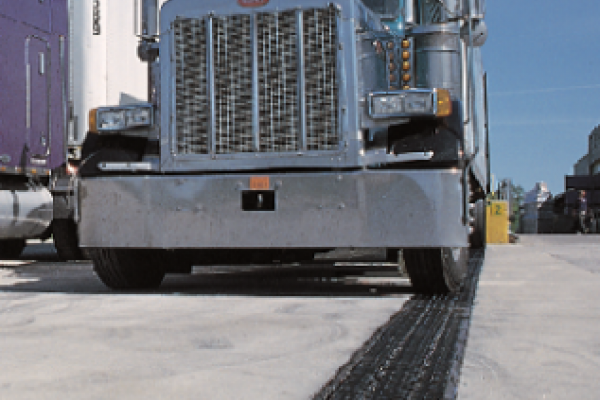

  • HSK series: Heavy duty iron edged drains
Key Features
  • Profiles side walls — provide channel strength
  • Wide choice of grates
  • DrainLok — locking system for quick fitting
  • Knock outs — for connection to pipework
Scope of Use

Shallow depth trench drain system, available in 100mm, 200mm and 300mm internal widths for both general purpose and heavy duty applications.

  • HK series: Light to medium duty steel edged drains
  • HSK series: Heavy duty iron edged drains

Applications:

  • Restricted depth areas
  • Parking stations
  • Elevated slabs
  • Retro-fit
  • Thresholds
  • Balconies
  • Outdoor entertainment areas
In-Service History

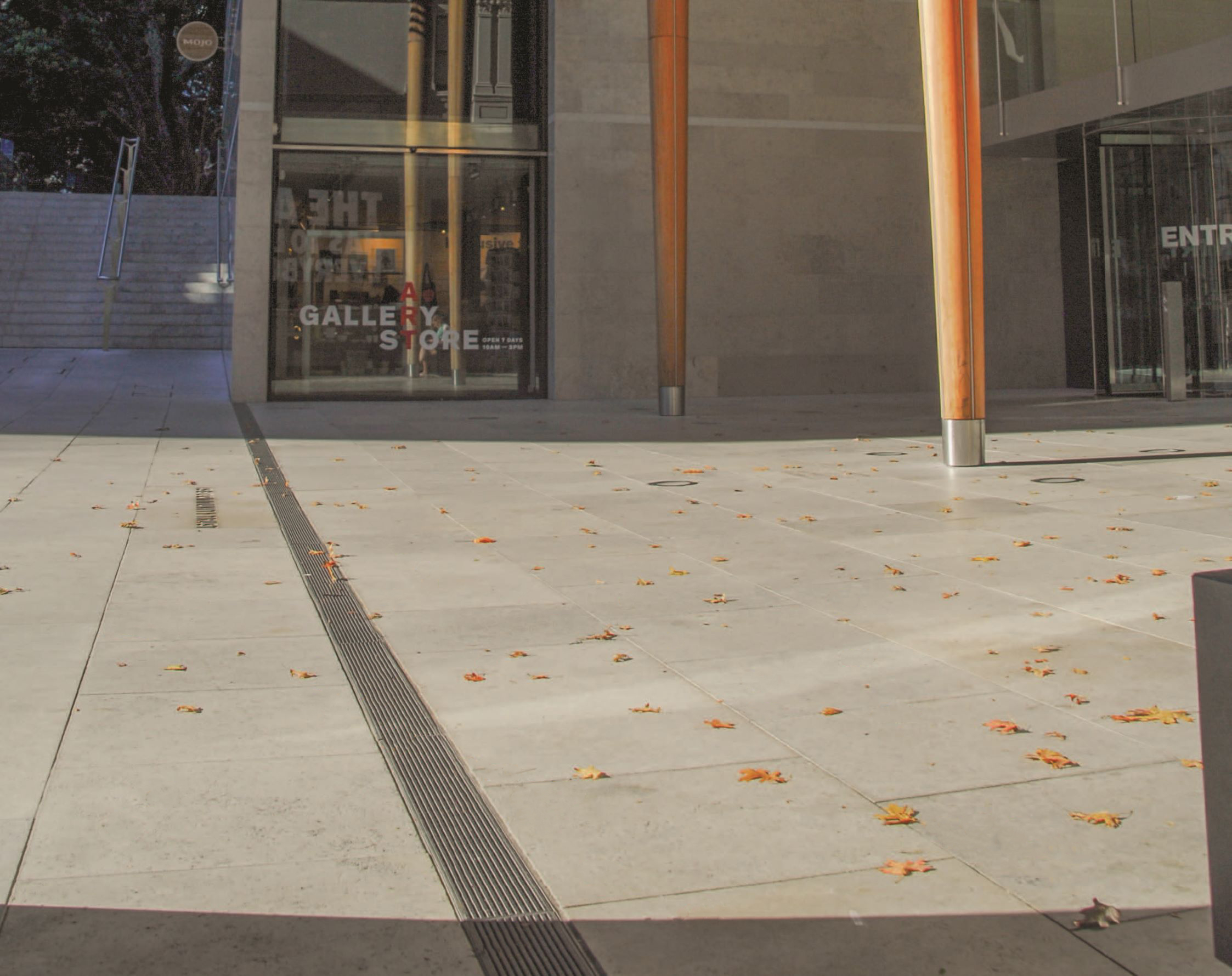

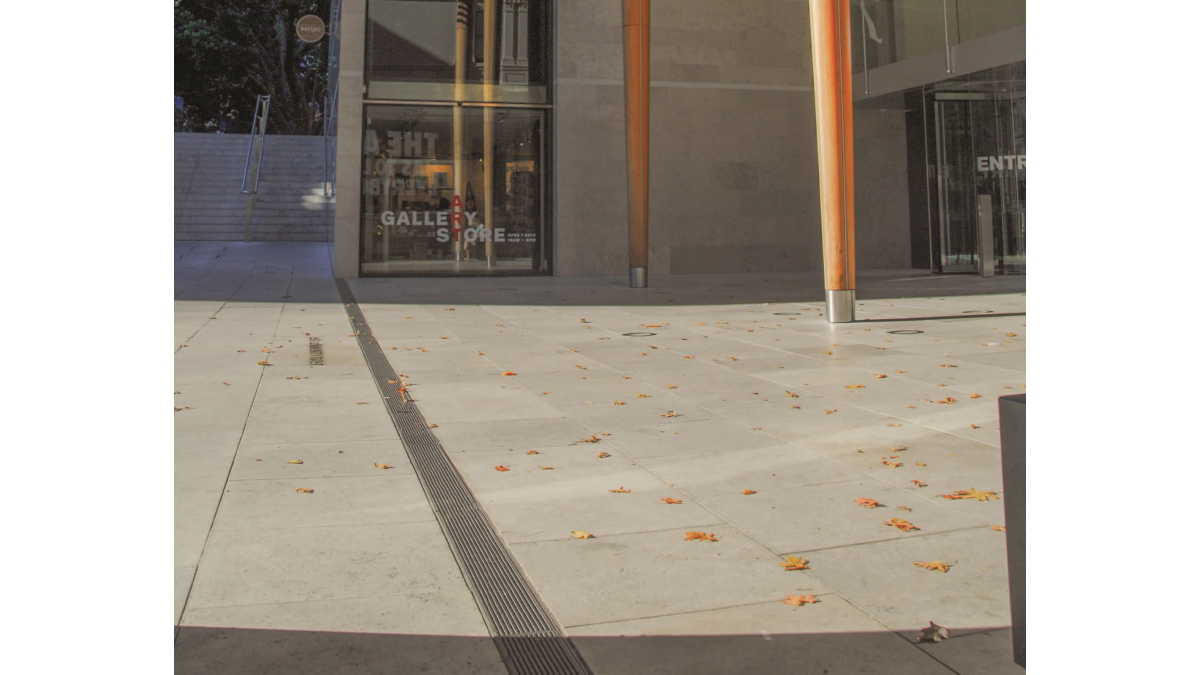

Auckland Art Gallery:

The 2011 project to redevelop the Auckland Art Gallery sought to refurbish and strengthen the much loved building, increase the exhibition space by 75% and create terraces linking the spacious entrance fourecourt to the nearby Albert Park.The high Kauri-like canopies allowed rain running into the forecourt and there was overspill from a featured fountain. To make sure that excess surface water did not enter the building, designers were required to provide adequate drainage. With the restricted depth of the site ACO’s shallow depth SlabDrain was used to manage these constraints and provide an effective drainage solution.
