D&D Technologies Sureclose® Easy Gate Closer
Description

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges.

The  SureClose Easy model is specifically designed for new or existing gates using centre mounted pivot or barrel hinges. The Easy is not a hinge as with other SureClose models; its an add-on device that can be used in many retrofit applications without the need to replace the existing hinges. Easy to install, it mounts to the top of gates that have a gate gap from 50-100mm.

Key Features
  • Add-on hydraulic closer - smooth and quiet
  • Usable with most centre-mounted hinge types
  • Ideal for new or existing gates
  • Self-closes gates up to 80kg

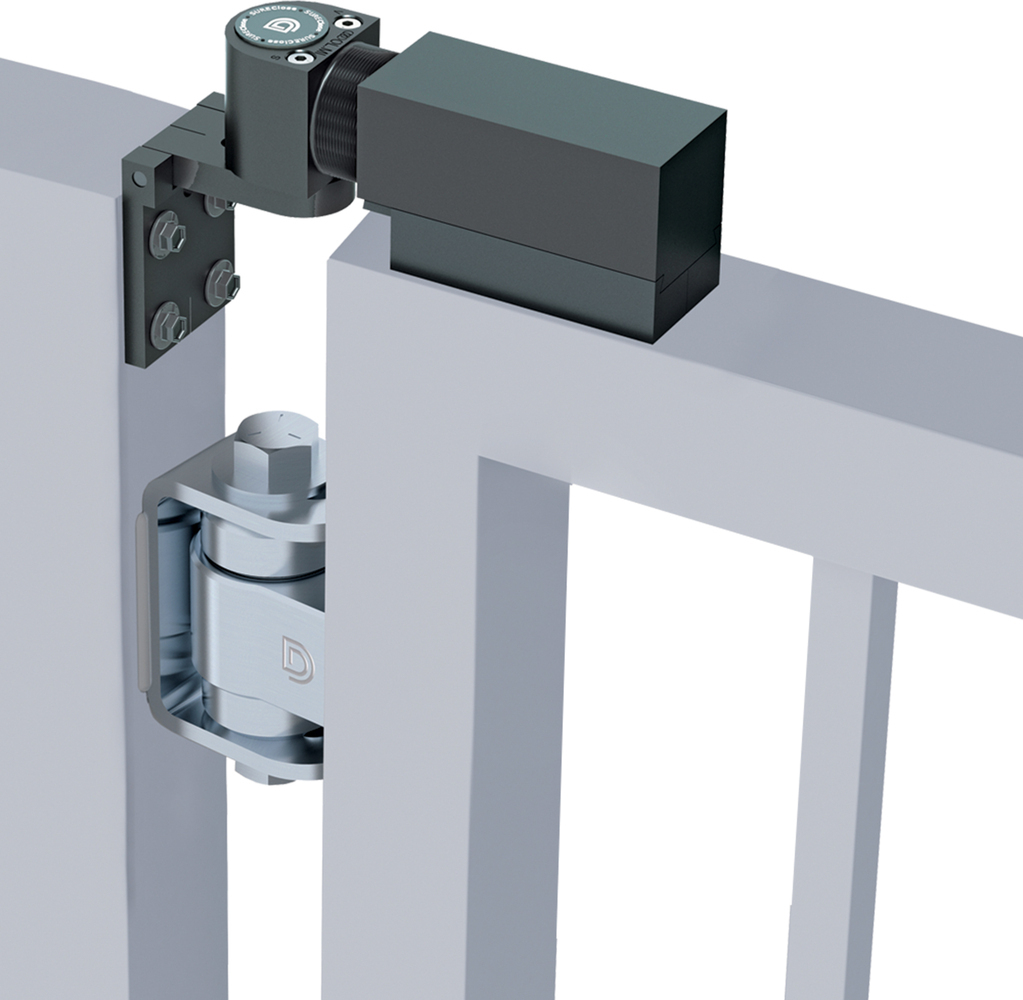

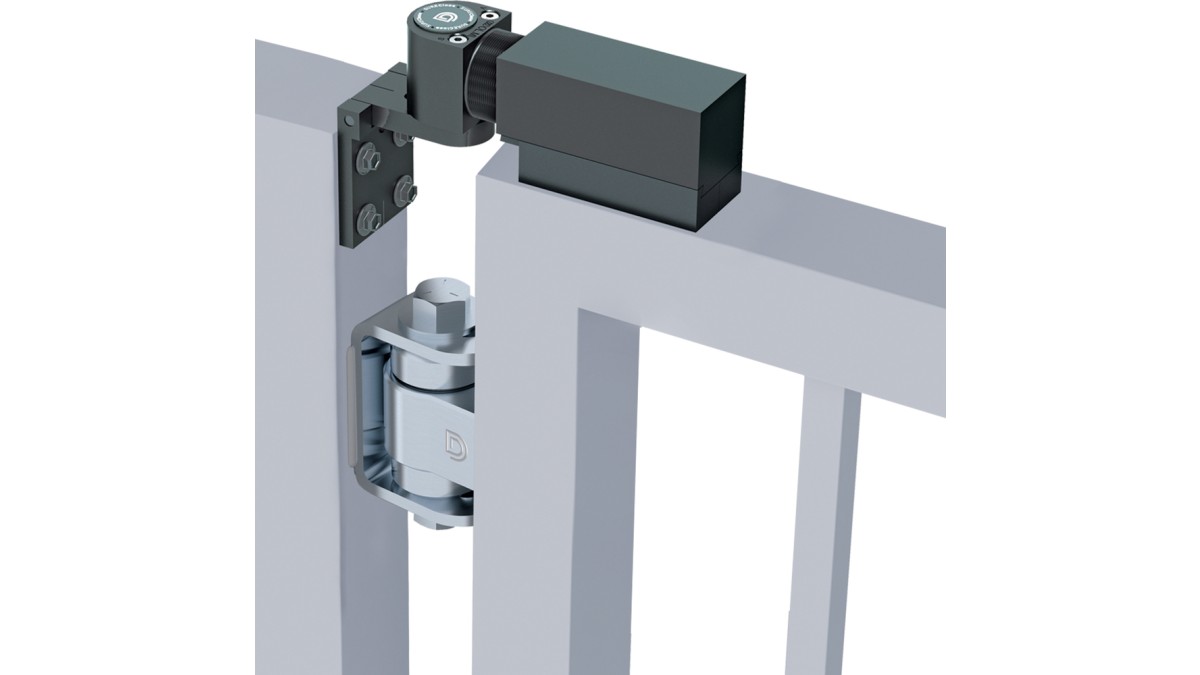

  • Easy to install: mounts onto top of gate
  • Horizontally adjustable - up to 100mm gate gaps
  • Same features as all 108SF closers

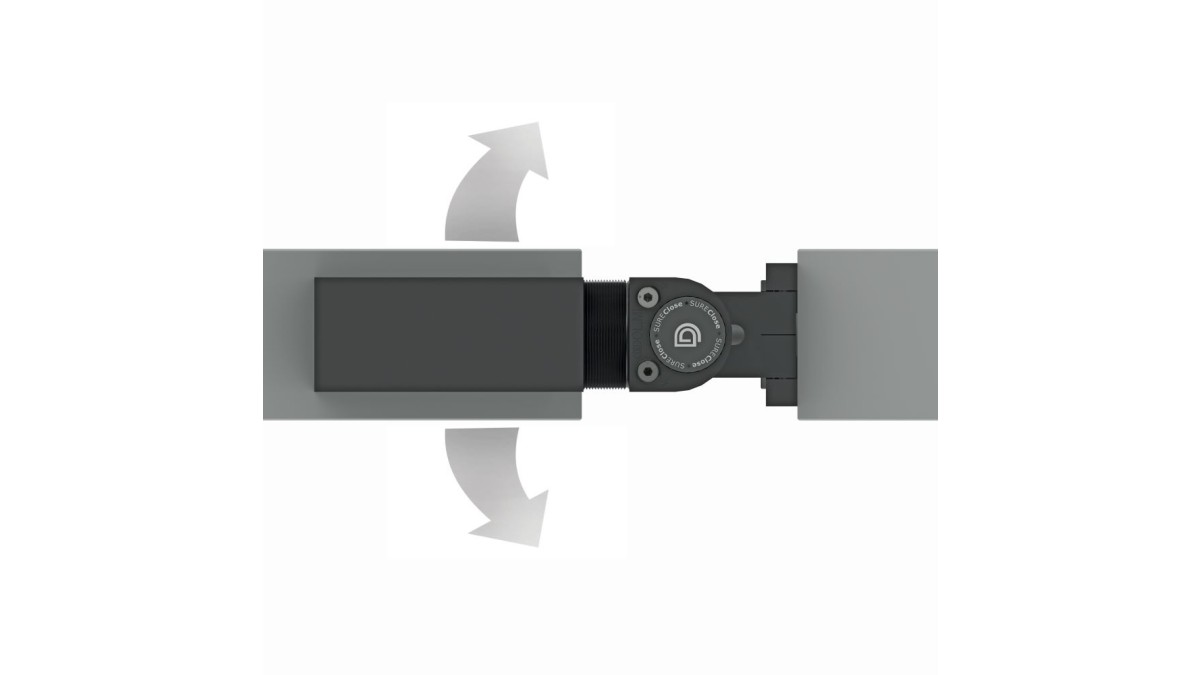

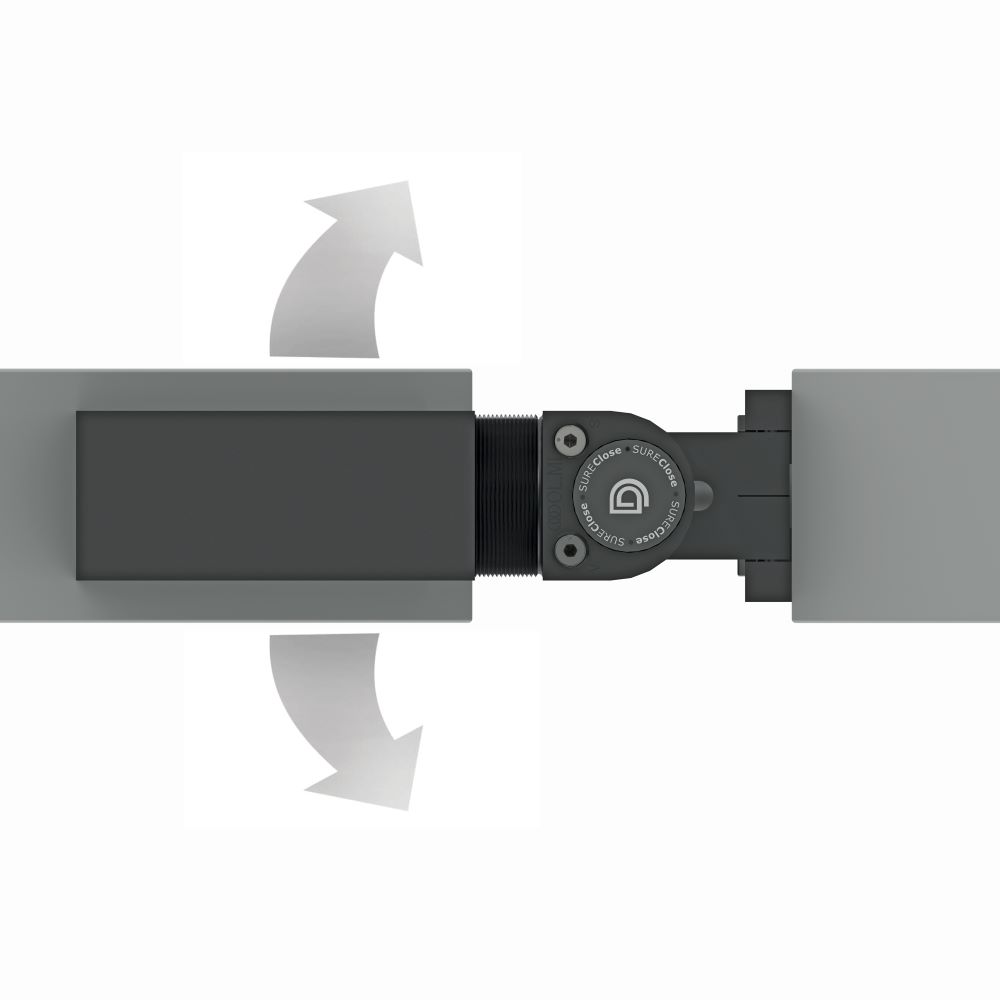

  • Opens to, and self-closes from, 90˚ (no hold-open)
  • Maintenance-free - never add fluid
  • High corrosion resistance - thick 50 micron hard anodize
  • 5 Year Limited Warranty
Scope of Use

Hydraulic, Gate Closer for Center-Hinge Mounted Gates

Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate

Limitations on Use

When installing SureClose® Closers or Hinges to a swimming pool gate always confirm any safety requirements with your local Council or authorities to ensure compliance.

Other Performance Attributes
  • Product Code: 72108423
  • Gate Type: Self-Closing
  • Gate Material: Aluminium, Steel/Ornamental Iron
  • Self-Closing Gate Weight: Up to 80kg
  • Approx Gate Size: 1.2m W x 1.8m H
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 50mm+
  • Ideal Gate Gap: 50-100mm
  • Fixing Method: Screw-On
  • Colour/Finish: Black Anodised
