InteriorInterior
May 2011

Steel Floor Joists Span 6.9m

The revolutionary punched tab system in the bearer makes setting out easy and accurate, meaning floor sheet layout is quicker and reduces cutting on site. Each raft is detailed accurately and sent to site cut to length kitset style, no cutting or measuring required!

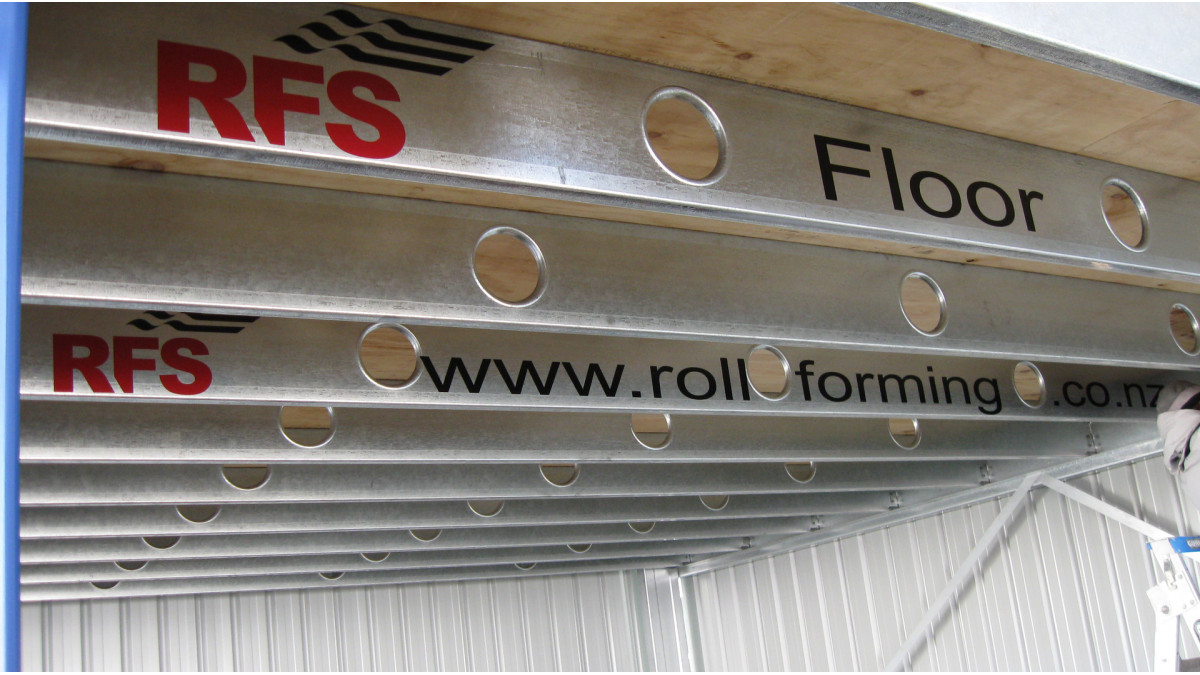

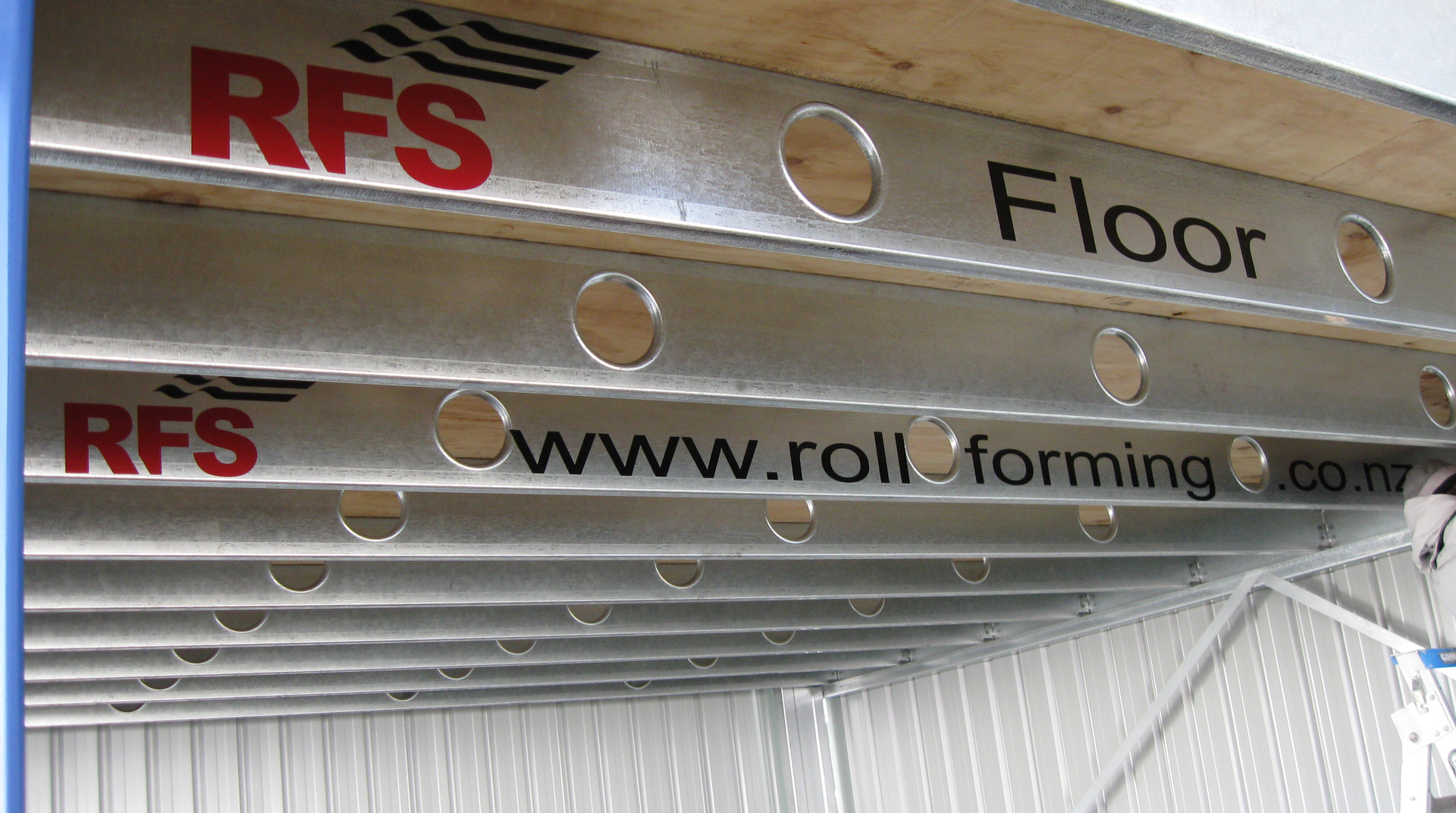

A 290mm deep C Section Joist is used which has 140mm Service Holes punched every 1m. In a 1.5kPa live load use this will span 5.9m @ 400 centres and does not require any blocking.  4 section depths are available from 140mm.

Free software is available from RFS to allow you to detail the RFS-Floor Joist system, giving you a layout, total quantity and price set by you, straight to your customer.

View more information on Axxis Steel, including contact details.
